Features:

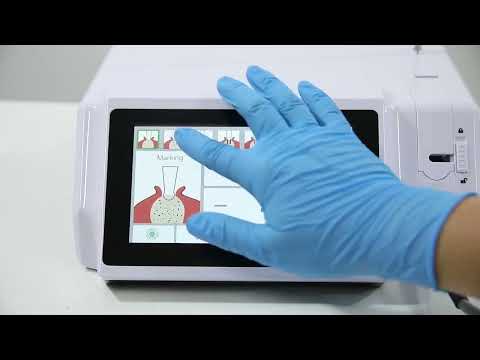

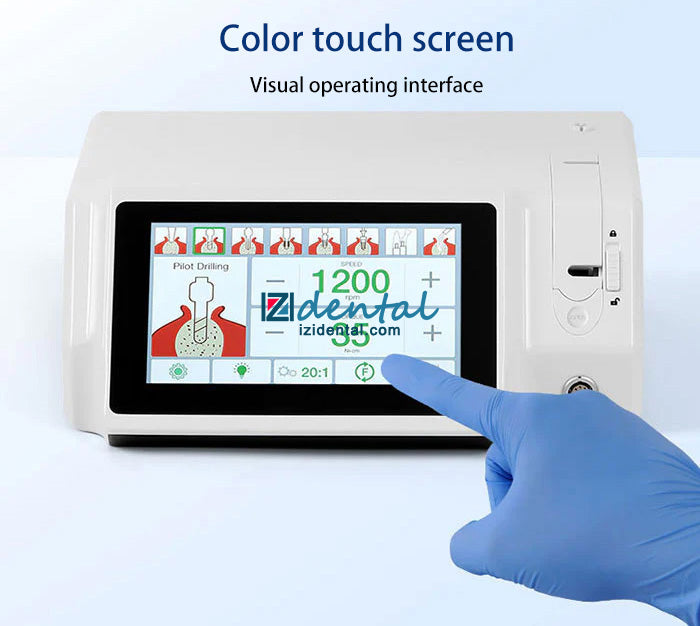

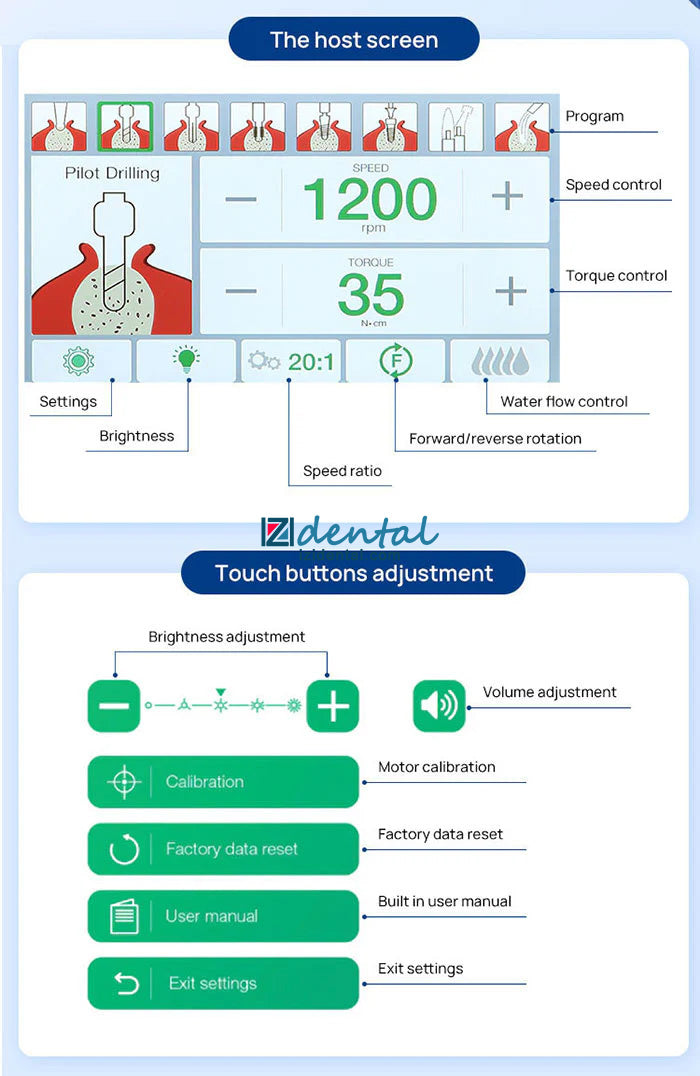

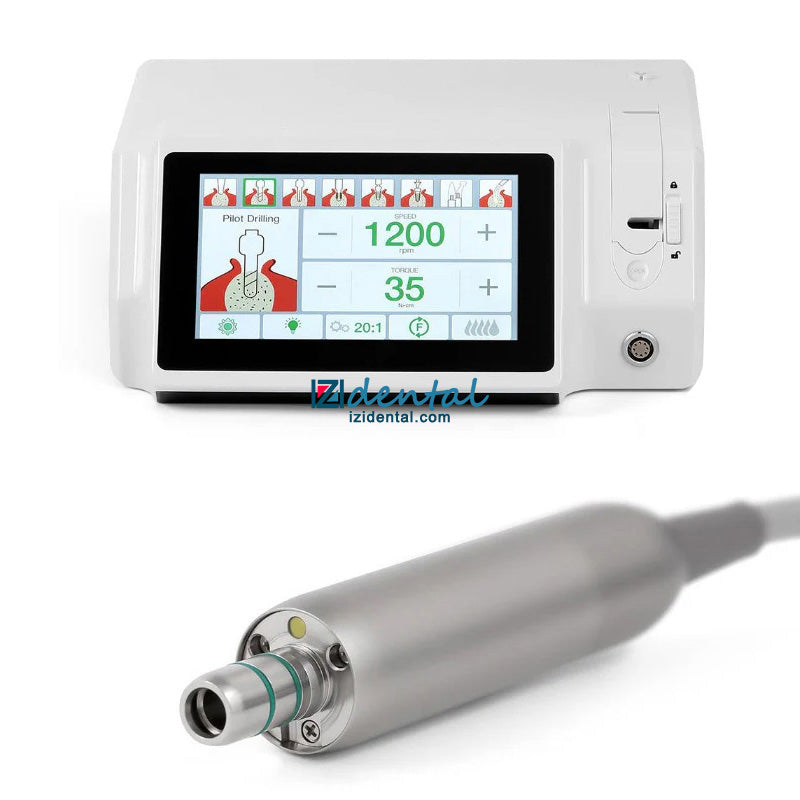

1. Color touch screen
The large size screen ensures that the treatment parameters are visible. Graphical operation steps, intuitive and clear,easy operation,simple and flexible,humanized touch design,responsive.

2. Multi function
For implant,restoration,extraction of impacted teeth, orthopaedic surgery.

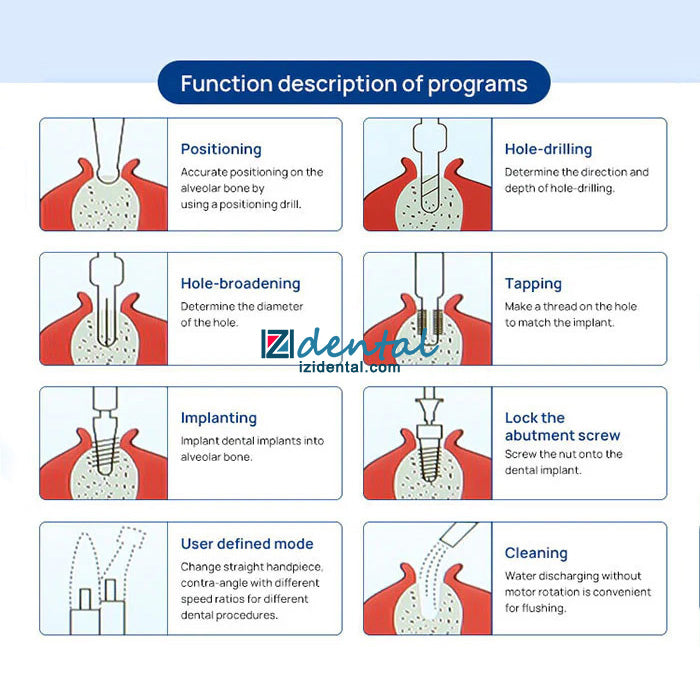

8 Program memory function for setting setting speed, torque,compatible with various contra angle or straight handpiece  ,such as 20:1 16:1 27:1 4:1 3.2:1 1:1 1:3 1:4.2 1:5

3. Motor Auto-Calibration function (implant).
Operate safely with high precision thanks to the surgical motor,low noise and vibration,powerful.

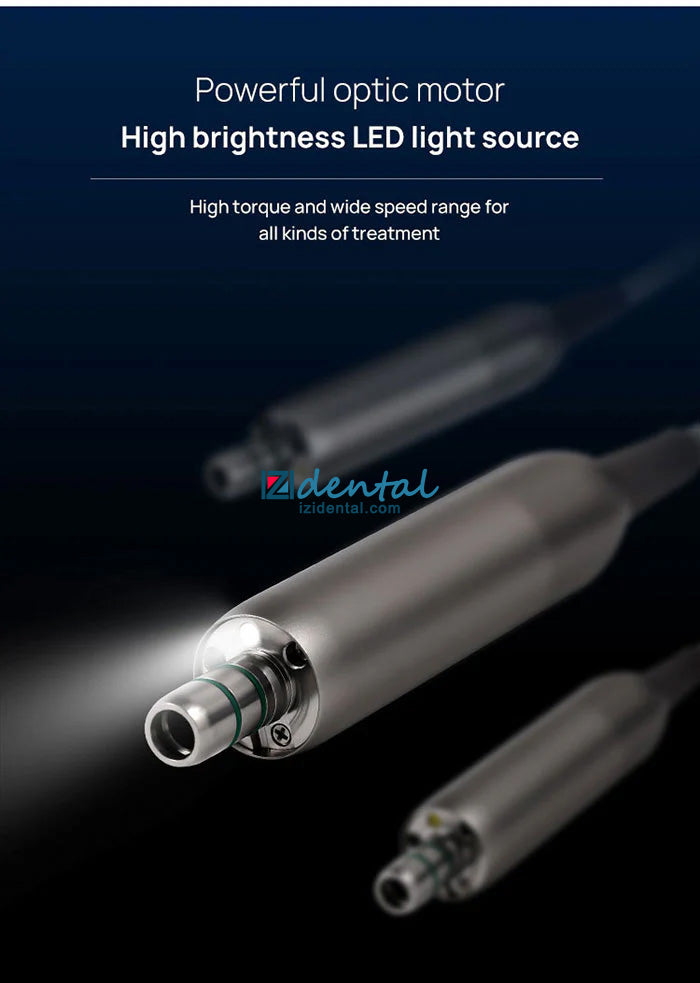

4. A new generation of motors with torque up to 80Ncm.
High performance brushless motor, high torque and wide speed range for all kinds of treatment.

5. LED lighting ensures visibility.
Helps clinicians focus more on the treatmenet area and make surgery more accurate.

6. Illumination and sound can be adjusted.

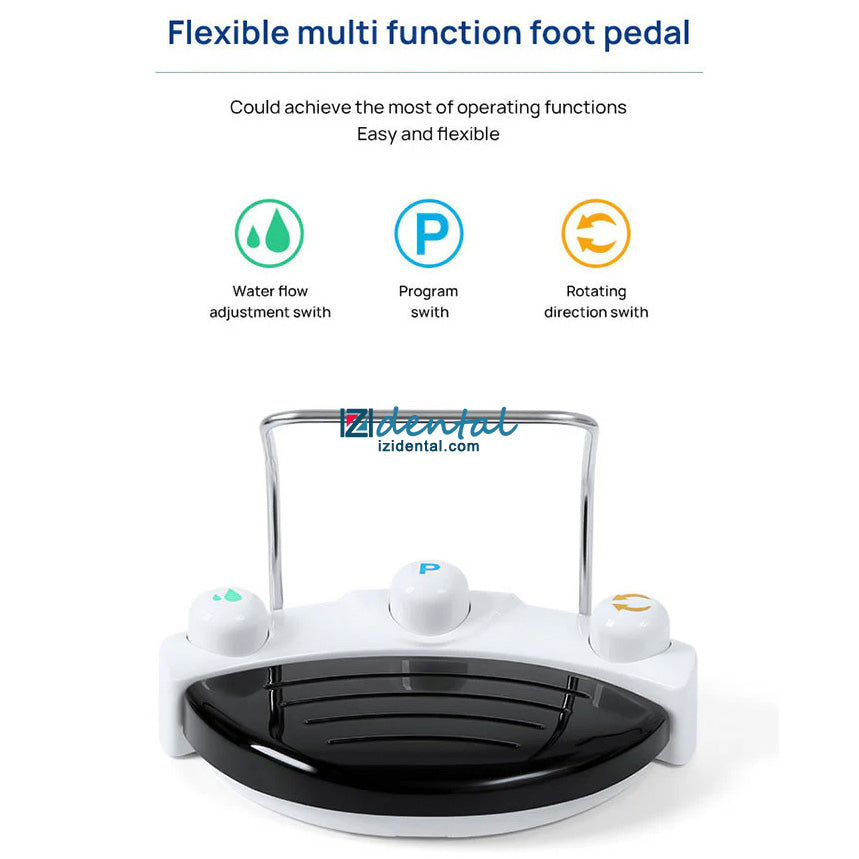

7. Flexible multi function foot pedal.
Could achieve the most of operating functions.

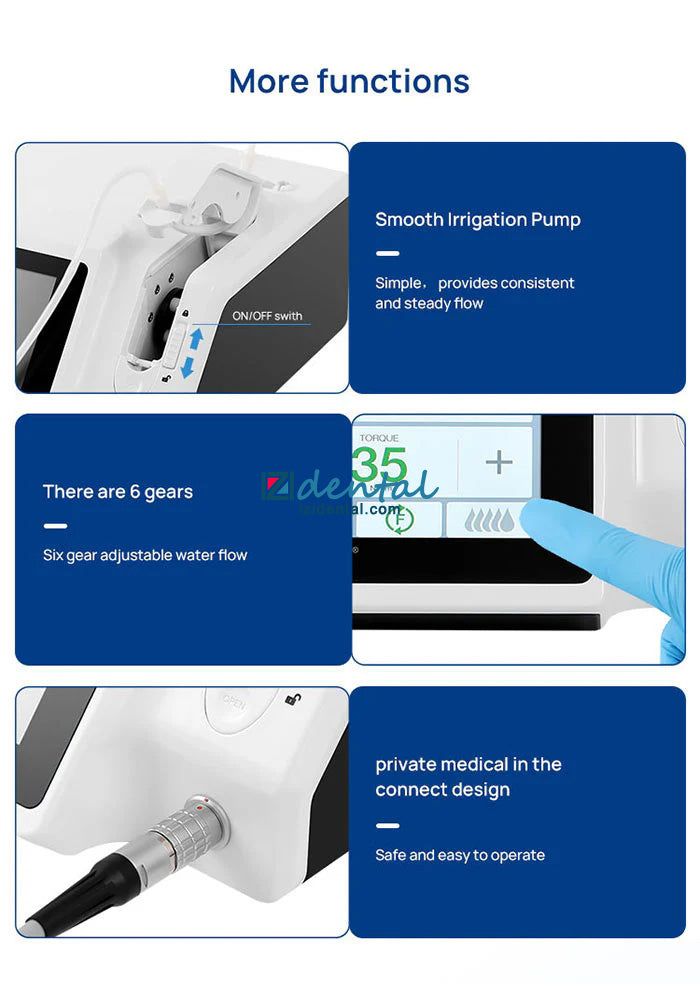

8. Smooth Irrigation Pump.
There are 6 gears water flow,click the button each time, increase water volume .

9. Built in user manual.
Simple and convenient operation.

10. Motor and cable can not be sterilized at high temperature and pressure.
11. Built in common error prompt and alarm interfaces.
Timely remind the wrong operation, better protect the machine.

Technical:
Maximum power:150W
Power supply:AC100-120V/200-240V
Torque:5-80Ncm
Motor speed:300-40000rpm
Infusion flow(Maximum):135ml/min

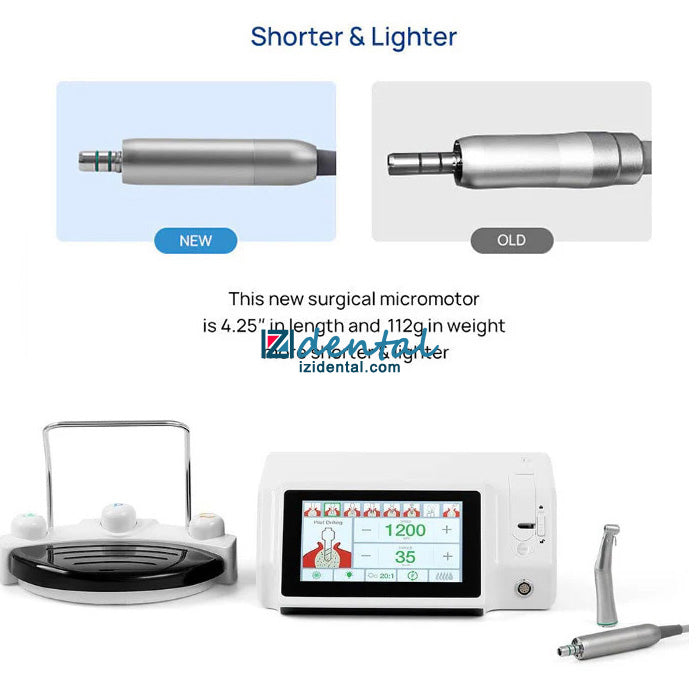

Surgical brushless motor
8 setting programs

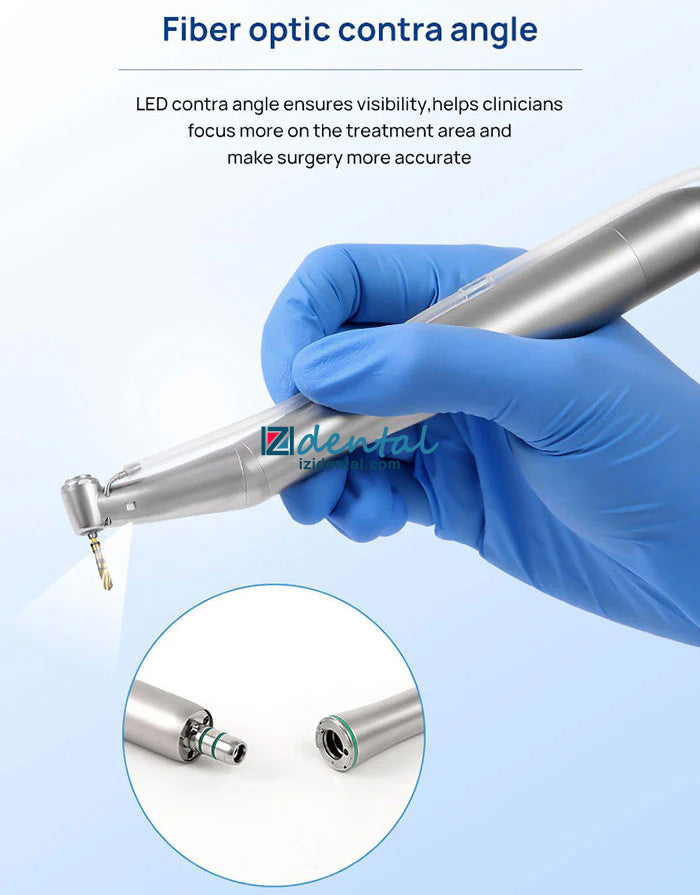

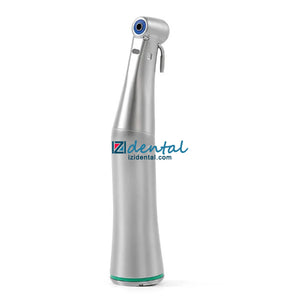

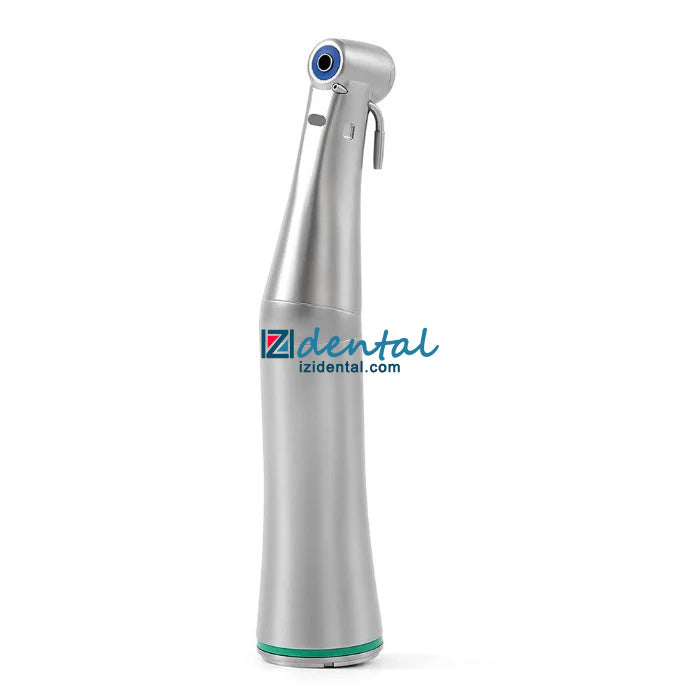

20:1 Fiber Optic Contra Angle
LED light source illumination

Warranty
Main unit: 2 years
Motor and contra angle: 1 year

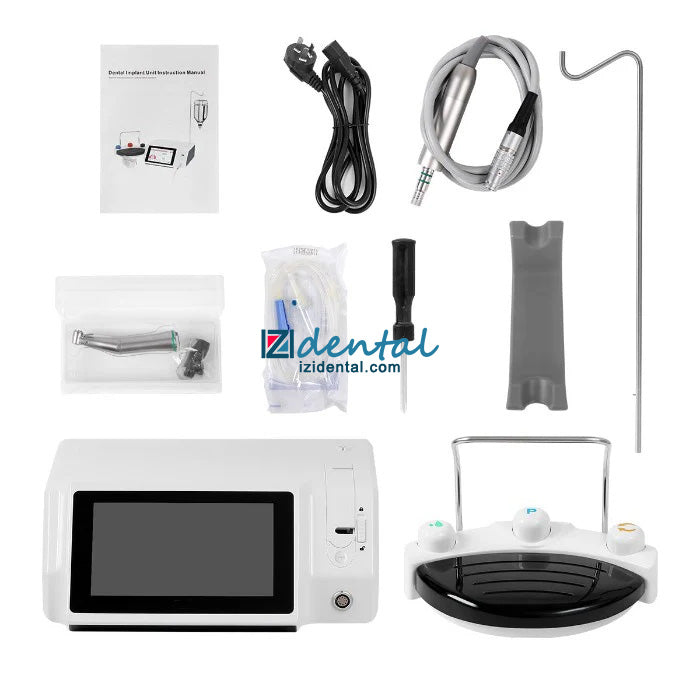

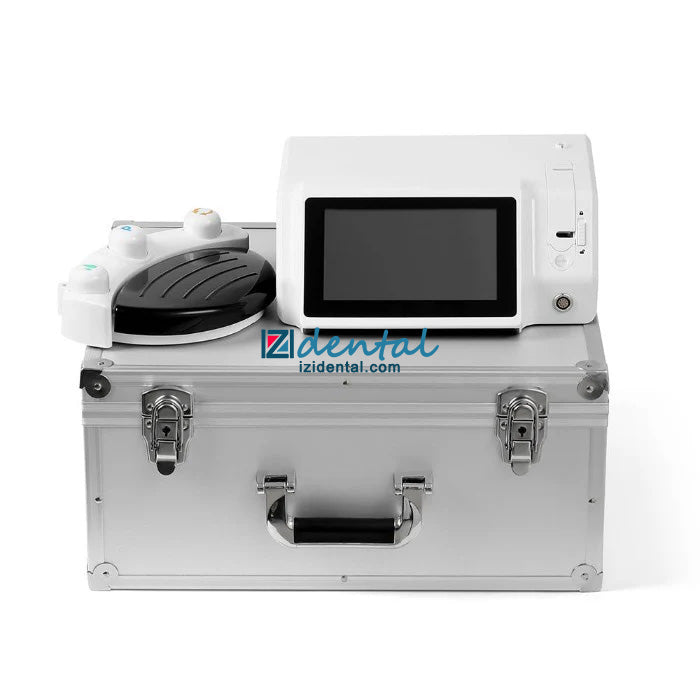

Package:
Implant unit*1
E-type motor*1（Cannot be autoclaved）
LED contra angle handpiece*1
Foot pedal*1
Motor stand*1
Hanger*1
Power cord*1
Motor cap *1
Irrigation tube*2
English instruction manual*1

Yahope IMPLANT surg Dental Implant Machine User Manual.pdf
