Wide-spectrum Curing
Most resins in the market contain photoinitiators such as Camphorquinone, TPO, and Ivocerin. These photoinitiators have a main absorption wavelength range of 385-515nm. X-cure operates within this same wavelength range of 385-515nm, making it highly effective for curing most resins available on the market.

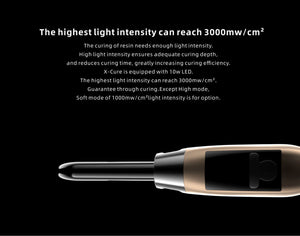

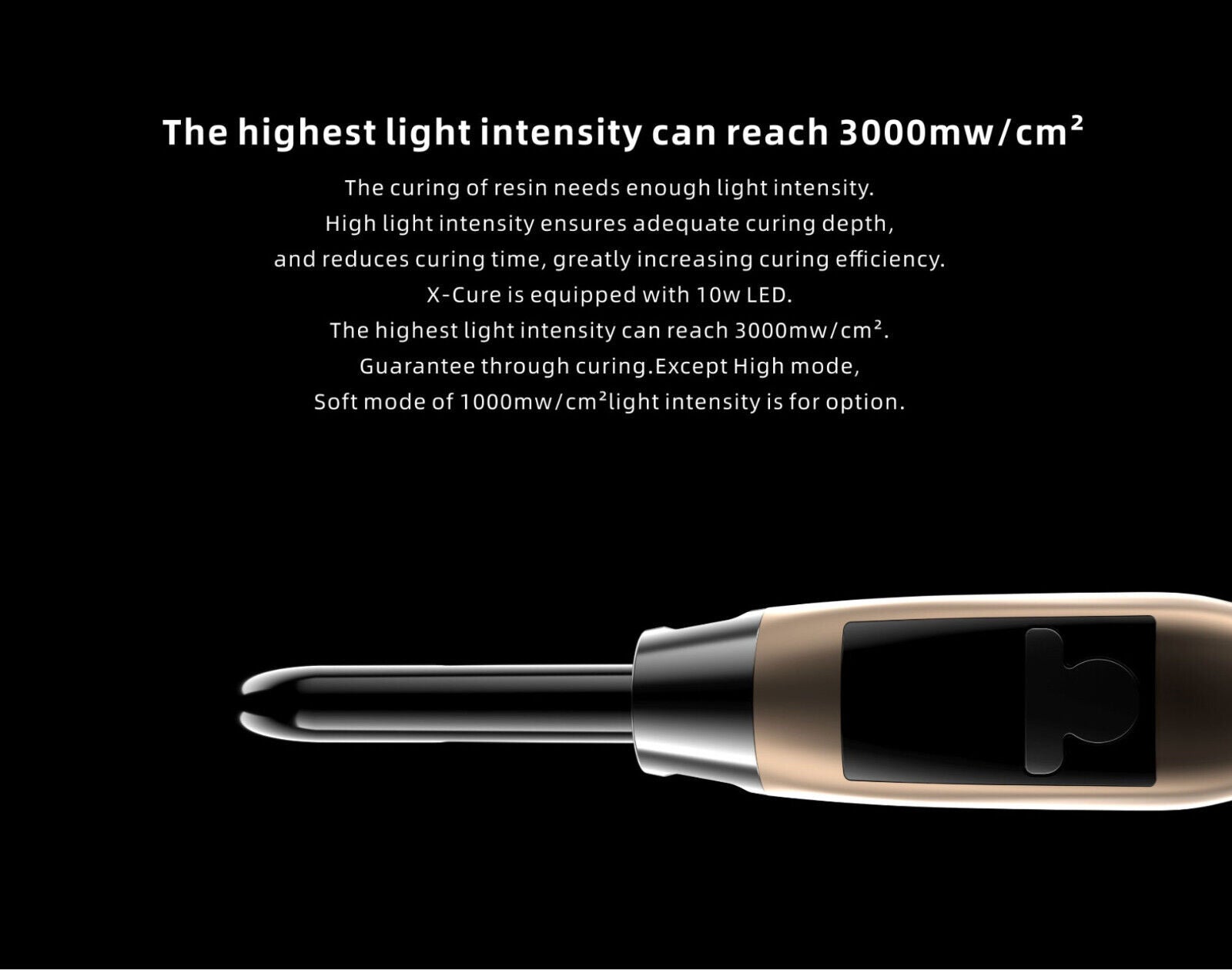

The highest light intensity can reach 3000mw / cm²
The curing of resin needs enough light intensit
High light intensity ensures adequate curing depth and reduces curing time , greatly increasing curing efficiency
X-cure is equipped with 10W LED
The highest light intensity can reach 3000mw / cm²
Guarantee through curing Except High mode，Soft mode of 1000mw / cm2 light intensity is for option

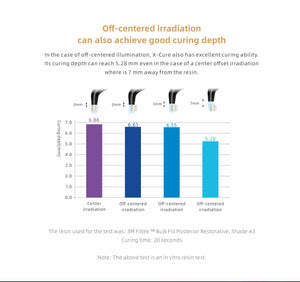

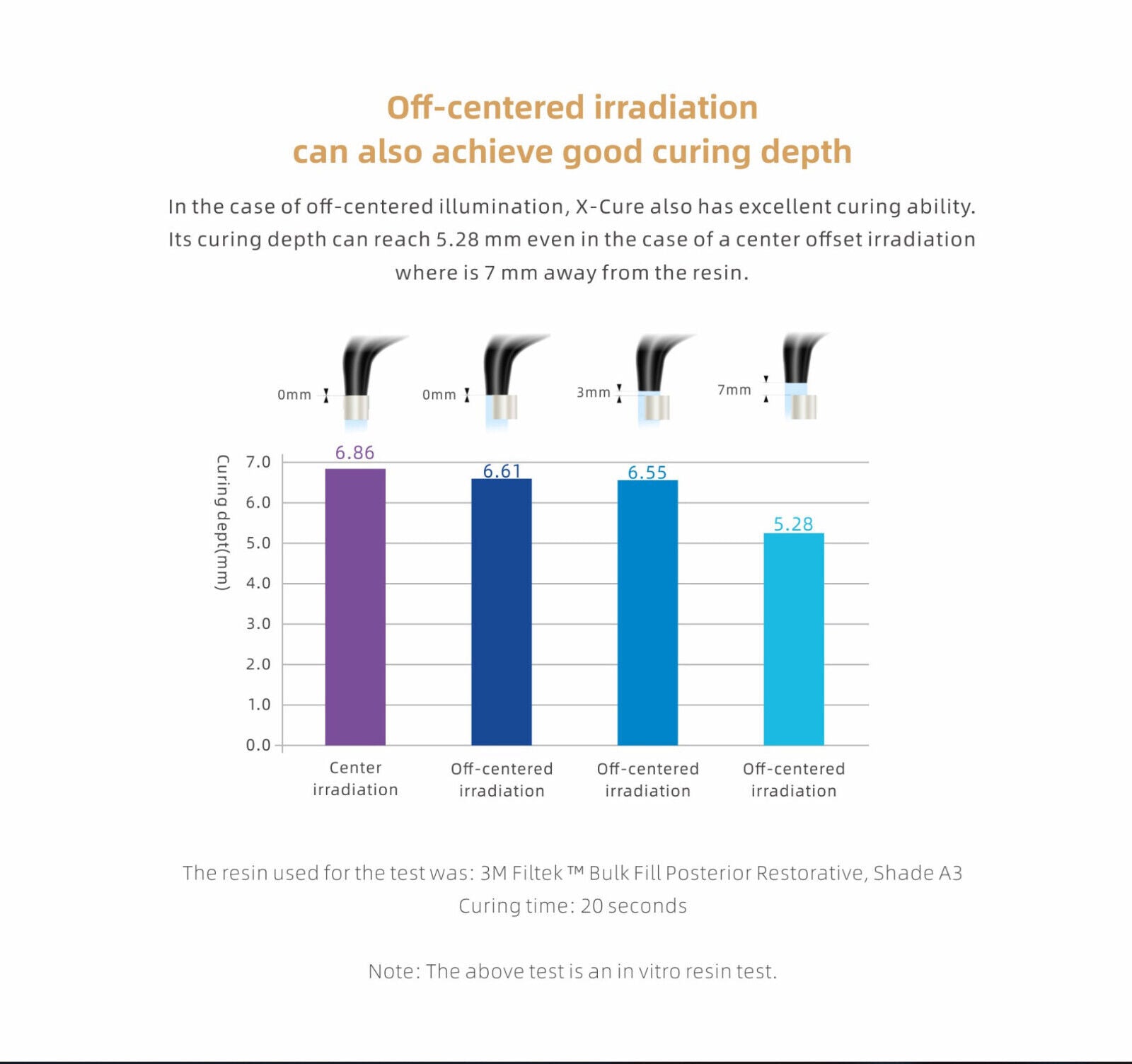

Off-centered irradiation can also achieve good curing depthn
In the case of off-centered illumination , X-cure also has excellent curing ability，
Its curing depth can reach 5.28 mm even in the case of a center offset irradiation where is 7 mm away from the resin
Off-centered irradiation can also achieve good curing depthn
In the case of off-centered illumination , X-cure also has excellent curing ability，
Its curing depth can reach 5.28 mm even in the case of a center offset irradiation where is 7 mm away from the resin

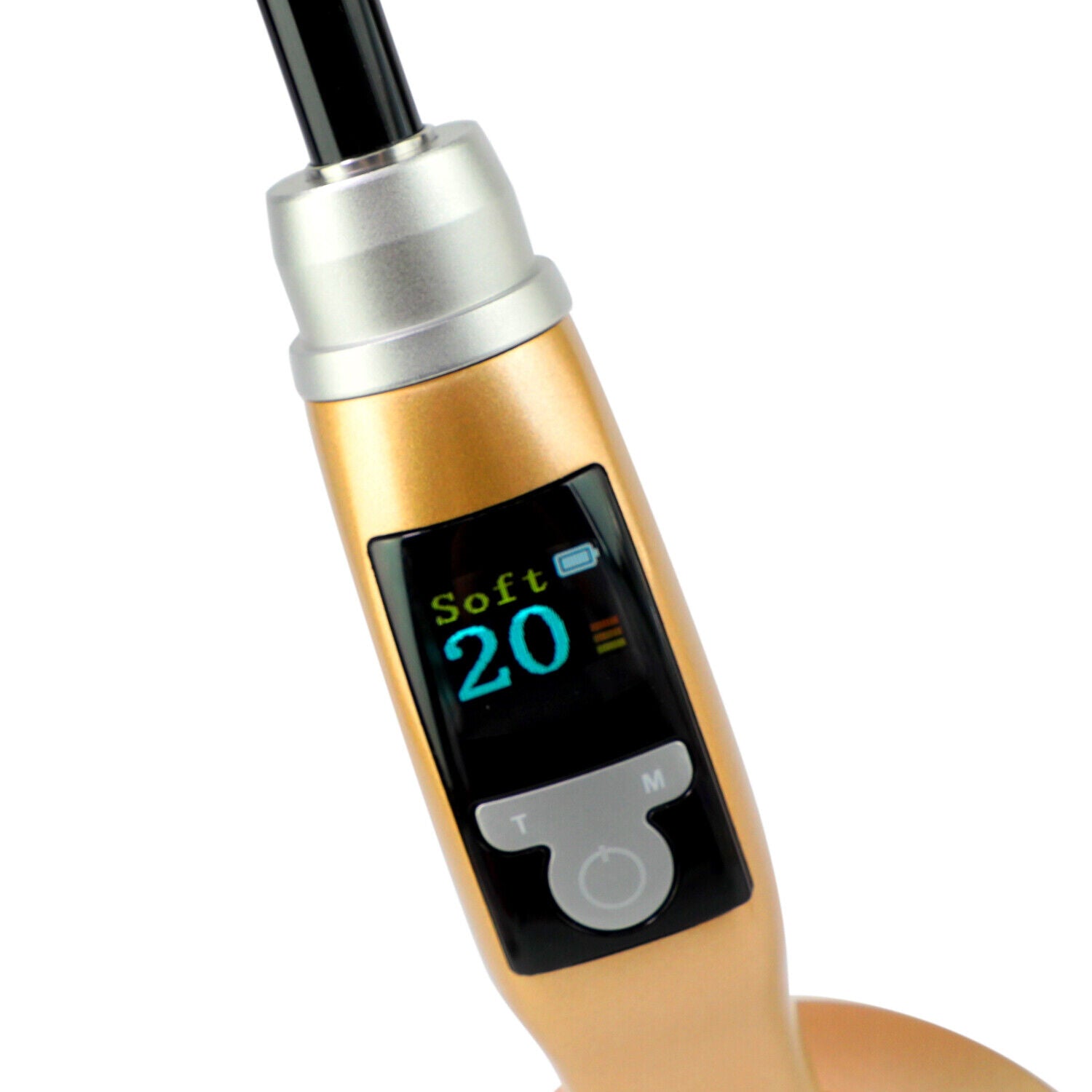

OLED display screen
Adopting the latest display tecknology
Avisible and interface
Specifics:
1) Three working modes: Check mode, Progressive (Soft) mode, High light intensity (High) mode.
2) Time setting: High light intensity (High) mode: 1 second, 2 seconds, 3 seconds; Progressive (Soft) mode: 5 seconds, 10 seconds, 15 seconds, 20 seconds; Detection (Check) mode: 30 seconds, 60 seconds ;
3) Constant optical power output, the curing effect will not be affected by the decrease of battery power.
4) Large-capacity battery, fully charged at one time, illuminated for 10 seconds/time, can be used continuously for more than 400 times.

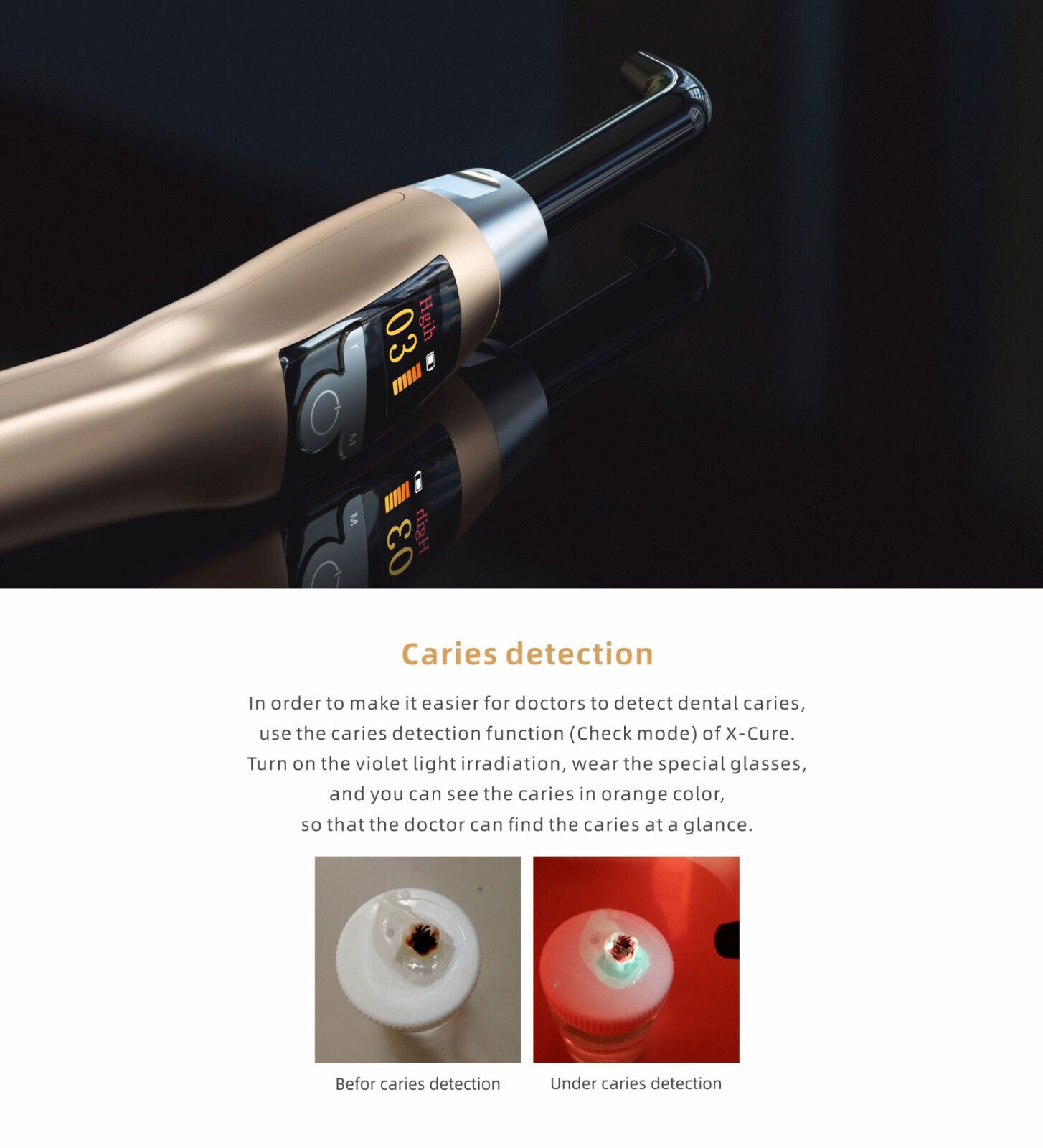

5) Check mode is forbidden to be used for light-curing materials, and is only used to detect calculus, caries, cracks, etc.
Technical data:
| Specification | Details |
|---|---|
| Wavelength | 385-515 nm |
| Light Source | Blue 10W LED |
| Output Power | 200 mw/cm² - 2500 mw/cm² |
| Dimensions | 276mm x 28mm x 30mm |
| Battery Capacity | 1400 mAh |
| Power Supply | 100 – 240V, 50/60Hz, 0.8A |
Wide-spectrum Curing
Most resins in the market contain photoinitiators such as Camphorquinone, TPO, and Ivocerin. These photoinitiators have a main absorption wavelength range of 385-515nm. X-cure operates within this same wavelength range of 385-515nm, making it highly effective for curing most resins available on the market.
The highest light intensity can reach 3000mw / cm²
The curing of resin needs enough light intensit
High light intensity ensures adequate curing depth and reduces curing time , greatly increasing curing efficiency
X-cure is equipped with 10W LED
The highest light intensity can reach 3000mw / cm²
Guarantee through curing Except High mode，Soft mode of 1000mw / cm2 light intensity is for option
Off-centered irradiation can also achieve good curing depthn
In the case of off-centered illumination , X-cure also has excellent curing ability，
Its curing depth can reach 5.28 mm even in the case of a center offset irradiation where is 7 mm away from the resin
Off-centered irradiation can also achieve good curing depthn
In the case of off-centered illumination , X-cure also has excellent curing ability，
Its curing depth can reach 5.28 mm even in the case of a center offset irradiation where is 7 mm away from the resin
OLED display screen
Adopting the latest display tecknology
Avisible and interface
Specifics:
1) Three working modes: Check mode, Progressive (Soft) mode, High light intensity (High) mode.
2) Time setting: High light intensity (High) mode: 1 second, 2 seconds, 3 seconds; Progressive (Soft) mode: 5 seconds, 10 seconds, 15 seconds, 20 seconds; Detection (Check) mode: 30 seconds, 60 seconds ;
3) Constant optical power output, the curing effect will not be affected by the decrease of battery power.
4) Large-capacity battery, fully charged at one time, illuminated for 10 seconds/time, can be used continuously for more than 400 times.
5) Check mode is forbidden to be used for light-curing materials, and is only used to detect calculus, caries, cracks, etc.
Technical data:
| Specification | Details |
|---|---|
| Wavelength | 385-515 nm |
| Light Source | Blue 10W LED |
| Output Power | 200 mw/cm² - 2500 mw/cm² |
| Dimensions | 276mm x 28mm x 30mm |
| Battery Capacity | 1400 mAh |
| Power Supply | 100 – 240V, 50/60Hz, 0.8A |

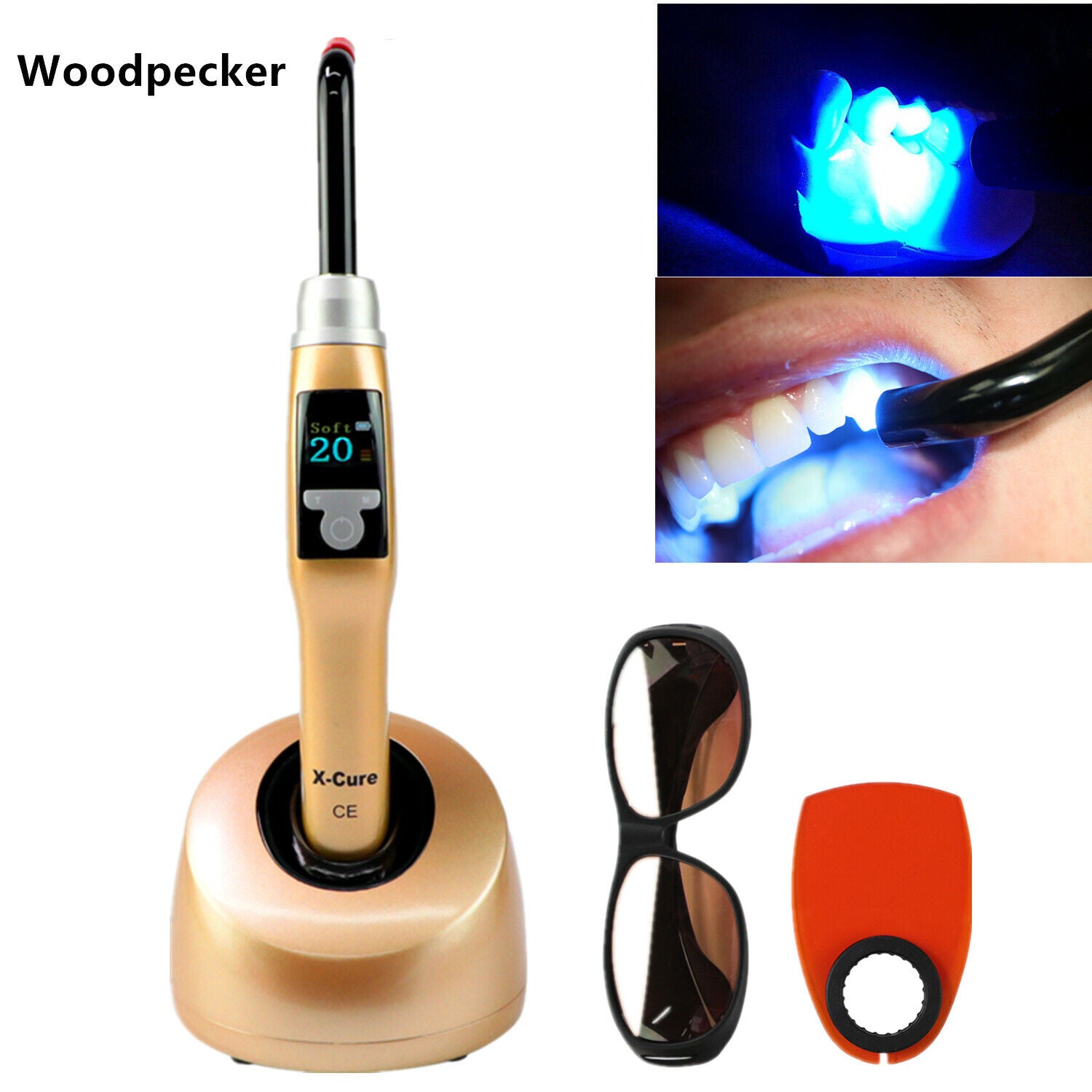

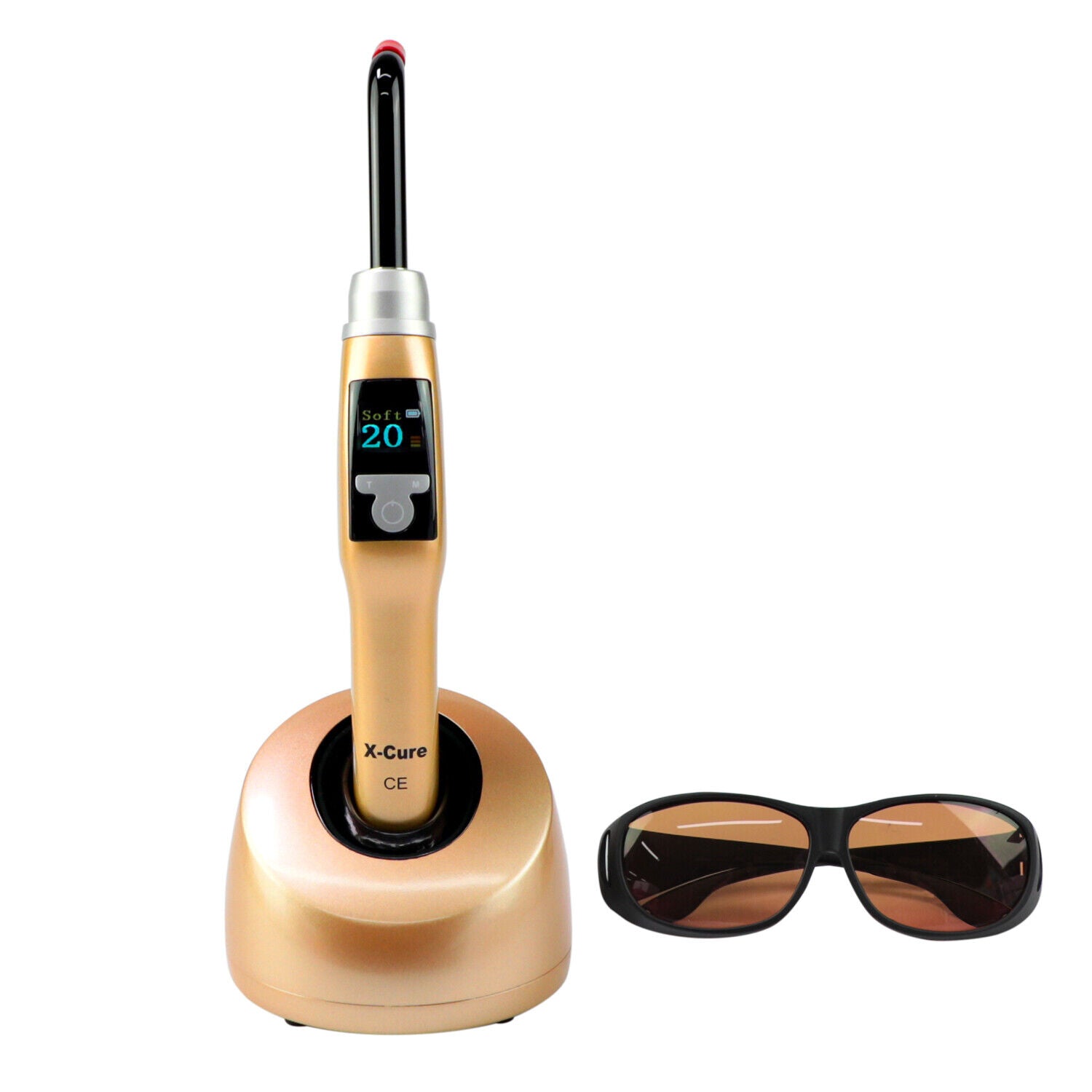

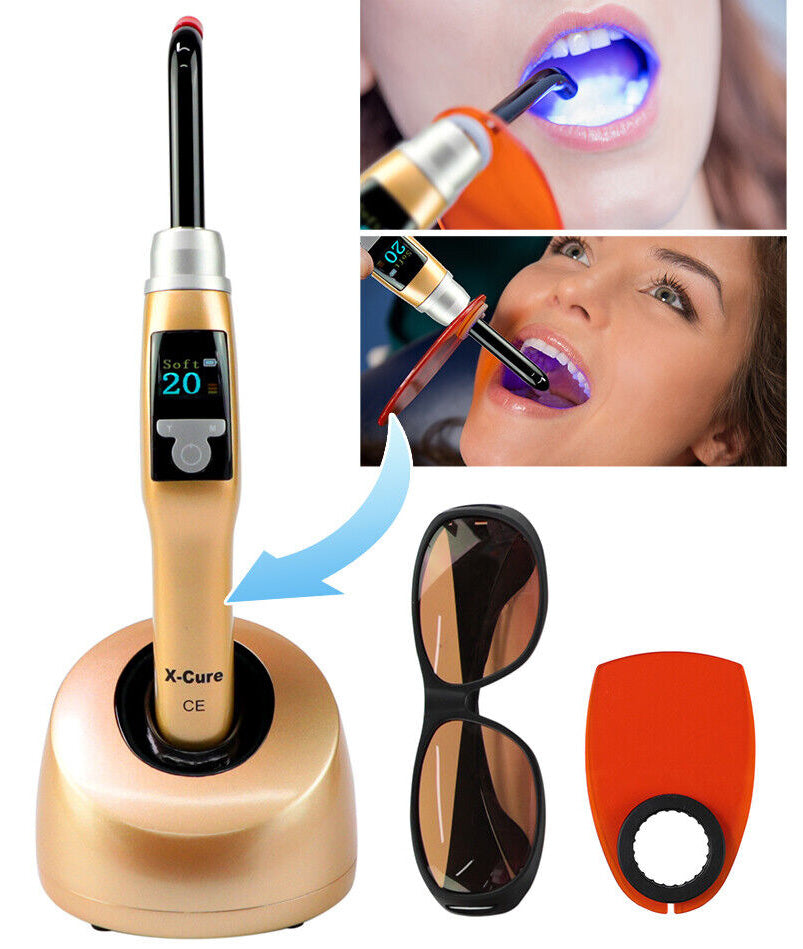

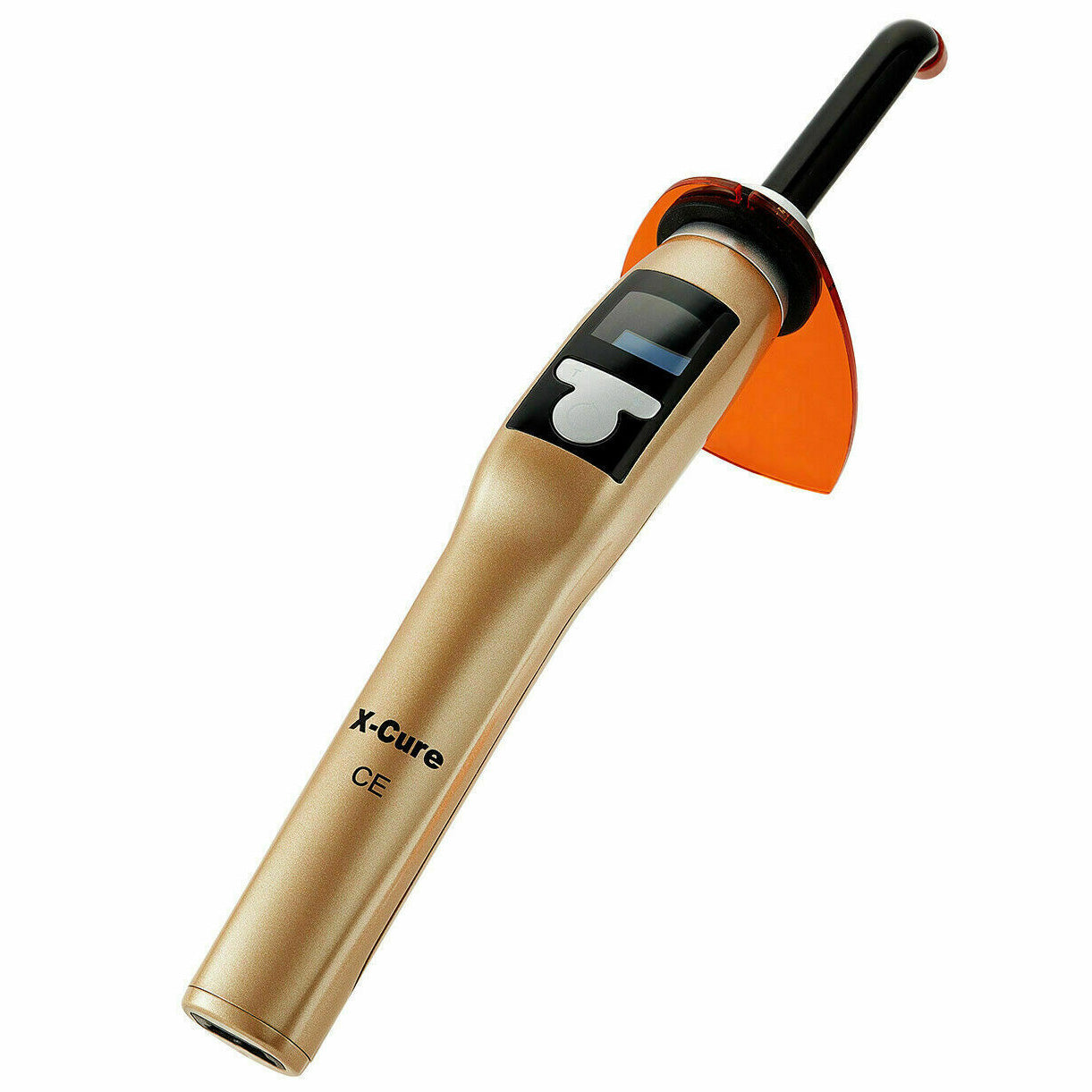

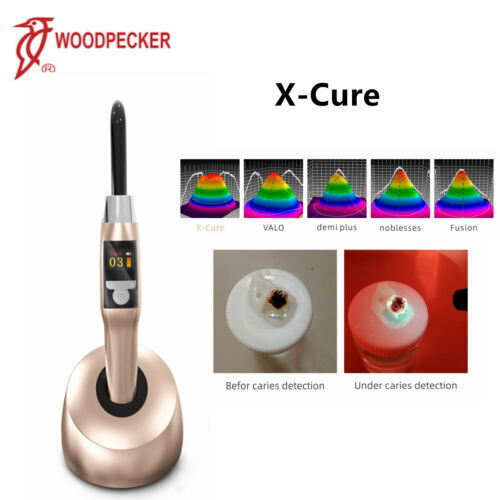

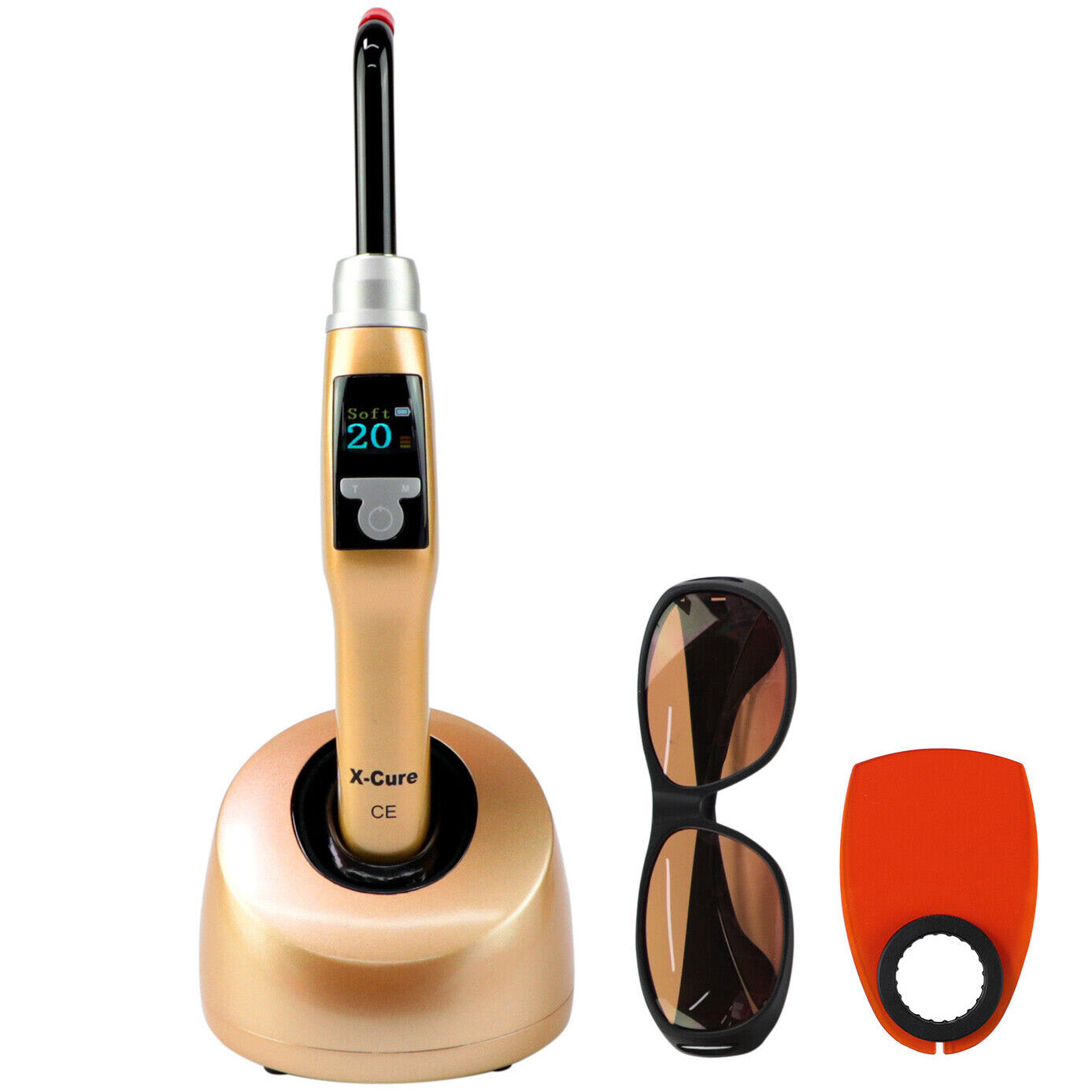

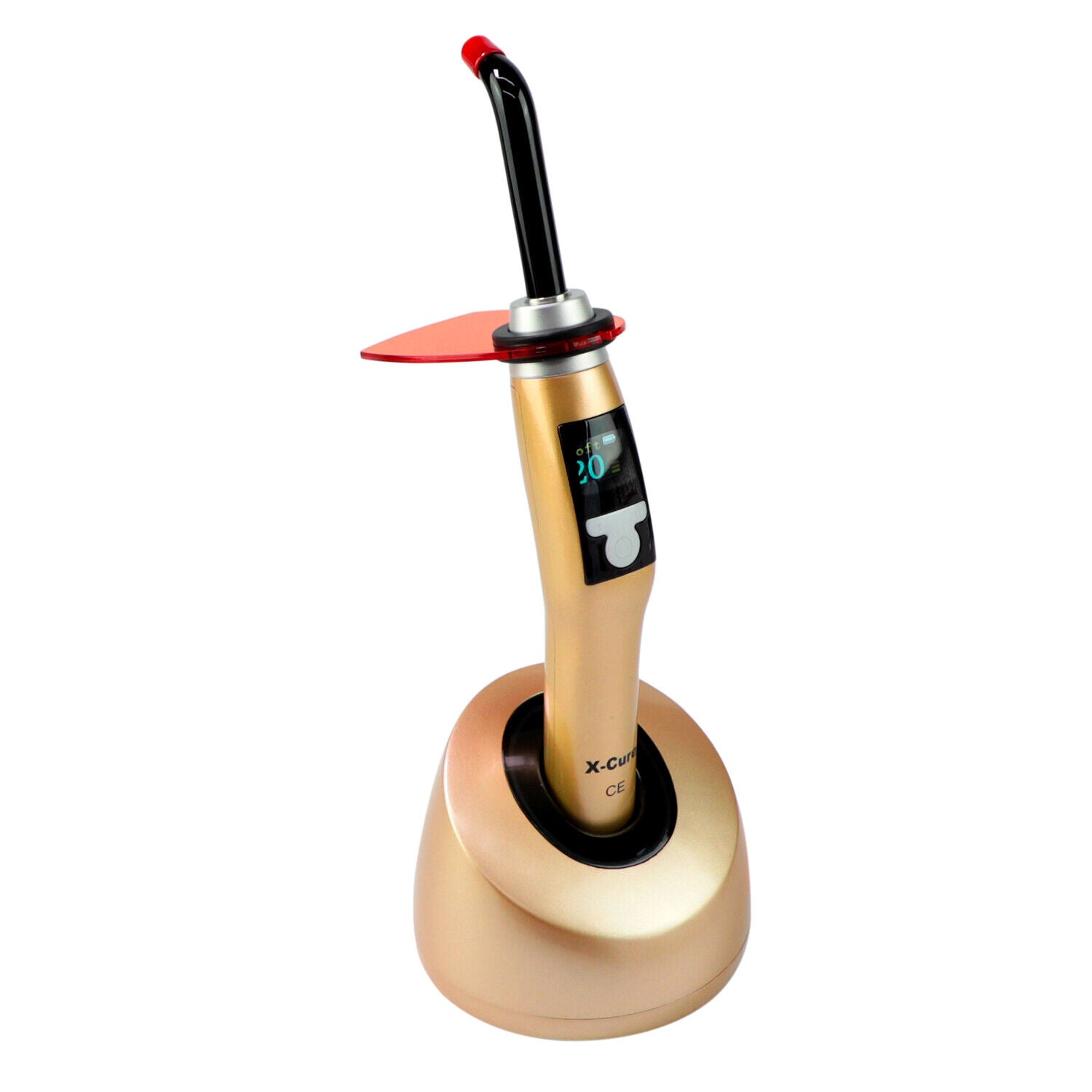

Woodpecker X-Cure Dental LED Wide Spectrum Curing Light with Caries Detector
- Regular price
- £365.98
- Sale price
- £365.98
- Regular price
-
£388.99
