About
Features
1. Multi-function: Scaling, perio and endo.

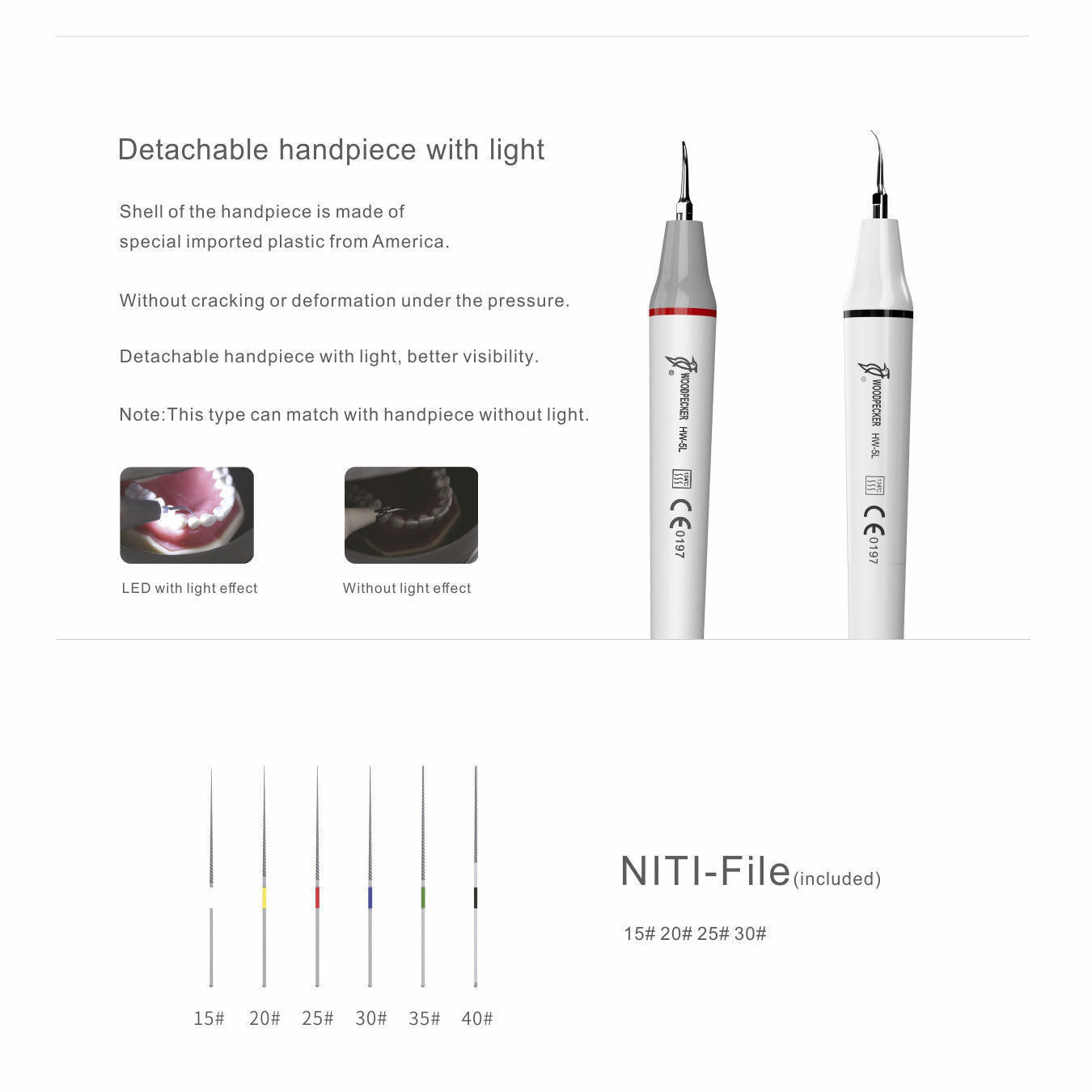

2. Optical handpiece, more convenient for clinical operation. (only UDS-P LED)
3. The handpiece is detachable and can be autoclaved to 135° and 0.22MPa.
4. The handpiece is cast from Titanium alloy to ensure sound mechanic function and durability.
5. Assembled with excellent piezo-ceramic, the handpiece has high and lasting power and generates little heat.
6. The cable is made from silica gel tube, soft and durable.
7. The scaling tip is made of special material. The cavitation produced from the end of scaling tip makes the cleaning of teeth and the killing of germ easily.
8. Eliminating dental calculus, bacterial plague and tea scales on the teeth quickly without hurting the gum or the enamel.
9. Automatic frequency tracking ensures that the machine always works on the best frequency and performs more steadily.
10. Digitally controlled, easy operation and more efficient for scaling.
11. Compatible with EMS, you could connect your EMS handpiece with this control box, and you could also connect this Woodpecker UDS handpiece with EMS control box.
12. CE and FDA certificated.
Technical Specification:
| Specification | Value |
|---|---|
| Adapter Input | 220-240V~ 50/60Hz 150mA |
| Output Primary Tip Vibration Excursion | ≤100μm |
| Output Half-Excursion Force | <2N |
| Output Tip Vibration Frequency | 28kHz±3kHz |
| Main Unit Input | 24V~, 1.3A |
| Output Power | 3-20 W |
| Main Unit Fuse | T1.6AL, 250V |
| Adapter Fuse | T0.5AL, 250V |

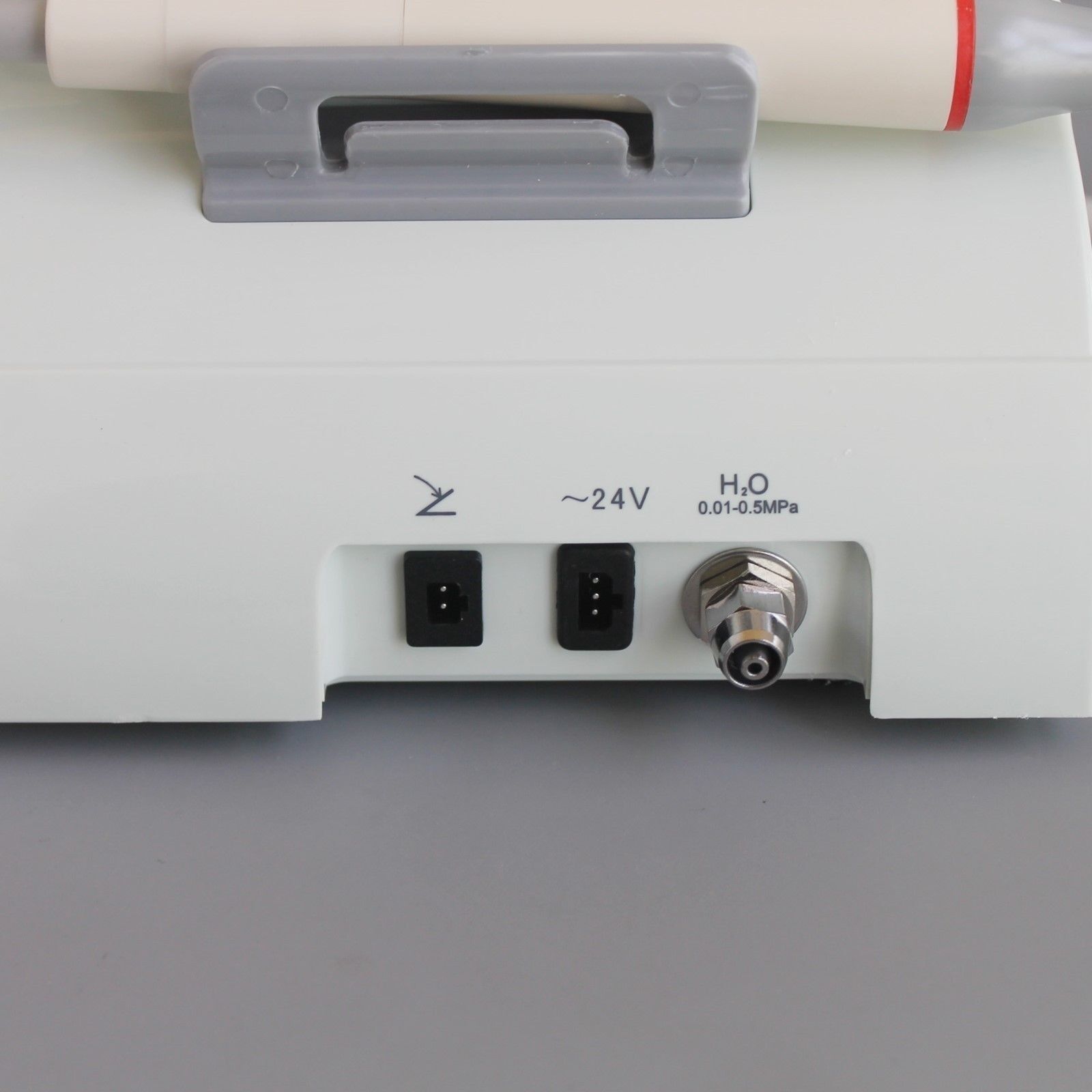

| Water Pressure | 0.01-0.5MPa |
| Operating Mode | Continuous operation |
| Weight of Main Unit | 0.68 Kg |
| Weight of Adapter | 1.2 Kg |
| Protection Against Electric Shock | Class II, Type BF |
| Dimension | 234 * 193 * 109 mm |
| Protection Against Harmful Ingress of Water | Ordinary equipment |
| Protection Degree Against Water (Used on Foot Switch) | IPX1 |

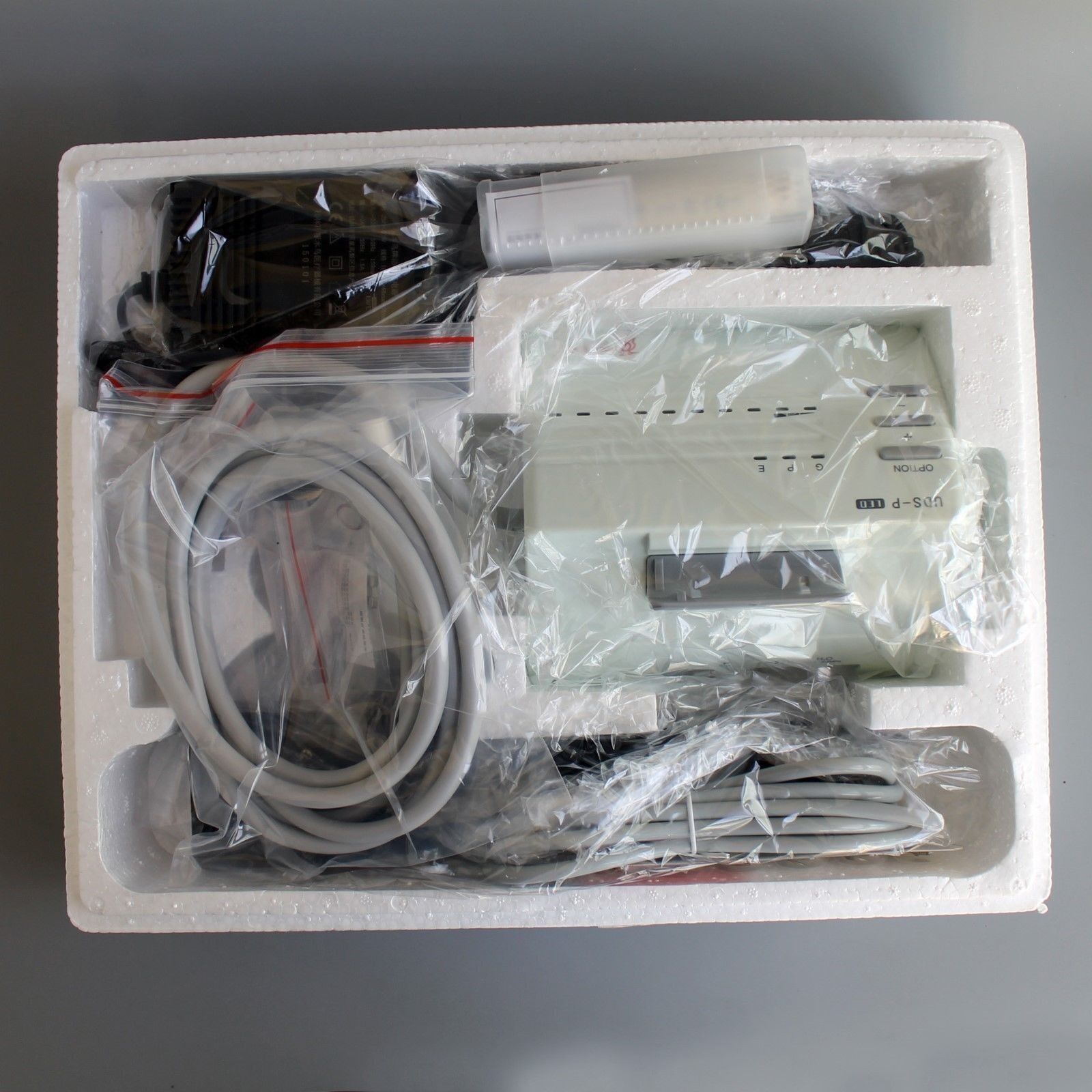

Packing list:
| Item Name | Quantity |
|---|---|

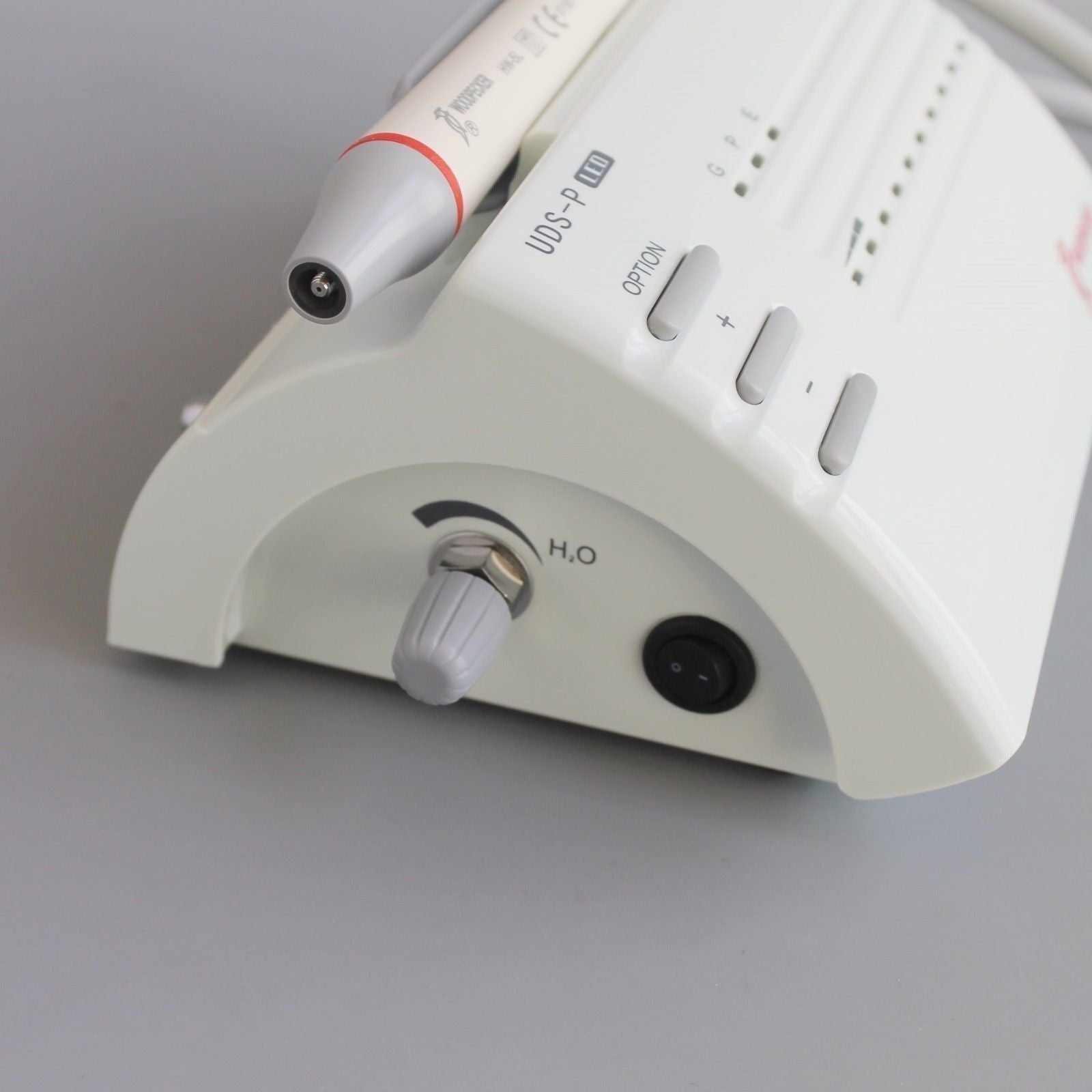

| UDS-P Main Unit | 1 |
| Detachable Handpiece (HW-5L) with LED Light | 1 |

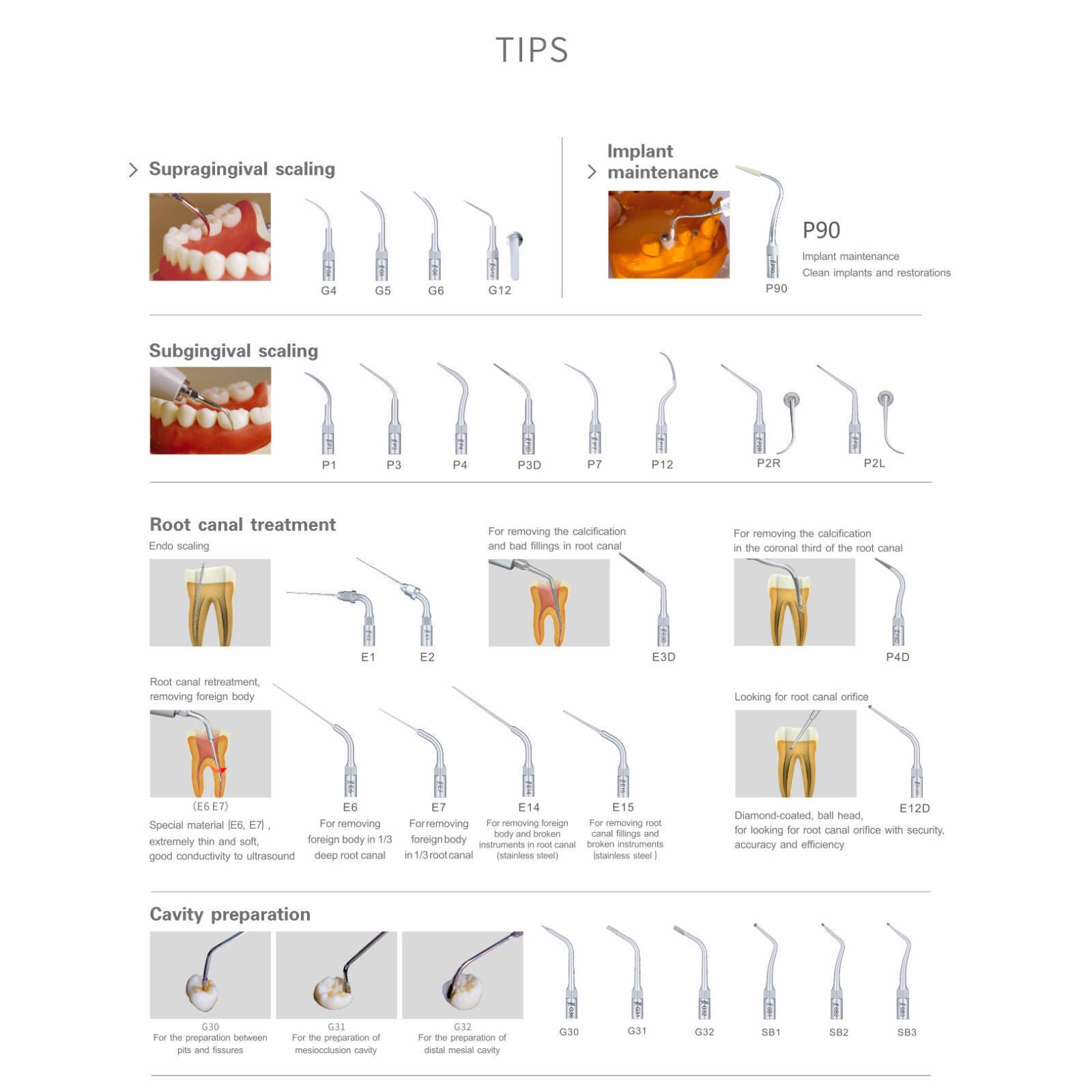

| Tips | G1: 2 G2: 1 G4: 1 P1: 1 E1: 1 |
| Torque Wrench | 1 |
| Charger | 1 |

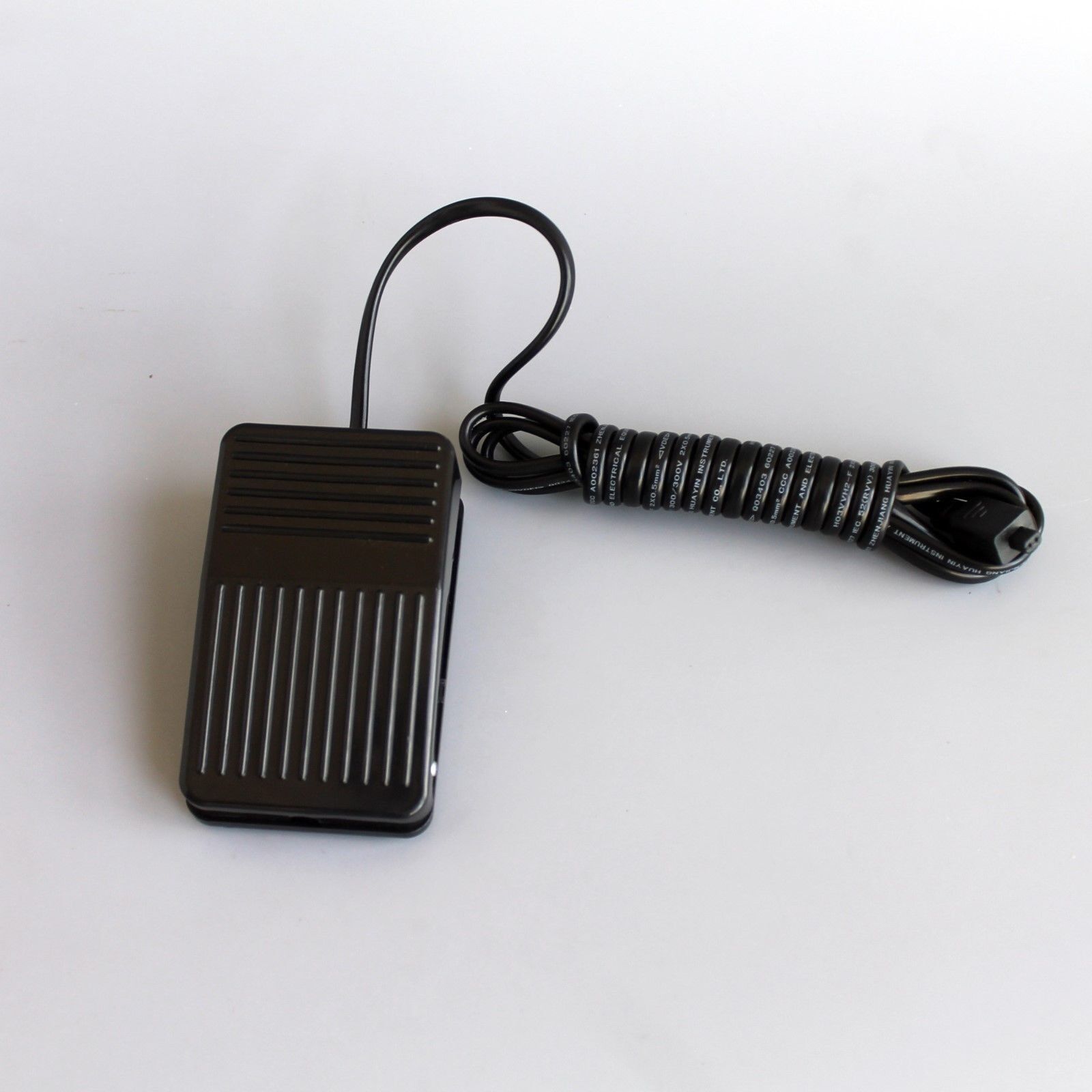

| Foot Switch | 1 |
| Hose | 1 |
| Operation Manual | 1 |
| Plug (if necessary) | 1 (if necessary) |

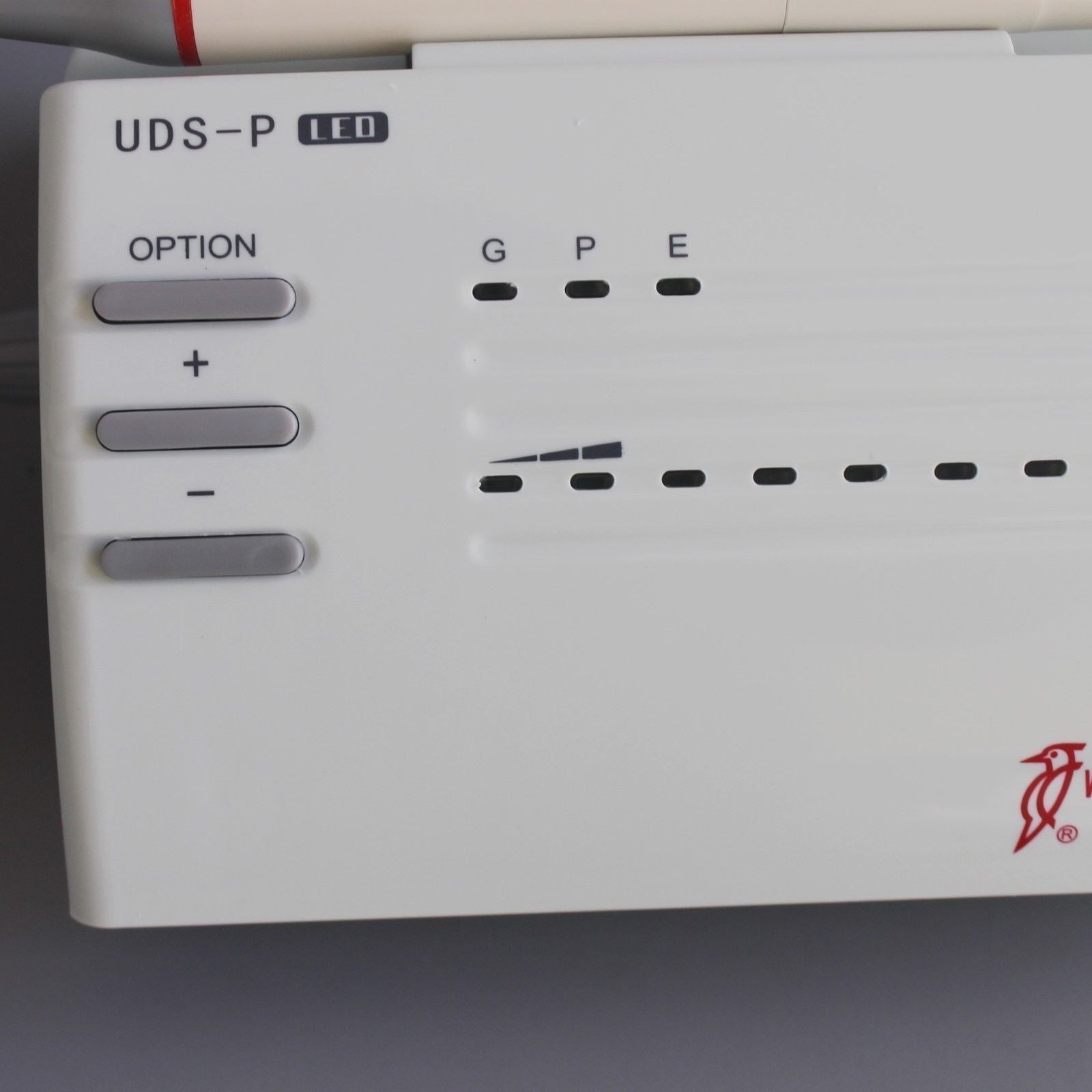

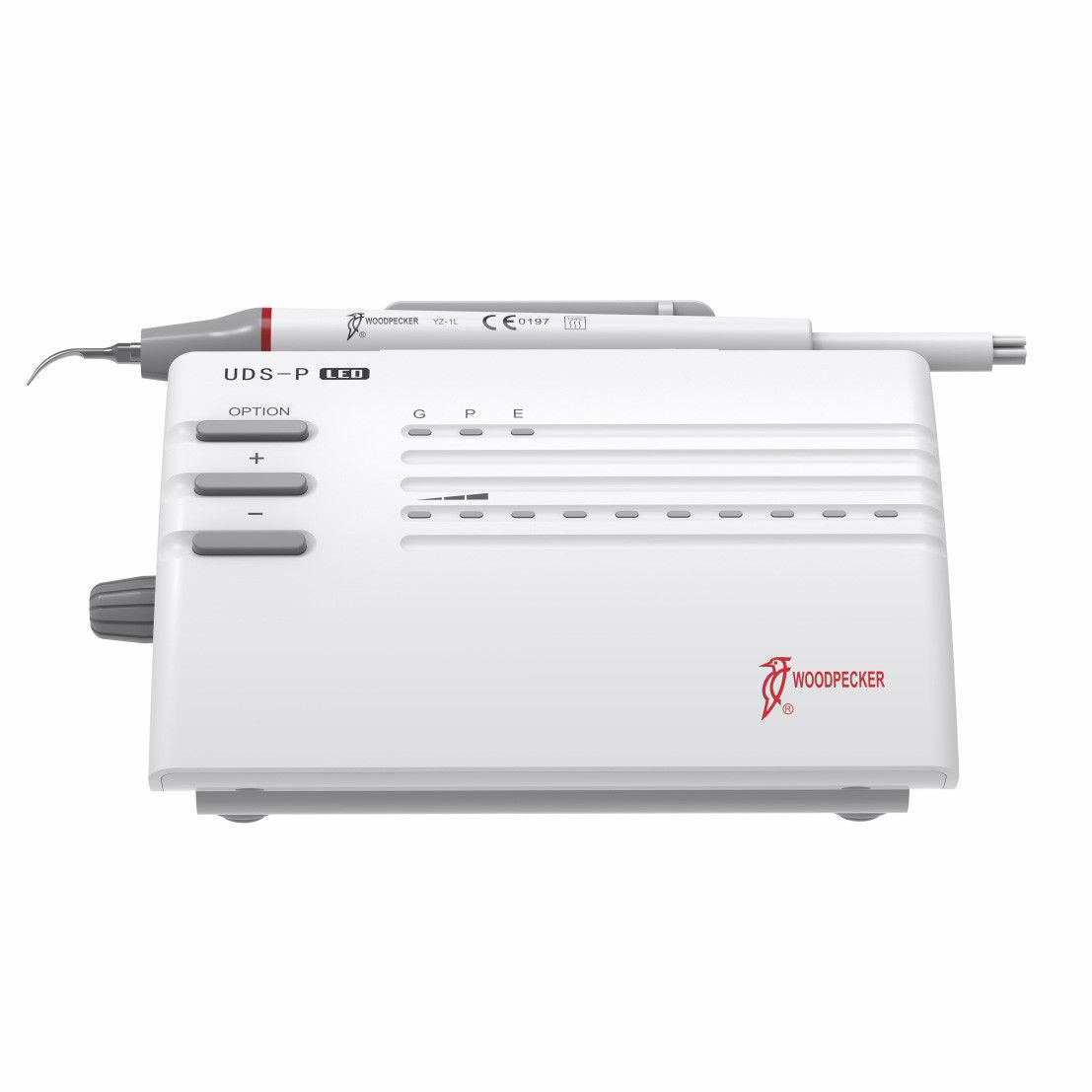

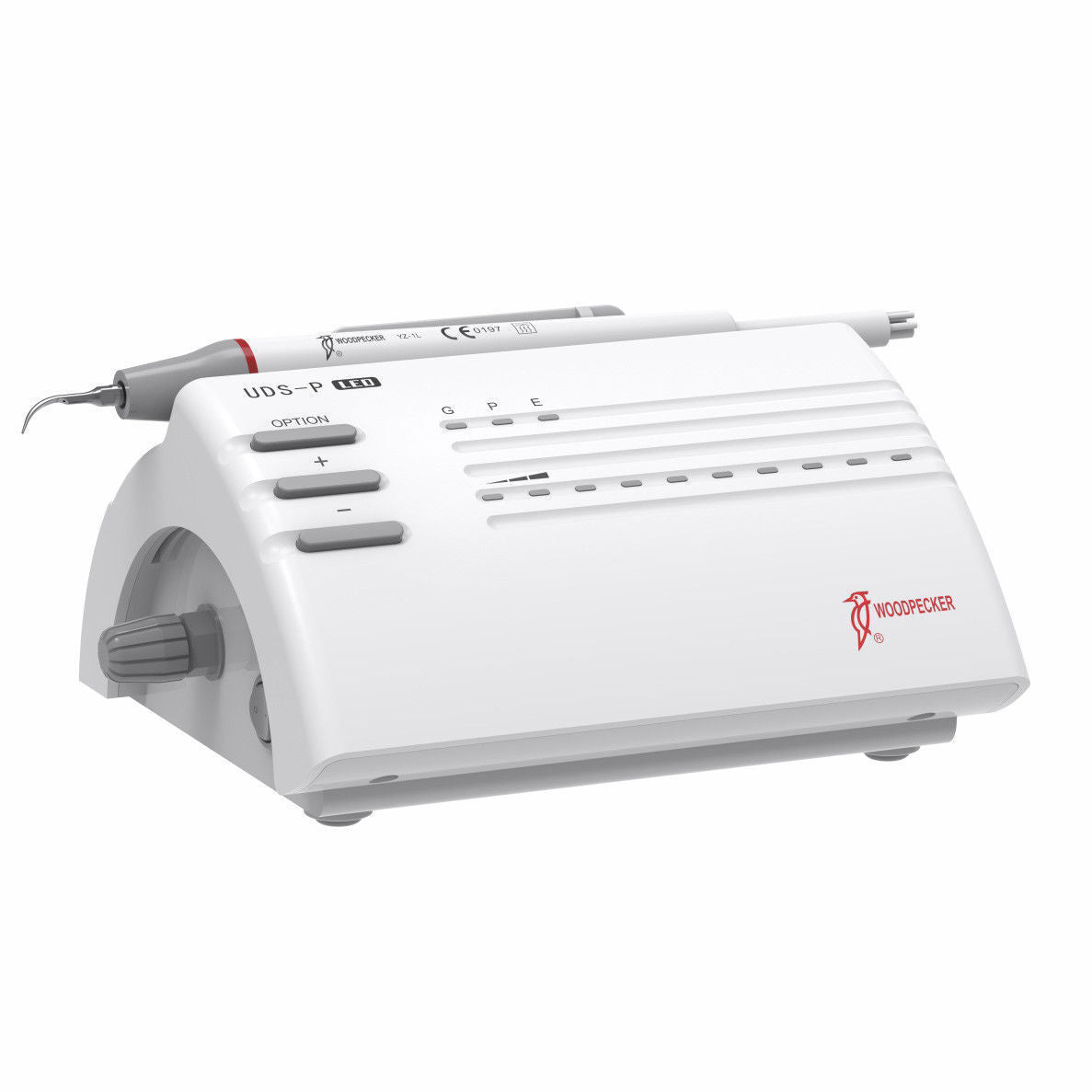

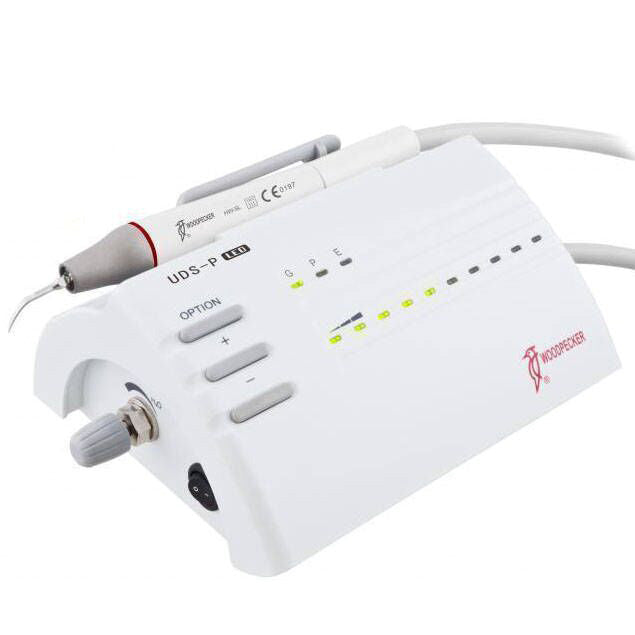

Woodpecker UDS-P LED With Light
Woodpecker UDS-P Without Light
Features
1. Multi-function: Scaling, perio and endo.
2. Optical handpiece, more convenient for clinical operation. (only UDS-P LED)
3. The handpiece is detachable and can be autoclaved to 135° and 0.22MPa.
4. The handpiece is cast from Titanium alloy to ensure sound mechanic function and durability.
5. Assembled with excellent piezo-ceramic, the handpiece has high and lasting power and generates little heat.
6. The cable is made from silica gel tube, soft and durable.
7. The scaling tip is made of special material. The cavitation produced from the end of scaling tip makes the cleaning of teeth and the killing of germ easily.
8. Eliminating dental calculus, bacterial plague and tea scales on the teeth quickly without hurting the gum or the enamel.
9. Automatic frequency tracking ensures that the machine always works on the best frequency and performs more steadily.
10. Digitally controlled, easy operation and more efficient for scaling.
11. Compatible with EMS, you could connect your EMS handpiece with this control box, and you could also connect this Woodpecker UDS handpiece with EMS control box.
12. CE and FDA certificated.
Technical Specification:
| Specification | Value |
|---|---|
| Adapter Input | 220-240V~ 50/60Hz 150mA |
| Output Primary Tip Vibration Excursion | ≤100μm |
| Output Half-Excursion Force | <2N |
| Output Tip Vibration Frequency | 28kHz±3kHz |
| Main Unit Input | 24V~, 1.3A |
| Output Power | 3-20 W |
| Main Unit Fuse | T1.6AL, 250V |
| Adapter Fuse | T0.5AL, 250V |
| Water Pressure | 0.01-0.5MPa |
| Operating Mode | Continuous operation |
| Weight of Main Unit | 0.68 Kg |
| Weight of Adapter | 1.2 Kg |
| Protection Against Electric Shock | Class II, Type BF |
| Dimension | 234 * 193 * 109 mm |
| Protection Against Harmful Ingress of Water | Ordinary equipment |
| Protection Degree Against Water (Used on Foot Switch) | IPX1 |
Packing list:
| Item Name | Quantity |
|---|---|
| UDS-P Main Unit | 1 |
| Detachable Handpiece (HW-5L) with LED Light | 1 |
| Tips | G1: 2 G2: 1 G4: 1 P1: 1 E1: 1 |
| Torque Wrench | 1 |
| Charger | 1 |
| Foot Switch | 1 |
| Hose | 1 |
| Operation Manual | 1 |
| Plug (if necessary) | 1 (if necessary) |
Woodpecker UDS-P LED With Light
Woodpecker UDS-P Without Light

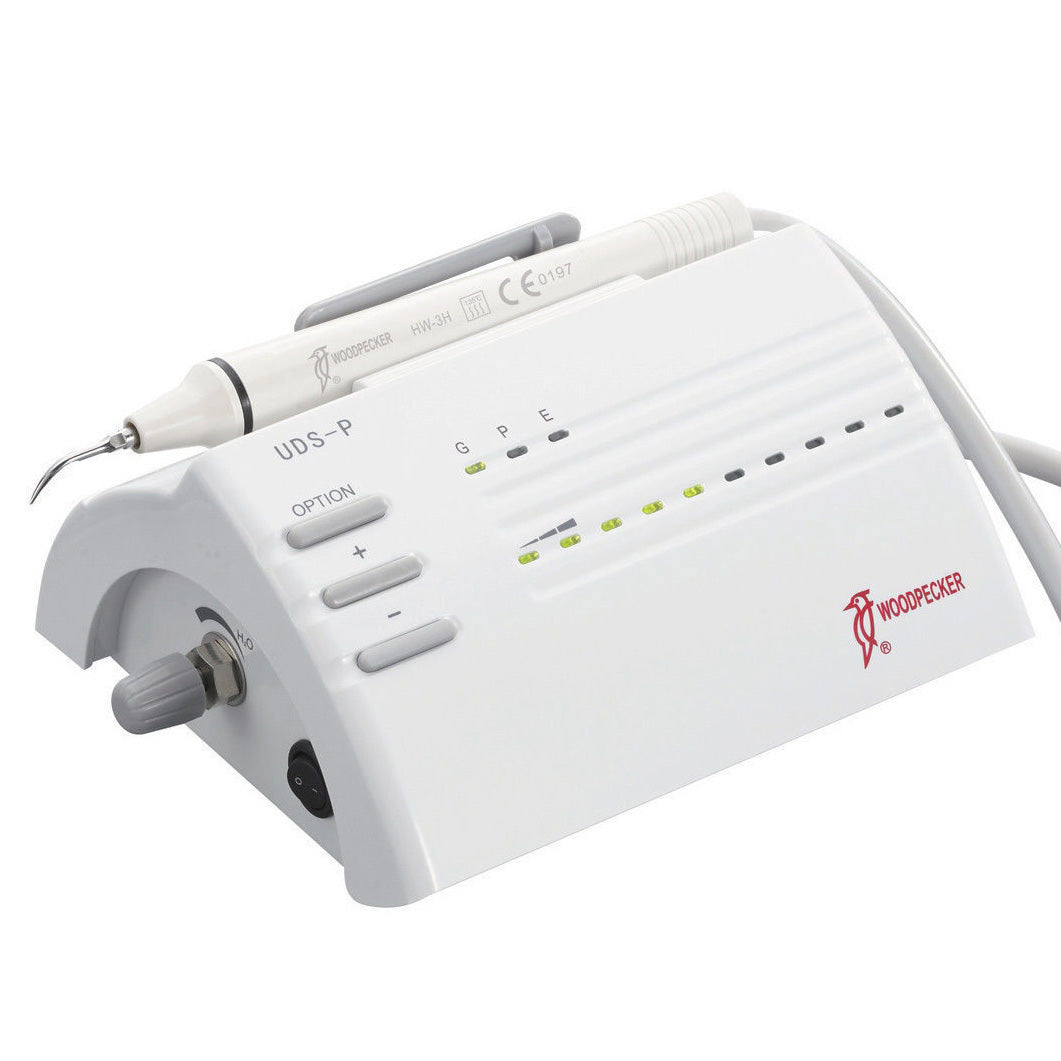

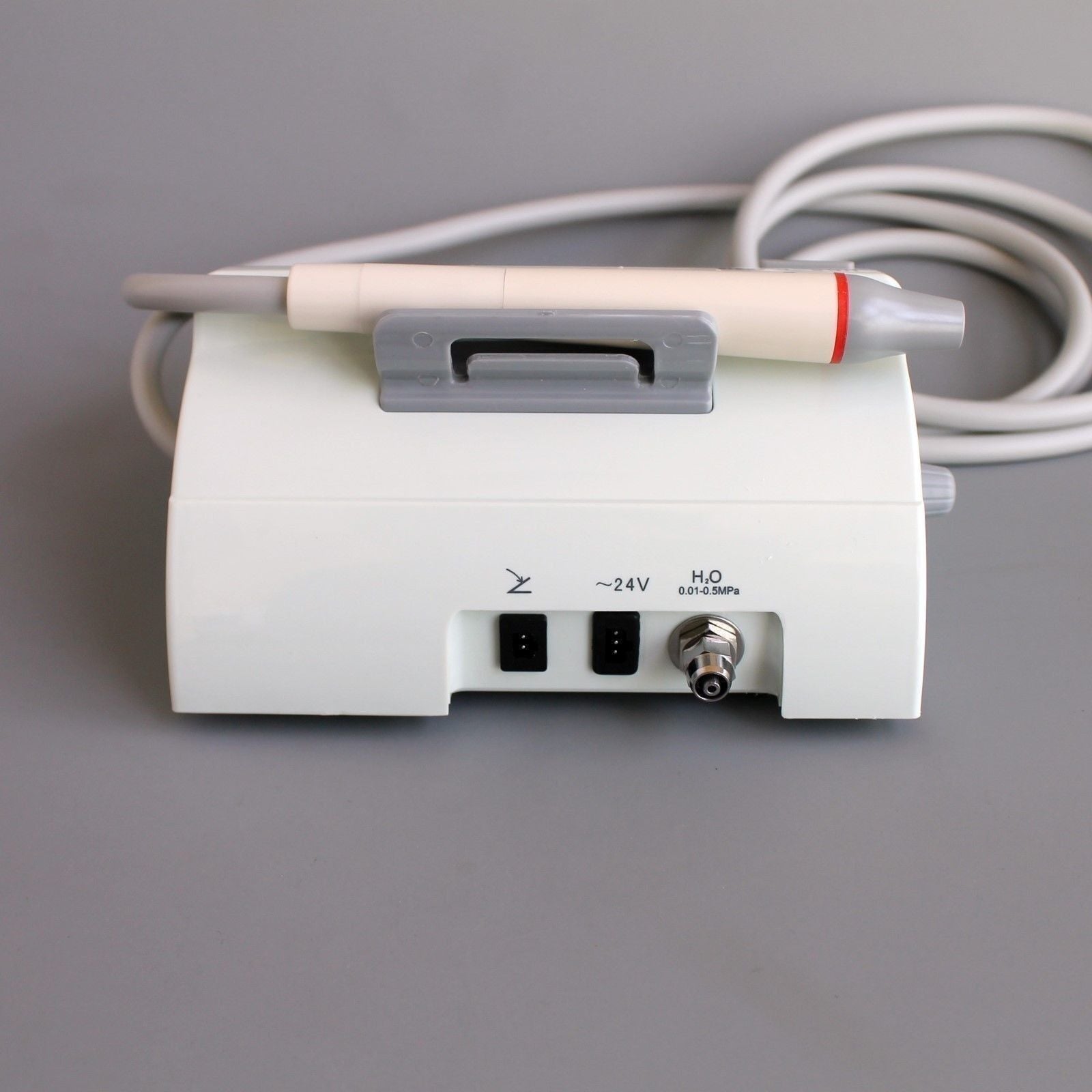

Woodpecker UDS-P Dental Ultrasonic Piezo Scaler (With Light /Without Light) Compatible With EMS
