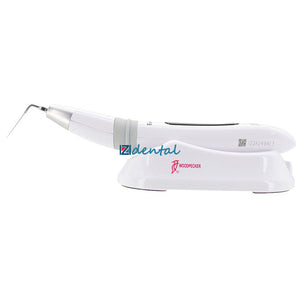

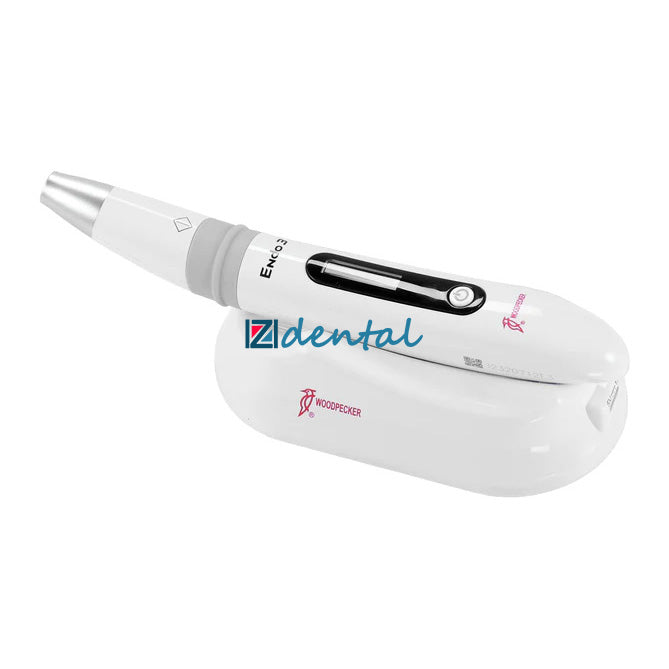

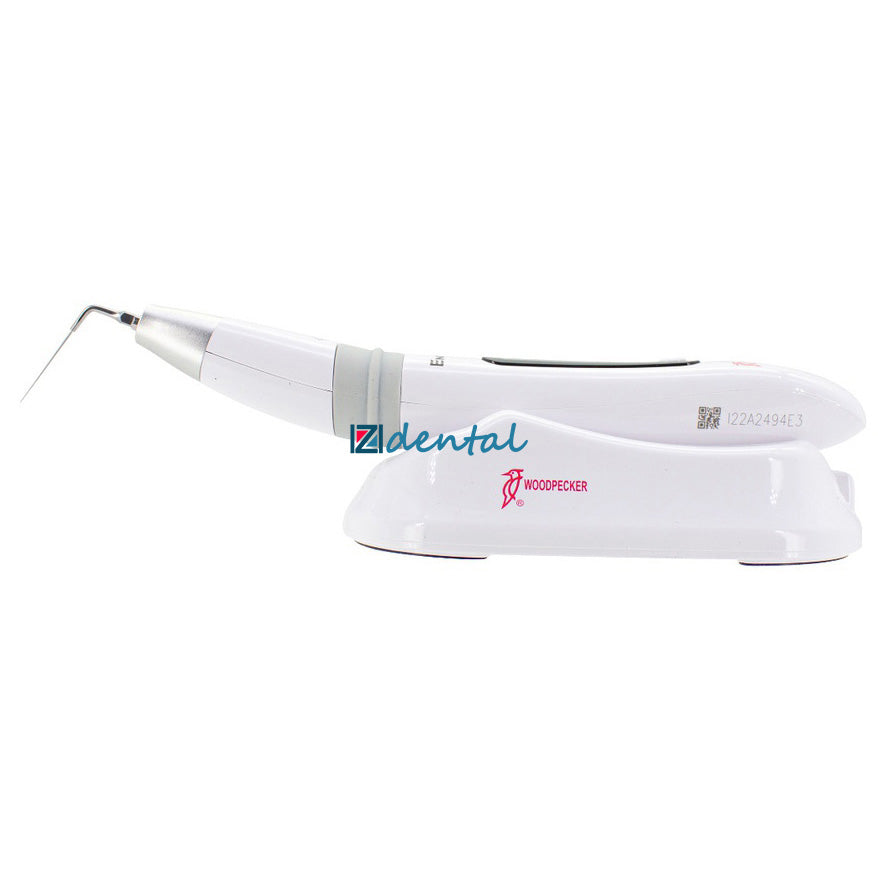

The Endo 3 Ultrasonic Endo Activator is an intelligent, ergonomic, wireless handpiece for activating irrigation during root canal procedures. This unit replaces the Endo 1 and includes several upgraded features. As you are aware, proper irrigant activation in the canals during a root canal is crucial for the effective debridement and disinfection of the root canal system. The Endo 3 emits high-frequency ultrasonic vibrations to safely and effectively enhance the endo irrigation used in endodontics.

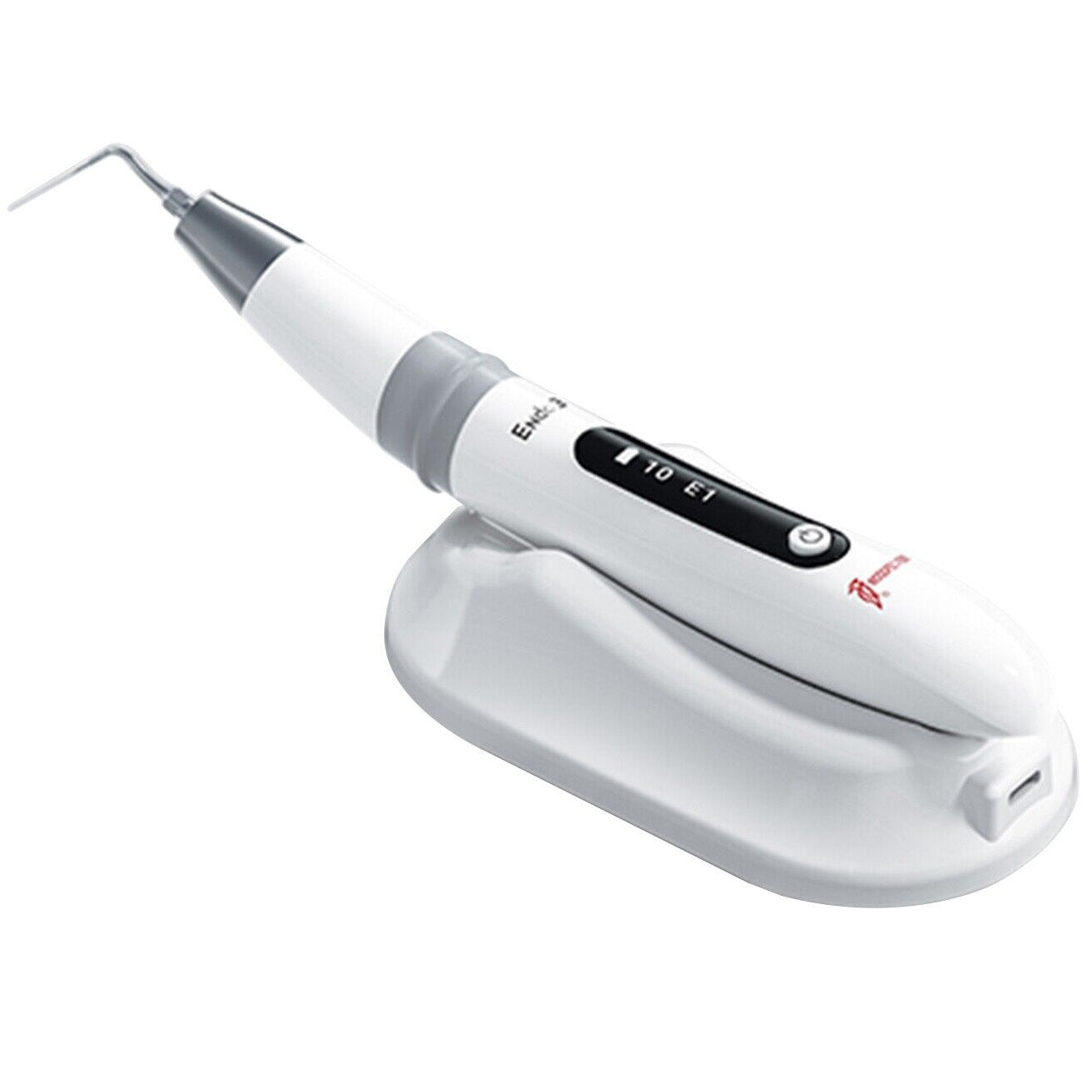

• Wireless Use & Wireless Charging Base: no plugs or cords.

• Larger and Clear LCD Screen: provides better observation for the dentist.

• Adjustable Head for Improved Access: the entire head of the device can be positioned as needed.

• Three Power Modes: E1, E2, and E3, ranging from low to high power.

• Four Time Modes: allow the ultrasonic to run for 10 seconds, 15 seconds, 20 seconds, or 10 minutes.

• Two Modes: 1) Stand-by Mode, ready to use, or 2) Irrigation Mode.

Tips Specifications:

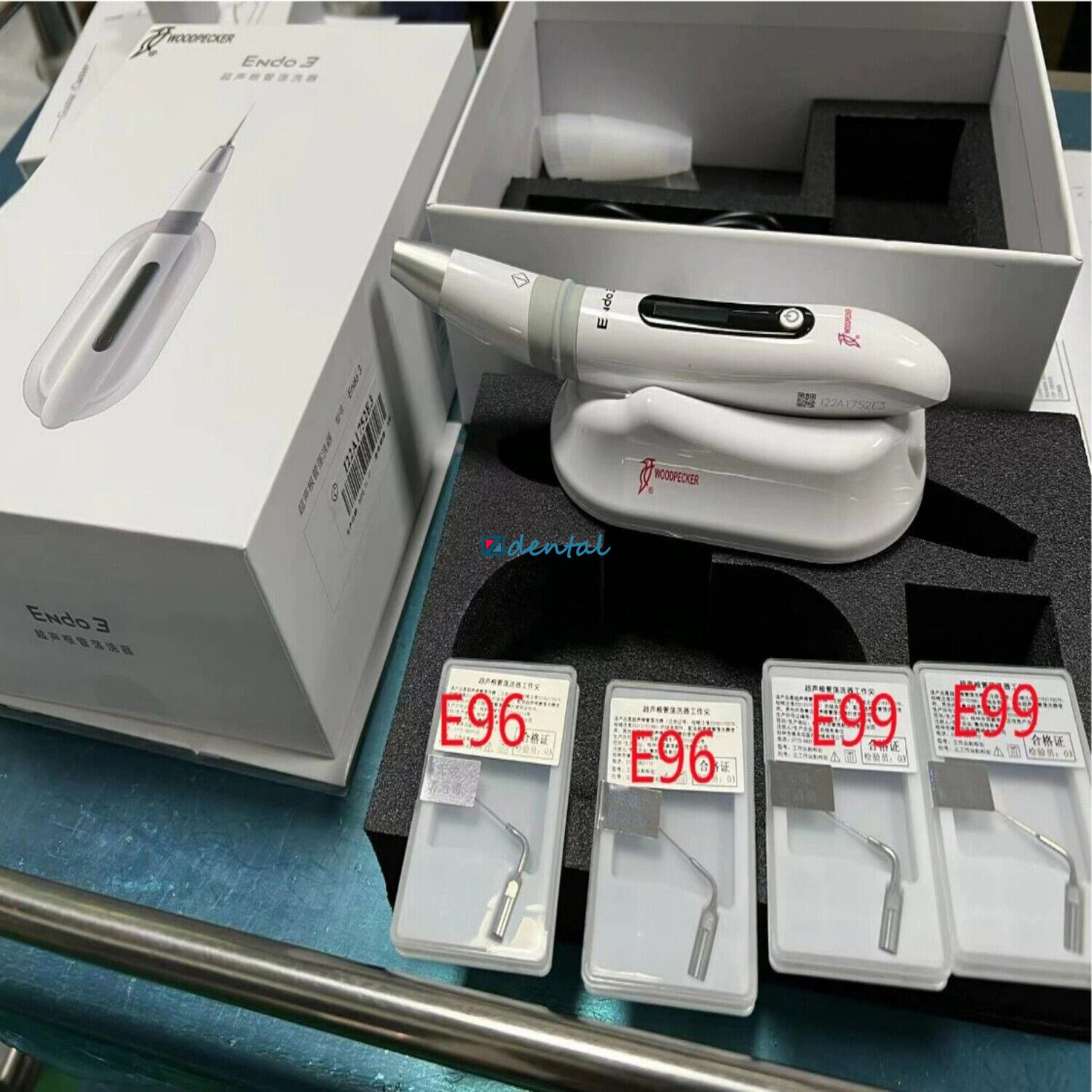

Standard configuration: E96*2,E99*2

For canal irrigation after the root canal preparation
E93:20#, taper 1%, tip end length 21.5mm, Ni-Ti
E95:20#, taper 2%, tip end length 18mm, Stainless steel
E96:20#, taper 2%, tip end length 21mm, Stainless steel
E97:20#, taper 2%, tip end length 25mm, Stainless steel
E98:25#, taper 2%, tip end length 18.5mm, Titanium alloy
E99:25#, taper 2%, tip end length 18.5mm, Titanium alloy

Specifications:
Dimensions : 173.8mmx25.8mmx35.8mm
Net Weight : 78gm

Rechargeable Lithium Battery :
Battery mode: 14500
Nominal voltage: 3.6V
Capacity: 750mAh

Power Adaptor :
Input: 100V-240V   50Hz/60Hz   0.4A MAX
Output: DC 5V/1A
Build-in fuse: T1AL 250V

Working Parameters :
Output tip vibration frequency : 40KHz±10KHz
Relative Humidity at 30% - 75%
Atmospheric Pressure : 70kPa - 106kPa

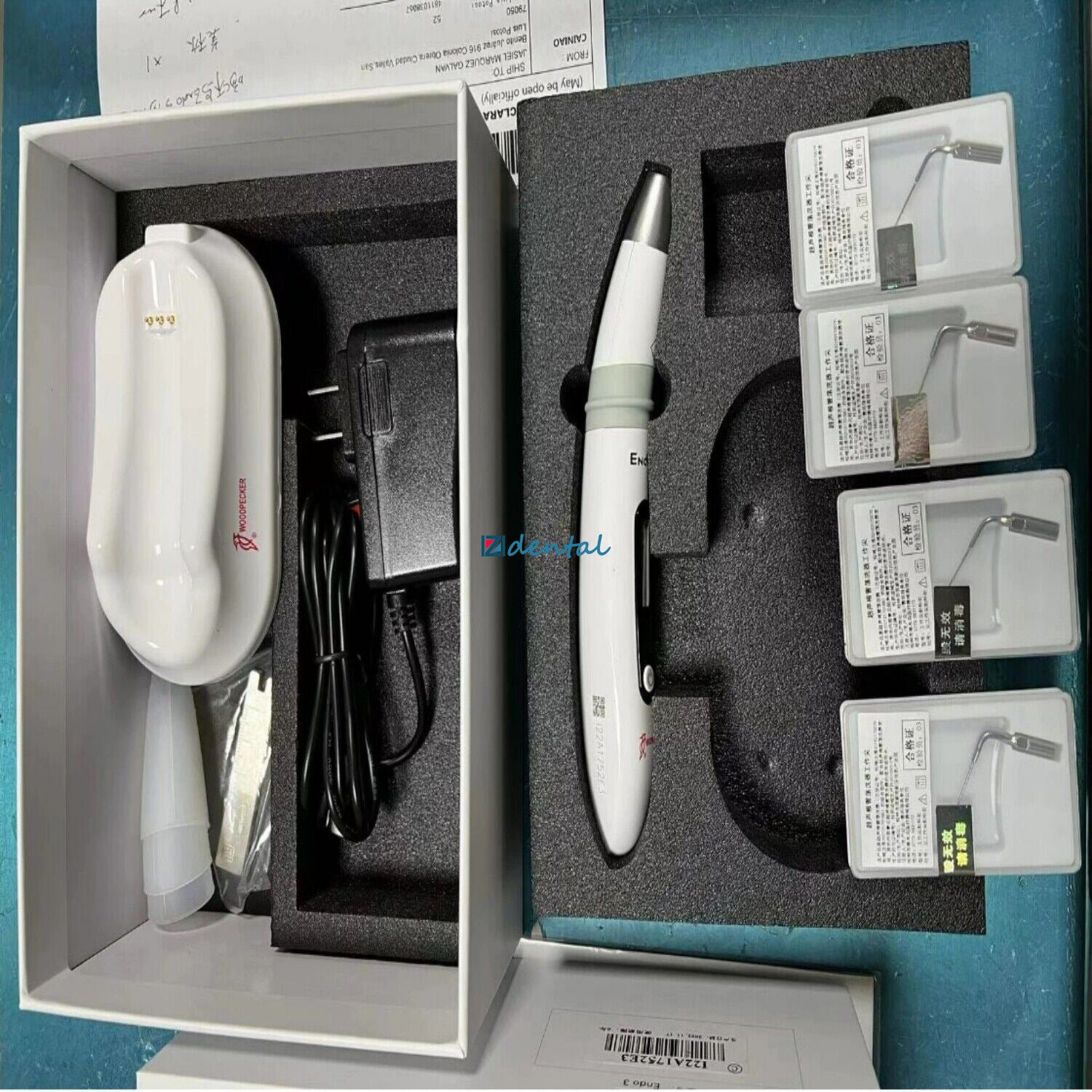

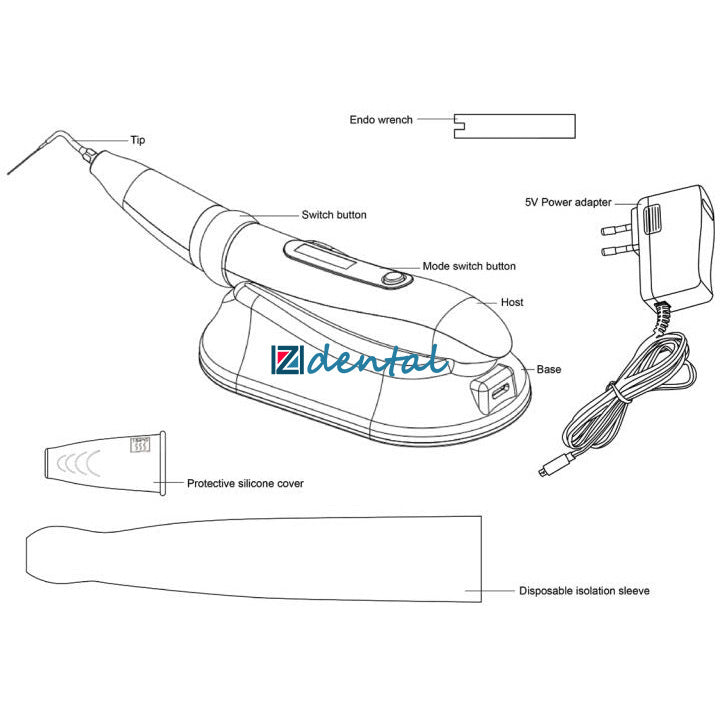

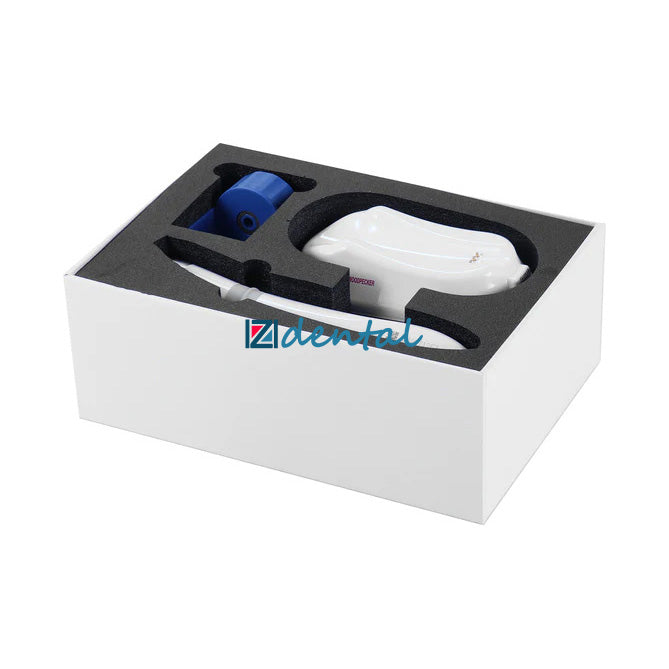

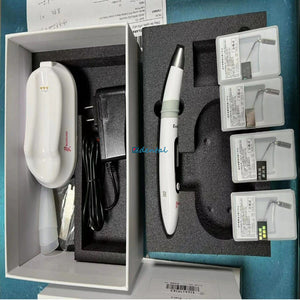

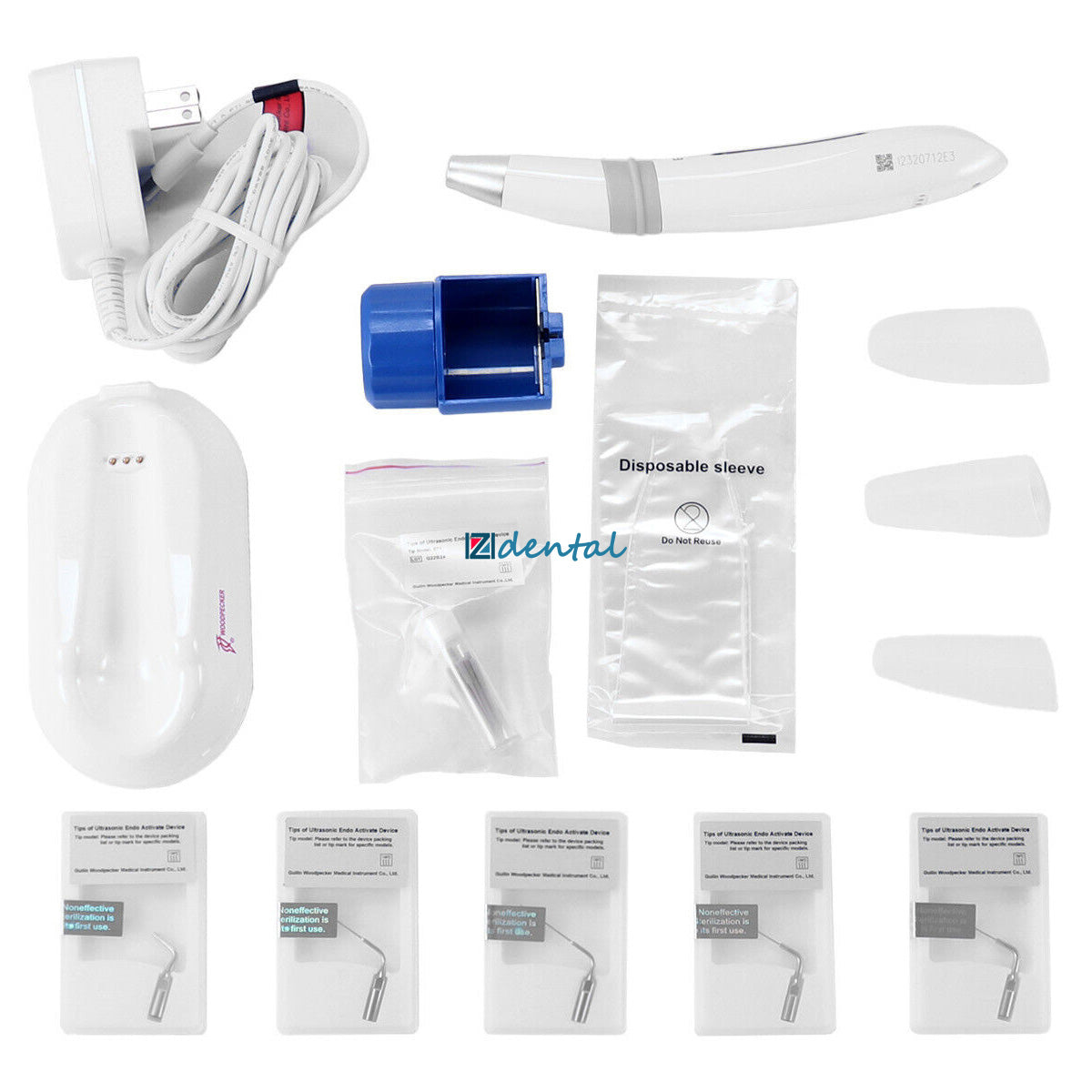

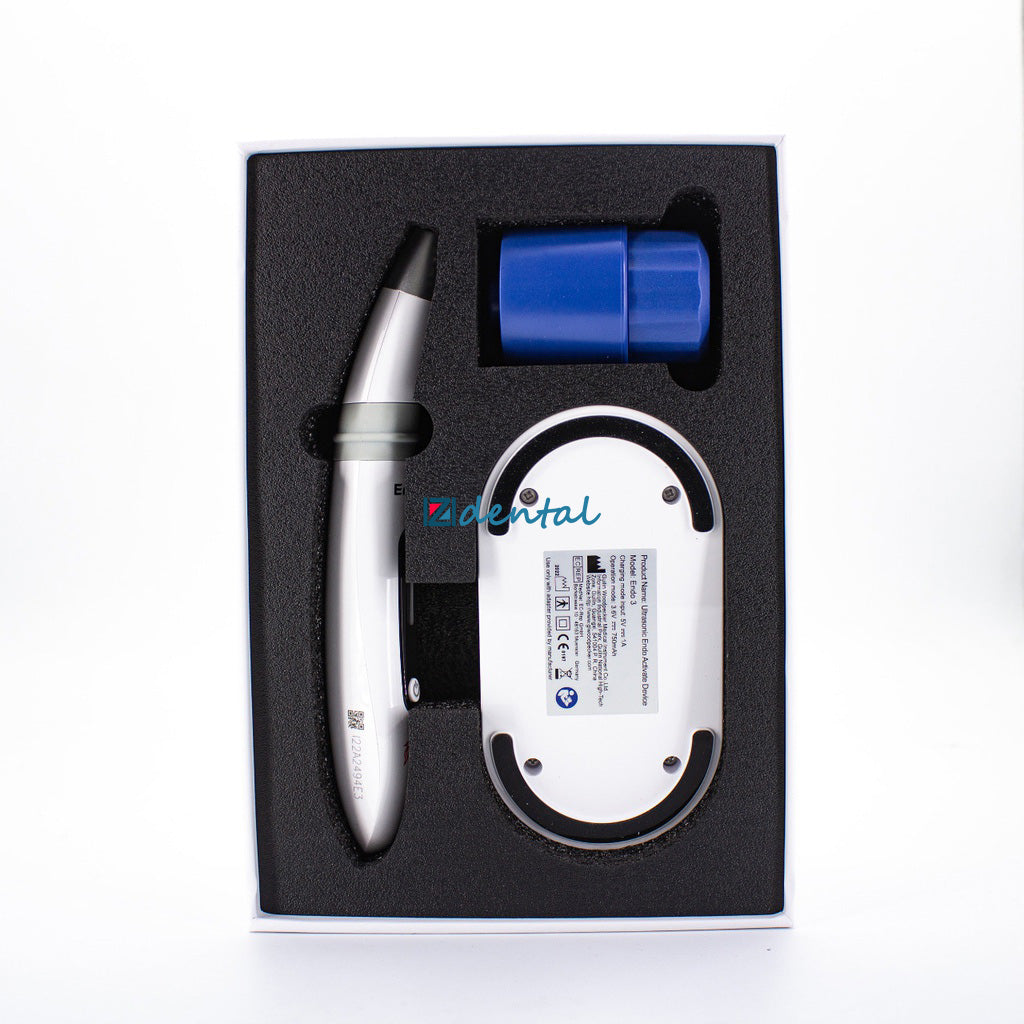

Packaging list
