Description

Features
1. The handpiece is cast from Titanium alloy to ensure sound mechanic function and durability.
2. Assembled with excellent piezo-ceramic, the handpiece has high and lasting power and generates little heat.
3. The cable is made from silica gel tube, soft and durable.
4. The scaling tip is made of special material. The cavitation produced from the end of scaling tip makes the cleaning of teeth and the killing of germ easily.
5. Digitally control, mostly efficient in scaling.
6. The scope of oscillation amplitude is wider.
7. The new design of electric valve, controlling the water better.
8. User-friendly design, much more convenient when operating.
9. Eliminating dental calculus, bacterial plague and tea scales on the teeth quickly without hurting the gum or the enamel.
10. Small volume, light weight, easy for operation and new shape, more beautiful.
11. The material of the detachable handpiece is made in America, the handpiece can be autoclaved to the high temperature and pressure.
12. Tthe inner water pipe is made from antisepic material, clinical fluids, such as Hydrogen peroxide, chlorhexidine and sodium hypochlorite, etc. may be used under the mode of auto-water supply system.
13. Compatible with SATELECs handpiece and tips.
14. CE and FDA certificated.

Technical Specification:

Adapter input 220-240V~50/60Hz 150MA
Outputprimary tipvibration excursion ≤100um
Outputhalf-excursionforce <2N
Output tip vibration Frequency 28kHz±3kHz
Main unit input 24V~1.3A
Output power 3-20W
Main unit fuse T1.6AL,250V
Adapter fuse T0.5AL,250V
Weight of main unit 1.35Kg
Weight ofadapter 1.2Kg
Protection against electricshock Class II,Type BF
Dimension 237*206*95m
Protection against harmful ingressof water Ordinary equipment
Protection degree against water(used on foot switch) IPX1

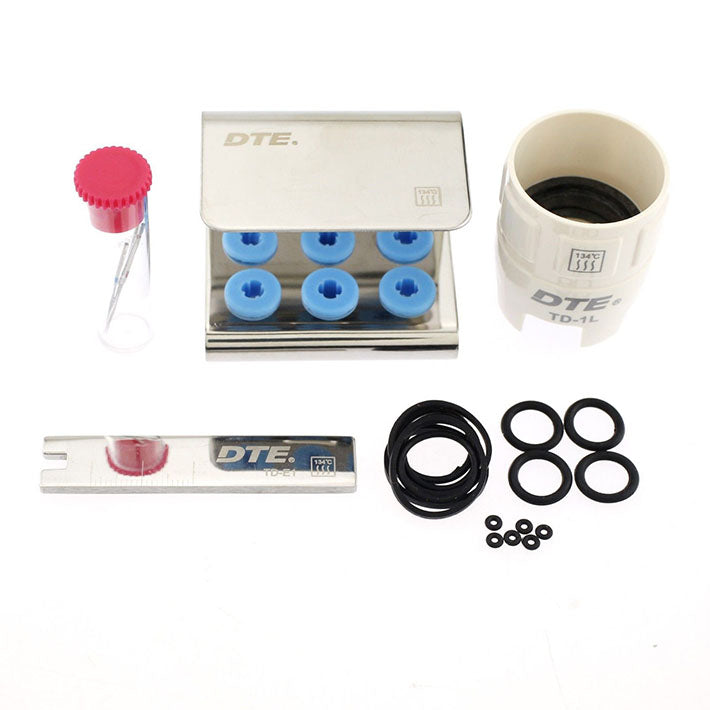

Packet including:

Item Name Quantity

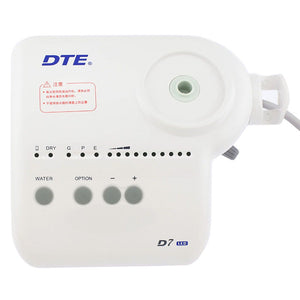

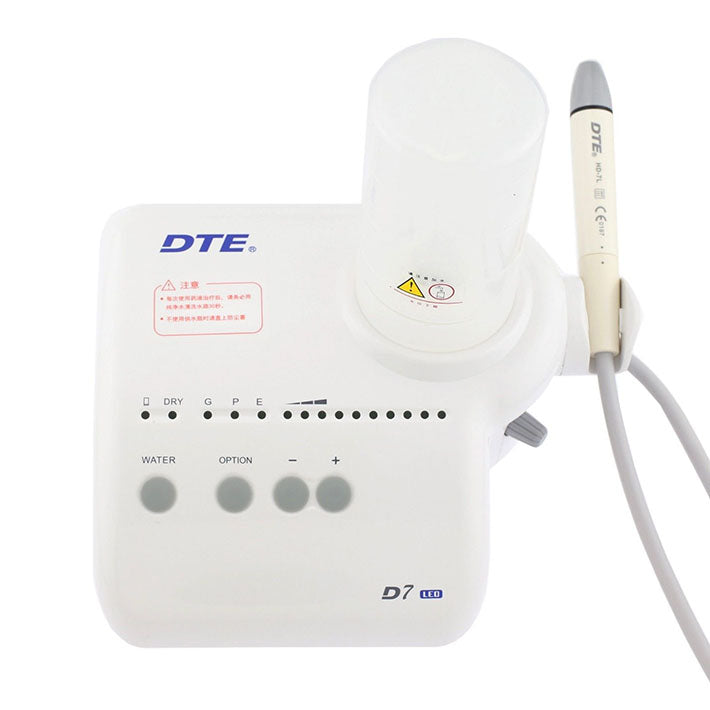

DTE D7 Ultrasonic scaler 1
HD-7H handpiece 1

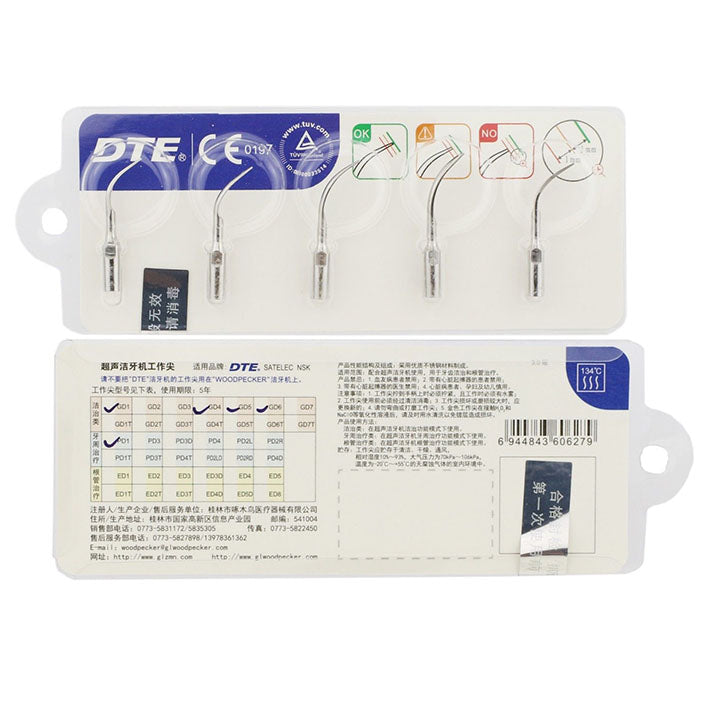

Tips 8 (GD1:1, GD4:1, GD5:1, GD6:1, PD1:1, ED1:1, PD3:1, PD4D:1, SBD1:1, SBD2:1, SBDL:1)
Torque wrench 1
Charger 1
Foot switch 1
Water bottle 2
Hose 1
Operation manual 1
