About
. The irrigation system inside the product is made of anti-bacterial materials. The liquids used in clinics, such as hydrogen peroxide, chlorhexidine, sodium hypochlorite, etc., can be applied in the mode of automatic water supply system, which can significantly improve the performance of teeth cleaning and root canal washing..
. The handpiece can be sterilized at 135℃ temperature and 0.22 MPa pressure.
. Automatically search for the best working condition, the performance of device is more stable.
. The device has a built-in computer microprocessing chip, which can intelligently control the working power and make treatment more comfortable.
. The wireless foot switch is used to remotely control the unit, which is more convenient to operate. At the same time, wired foot switches can also be selected according to user needs.
. High-brightness LED, which can improve the efficiency of clinical operation, and it can also use ordinary plug-in handpiece that has high compatibility.
Specifications:
. Input Voltage：220 V±22 V～ ，50/60 Hz
. Input Power：35 VA
. Batteries of wireless foot switch：AA Batteries×2
. Receiving sensitivity: -114 dB, receive frequency：2.4 G-2.5 G
. Tip amplitude： minimum,1 μm, deviation -50%
maximum, 100 μm, deviation +50%
. Half deflection force：minimum, 0.1 N, deviation -50% maximum, 5 N ，deviation +50%
. Vibration frequency of tip：18 kHz～45 kHz
Note：The vibration frequencies of different types tips are different, but they are all distributed within the described range.
. Output Voltage of tip：3 W～20 W

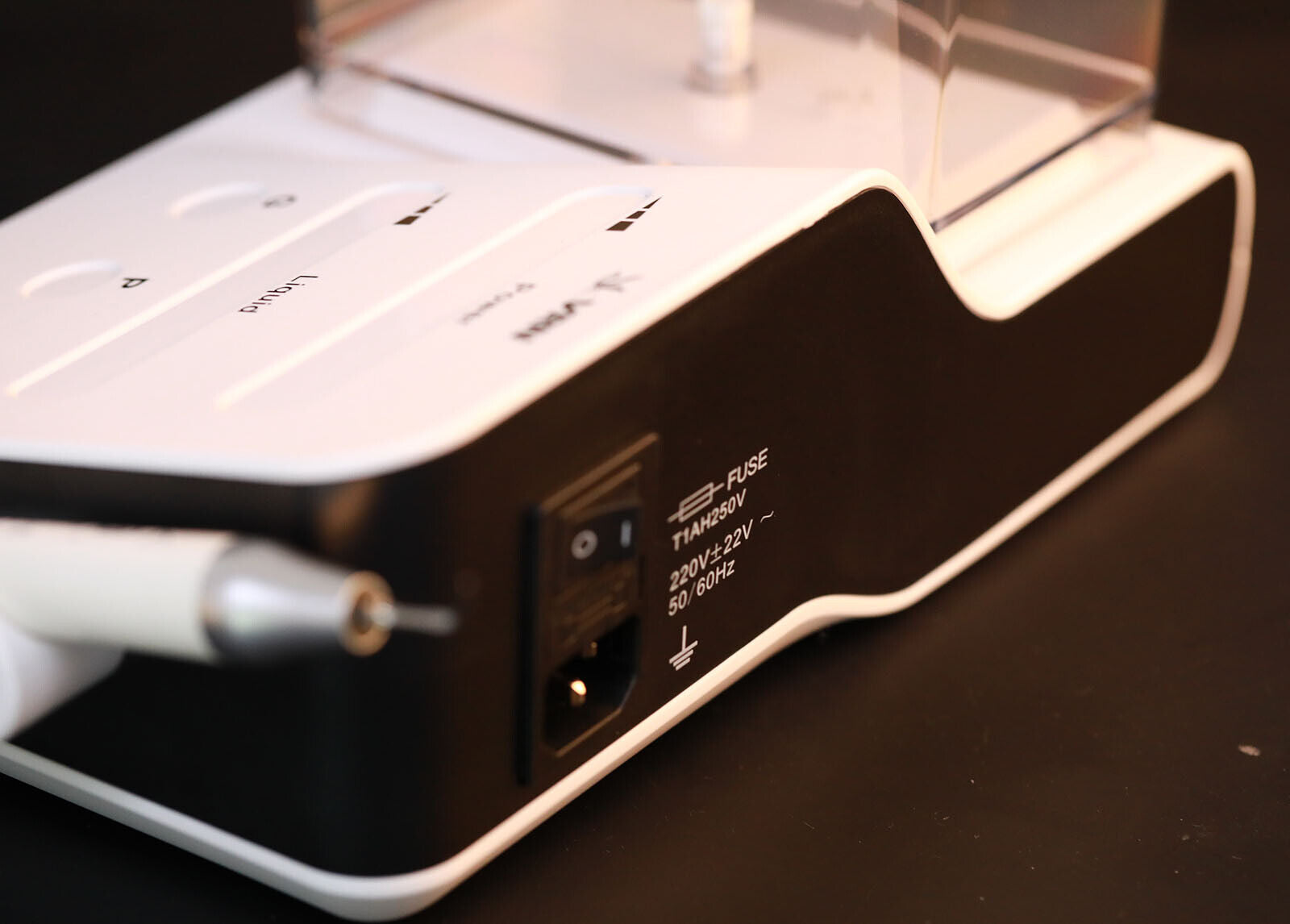

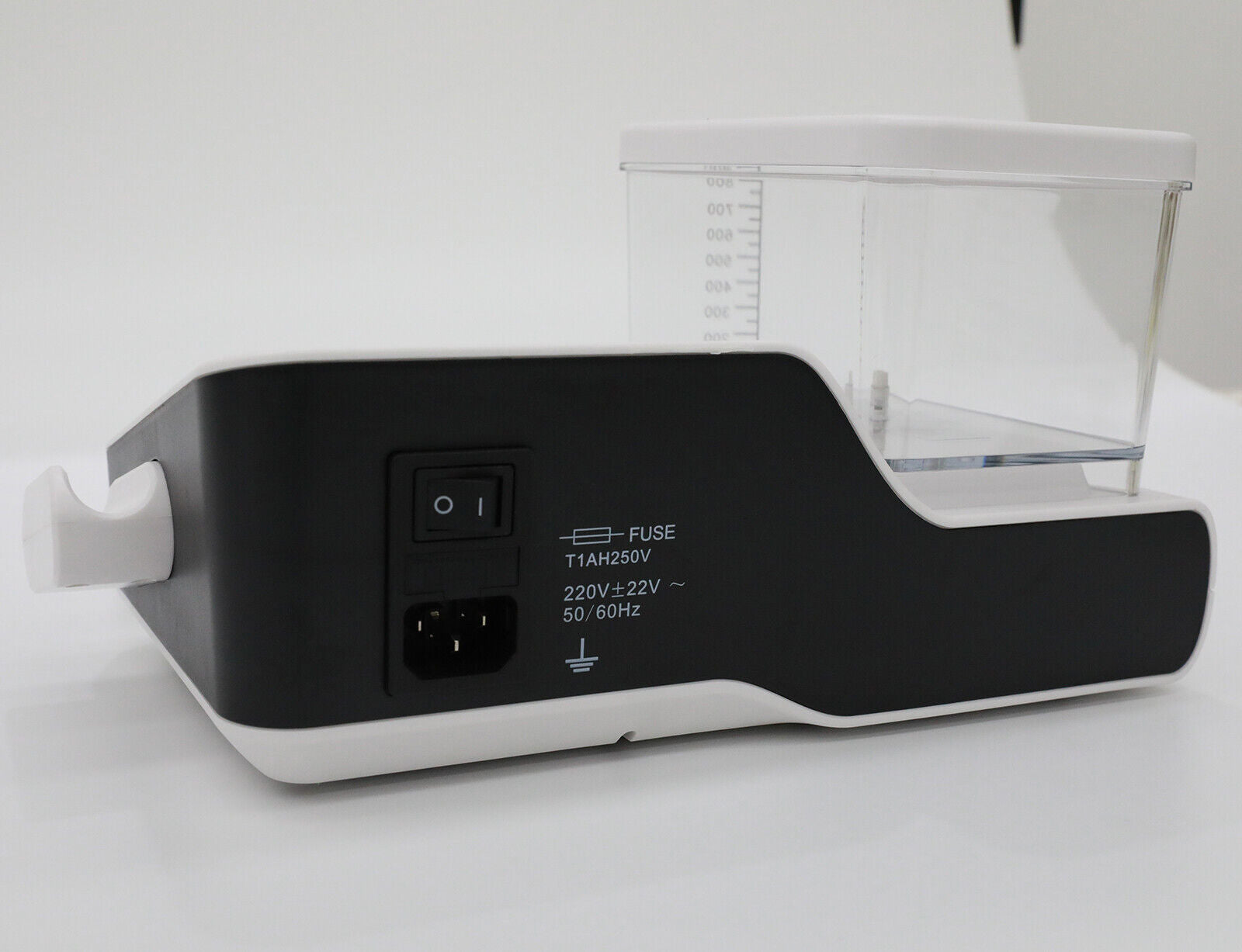

. Fuse：T1AH250V
. Weight：1.8 kg
. Operation modes：continuous running
. Protection against electric shock rating：Class Ⅱ equipment
. Protection against electric shock degree：B-type application part
. Ingress protection rating ： Ordinary equipment (IPX0), Wired foot switch is waterproof equipment （IPX1）, Wireless foot switch is waterproof equipment（ IPX4）
. Degree of safety application in the presence of a flammable anesthetic mixture with air, oxygen, or nitrous oxide:Non-AP,APG type equipment
Wireless foot switch:
Emission frequency: 2.412 GHz-2.462 GHz
Modulation type: GFSK
Effective radiated power：12 dbm

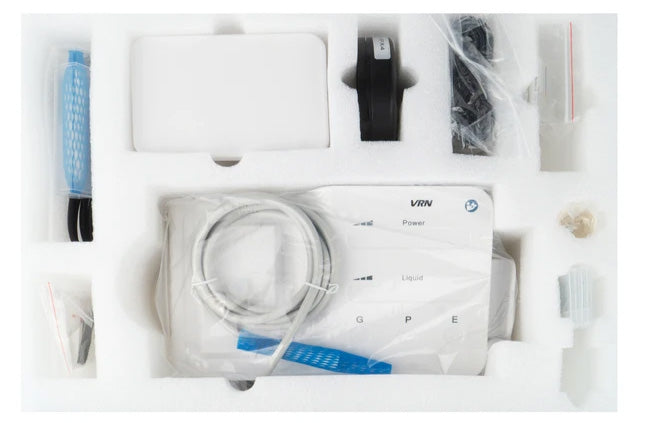

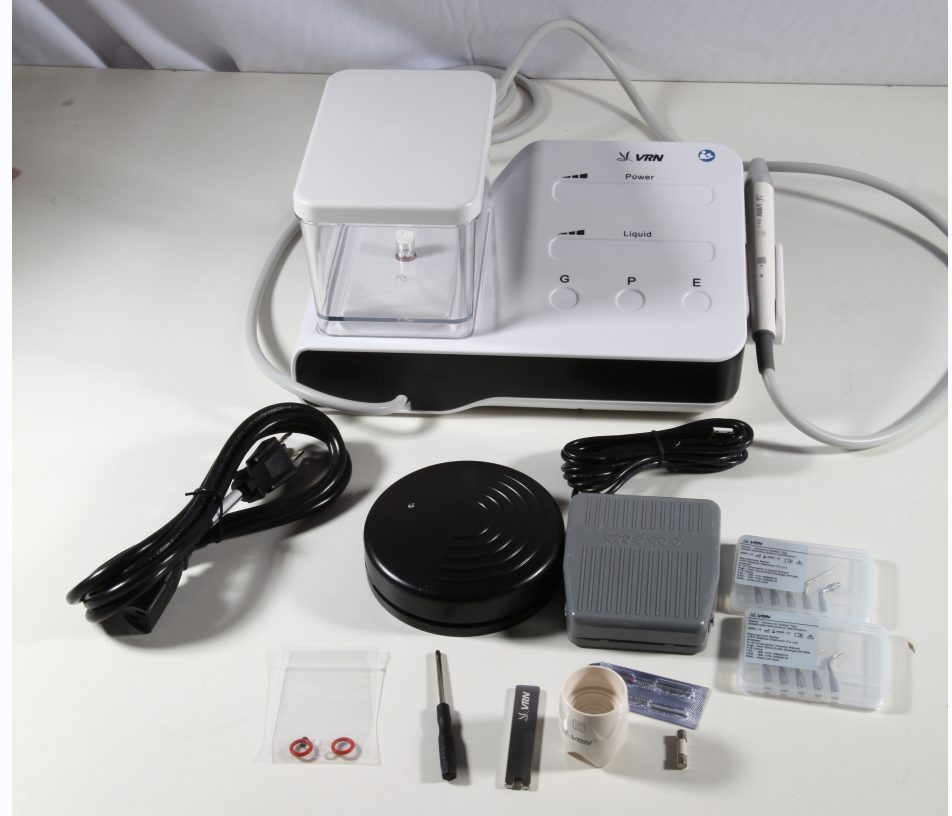

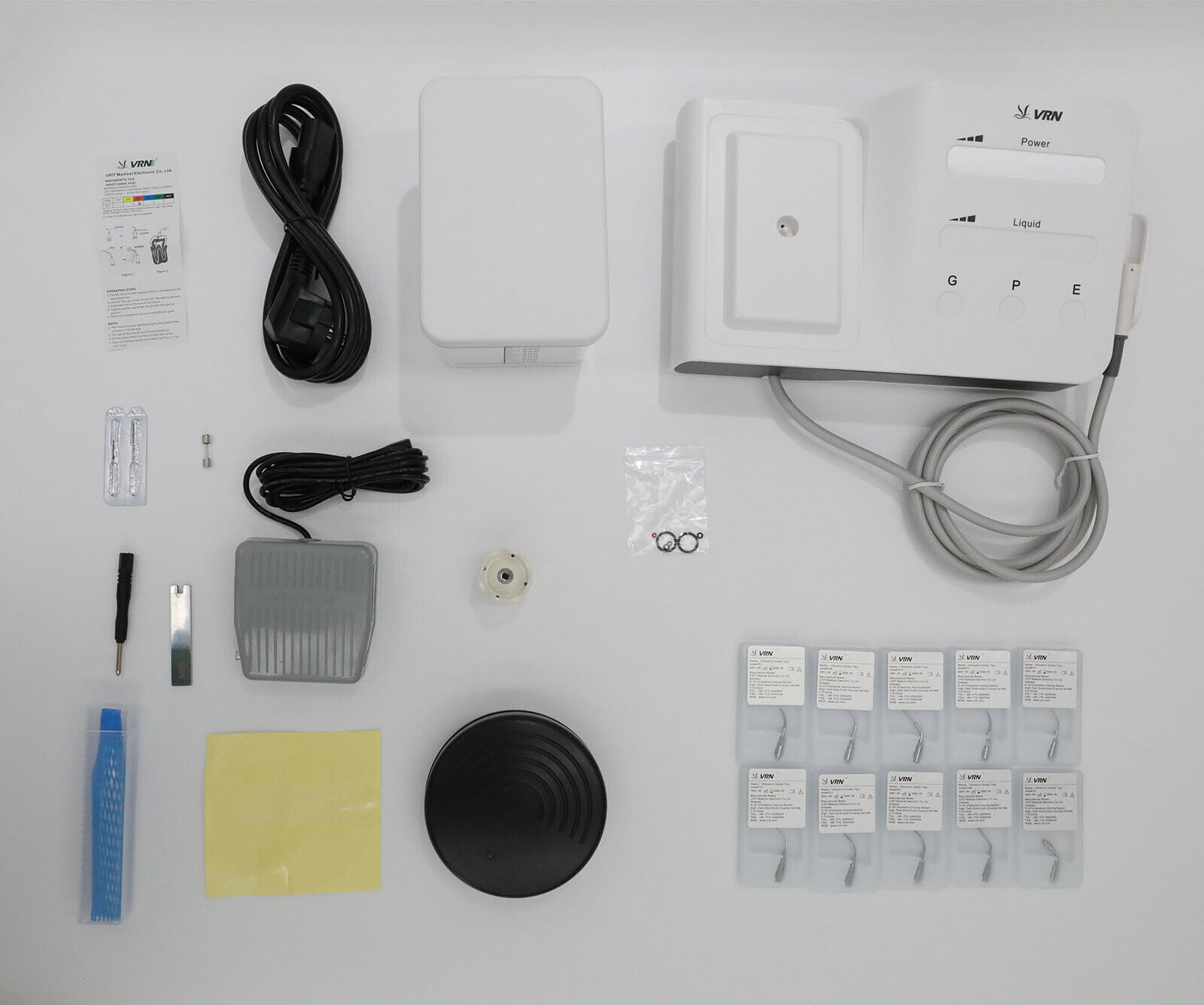

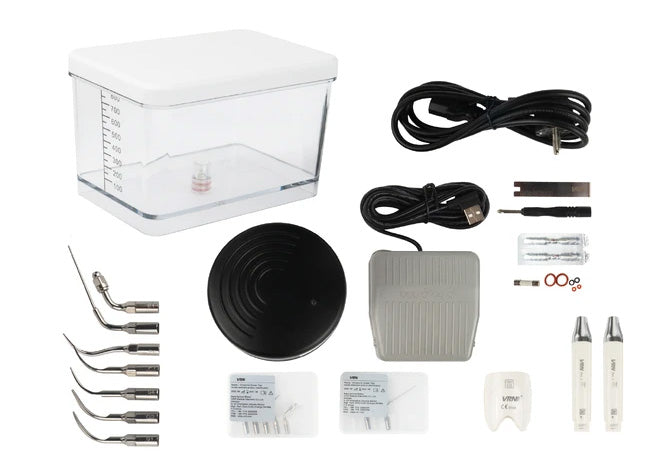

Packing List:
Main Unit X 1
PH-1 LED Scaler Handpiece X 1
Power Supply Cord X 1
Wireless Foot Control X 1
Water Bottle X 1

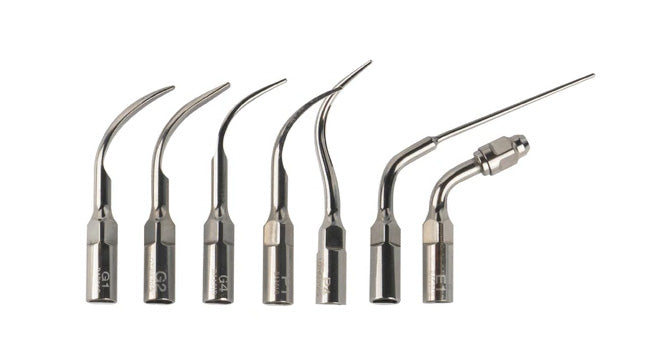

Scaler Tips X 13 (E14 x1 / P1 x2 / G2 x1 / G1 x2 / G4 x2 / E1 x1 / P4 x1)
Endo File X 2 (#25)
O Ring X 2
Torque Tip Wrench X 1
Endo File Wrench X 1
Waterproof Sticker X 1
Screwdiriver X 1
Foot Control With Wire X 1
Tips Contrast Cord X 1
Fuse X 1
. The irrigation system inside the product is made of anti-bacterial materials. The liquids used in clinics, such as hydrogen peroxide, chlorhexidine, sodium hypochlorite, etc., can be applied in the mode of automatic water supply system, which can significantly improve the performance of teeth cleaning and root canal washing..
. The handpiece can be sterilized at 135℃ temperature and 0.22 MPa pressure.
. Automatically search for the best working condition, the performance of device is more stable.
. The device has a built-in computer microprocessing chip, which can intelligently control the working power and make treatment more comfortable.
. The wireless foot switch is used to remotely control the unit, which is more convenient to operate. At the same time, wired foot switches can also be selected according to user needs.
. High-brightness LED, which can improve the efficiency of clinical operation, and it can also use ordinary plug-in handpiece that has high compatibility.
Specifications:
. Input Voltage：220 V±22 V～ ，50/60 Hz
. Input Power：35 VA
. Batteries of wireless foot switch：AA Batteries×2
. Receiving sensitivity: -114 dB, receive frequency：2.4 G-2.5 G
. Tip amplitude： minimum,1 μm, deviation -50%
maximum, 100 μm, deviation +50%
. Half deflection force：minimum, 0.1 N, deviation -50% maximum, 5 N ，deviation +50%
. Vibration frequency of tip：18 kHz～45 kHz
Note：The vibration frequencies of different types tips are different, but they are all distributed within the described range.
. Output Voltage of tip：3 W～20 W
. Fuse：T1AH250V
. Weight：1.8 kg
. Operation modes：continuous running
. Protection against electric shock rating：Class Ⅱ equipment
. Protection against electric shock degree：B-type application part
. Ingress protection rating ： Ordinary equipment (IPX0), Wired foot switch is waterproof equipment （IPX1）, Wireless foot switch is waterproof equipment（ IPX4）
. Degree of safety application in the presence of a flammable anesthetic mixture with air, oxygen, or nitrous oxide:Non-AP,APG type equipment
Wireless foot switch:
Emission frequency: 2.412 GHz-2.462 GHz
Modulation type: GFSK
Effective radiated power：12 dbm
Packing List:
Main Unit X 1
PH-1 LED Scaler Handpiece X 1
Power Supply Cord X 1
Wireless Foot Control X 1
Water Bottle X 1
Scaler Tips X 13 (E14 x1 / P1 x2 / G2 x1 / G1 x2 / G4 x2 / E1 x1 / P4 x1)
Endo File X 2 (#25)
O Ring X 2
Torque Tip Wrench X 1
Endo File Wrench X 1
Waterproof Sticker X 1
Screwdiriver X 1
Foot Control With Wire X 1
Tips Contrast Cord X 1
Fuse X 1

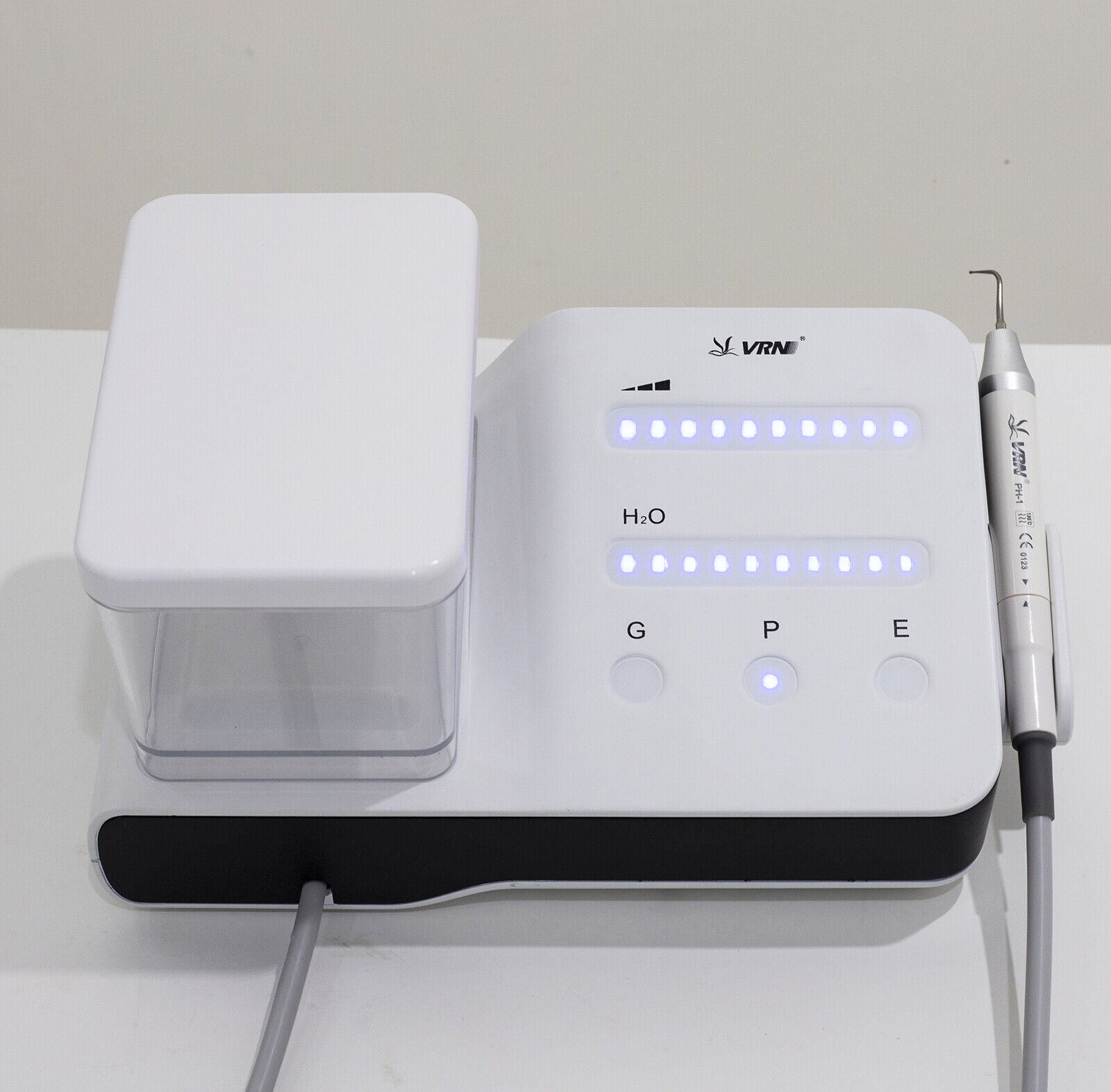

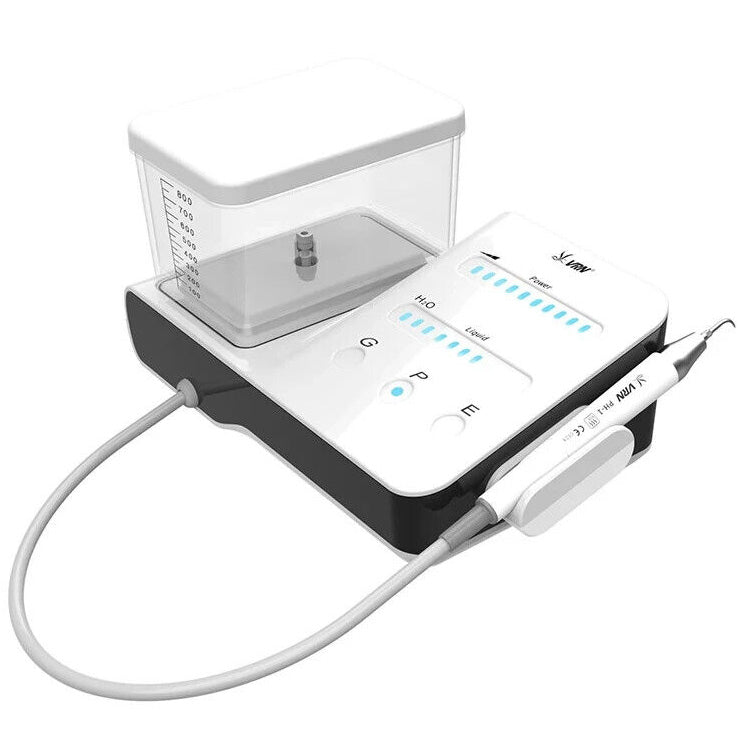

VRN DA-20 Dental Ultrasonic PIEZO Scaler + LED Handpiece (Compatible EMS Woodpecker)
- Regular price
- £215.99
- Sale price
- £215.99
- Regular price
-
