About
The DQ-40 Ultrasonic Scaler features both an ultrasound system and an air polishing system, making it suitable for scaling, periodontal treatment, air polishing, and root canal irrigation. It has the following characteristics:
▷ Automatically identifies the ultrasonic/air polishing working mode according to the selected handpiece.
▷ The DQ-40 panel adopts intelligent multi-touch control to precisely manage the periodontal treatment power for dental cleaning and uses an imported pressure regulator for accurate adjustments.
▷ Titanium alloy tips have a circular vibration trajectory, with small amplitude tips achieving painless treatment.
▷ In automatic water supply mode, special chemical solutions such as hydrogen peroxide, sodium hypochlorite, and chlorhexidine can be used to enhance clinical treatment effects.
▷ Detachable ultrasonic and air polishing handpieces can be sterilized at high temperatures of 134℃ and high pressures of 0.22MPa.
▷ The advanced wireless foot switch can remotely control the main unit, with the option of a wired foot switch based on user needs.
▷ Soft LED lighting improves clinical operation efficiency.
▷ The working process is fully automatically controlled by a microcomputer, making it convenient, simple to operate, and highly efficient.
Intended Use
This equipment is suitable for periodontal treatment in clinical oral treatment. It uses air polishing and ultrasonic scaling to remove tartar, plaque and stains on the tooth surface. Remove the dental calculus and plaque in the periodontal pockets. Clean and wash the root canal.

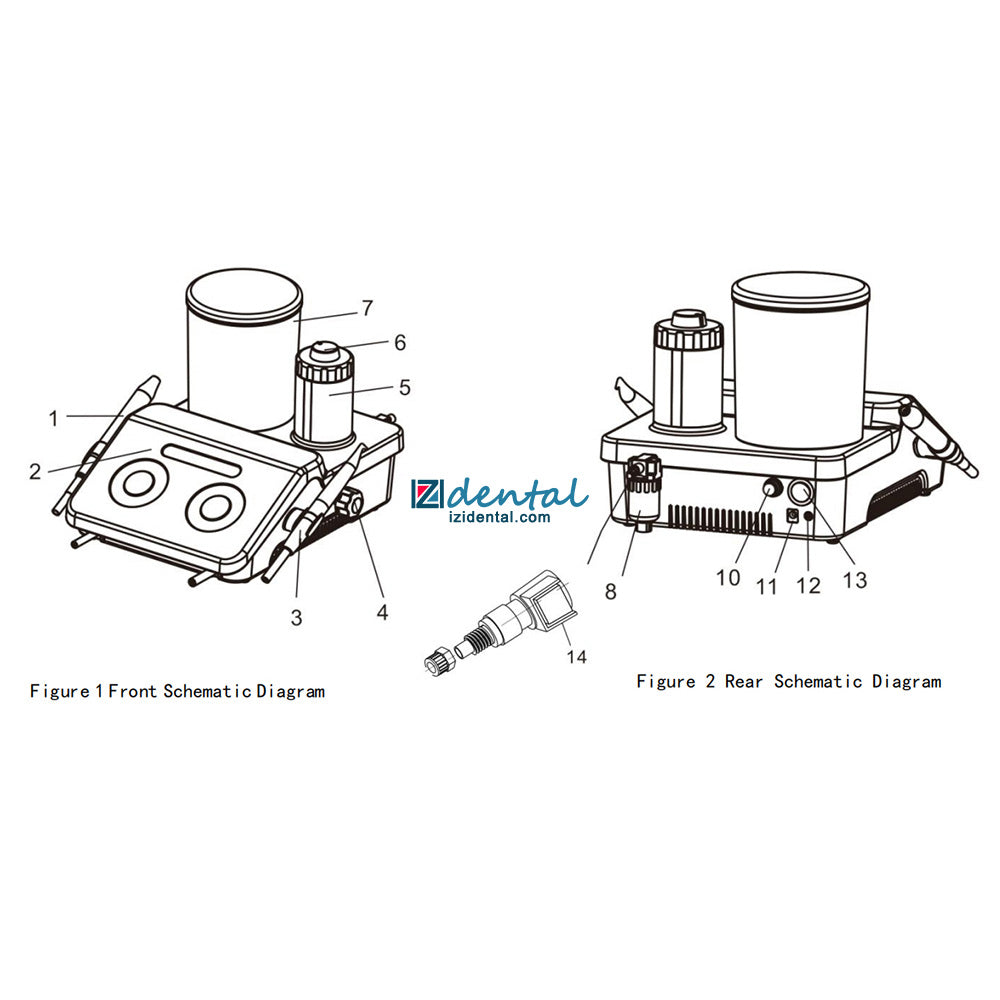

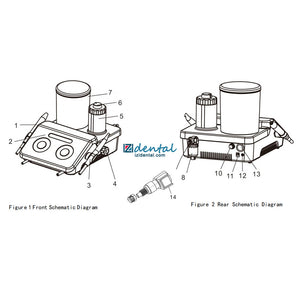

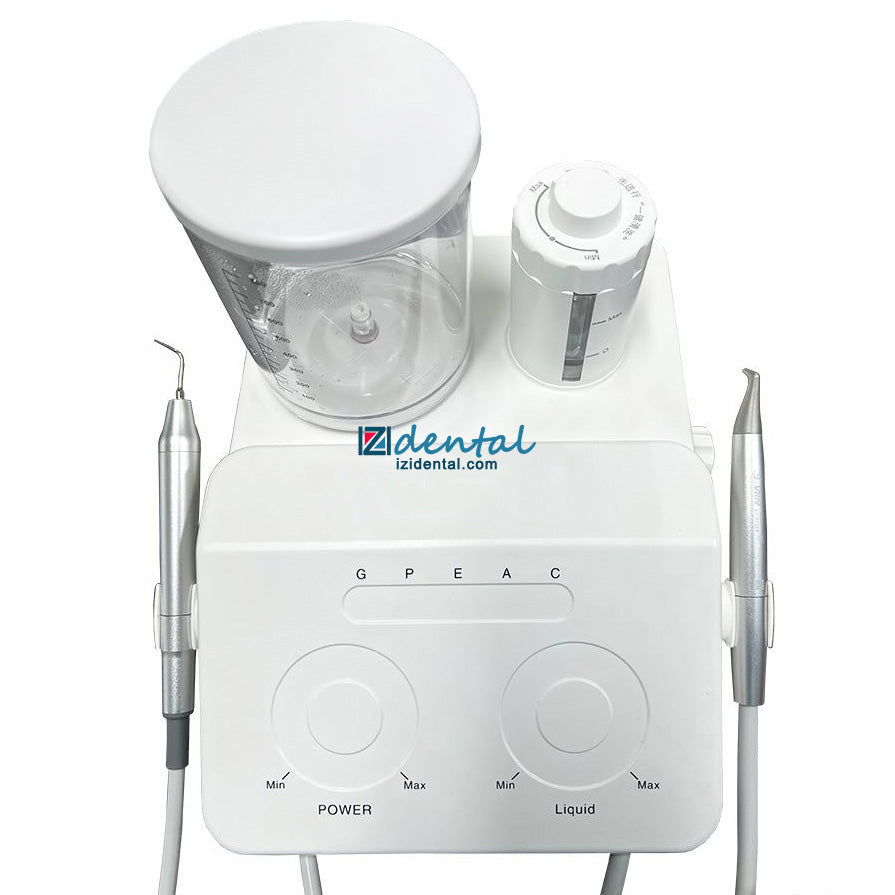

Product Structure
| 1. Ultrasonic handpiece | 6. Powder flow control knob | 11. Socket for DC power adapter |
| 2. Operation panel | 7. Water bottle | 12. Wired foot switch socket |
| 3. Air polishing handpiece | 8. Air/Water separator | 13. Power switch |
| 4. Air pressure control knob: adjust the air pressure under air polishing mode | 9. Air intake | 14. Check valve quick coupling |
| 5. Powder tank | 10. Fuse |

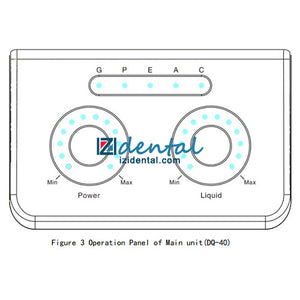

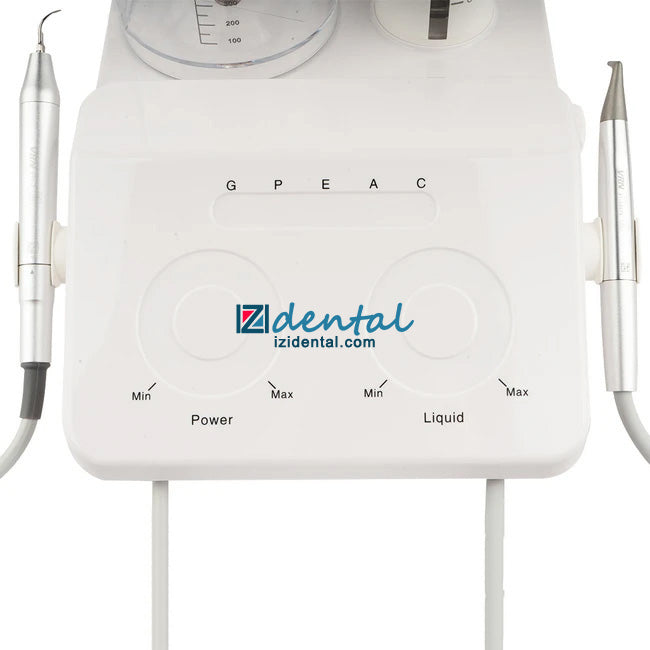

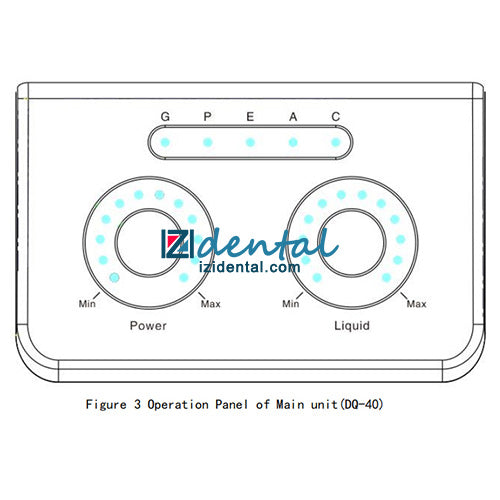

1. POWER: power slider, under the mode of cleaning: slide it for setting power; under the mode of powder spray: slide it for setting air pressure.
2. Liquid: water volume adjustment slider
3. Mode selection area:
G: Scaling
P: Periodontal treatment
E: Root canal irrigation
A: Air polishing(Intelligent recognition after taking the air polishing handpiece, no need for manual selection)
C: Air polishing pipe cleaning
| 1. Input Voltage: | 220 V～50/60 Hz |
| 2. Main Unit Input: | 25V 50Hz 1.3A |
| 3. Wireless Footswitch Battery: | Battery No.5 *2 |
| 4. Primary Tip Vibration Excursion: | Minimum: 1 μm; deviation: -50%; maximum: 100 μm; deviation: +50% |
| 5. Half-excursion Force: | Minimum: 0.1 N; deviation: -50%; maximum: 5 N; deviation: +50% |
| 6. Tip Vibration Frequence: | 30 kHz±5 KHz |
| 7. Tip Output Power: | 3 W～20 W |
| 8. Intake Pressure: | 5 bar~6 bar（0.5 MPa~0.6 MPa） |
| 9. Leaving Water Temp Of Sanblasting System: | 0℃～45℃ |
| 10. Dental Sandblasting Powder Requirement: | Applicable only to URIT approved dental sandblasting powder |
| 11. Fuse: | T2AH250V |
| 12. Fuse Power: | T1AL250V |
| 13. Weight of Main Unit: | 2.1 kg |
| 14. Weight of Power Adapter: | 0.9 kg |
| 15. Dimension of Main Unit: | 310 mm X 370 mm X 170 mm |
| 16. Receiving Sensitivity: | -114 dB |
| 17. Receiving Frequence: | 2.4G-2.5G |
| Wireless Footswitch | |
| 18. Emission Frequency | 2.4G-2.5G |
| 19. Modulation Type: | GFSK |
| 20. Effective Radiation Power: | 12dbm |
The DQ-40 Ultrasonic Scaler features both an ultrasound system and an air polishing system, making it suitable for scaling, periodontal treatment, air polishing, and root canal irrigation. It has the following characteristics:
▷ Automatically identifies the ultrasonic/air polishing working mode according to the selected handpiece.
▷ The DQ-40 panel adopts intelligent multi-touch control to precisely manage the periodontal treatment power for dental cleaning and uses an imported pressure regulator for accurate adjustments.
▷ Titanium alloy tips have a circular vibration trajectory, with small amplitude tips achieving painless treatment.
▷ In automatic water supply mode, special chemical solutions such as hydrogen peroxide, sodium hypochlorite, and chlorhexidine can be used to enhance clinical treatment effects.
▷ Detachable ultrasonic and air polishing handpieces can be sterilized at high temperatures of 134℃ and high pressures of 0.22MPa.
▷ The advanced wireless foot switch can remotely control the main unit, with the option of a wired foot switch based on user needs.
▷ Soft LED lighting improves clinical operation efficiency.
▷ The working process is fully automatically controlled by a microcomputer, making it convenient, simple to operate, and highly efficient.
Intended Use
This equipment is suitable for periodontal treatment in clinical oral treatment. It uses air polishing and ultrasonic scaling to remove tartar, plaque and stains on the tooth surface. Remove the dental calculus and plaque in the periodontal pockets. Clean and wash the root canal.
Product Structure
| 1. Ultrasonic handpiece | 6. Powder flow control knob | 11. Socket for DC power adapter |
| 2. Operation panel | 7. Water bottle | 12. Wired foot switch socket |
| 3. Air polishing handpiece | 8. Air/Water separator | 13. Power switch |
| 4. Air pressure control knob: adjust the air pressure under air polishing mode | 9. Air intake | 14. Check valve quick coupling |
| 5. Powder tank | 10. Fuse |
1. POWER: power slider, under the mode of cleaning: slide it for setting power; under the mode of powder spray: slide it for setting air pressure.
2. Liquid: water volume adjustment slider
3. Mode selection area:
G: Scaling
P: Periodontal treatment
E: Root canal irrigation
A: Air polishing(Intelligent recognition after taking the air polishing handpiece, no need for manual selection)
C: Air polishing pipe cleaning
| 1. Input Voltage: | 220 V～50/60 Hz |
| 2. Main Unit Input: | 25V 50Hz 1.3A |
| 3. Wireless Footswitch Battery: | Battery No.5 *2 |
| 4. Primary Tip Vibration Excursion: | Minimum: 1 μm; deviation: -50%; maximum: 100 μm; deviation: +50% |
| 5. Half-excursion Force: | Minimum: 0.1 N; deviation: -50%; maximum: 5 N; deviation: +50% |
| 6. Tip Vibration Frequence: | 30 kHz±5 KHz |
| 7. Tip Output Power: | 3 W～20 W |
| 8. Intake Pressure: | 5 bar~6 bar（0.5 MPa~0.6 MPa） |
| 9. Leaving Water Temp Of Sanblasting System: | 0℃～45℃ |
| 10. Dental Sandblasting Powder Requirement: | Applicable only to URIT approved dental sandblasting powder |
| 11. Fuse: | T2AH250V |
| 12. Fuse Power: | T1AL250V |
| 13. Weight of Main Unit: | 2.1 kg |
| 14. Weight of Power Adapter: | 0.9 kg |
| 15. Dimension of Main Unit: | 310 mm X 370 mm X 170 mm |
| 16. Receiving Sensitivity: | -114 dB |
| 17. Receiving Frequence: | 2.4G-2.5G |
| Wireless Footswitch | |
| 18. Emission Frequency | 2.4G-2.5G |
| 19. Modulation Type: | GFSK |
| 20. Effective Radiation Power: | 12dbm |
