Functions:
● Hyperbolic ceramic furnace function, the program can be set to single curve mode or hyperbolic mode, hyperbolic mode provides a complete crystallization process for glass-ceramic crystallization.
● Voice prompt function.
● High quality temperature automatic adjustment function, to ensure that the actual temperature error within + / - 1 degrees.
● Portable for easy transfer and storage.
● Quartz spiral furnace.
● Automatic temperature calibration before each baking procedure.
● The built-in vacuum pump can reach - 90kpa at most.
● True color touch screen, easy to operate.
● 99 custom programs and built-in programs.
● Automatic detection of furnace door closing before heating.
● Full body high thermal conductivity silicon carbide reflection furnace.

Typical application:
Metal oxidation,
Op
Glazing
Body porcelain,
WO
Glass ceramic crystallization,
Ring burning
Add porcelain

Specifications
Operation:
The velocity of temperature increasing: 100℃/min max. (212°F /minute)
The max temperature: : 1100℃ max (2012°F)
The time which can be kept at the max temperature: 2 H
Vacuum level:1-101%

Electric power:
Operation range：100-120V 50/60HZ 230V 50/60HZ
Electric current：14.5ampere@110V 7.0ampere@230V
Power：max 1500w

Typical specification:
WxDxH :width 18cm Depth 25cm Height 38.5cm

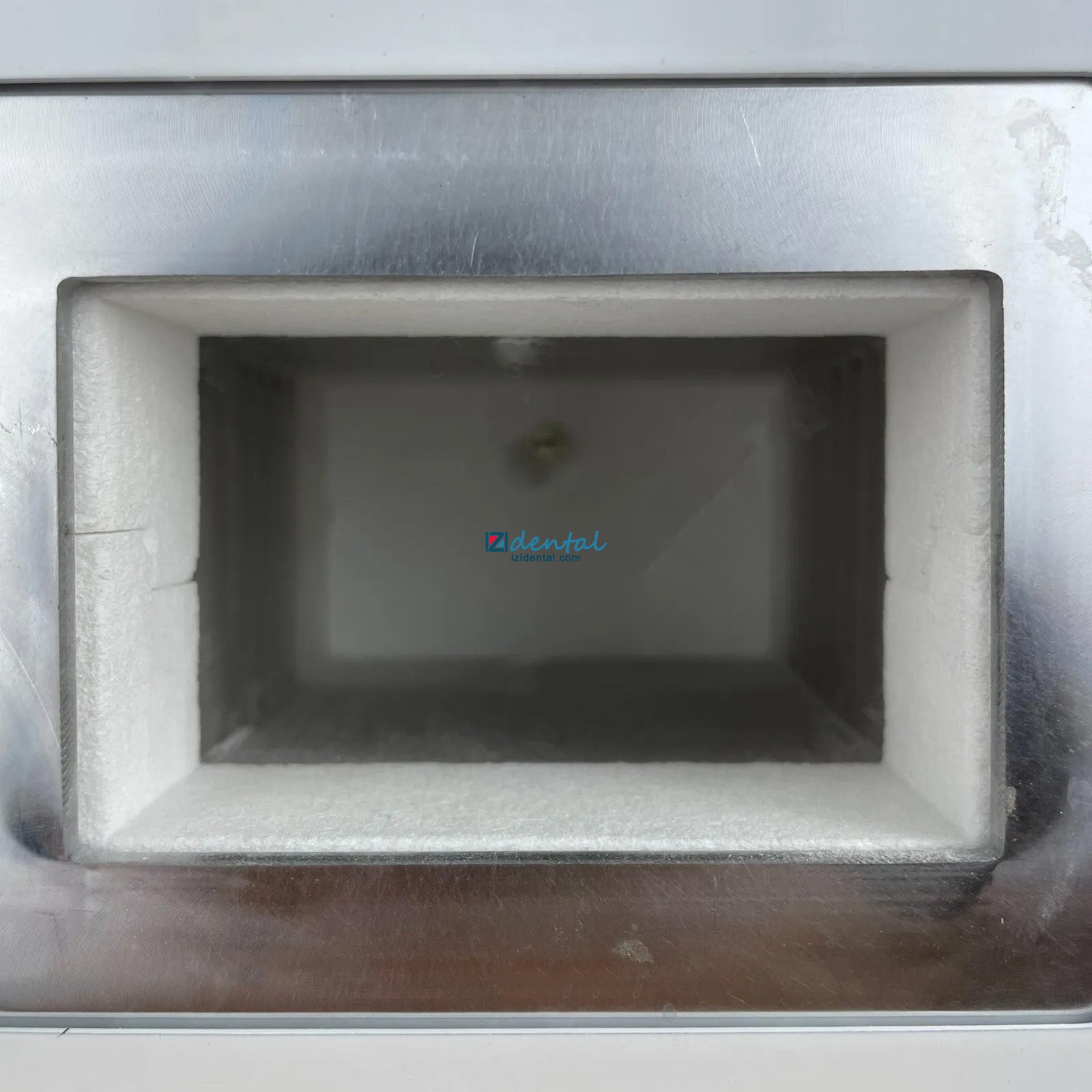

Usable measure (firing chamber): 7*7cm square

Ambient conditions
• Indoor use
• Ambient temperature: 2°C to 40°C
• Relative humidity 80% at 31°C
• Maximum altitude: 1500 m (Special Model:3500m)
• Rated voltage fluctuations must not exceed plus/minus 10% of the rated voltage .

Complete with:
• 1 firing pan
• 1 spare wrench for furnace door
• 1 connection cable for the mains power supply
• 1 instructions
• 1 Burning rack

Note:The sale of this item may be subject to regulation by federal and provincial regulatory agencies. If so, do not bid on this item unless you are an authorized purchaser. If the item is subject to regulation, I will verify your status as an authorized purchaser of this item before shipping of the item.
