About

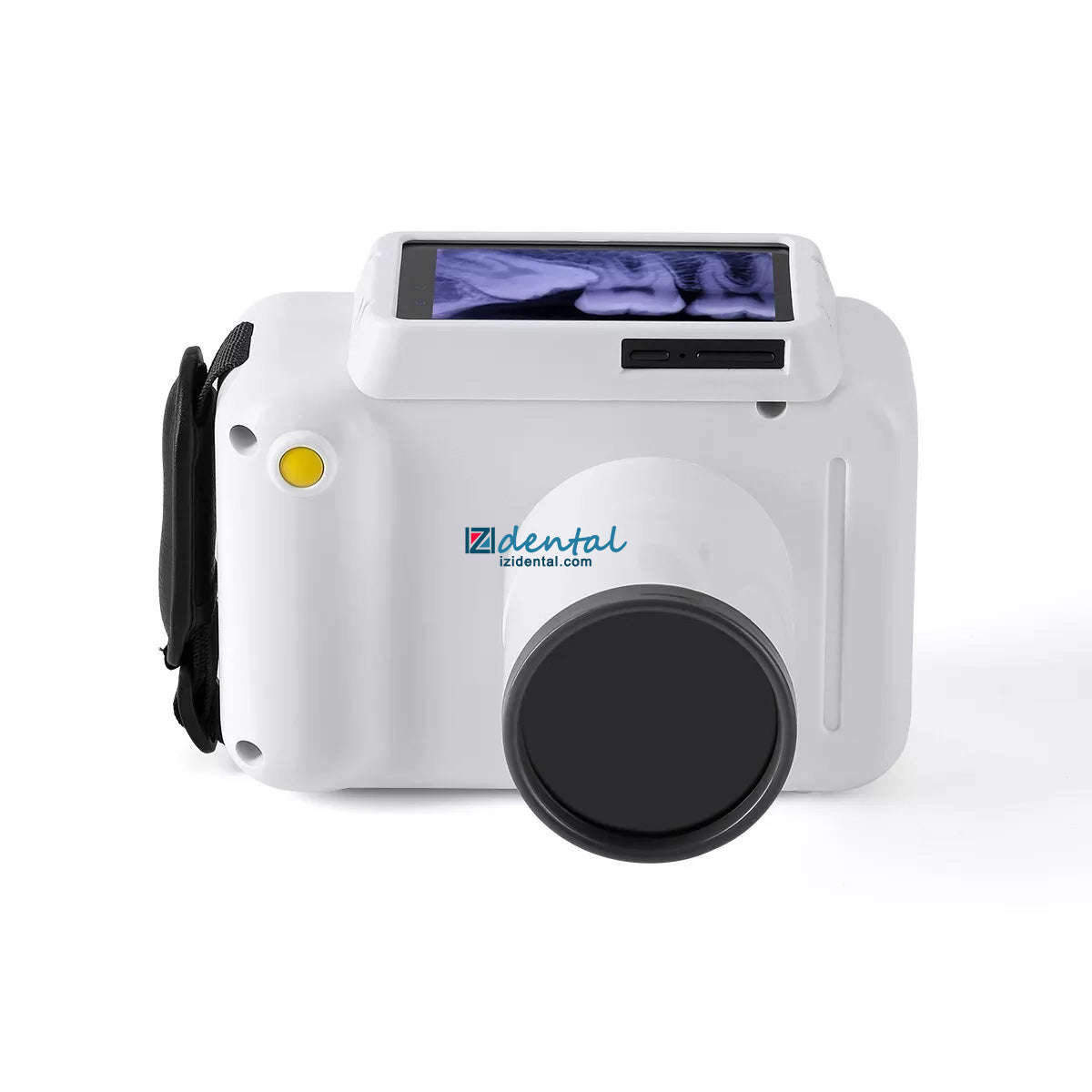

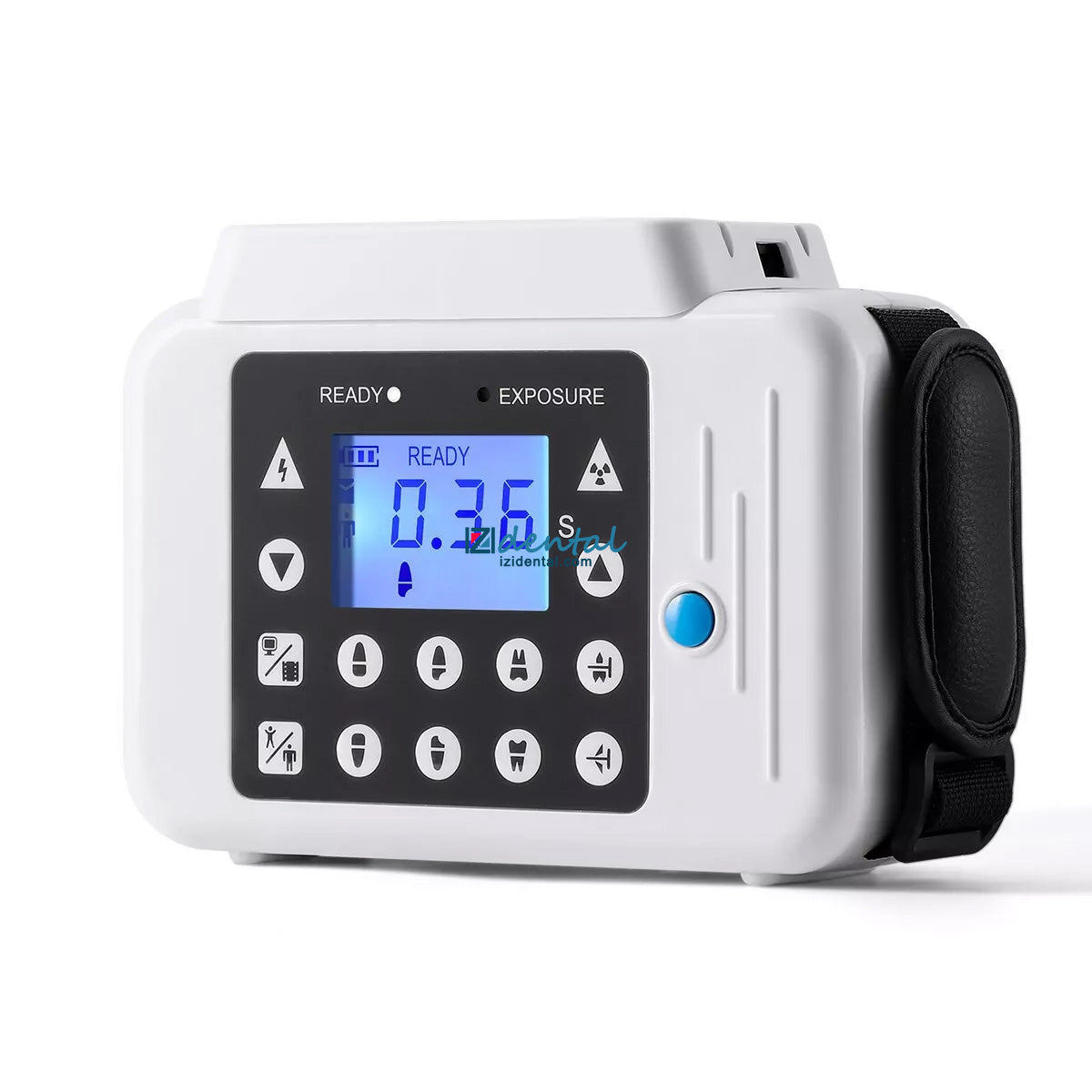

The Handheld Dental X-Ray Machine is a portable, easy-to-use device designed for efficient dental imaging. It features instant image display on the built-in screen once connected to sensors, ensuring immediate feedback after capturing X-rays. The unit operates independently, even without a sensor, and is compatible with digital sensors, X-ray film, and image plate scanners. Its flexible sensor use allows pairing with other X-ray machines for versatile integration across various setups. The compact and lightweight design enhances workflow efficiency and ensures portability.
Captured images can be easily transferred to a computer via USB or Bluetooth. The unit offers two sensor options to suit different clinical needs, with preset exposure times for both adults and children. The durable battery allows for approximately 400 images on a single charge.
Key Features:

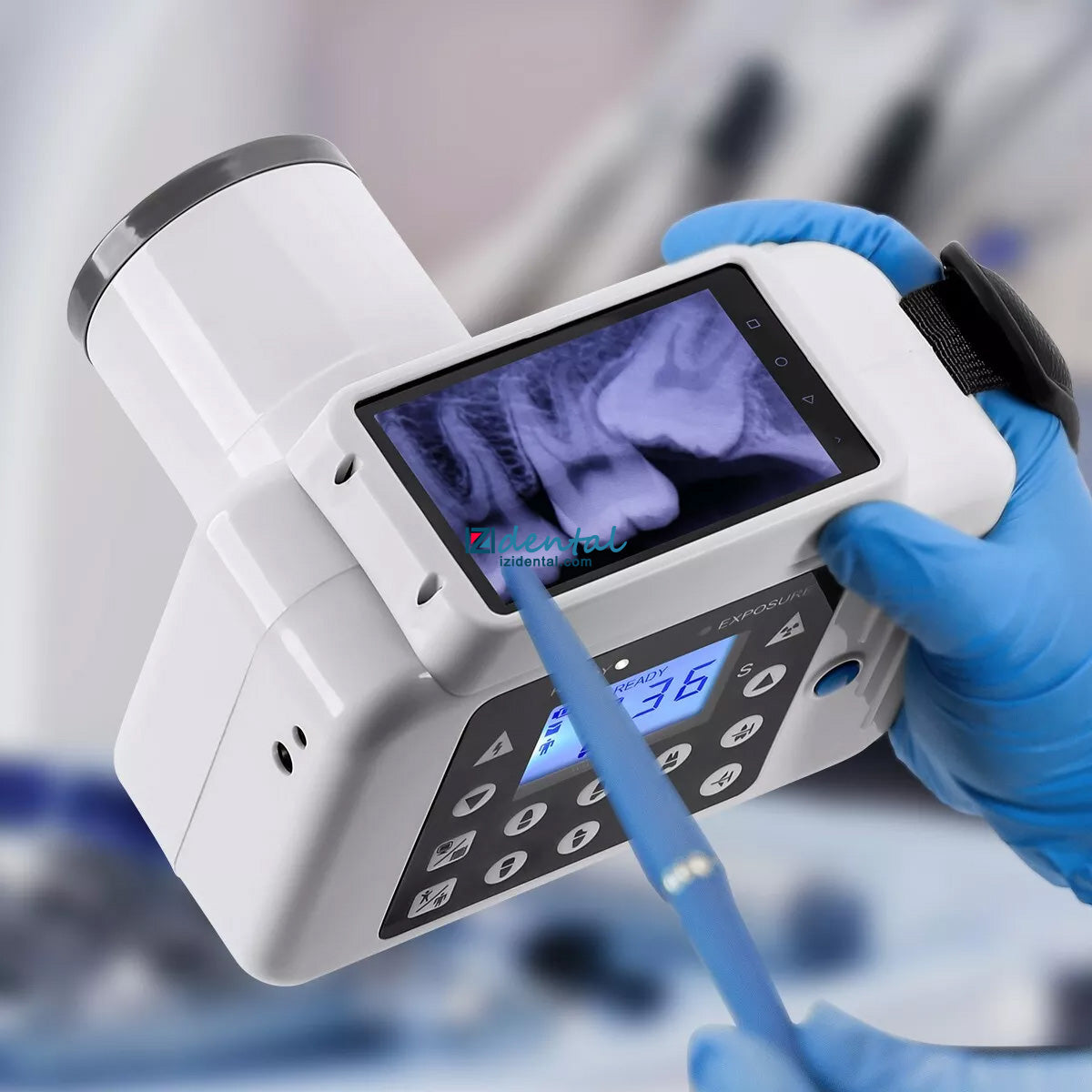

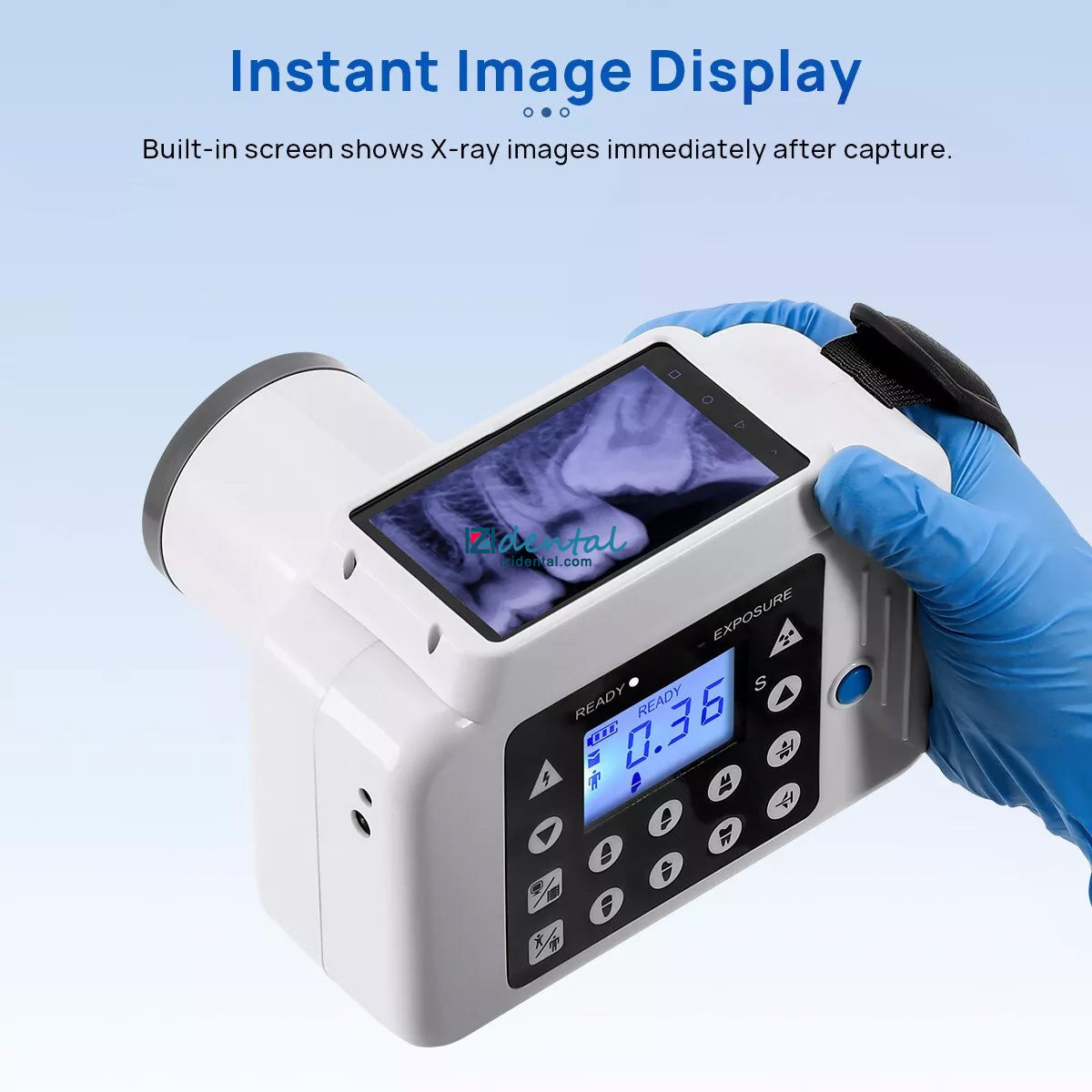

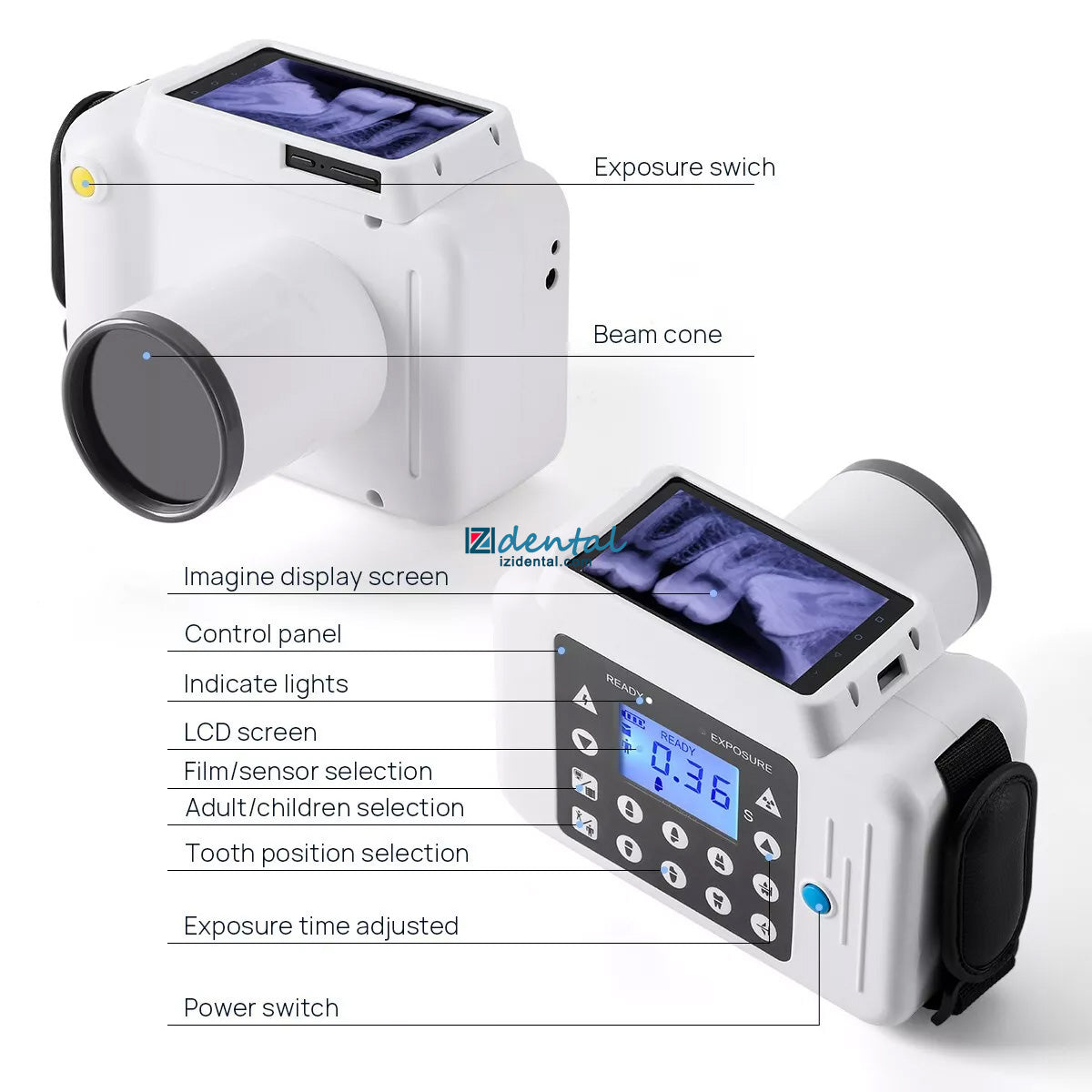

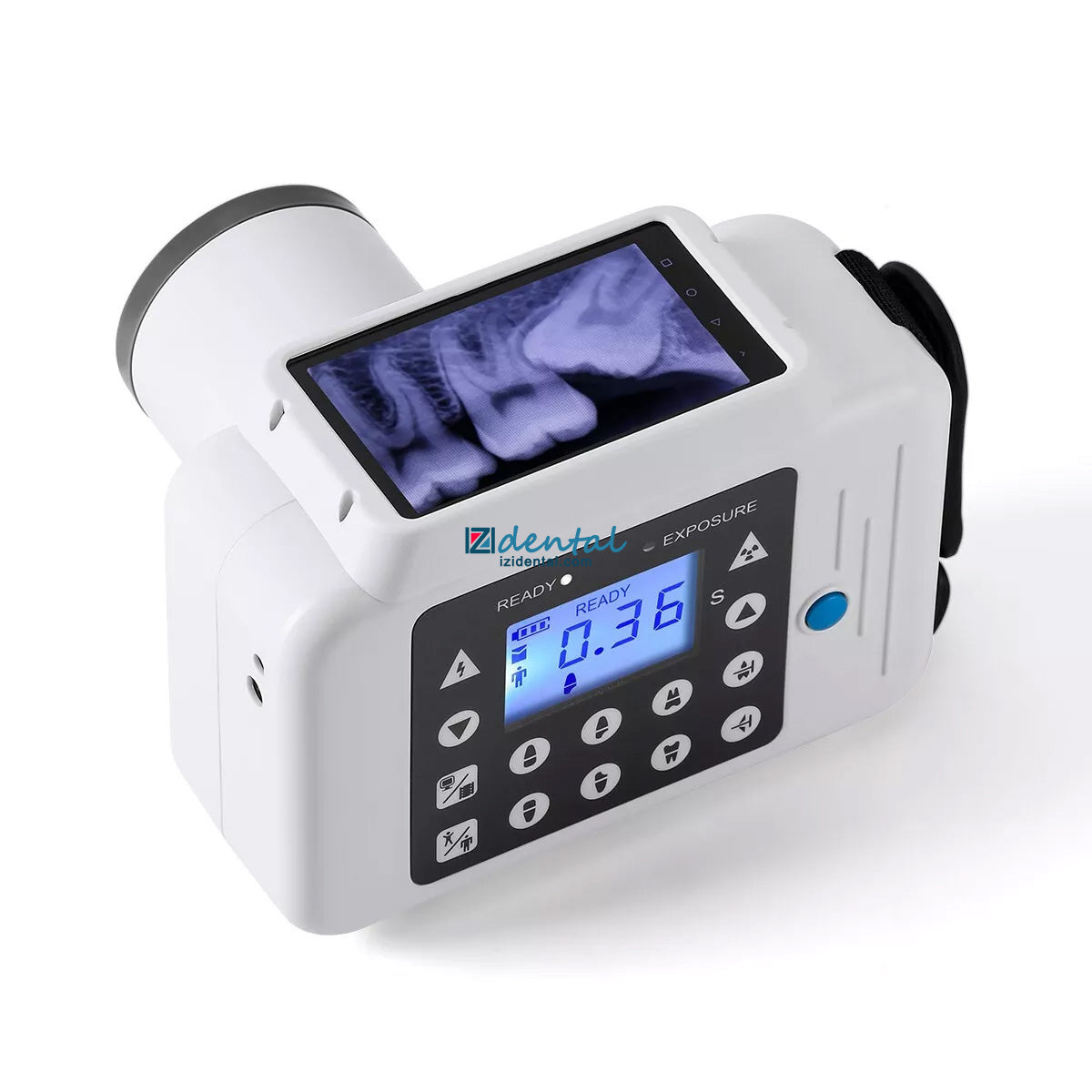

- Instant image display on the built-in screen when connected to sensors.

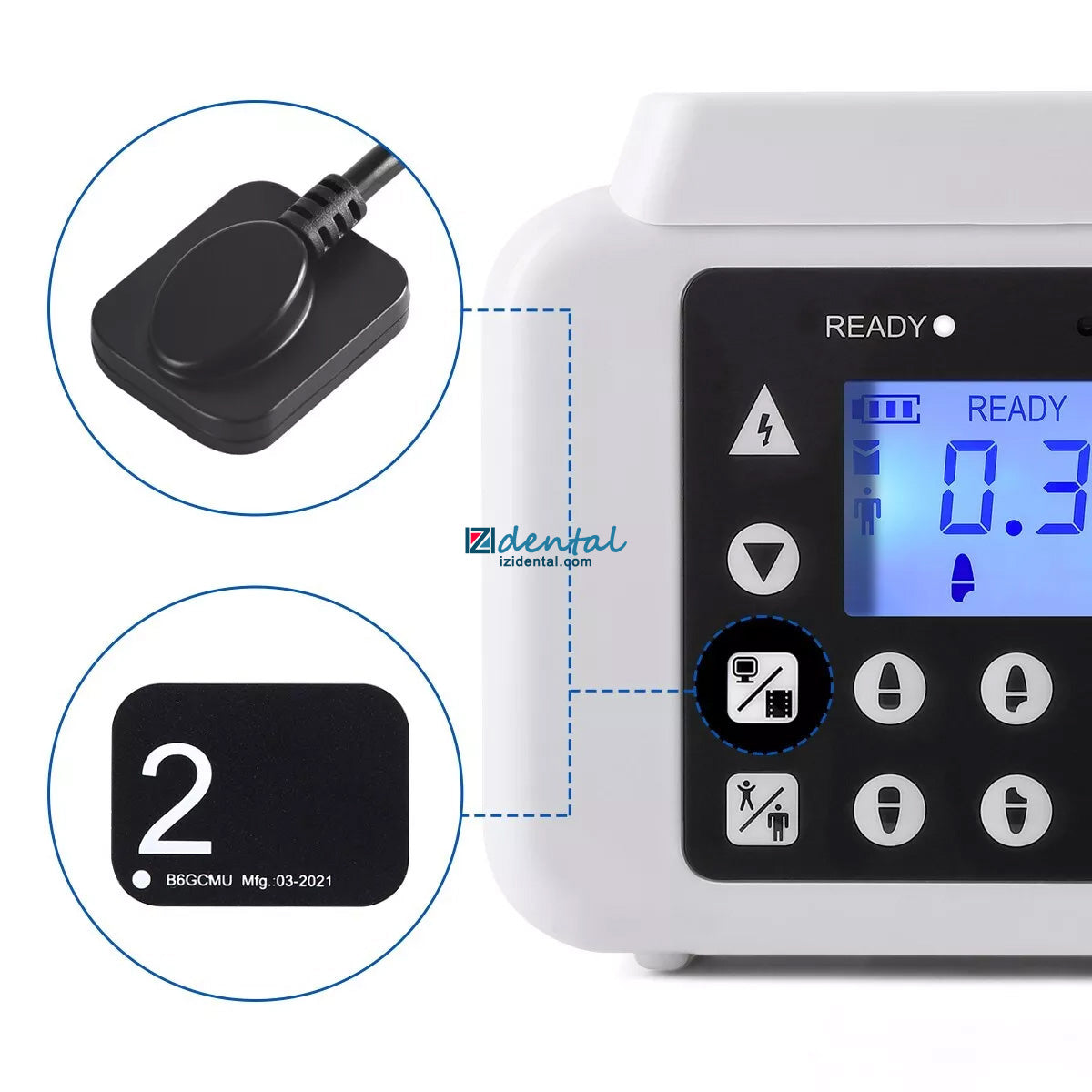

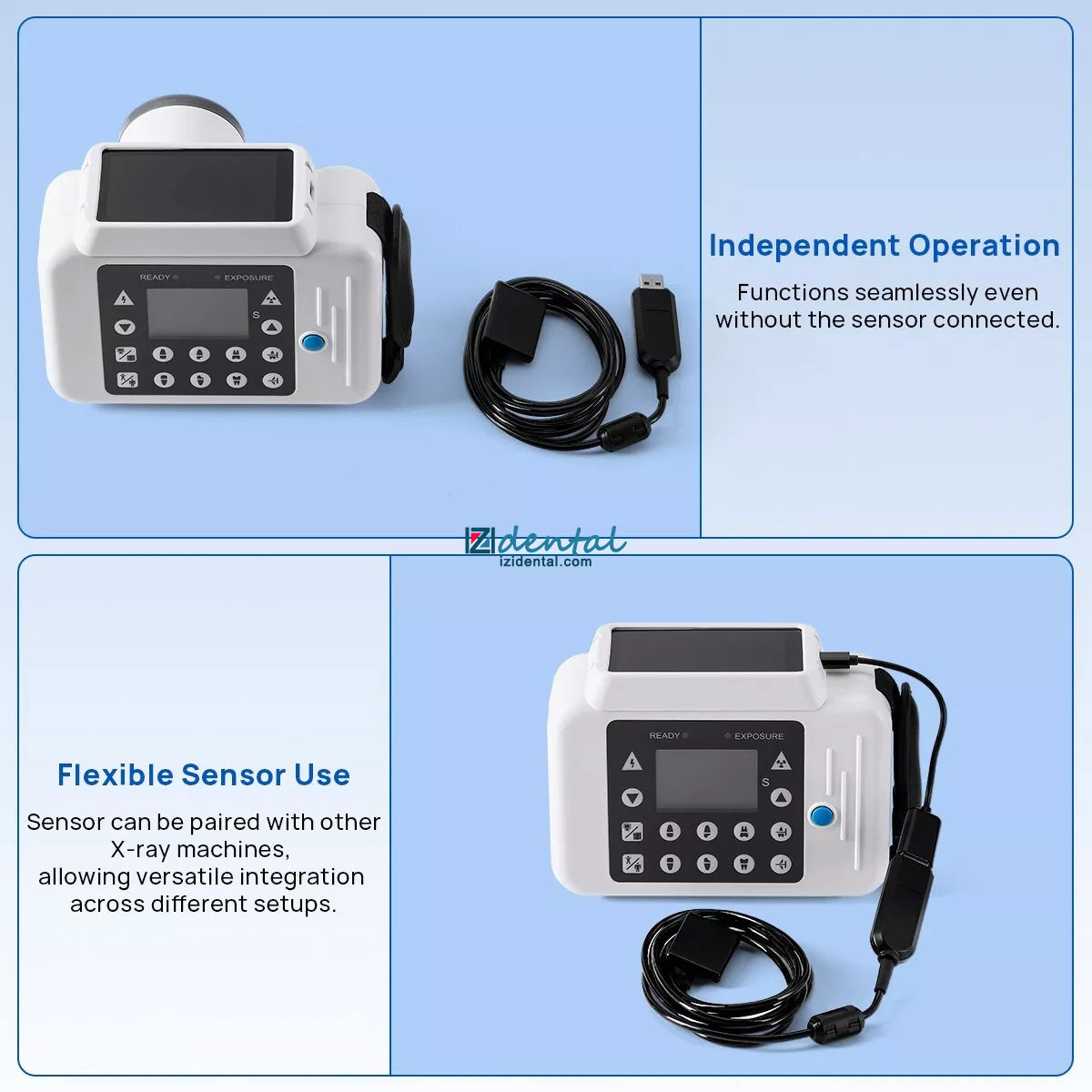

- Independent operation without sensor, compatible with digital sensors, X-ray films, and image plate scanners.
- Flexible sensor use for integration with other X-ray machines.
- Streamlined design for enhanced workflow and versatility.

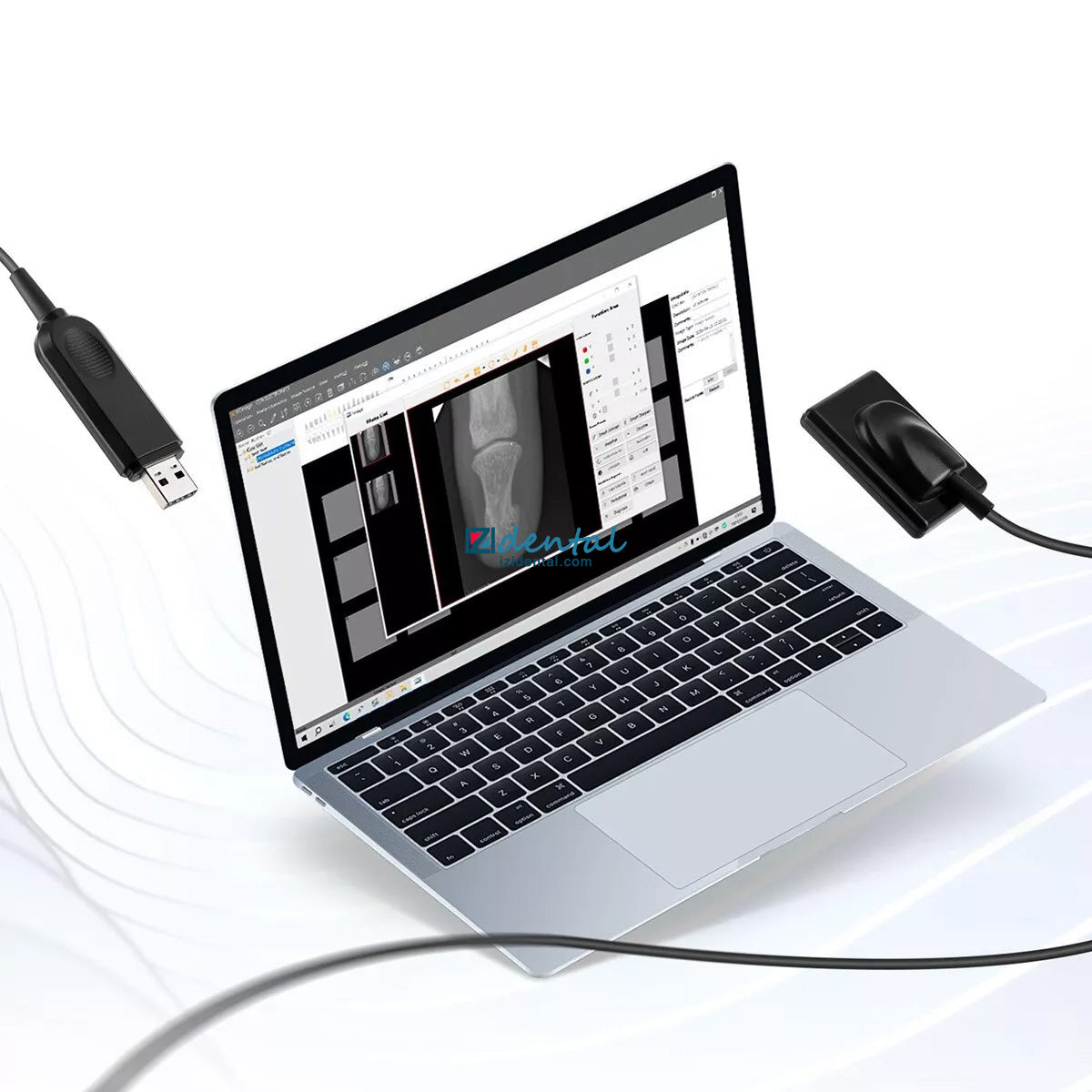

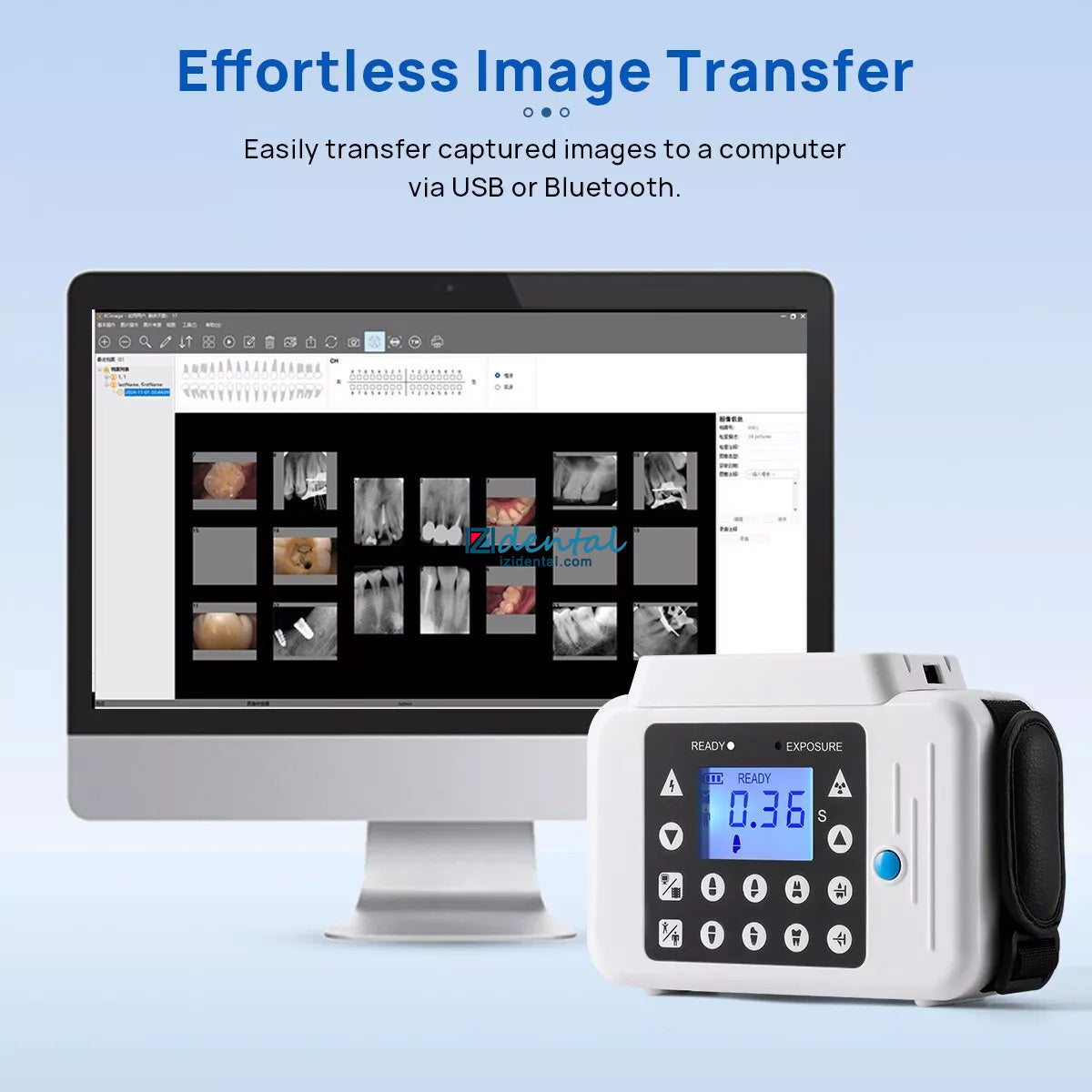

- Effortless image transfer via USB or Bluetooth.
- Two sensor models available to suit different needs.
- Portable, easy-to-grip handheld design.

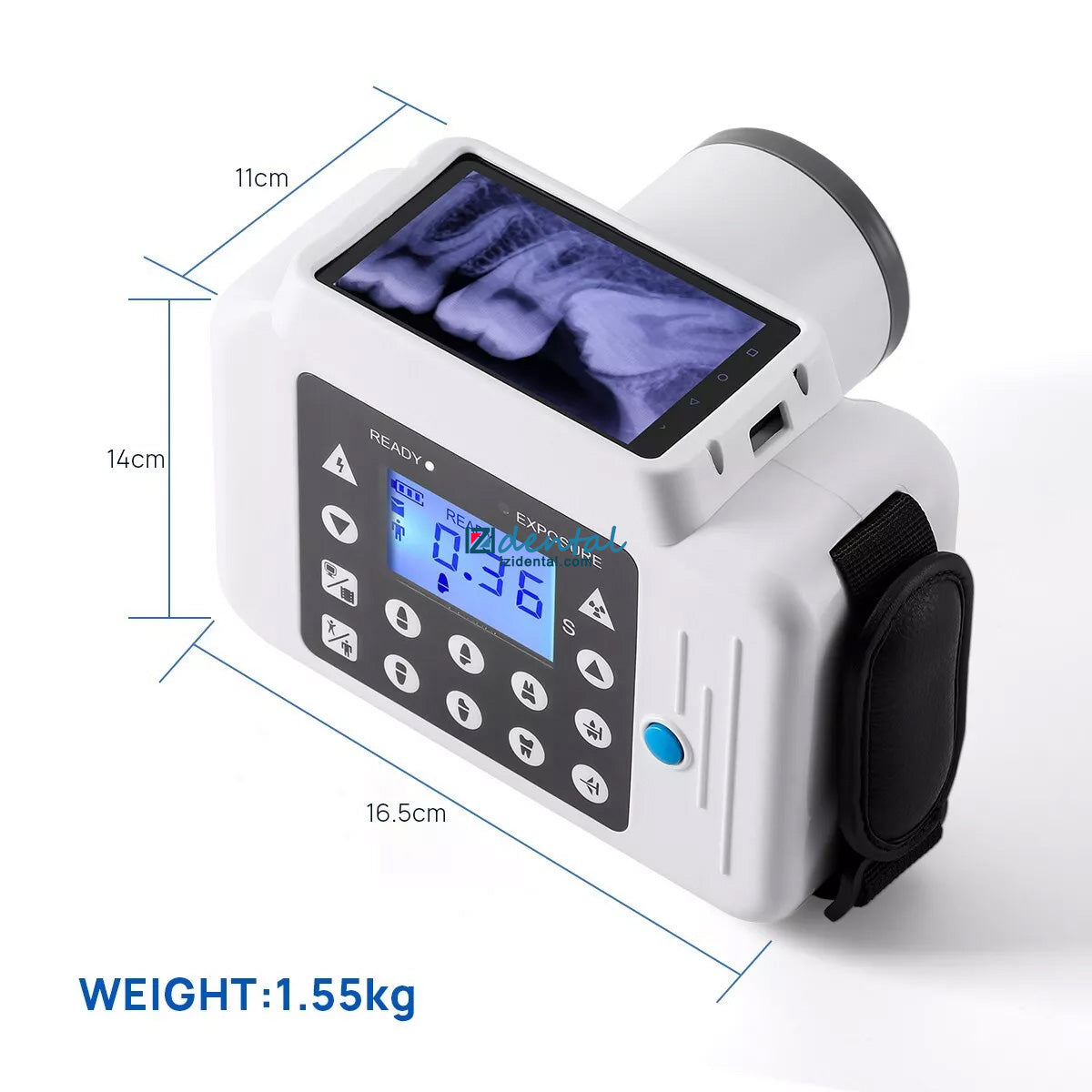

- Compact and lightweight body with radiation leakage under 20μGy/h.
- High-quality imaging, portable storage, and space-saving design.
- High-frequency DC international power supply.
- Integrated components for improved durability and safety.

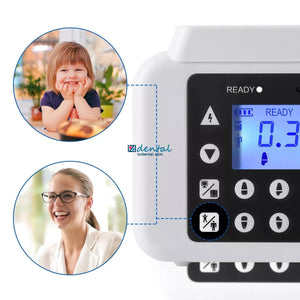

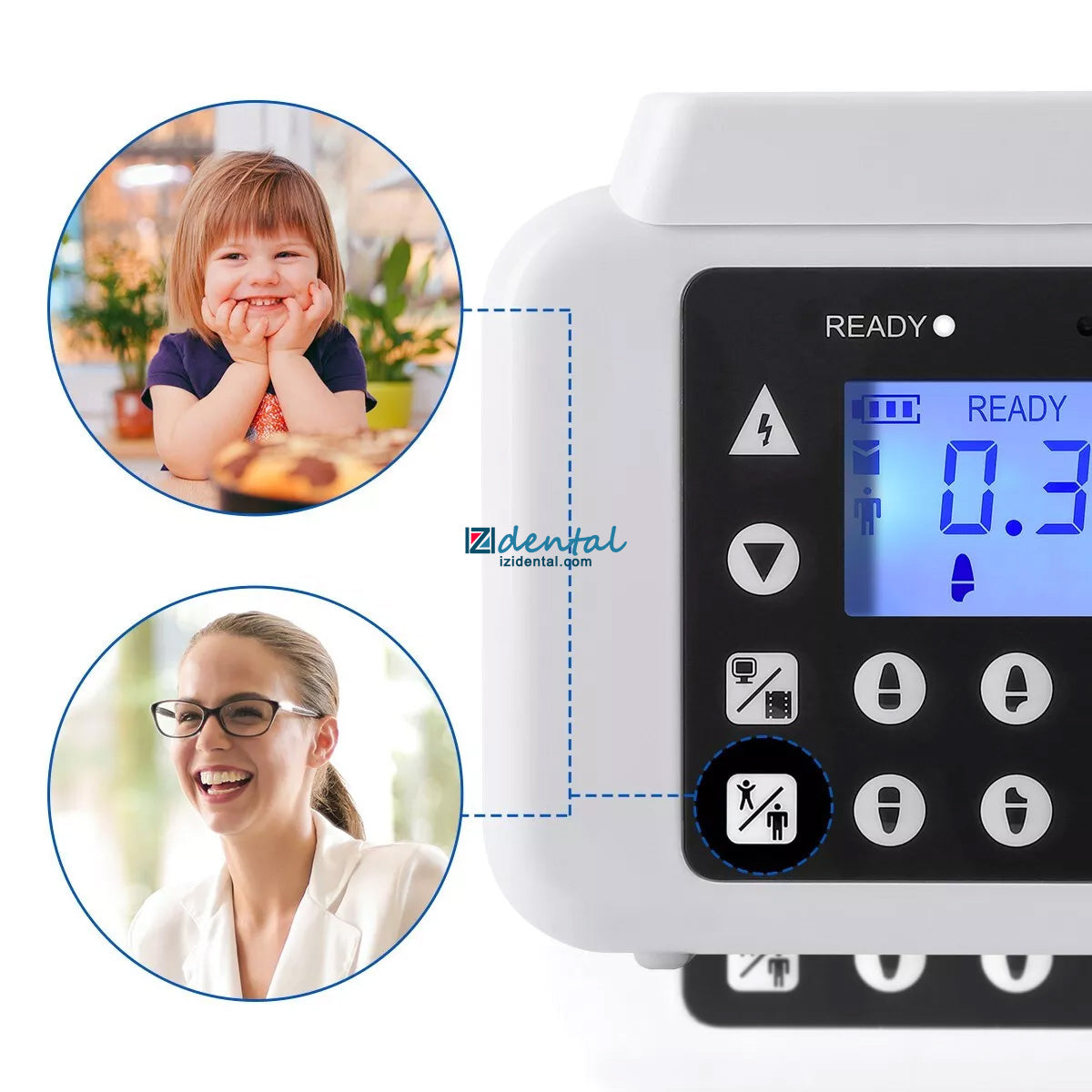

- Different exposure times preset for adults and children.
- Long-lasting battery (approx. 400 images per full charge).

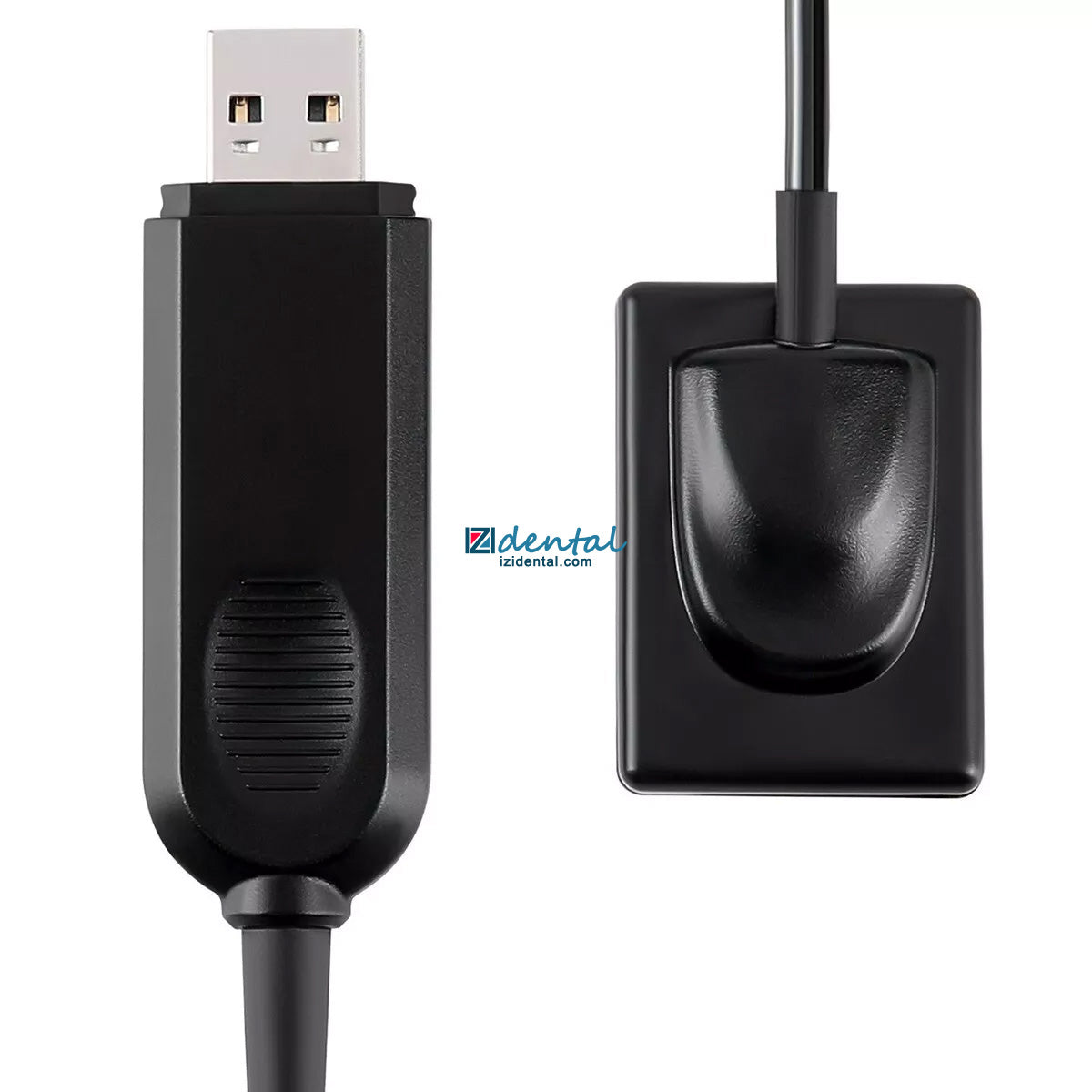

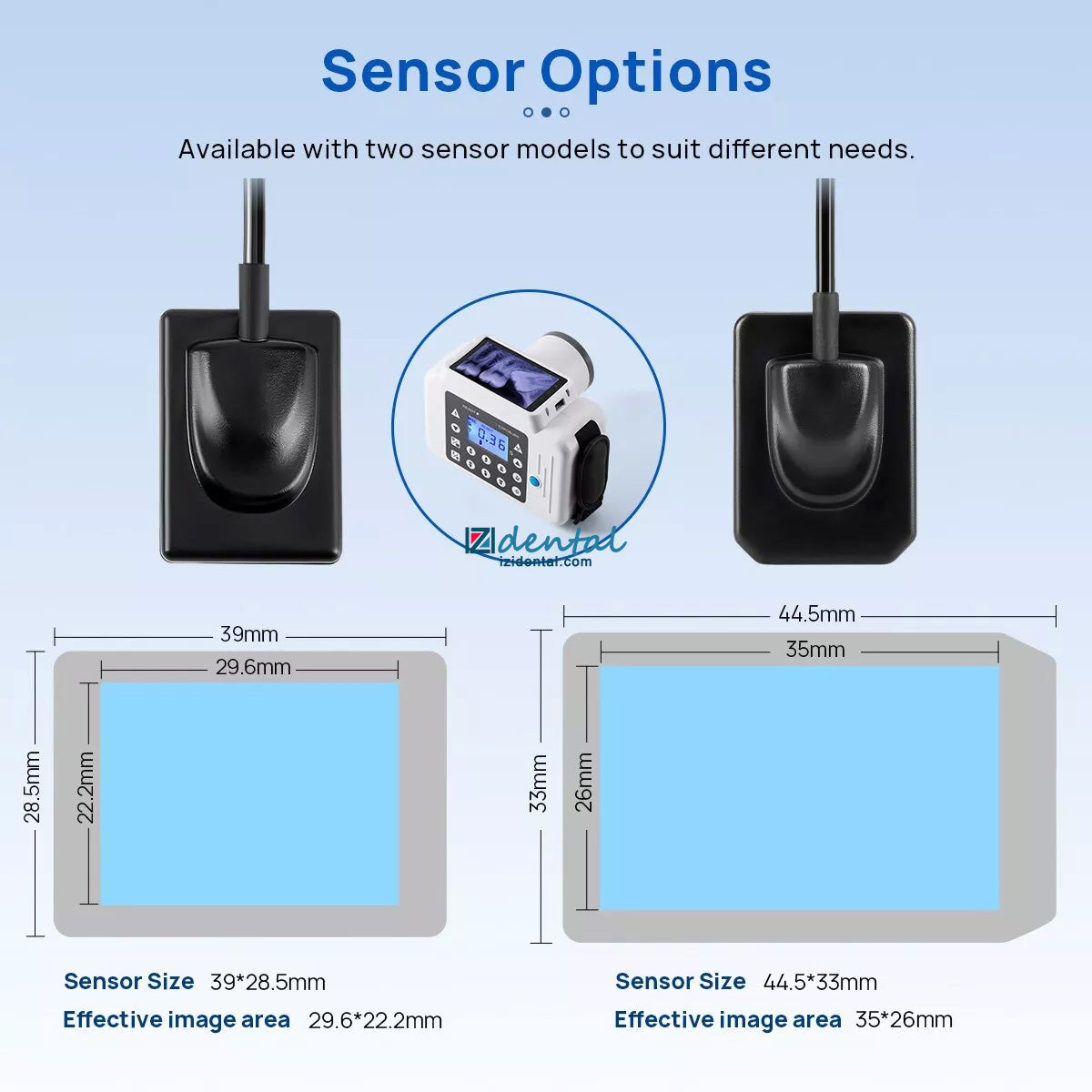

Sensor Technical Parameter:
| Model | COX2230 | COX2635 |
|---|---|---|
| Detector Technology | APS CMOS | |
| Pixel Size | 18.5µm | |
| Theoretical Resolution | 27 lp/mm | |
| True Resolution | CsI: ≥14 lp/mm | |
| Pixel Matrix | 1200×1600 | 1402×1888 |
| Active Area (mm) | 29.6 x 22.2 | 35 x 26 |
| Mechanical Size (mm) | 39 x 28.5 x 6 | 44.5 x 33.0 x 6 |
| Data Interface | USB | |
| Digitization | 12/14/16 bit | |
| Imaging Time | 3-4s | |
Technical Specifications:
- Tube Voltage: 60KV
- Tube Current: 2mA
- Exposure Time: 0.1-2.0S
- Frequency: 30kHz
- Rated Power: 120VA
- Distance from Skin to Cone: 105mm
- Tube Focus: 0.8mm x 0.8mm
- Battery: DC 14.8V 1600mAh
- Charger Input Voltage: AC 100V-240V ±10%
- Output Voltage: DC 16.8V
- Ambient Temperature: 5°C to 40°C
- Relative Humidity: <75% RH

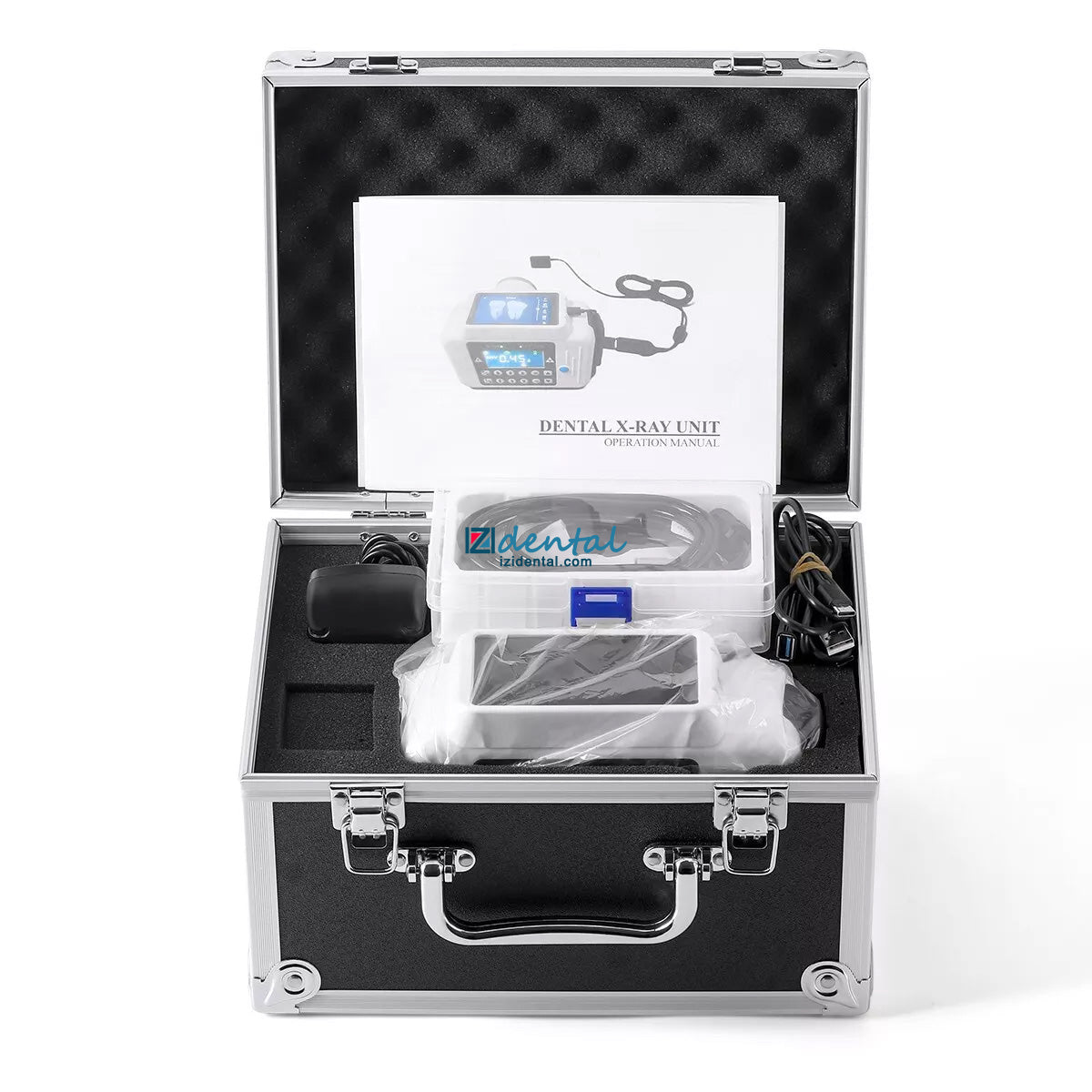

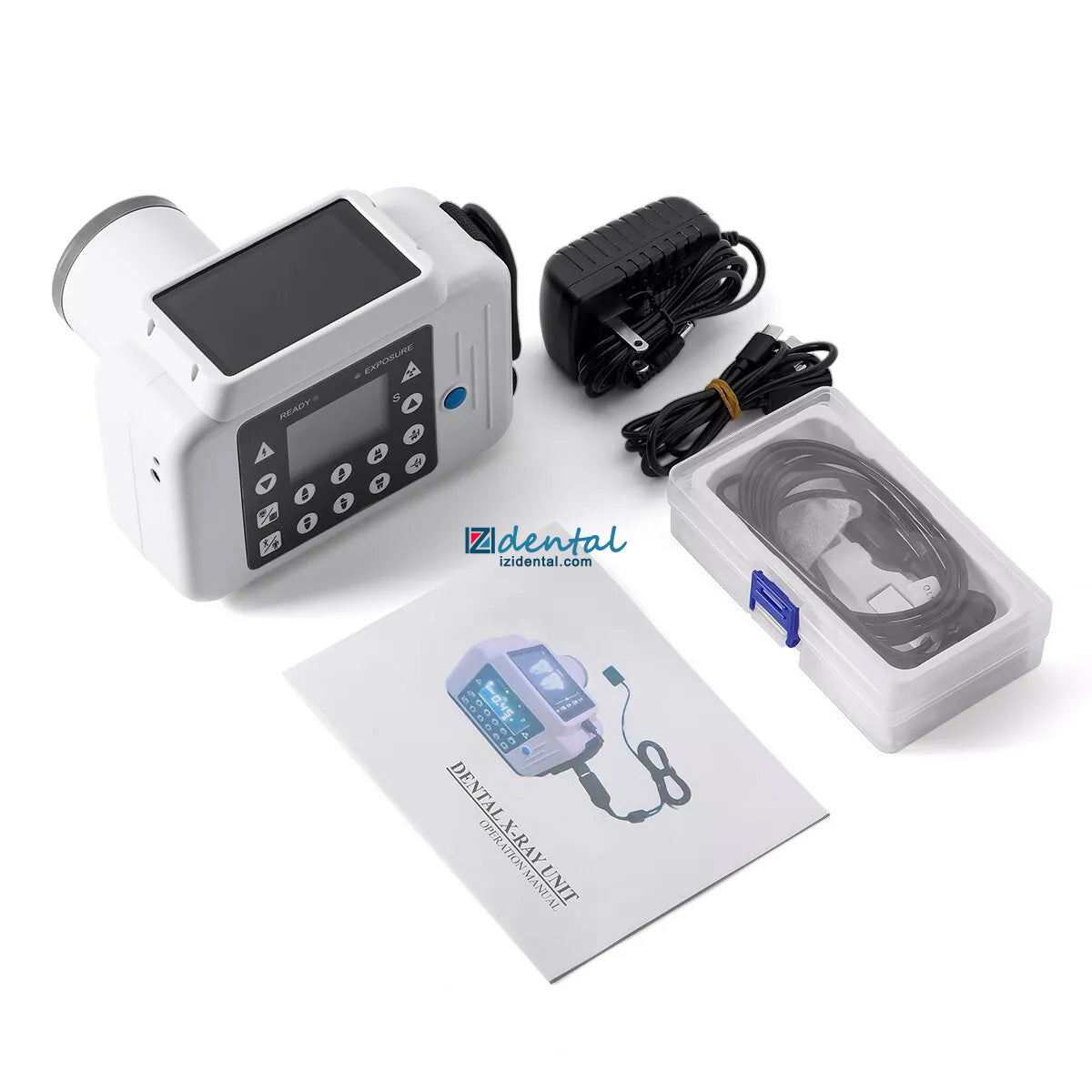

Package Includes:
- 1 x Aluminum Box
- 1 x X-ray Machine
- 1 x Sensor (with USB disk)
- 1 x Charger
- 1 x Manual
- 2 x Data Cables

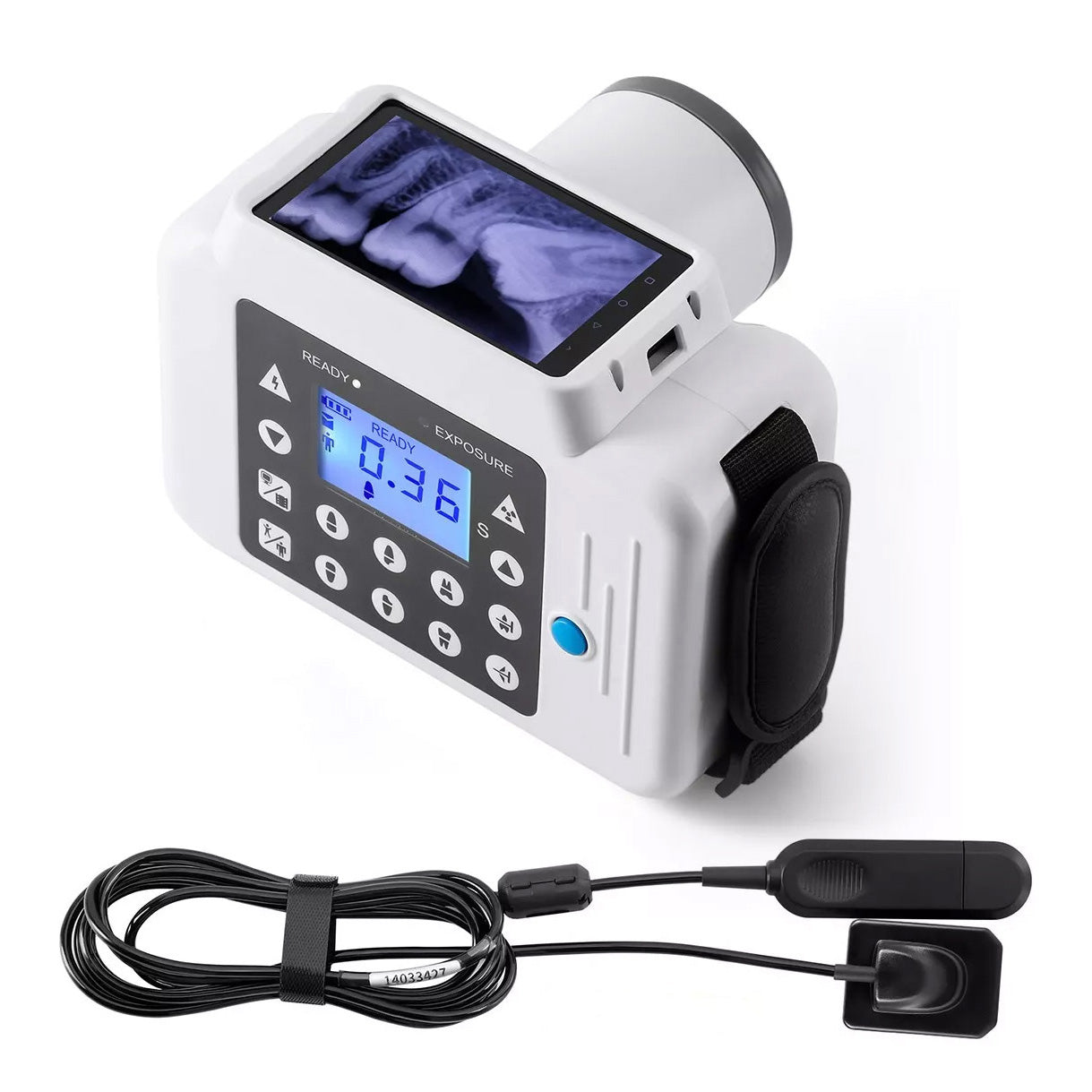

Note: Two sensor options available:
- RAY-121 with 2230 sensor
- RAY-121 with 2635 sensor
The Handheld Dental X-Ray Machine is a portable, easy-to-use device designed for efficient dental imaging. It features instant image display on the built-in screen once connected to sensors, ensuring immediate feedback after capturing X-rays. The unit operates independently, even without a sensor, and is compatible with digital sensors, X-ray film, and image plate scanners. Its flexible sensor use allows pairing with other X-ray machines for versatile integration across various setups. The compact and lightweight design enhances workflow efficiency and ensures portability.
Captured images can be easily transferred to a computer via USB or Bluetooth. The unit offers two sensor options to suit different clinical needs, with preset exposure times for both adults and children. The durable battery allows for approximately 400 images on a single charge.
Key Features:
- Instant image display on the built-in screen when connected to sensors.
- Independent operation without sensor, compatible with digital sensors, X-ray films, and image plate scanners.
- Flexible sensor use for integration with other X-ray machines.
- Streamlined design for enhanced workflow and versatility.
- Effortless image transfer via USB or Bluetooth.
- Two sensor models available to suit different needs.
- Portable, easy-to-grip handheld design.
- Compact and lightweight body with radiation leakage under 20μGy/h.
- High-quality imaging, portable storage, and space-saving design.
- High-frequency DC international power supply.
- Integrated components for improved durability and safety.
- Different exposure times preset for adults and children.
- Long-lasting battery (approx. 400 images per full charge).
Sensor Technical Parameter:
| Model | COX2230 | COX2635 |
|---|---|---|
| Detector Technology | APS CMOS | |
| Pixel Size | 18.5µm | |
| Theoretical Resolution | 27 lp/mm | |
| True Resolution | CsI: ≥14 lp/mm | |
| Pixel Matrix | 1200×1600 | 1402×1888 |
| Active Area (mm) | 29.6 x 22.2 | 35 x 26 |
| Mechanical Size (mm) | 39 x 28.5 x 6 | 44.5 x 33.0 x 6 |
| Data Interface | USB | |
| Digitization | 12/14/16 bit | |
| Imaging Time | 3-4s | |
Technical Specifications:
- Tube Voltage: 60KV
- Tube Current: 2mA
- Exposure Time: 0.1-2.0S
- Frequency: 30kHz
- Rated Power: 120VA
- Distance from Skin to Cone: 105mm
- Tube Focus: 0.8mm x 0.8mm
- Battery: DC 14.8V 1600mAh
- Charger Input Voltage: AC 100V-240V ±10%
- Output Voltage: DC 16.8V
- Ambient Temperature: 5°C to 40°C
- Relative Humidity: <75% RH
Package Includes:
- 1 x Aluminum Box
- 1 x X-ray Machine
- 1 x Sensor (with USB disk)
- 1 x Charger
- 1 x Manual
- 2 x Data Cables
Note: Two sensor options available:
- RAY-121 with 2230 sensor
- RAY-121 with 2635 sensor
