Features

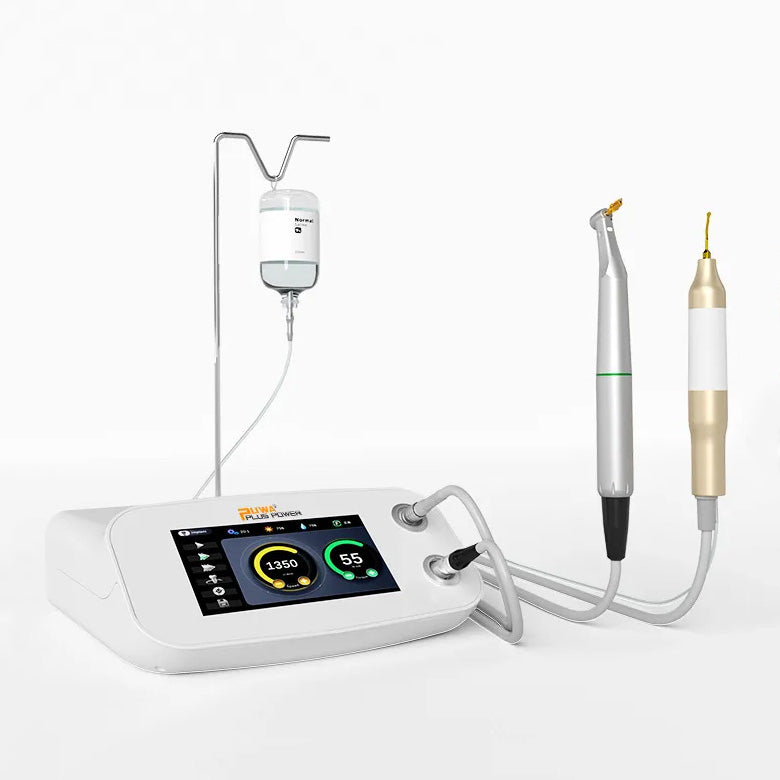

• One-Touch Mode Switching: A single unit with two functions, allowing for easy switching between Piezo surgery and Implant modes.

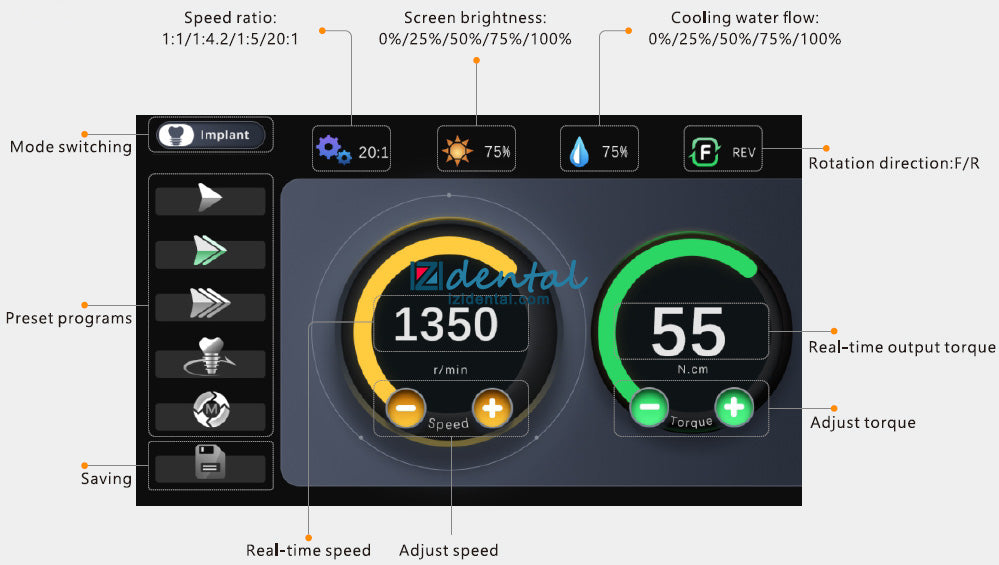

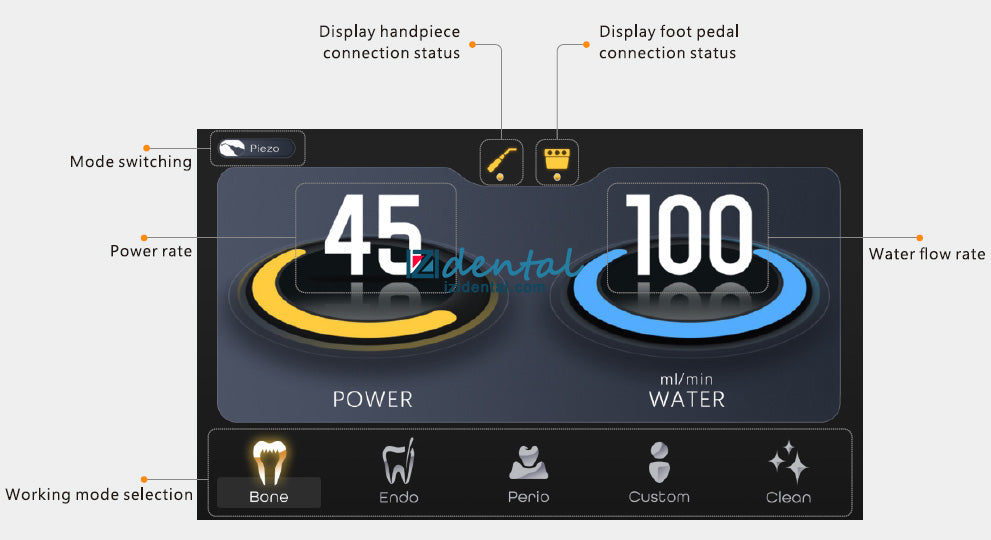

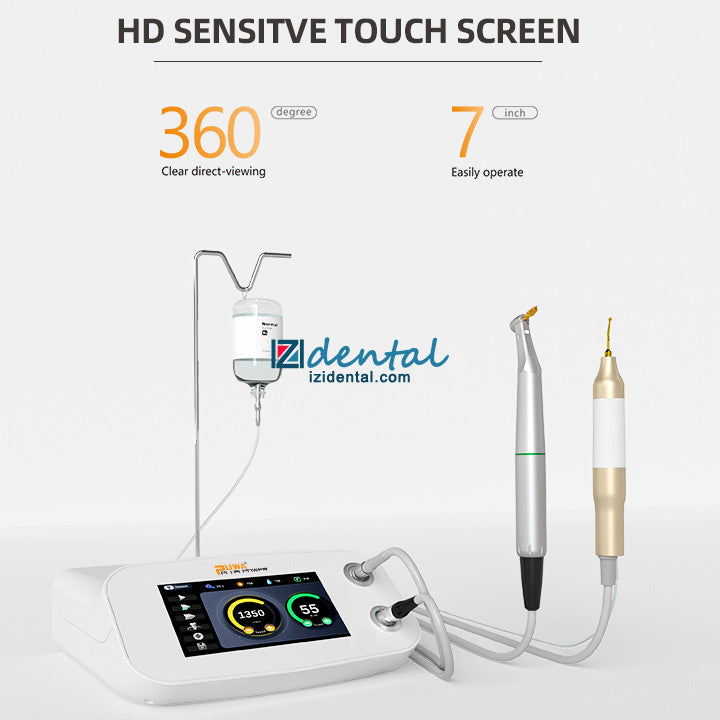

• HD Sensitive Touch Screen: Features a 360° colour LCD full-touch non-reflective screen with a highly sensitive touch interface.

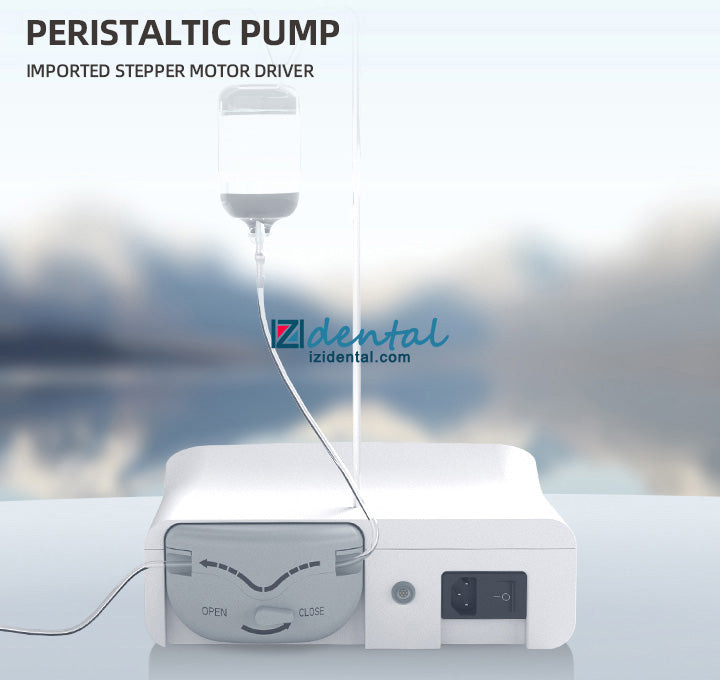

• Ultra-Silent Operation: The peristaltic pump and 5-rotor stepper motor design ensure quiet operation, easy installation, and steady water flow.

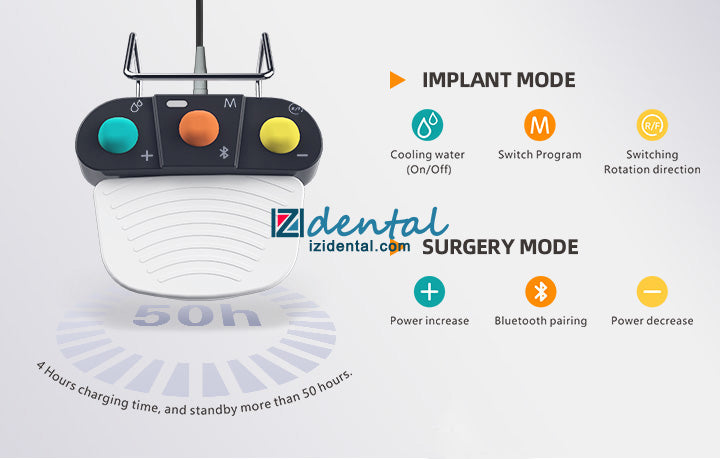

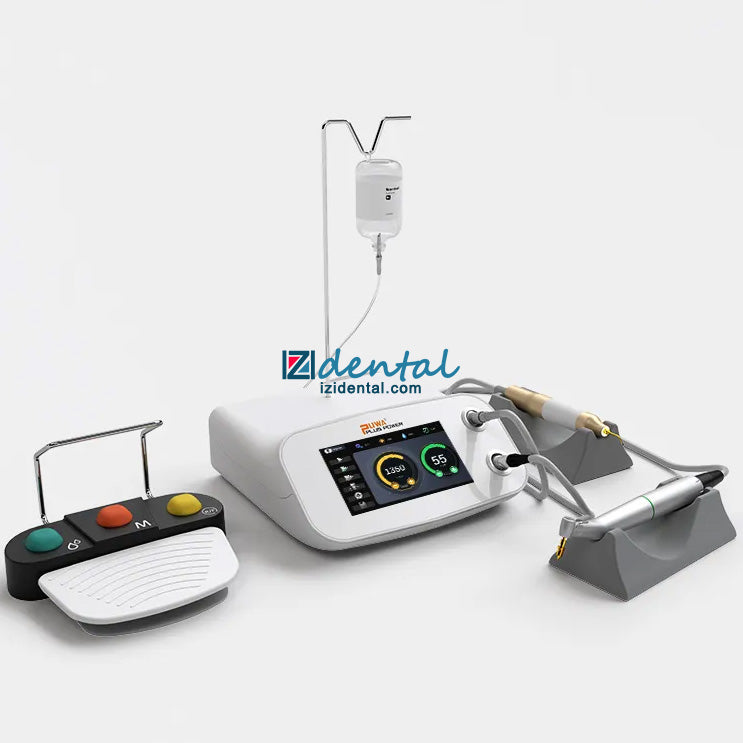

• Multi-Functional Foot Pedal: Controls and switches water flow, program settings, rotation direction, power, and speed. Supports both cable and Bluetooth wireless connections, with a signal range of up to 10 metres.

Implant Mode

• Simple Operation: Precise torque control with a stable, strong motor and an optimised operational process for easier and safer dental implant surgery.
• LED Brushless Motor: Fully sterilizable motor, supporting 134°C sterilization.
• Speed Range: 100 to 40,000 rpm (±10%). Maximum torque of 70 N·cm, providing efficient surgical support.
• 20:1 Implant Contra Angle: Features cellular glass optic design and imported German bearings, with a radial runout of less than 0.01 mm. The rotors and bearings are of high quality, ensuring durability and a noise level maintained at 65 dB.

Surgery Mode

• Piezo Surgery System: Designed for modern and implant surgeries, offering various operation modes and tips to enhance the surgical process's efficiency and accuracy.
• Superior Performance: Offers effective positioning for minimally invasive procedures.
• Selective Cutting: No damage to soft tissue while cutting bone tissue, thanks to high-intensity focused ultrasound.
• Temperature Control: After 10 minutes of full-power operation, the handpiece temperature does not exceed 33°C.
• Radial Amplitude: 20-200 µm
• Horizontal Amplitude: Less than 30 µm

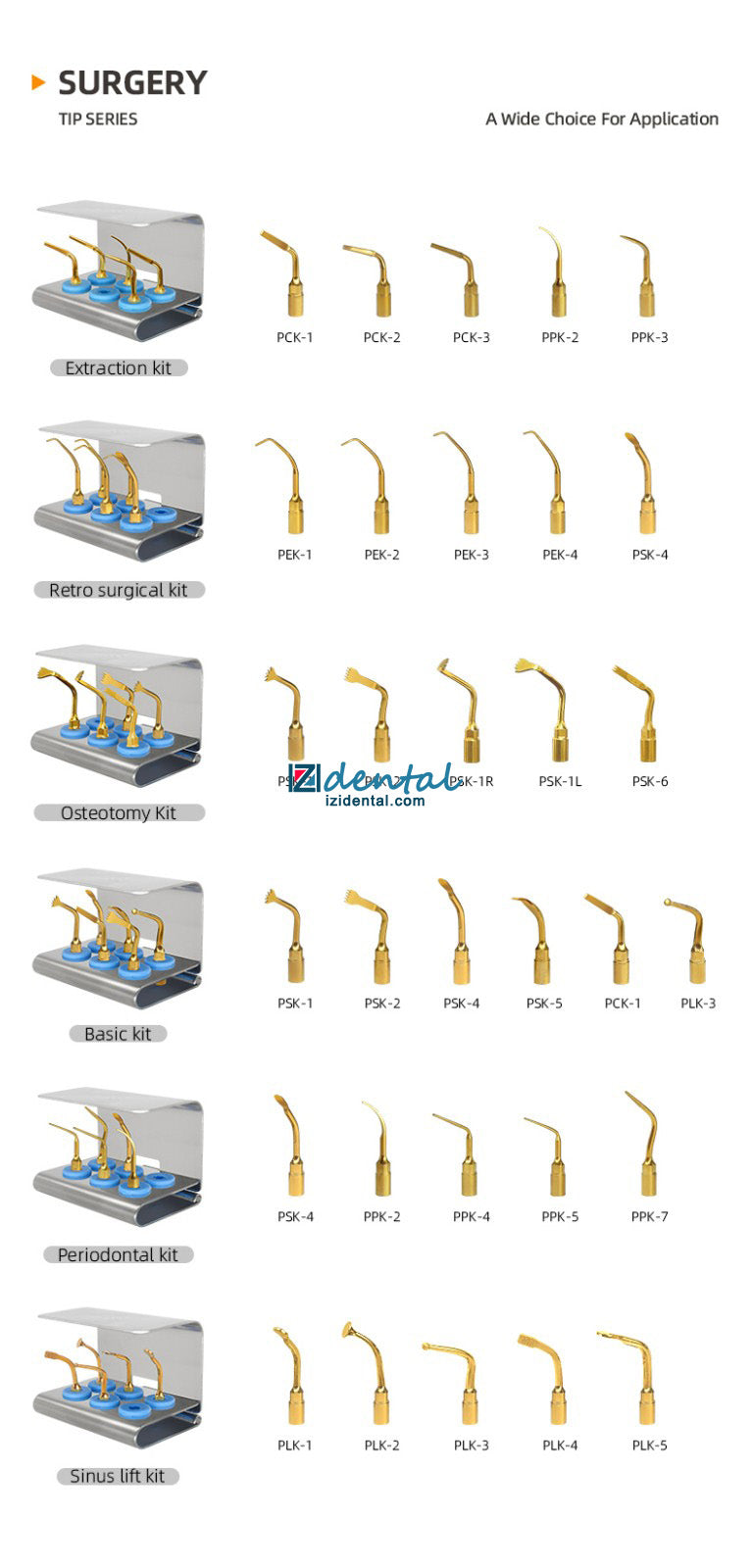

Basic Kit

• PSK-1: High-effectiveness osteotomy for large bone sections during maxillofacial surgery, also useful for tooth extractions.
• PSK-2: High-effectiveness osteotomy for ridge expansion, corticotomy, and bone block grafting in the maxilla and mandible.
• PLK-3: Diamond-coated (100 µm) instrument for micrometric osteotomy or osteoplasty, non-traumatic for working with thin bone or near delicate structures.
• PSK-4 & PSK-5: High-efficiency bone osteoplasty tools for bone remodelling and harvesting bone chips.
• PCK-1: For cutting ankylosis and root fraction techniques.

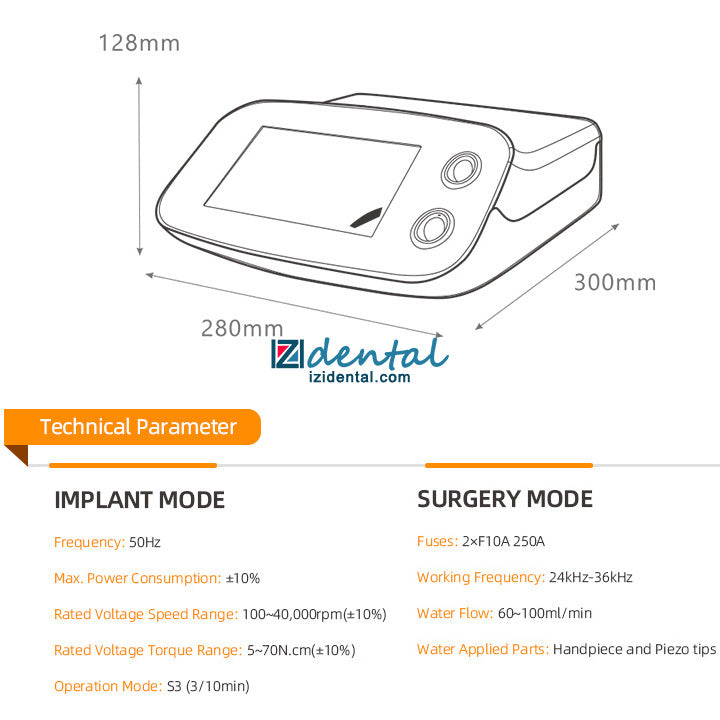

Technical Parameters

• Water Flow: 60–100 ml/min
• Water Applied Parts: Handpiece and tips
• Power Supply Voltage: 100–240V, 50/60Hz, 150 VA
• Fuses: 2 x F10A, 250V
• Working Frequency: 24 kHz–36 kHz
• IP Rating: IPX1 (Protection against water)
