Description
Features:
- Micro-focus tube design with reduced scattering rays, offering clearer images.
- The motherboard uses high-quality semiconductor components from internationally renowned brands.
- Compact, lightweight, and easy to transport.
- Supports both film and sensor-based imaging methods.

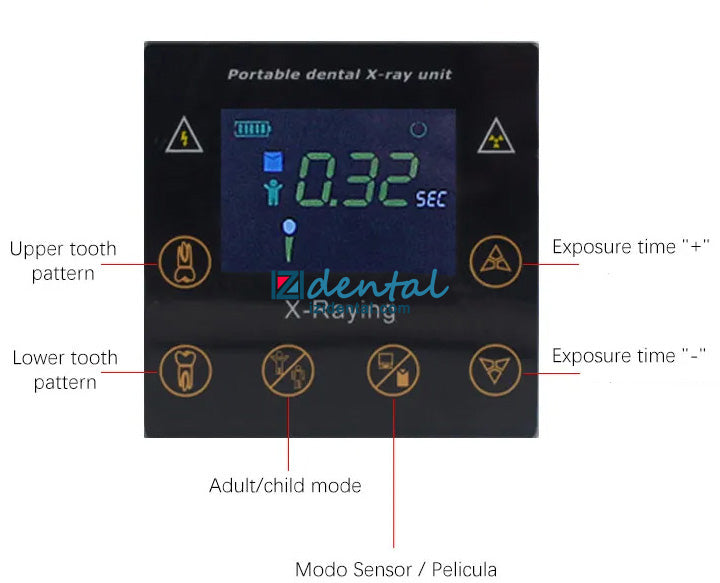

- High-precision microcomputer IC control program, ensuring simple operation with one-touch settings before imaging.
- Equipped with a high-capacity battery, enabling up to 200 continuous exposures on a full charge.
- Unlike traditional X-ray machines, this DC high-frequency portable X-ray system offers stable output and improved image quality, free from interference from external AC power.
Specifications:
- Tube Voltage: 60KV
- Pipeline Current: 2mA
- Exposure Time: 0.1-2.0s
- Frequency: 30KHz
- Rated Power: 120VA
- Skin Focus Distance: 118mm
- Tube Focal Length: 0.8mm x 0.8mm
- Battery: 2200mAh
- Charging Input Voltage: AC 110V-240V ±10%
- Output Voltage: DC 14.8V-16.8V
- Ambient Temperature: 5°C to 40°C
- Relative Humidity: <75% RH
- Net Weight: 1.9kg
- Total Weight: 4.2kg

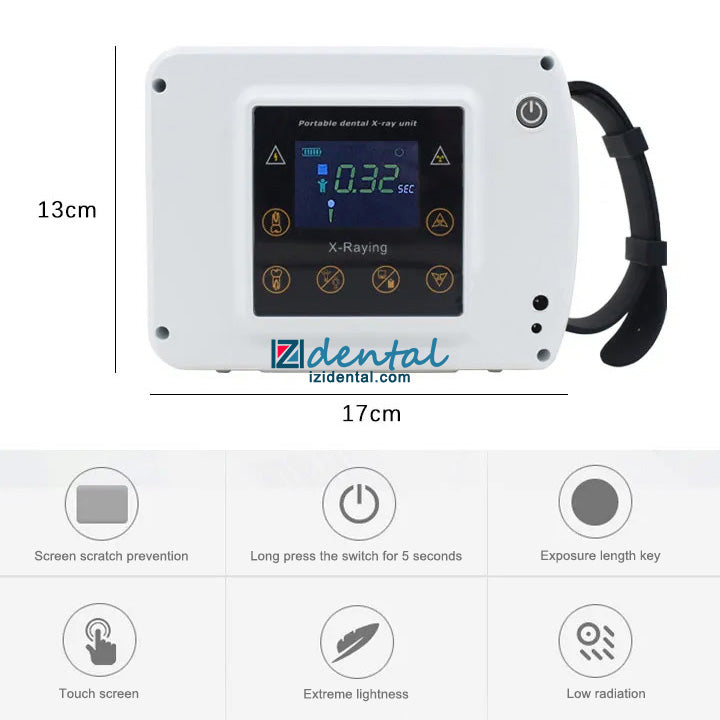

- Dimensions: 168mm x 158mm x 130mm

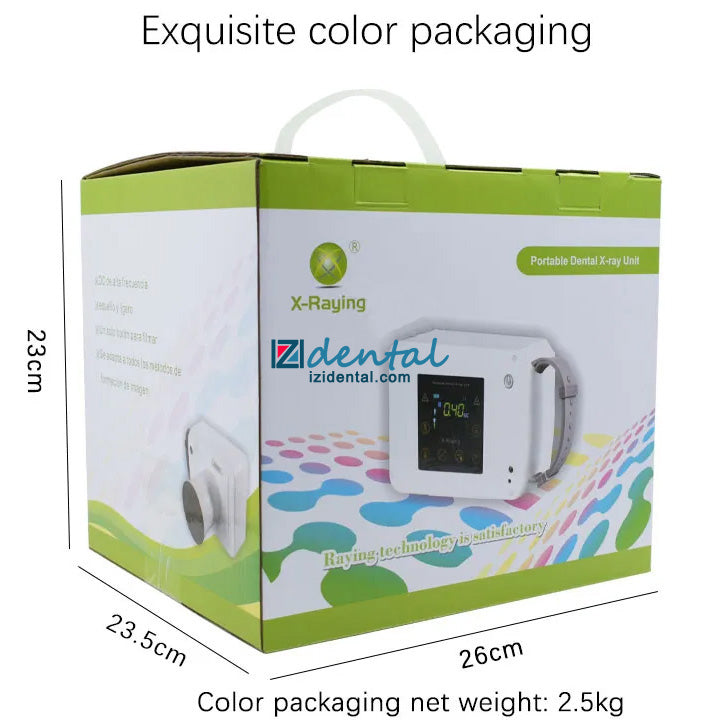

- Packing Dimensions: 365mm x 320mm x 245mm
Dental X-Ray Unit RAY-100 User Manual
Description
Features:
- Micro-focus tube design with reduced scattering rays, offering clearer images.
- The motherboard uses high-quality semiconductor components from internationally renowned brands.
- Compact, lightweight, and easy to transport.
- Supports both film and sensor-based imaging methods.
- High-precision microcomputer IC control program, ensuring simple operation with one-touch settings before imaging.
- Equipped with a high-capacity battery, enabling up to 200 continuous exposures on a full charge.
- Unlike traditional X-ray machines, this DC high-frequency portable X-ray system offers stable output and improved image quality, free from interference from external AC power.
Specifications:
- Tube Voltage: 60KV
- Pipeline Current: 2mA
- Exposure Time: 0.1-2.0s
- Frequency: 30KHz
- Rated Power: 120VA
- Skin Focus Distance: 118mm
- Tube Focal Length: 0.8mm x 0.8mm
- Battery: 2200mAh
- Charging Input Voltage: AC 110V-240V ±10%
- Output Voltage: DC 14.8V-16.8V
- Ambient Temperature: 5°C to 40°C
- Relative Humidity: <75% RH
- Net Weight: 1.9kg
- Total Weight: 4.2kg
- Dimensions: 168mm x 158mm x 130mm
- Packing Dimensions: 365mm x 320mm x 245mm
Dental X-Ray Unit RAY-100 User Manual
izidental
by
izidental

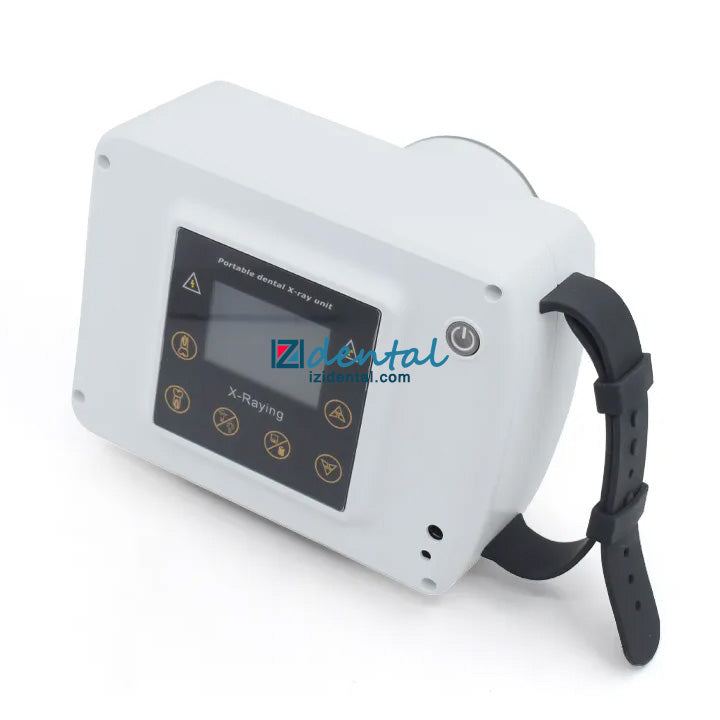

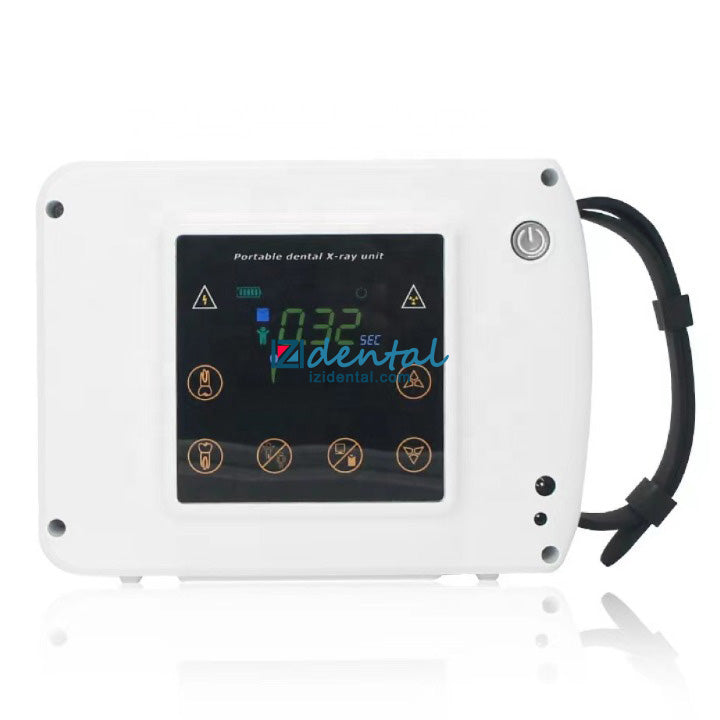

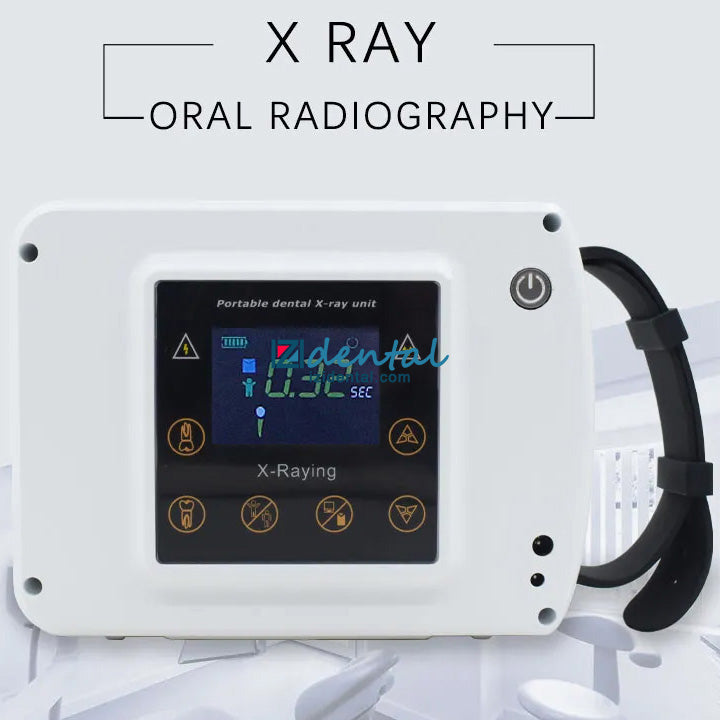

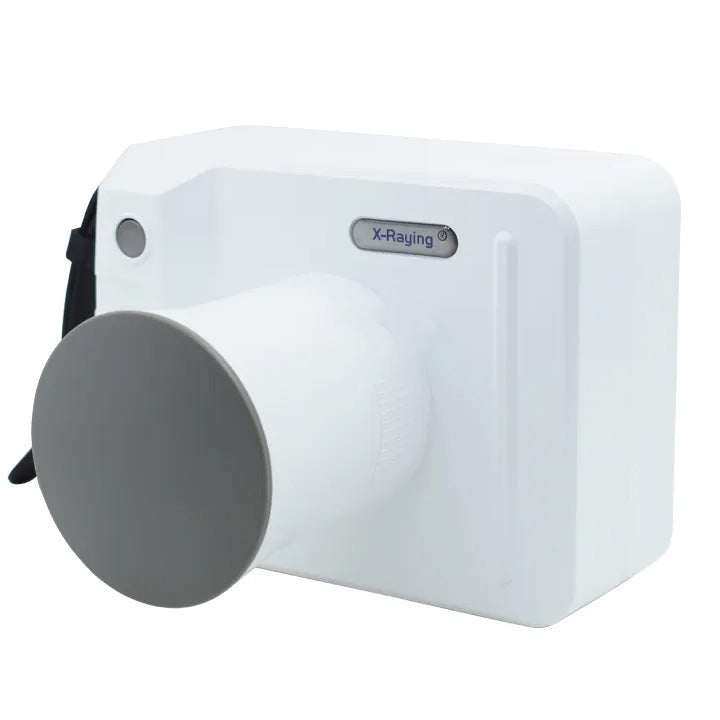

Handheld Digital X-Ray Imaging System RAY-100 Portable Dental X-Ray Unit with Color Touch Screen
- Regular price
- £449.98
- Sale price
- £449.98
- Regular price
-
Shipping calculated at checkout.
