Features:

1. Compatible with digital sensors, X-ray films, and phosphor plate scanners.

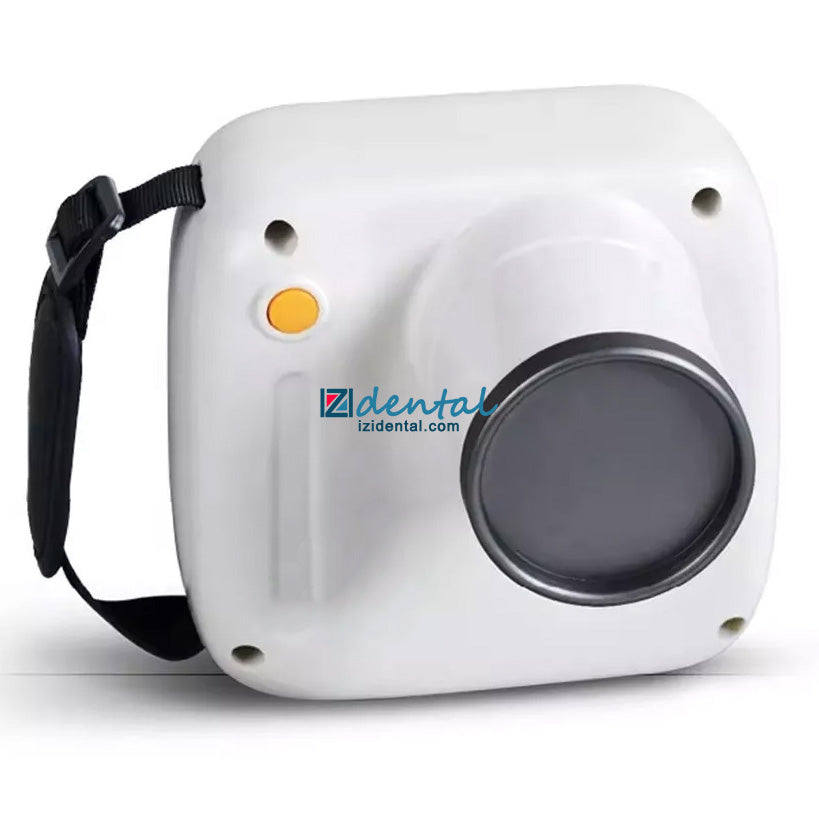

2. Portable Design: Lightweight (1.7 kg), ergonomic handheld unit for enhanced mobility and ease of use.
3. Minimal radiation leakage (<20 μGy/h) with compact, space-saving construction.
4. High-frequency imaging technology delivers clear image quality.
5. Universal DC power supply compatible with international voltage standards (110-240V).
6. Centralised PCB design with vacuum-sealed insulation and shock-resistant components for improved durability.
7. Pre-programmed exposure settings for adult and paediatric patients.
8. Long-lasting rechargeable battery (14.8V, 1600mAh) supports approximately 400 exposures per charge.

Technical Specifications:

• Tube Voltage: 60 kV / 70 kV (adjustable)
• Tube Current: 2.0 mA (with options for 1.0, 1.5, 2.5 mA)
• Rated Power: 120 VA (range: 100–175 VA)
• Focal Spot Size: 0.8 mm × 0.8 mm (nominal; effective: 0.4 mm × 0.4 mm)
• Battery: 14.8V lithium-ion, 1600mAh capacity
• Charger Input: AC 110–240V, 50/60 Hz
• Charger Output: DC 16.8V
• Exposure Time Range: 0.1–2 seconds
• Collimator-to-Skin Distance: 130 mm
• Operating Frequency: 30 kHz
• Environmental Conditions:
  • Temperature: 5°C to 40°C
  • Humidity: ≤75% RH
• Dimensions: 150 mm × 145 mm × 140 mm
• Weight:
  • Net: 1.7 kg
  • Gross: 3.5 kg
