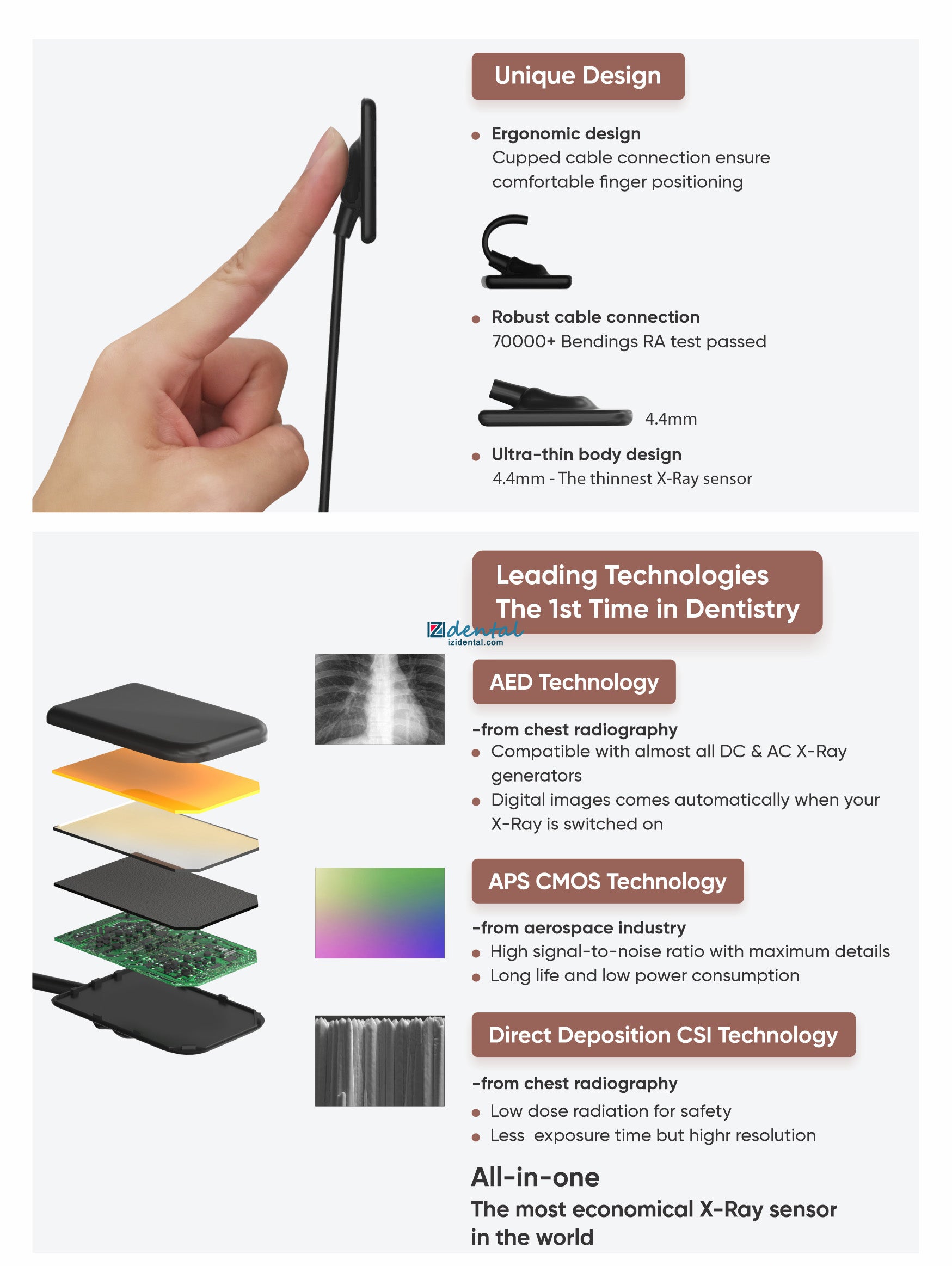

AED Technology (Automatic Exposure Detection)
Compatible with almost all DC and AC X-Ray generators;
Digital images comes automatically when your X-Ray is switched on;
APS CMOS Technology- from aerospace industry
High signal-to-noise ratio with maximum details
Long life and low power consumption;
Direct Deposition CSI Technology-from chest radiography
Low dose radiation for safety
Less exposure time but higher resolution;
Specifications

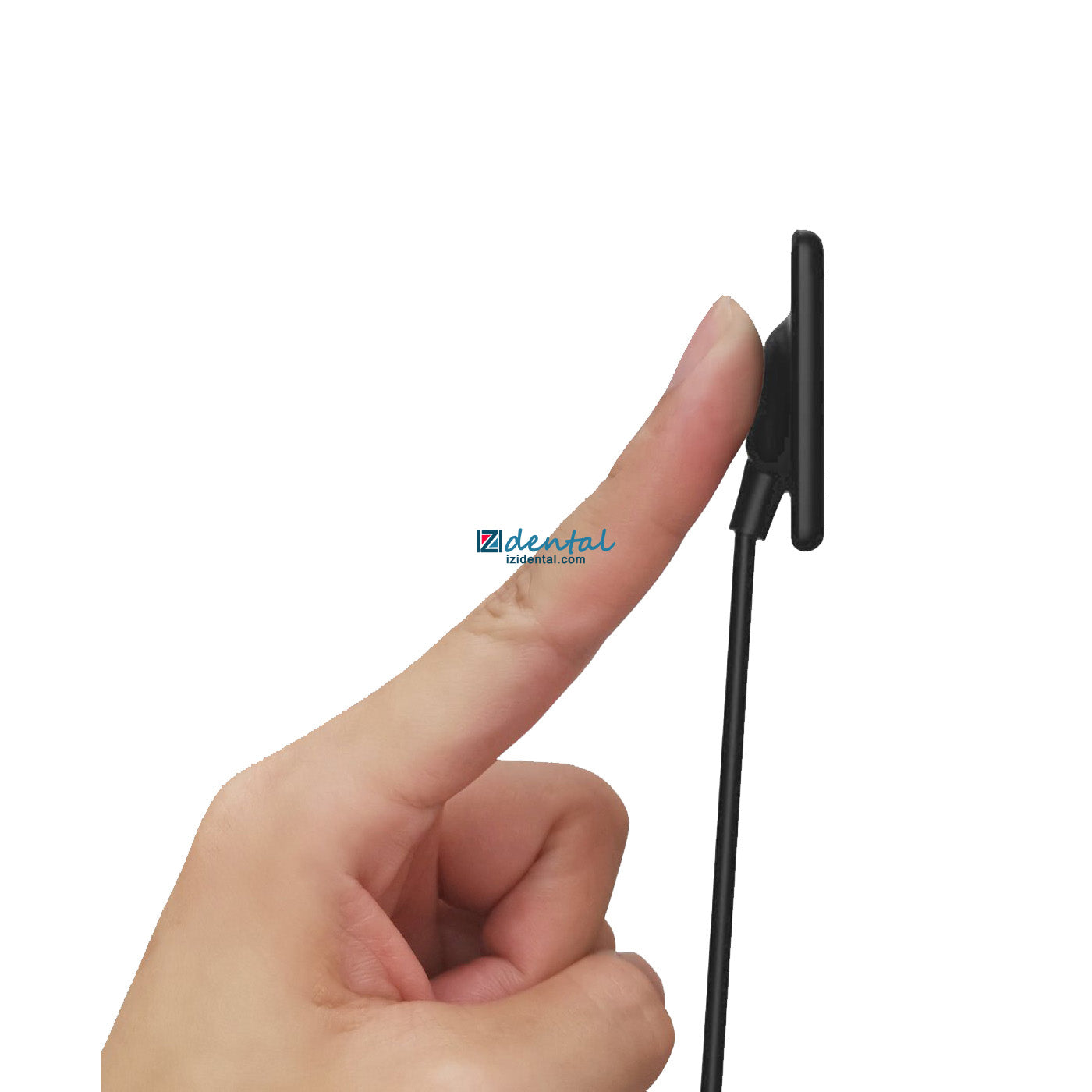

The thinnest X-Ray sensor ever- 4.4mm

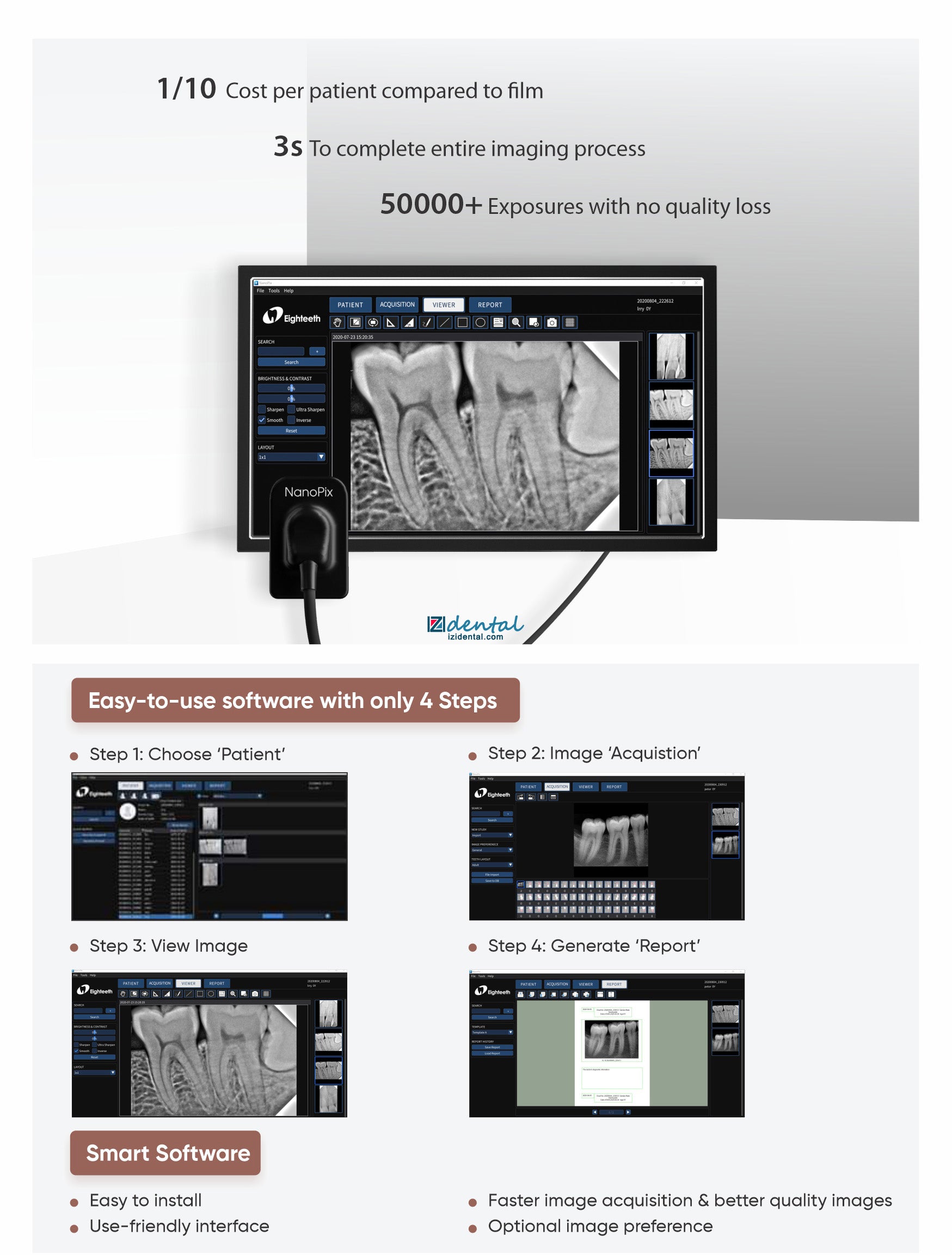

1/10th cost per patient compared to film
3s to complete image processing
50,000+ exposures with no quality loss
70,000+ bending tests passed
Automatic Exposure Detection
APS CMOS technology for high signal-to-noise ratio
User friendly 4 step software
True resolution of 20 lp/mm
AD conversion- 16 bit
IP68- highest water and dust protection rating
Leading technologies the 1st time in dentistry;

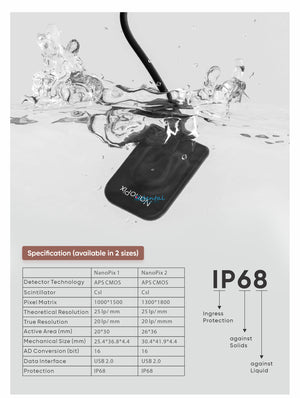

| Specification (available in 2 sizes) | ||
|---|---|---|
| NanoPix 1 | NanoPix 2 | |
| Detector Technology | APS CMOS | APS CMOS |
| Scintillator | CsI | CsI |
| Pixel Matrix | 1000*1500 | 1300*1800 |
| Theoretical Resolution | 25 lp/mm | 25 lp/mm |
| True Resolution | 20 lp/mm | 20 lp/mm |
| Active Area (mm) | 20*30 | 26*36 |
| Mechanical Size (mm) | 25.4*36.8*4.4 | 30.4*41.9*4.4 |
| AD Conversion (bit) | 16 | 16 |
| Data Interface | USB 2.0 | USB 2.0 |
| Protection | IP68 | IP68 |
AED Technology (Automatic Exposure Detection)
Compatible with almost all DC and AC X-Ray generators;
Digital images comes automatically when your X-Ray is switched on;
APS CMOS Technology- from aerospace industry
High signal-to-noise ratio with maximum details
Long life and low power consumption;
Direct Deposition CSI Technology-from chest radiography
Low dose radiation for safety
Less exposure time but higher resolution;
Specifications
The thinnest X-Ray sensor ever- 4.4mm
1/10th cost per patient compared to film
3s to complete image processing
50,000+ exposures with no quality loss
70,000+ bending tests passed
Automatic Exposure Detection
APS CMOS technology for high signal-to-noise ratio
User friendly 4 step software
True resolution of 20 lp/mm
AD conversion- 16 bit
IP68- highest water and dust protection rating
Leading technologies the 1st time in dentistry;
| Specification (available in 2 sizes) | ||
|---|---|---|
| NanoPix 1 | NanoPix 2 | |
| Detector Technology | APS CMOS | APS CMOS |
| Scintillator | CsI | CsI |
| Pixel Matrix | 1000*1500 | 1300*1800 |
| Theoretical Resolution | 25 lp/mm | 25 lp/mm |
| True Resolution | 20 lp/mm | 20 lp/mm |
| Active Area (mm) | 20*30 | 26*36 |
| Mechanical Size (mm) | 25.4*36.8*4.4 | 30.4*41.9*4.4 |
| AD Conversion (bit) | 16 | 16 |
| Data Interface | USB 2.0 | USB 2.0 |
| Protection | IP68 | IP68 |

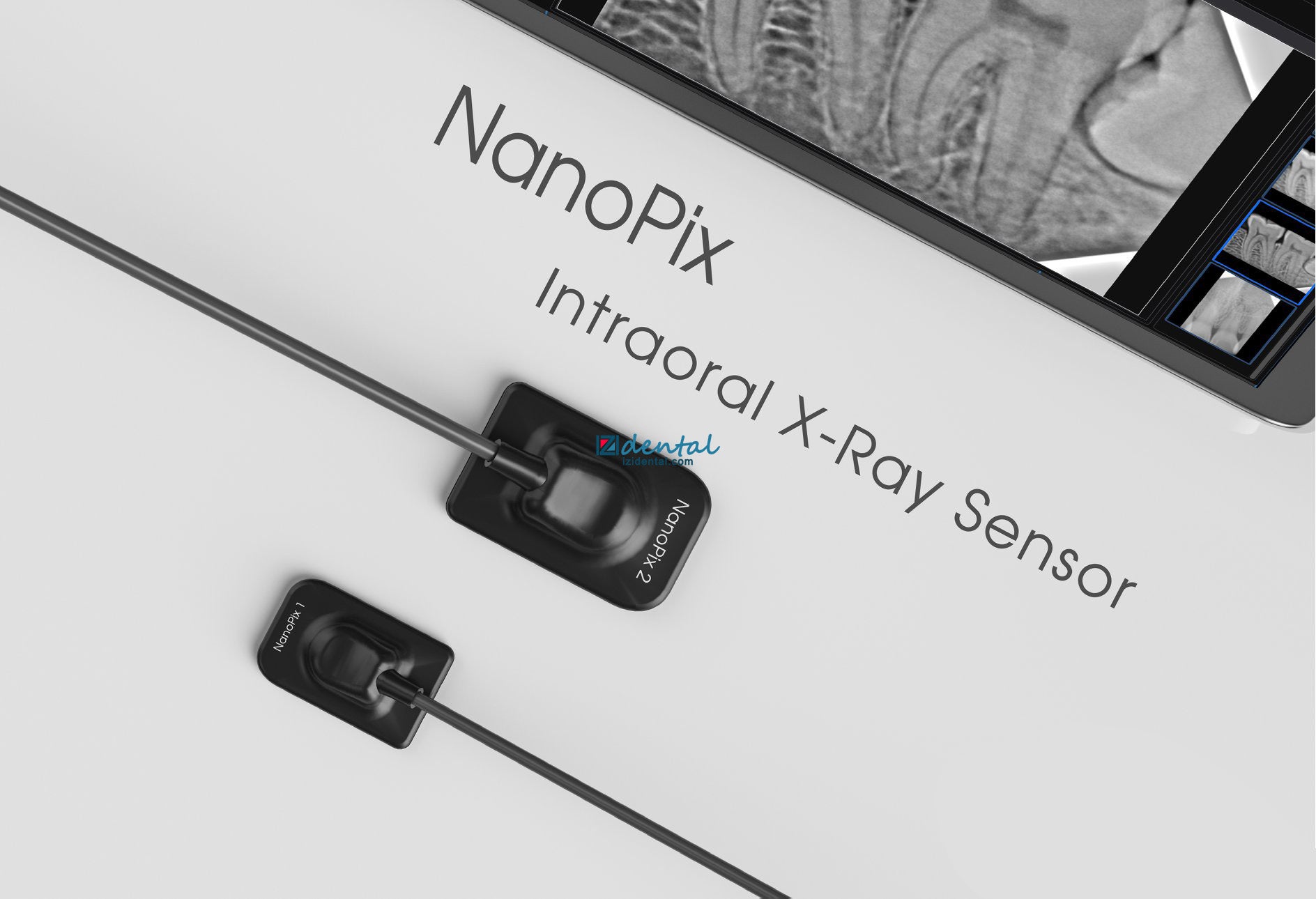

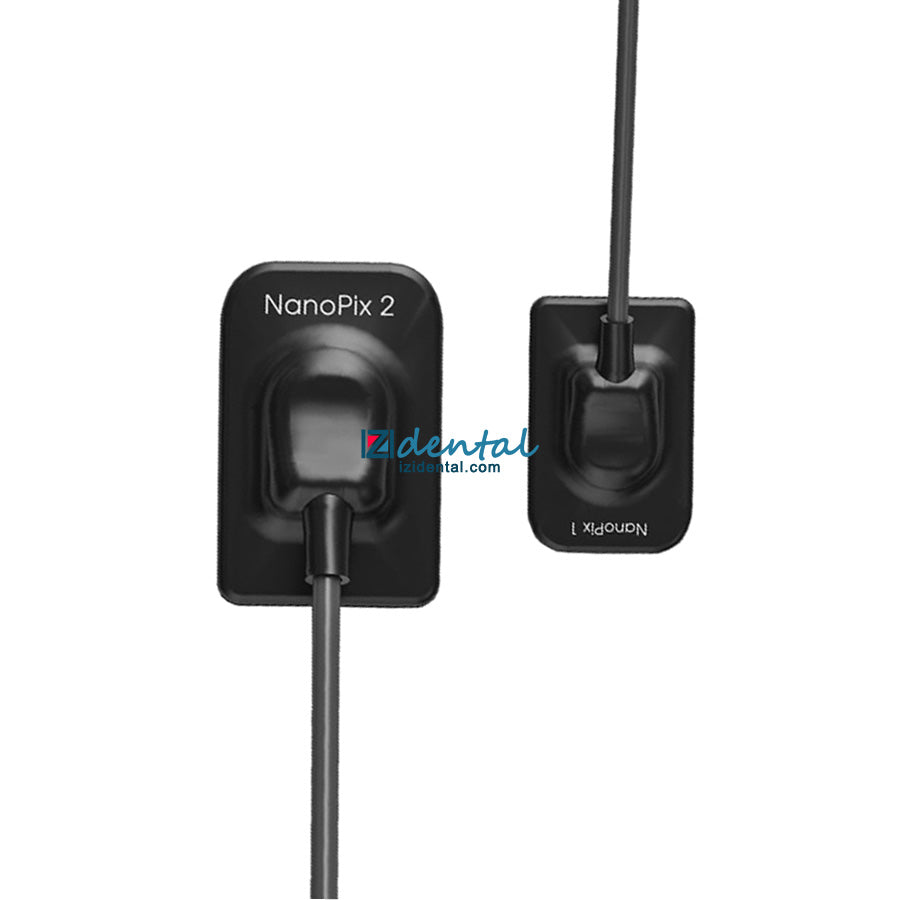

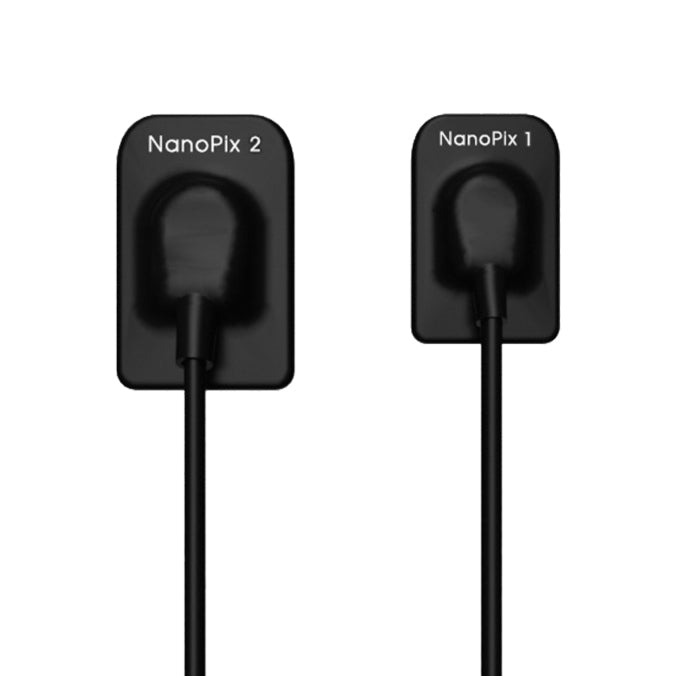

Eighteeth Nanopix1/2 Dental Xray RVG Sensor Digital USB Intraoral Sensor System
- Regular price
- £1,067.99
- Sale price
- £1,067.99
- Regular price
-
Couldn't load pickup availability
We provide the free shipping over £49. If your order amount is less than £49, we will charge £9.0 as shipping cost.
We provide the free shipping over £49. If your order amount is less than £49, we will charge £9.0 as shipping cost.
We allow customers to apply for return or refund, exchange within 30 days after the receipt of the goods. If 30 days have gone by since your receipt of the goods, unfortunately we can’t offer you a refund or exchange.
We allow customers to apply for return or refund, exchange within 30 days after the receipt of the goods. If 30 days have gone by since your receipt of the goods, unfortunately we can’t offer you a refund or exchange.
