Features:

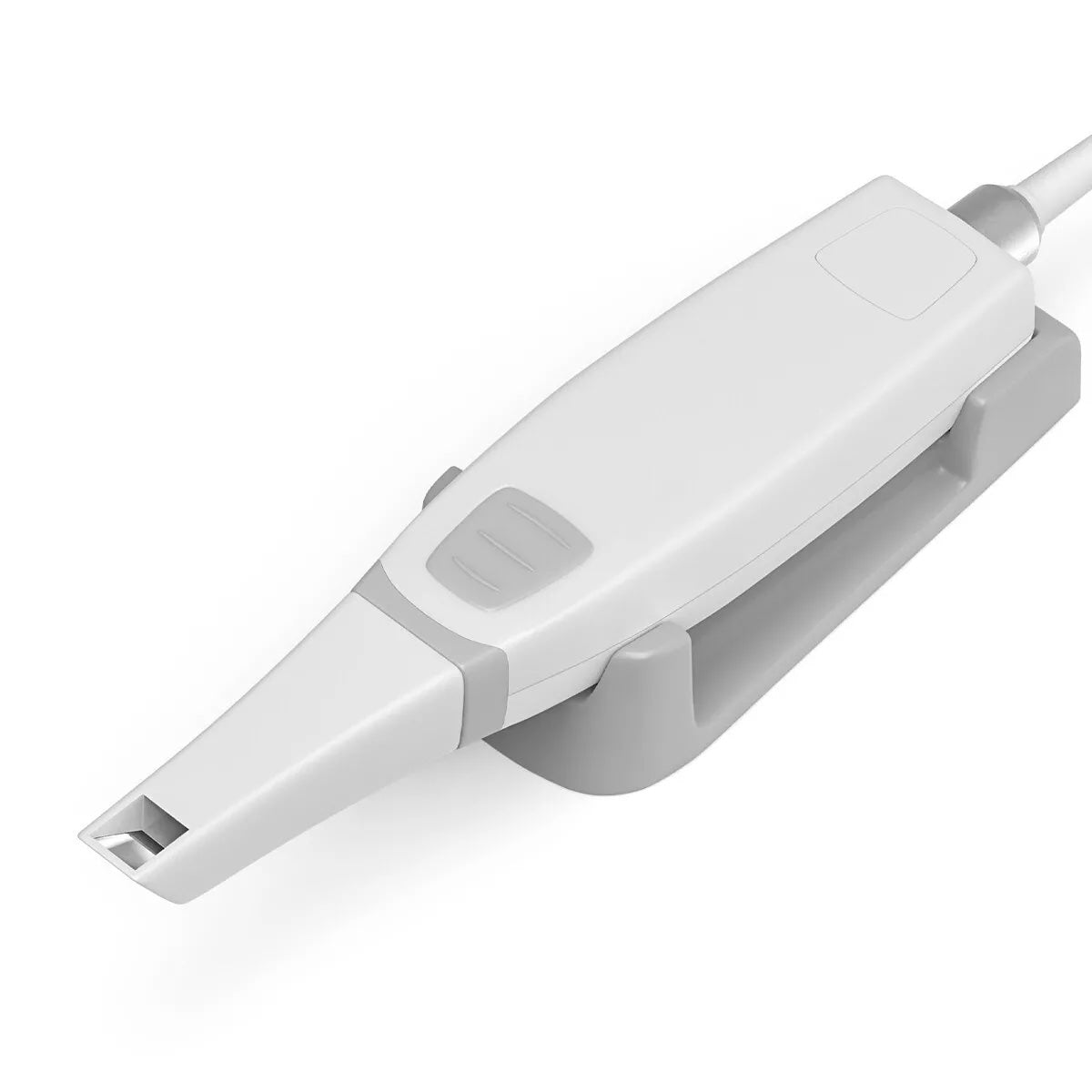

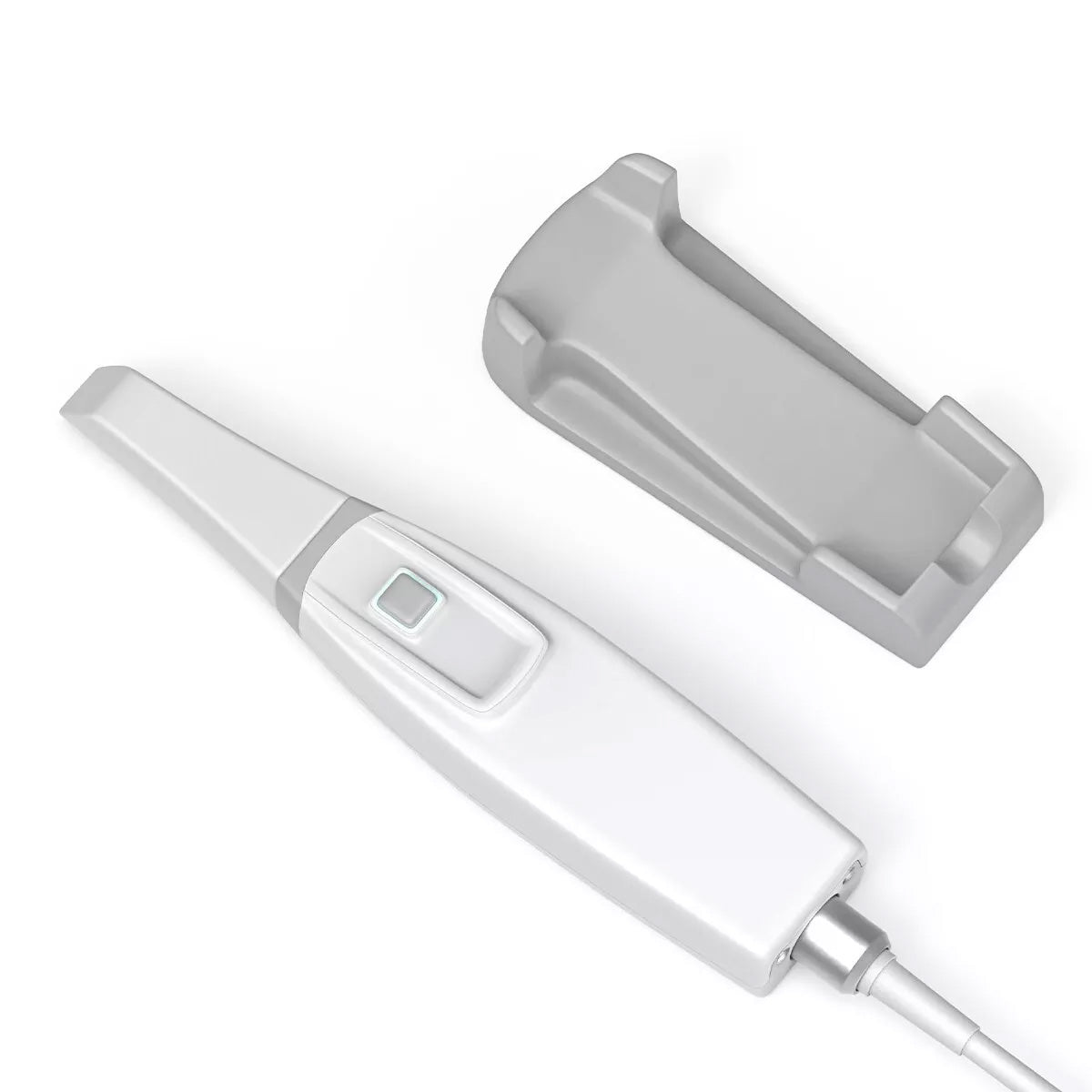

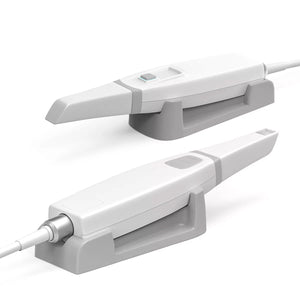

1. Ergonomic Size & Weight: Scanner dimensions: 240mm (L) x 30.5mm (W) x 49.5mm (H), Weight: 210g. Scanner tip dimensions: 79mm x 19.7mm x 15.8mm. A mini tip is also available, ideal for children.
2. Chromoscan: Colored scanning that provides a real-time representation of the dental situation in vivo.
3. High Accuracy: Capable of covering various indications, with the whole scanning process taking approximately ≤3 minutes, much faster than traditional impressions.

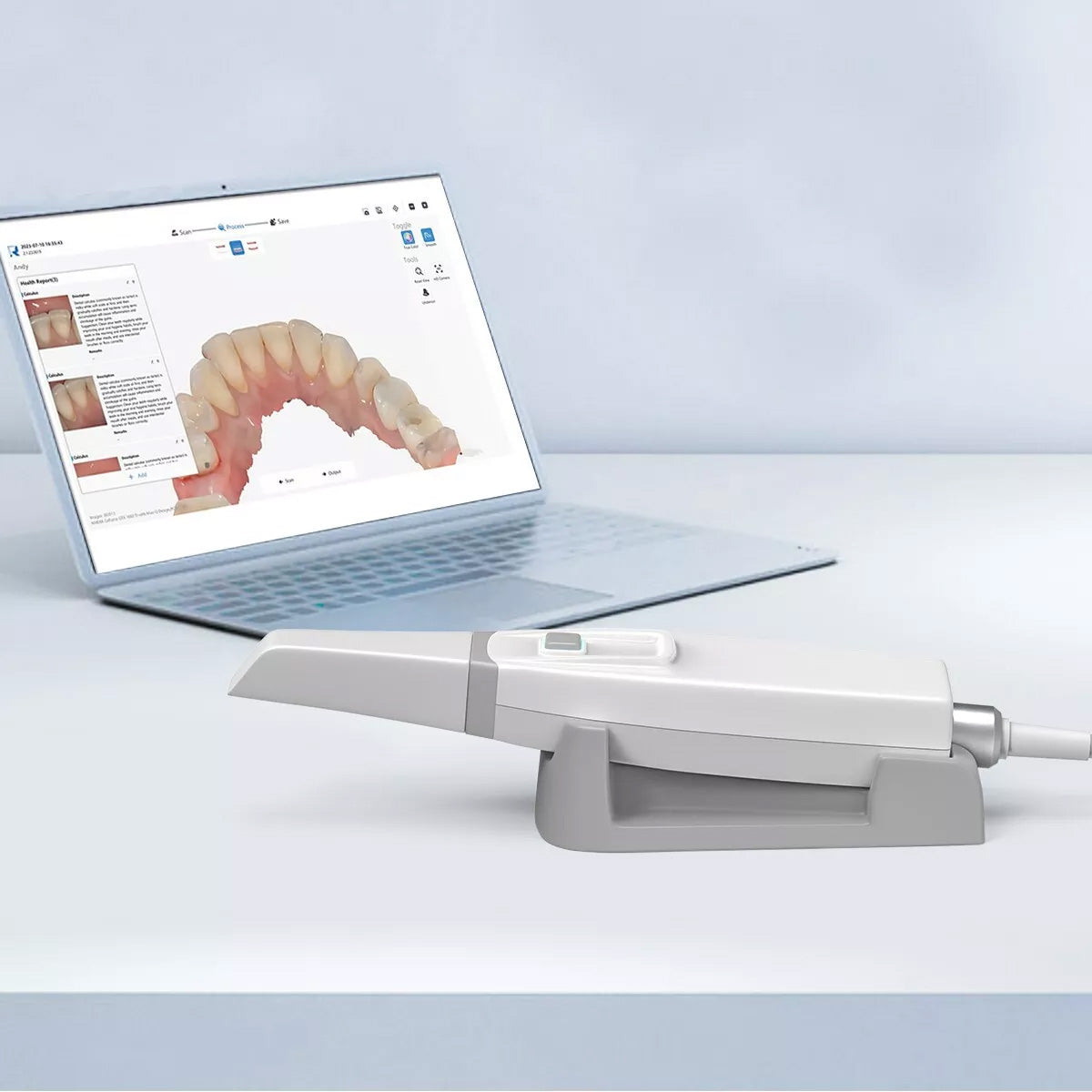

4. Continuous Scanning: Shortens clinical operation time and improves efficiency. Real-time display of scanning data allows doctors to analyze it simultaneously.
5. Moderate Depth of Field: 15mm depth of field ensures scanning efficiency and data integrity.
6. Built-in Anti-Fog Module: Scanner tips with automatic mirror heating to ensure data accuracy.
7. Applicable to Various Clinical Treatments: Suitable for restoration, implant, and orthodontic appliances.
8. Versatile Features: Includes metal scan, margin line drawing, undercut inspection, HD camera, model builder, and occlusion check.

Basic Computer Configuration:

• Operating System: Microsoft Windows 10 64-bit Pro edition or above (Recommended).
• Processor: Intel Core i7-9700H, 16GB RAM or above.
• Graphics Card: NVIDIA GeForce 1660, 6GB or above (AMD graphics may not support all software functions and are not recommended).
• Storage: SSD: 256GB or 128GB + 1TB mechanical disk or above.
• Ports: USB 2.0/3.0
• Display Resolution: 1920x1080

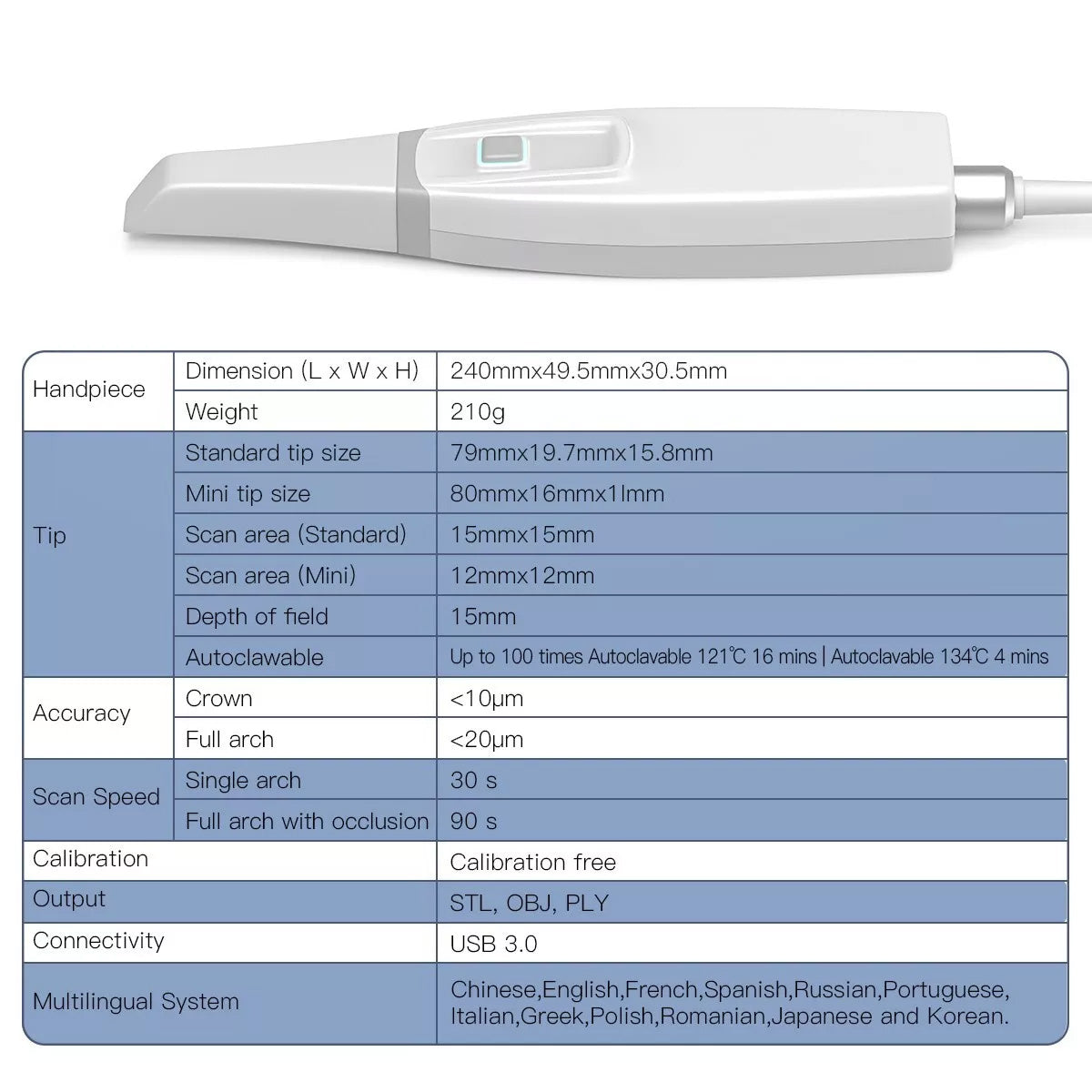

Device Specifications:

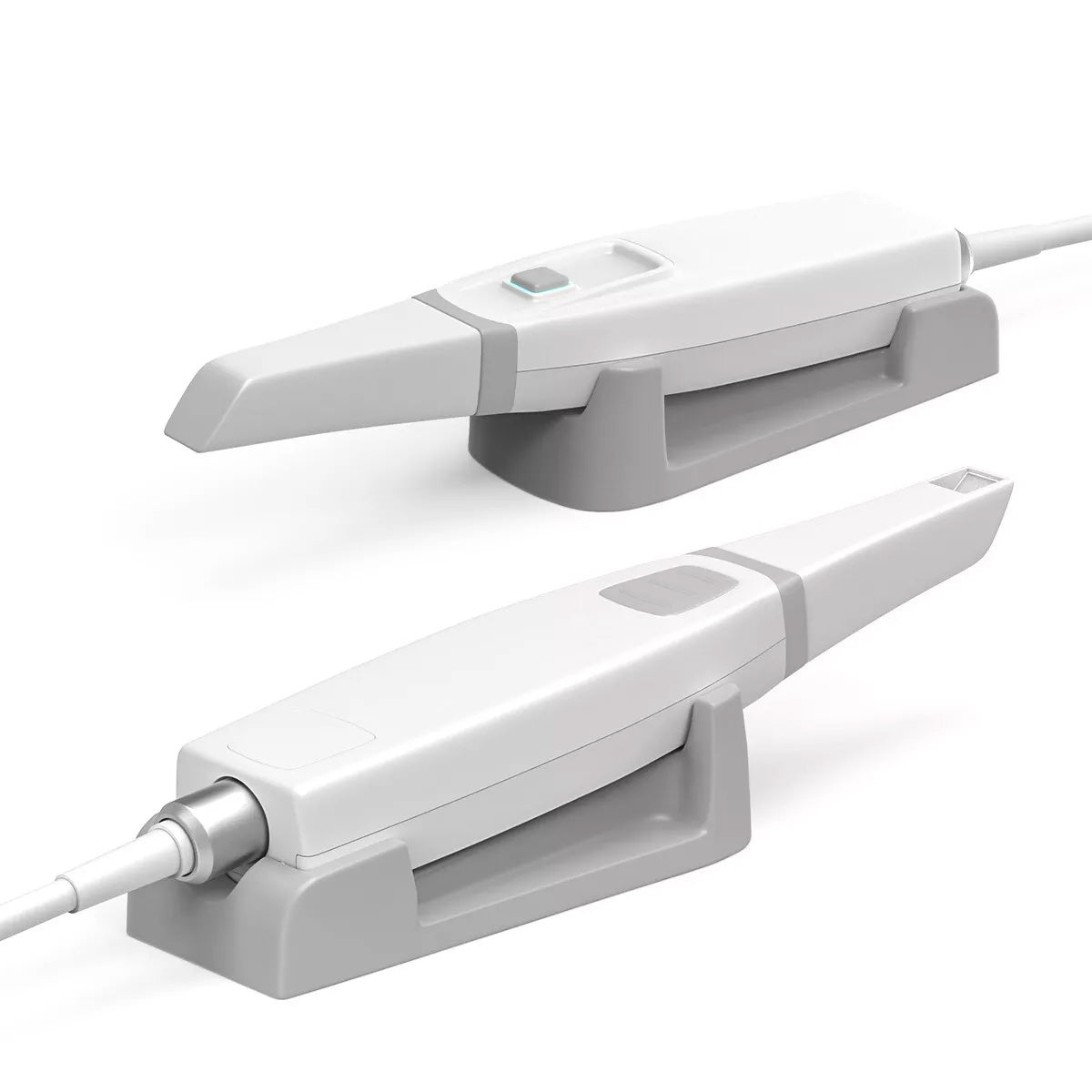

1. Handpiece Size: 240 x 49.5 x 30.5mm
2. Handpiece Weight: 210g

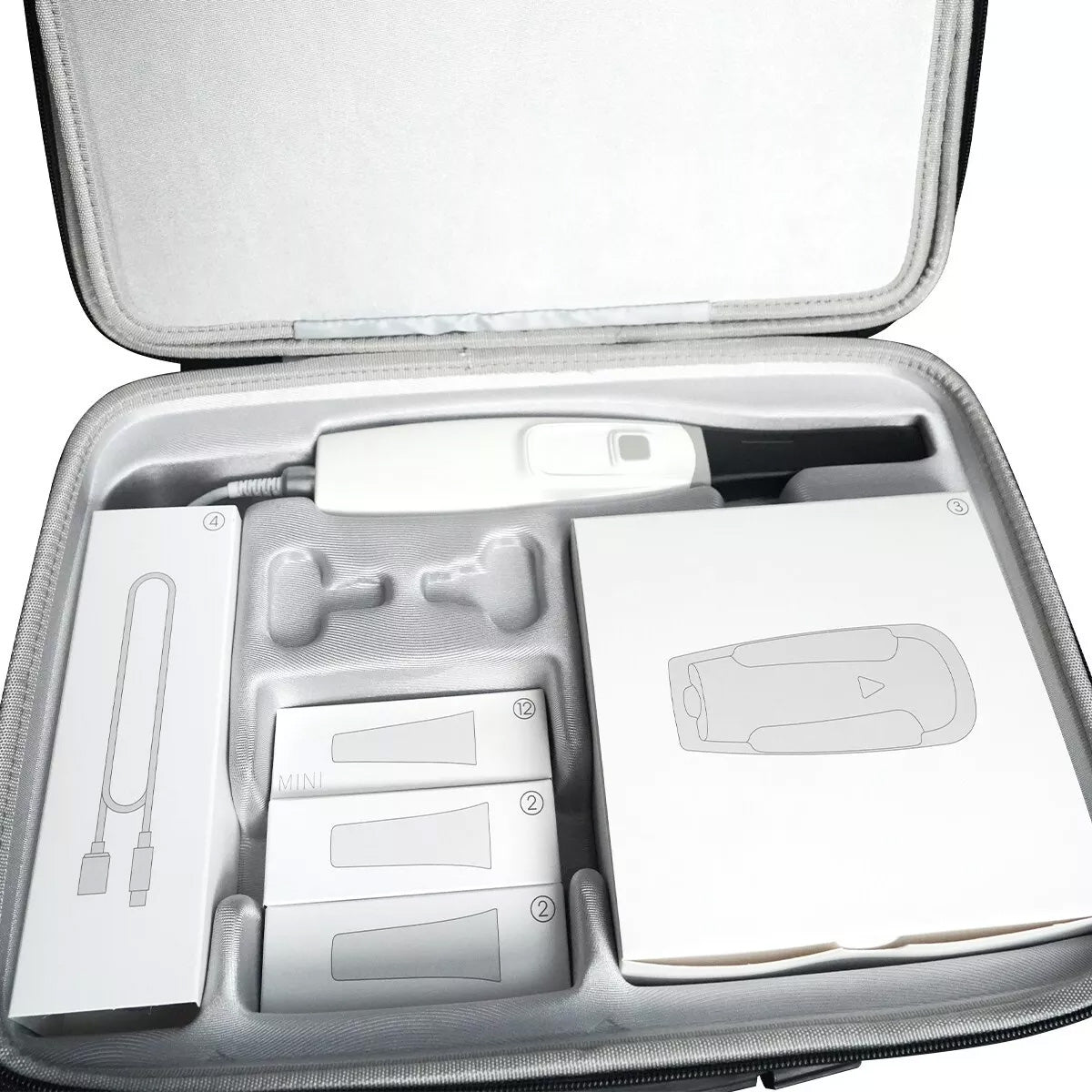

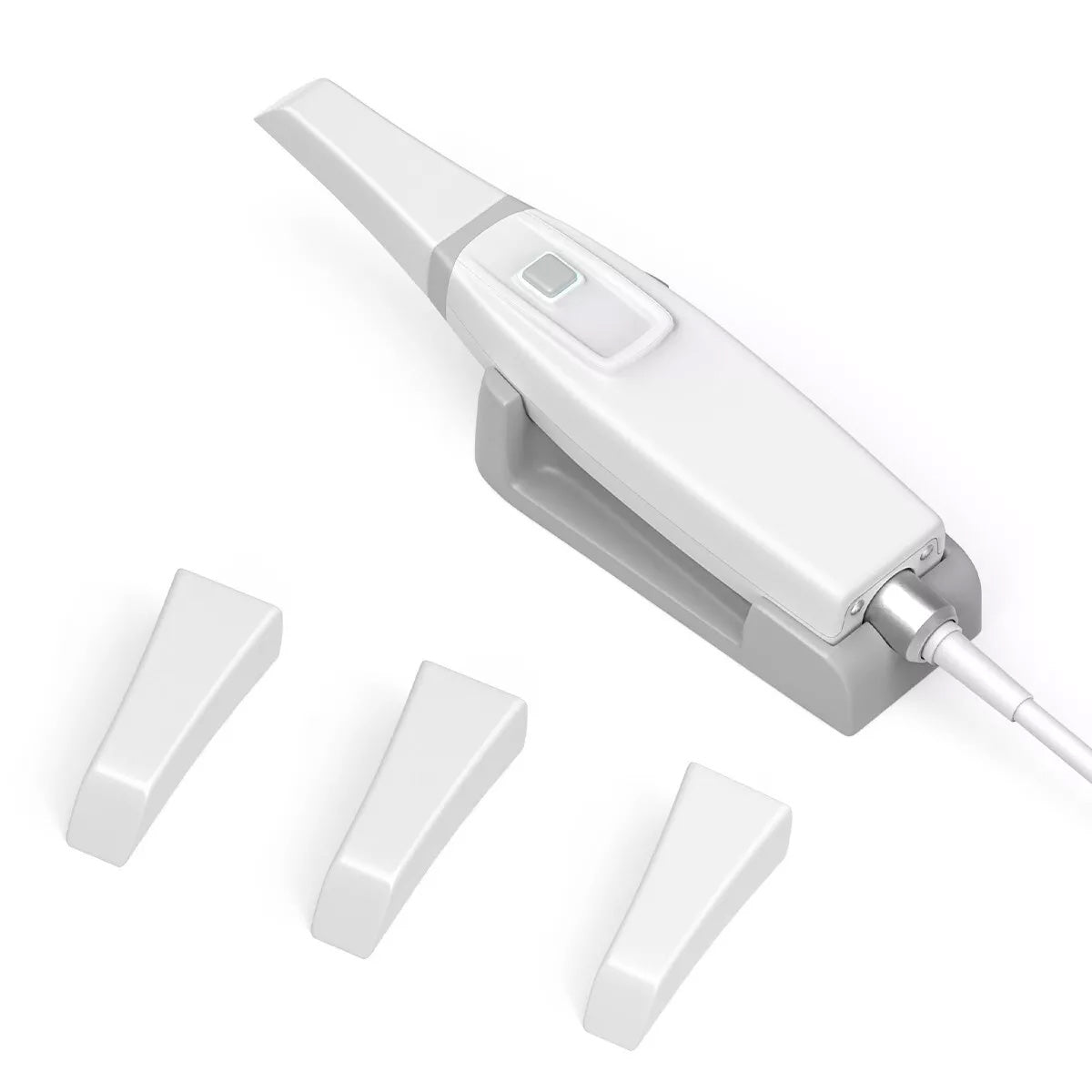

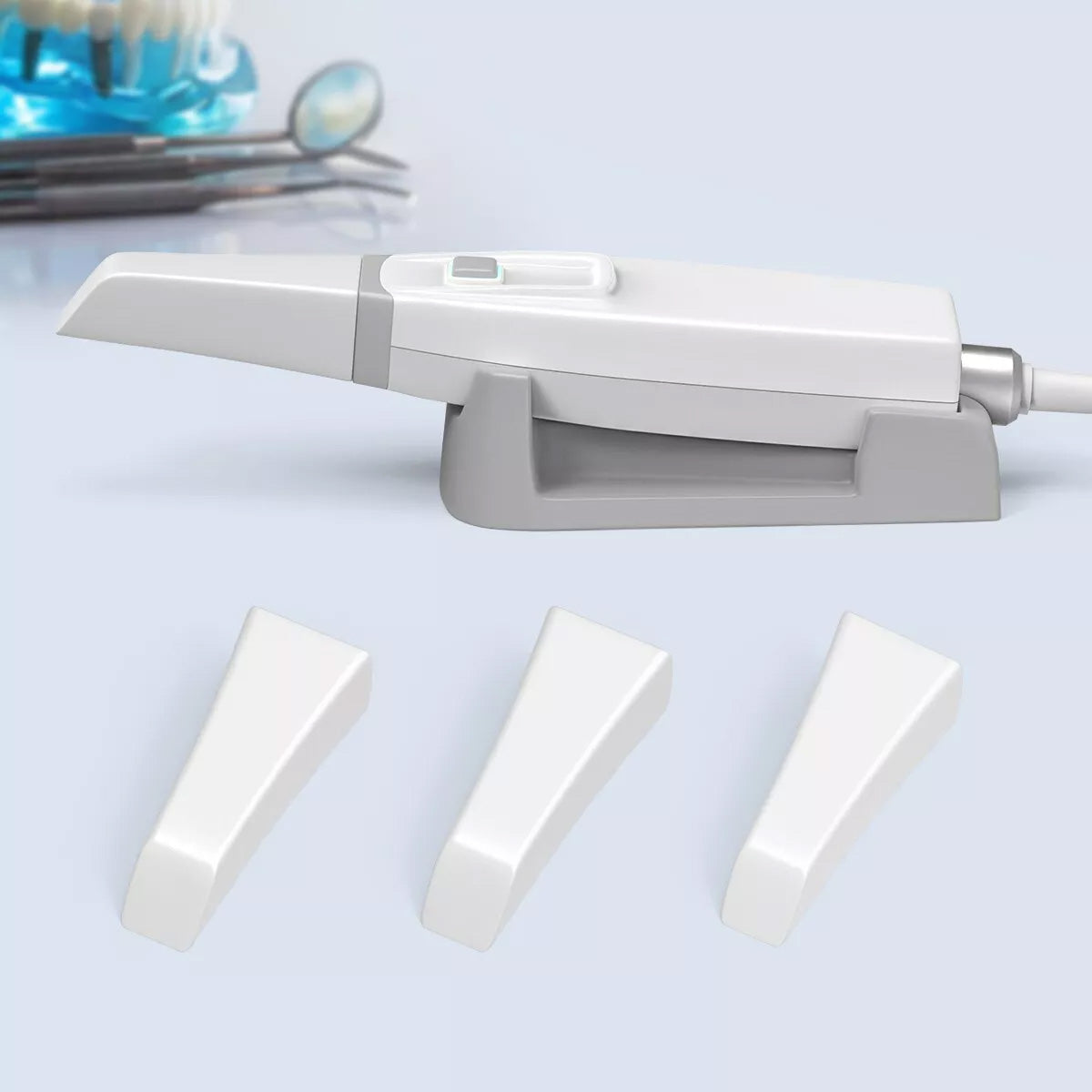

3. Scanner Tip:
   • Standard Tip (3pcs): 79mm x 19.7mm x 15.8mm
   • Mini Tip (1pc): 80mm x 16mm x 11mm
   • Scan Area (Standard): 15 x 15mm
   • Scan Area (Mini): 12 x 12mm
   • Depth of Field: 15mm
   • Autoclavable: Up to 100 times, Autoclavable at 121°C for 16 minutes / 134°C for 4 minutes.
4. Accuracy:
   • Crown: <10µm
   • Full Arch: <20µm
5. Scan Speed:
   • Single Arch: 30s
   • Full Arch with Occlusion: 90s
6. Calibration: No calibration required.
7. Export Formats: STL, PLY, OBJ
8. Connectivity: USB 3.0
9. Imaging Technology: Optical continuous imaging, video capture.
10. Scanning Distance: 0-17mm
11. Imaging Sync: 3D
12. Quick Reset: Yes
13. Data Refinement: Yes
14. Service Life: >30,000 hours
15. Multilingual System: Chinese, English, French, Spanish, Russian, Portuguese, Italian, Greek, Polish, Romanian, Japanese, and Korean.
16. Power Supply:

• Voltage: 100-240V, 50/60Hz
• Power: 25VA
