About
The Dental Portable X-Ray Machine is designed for easy and efficient use in various dental settings. It features a built-in screen that displays X-ray images immediately after capture when connected to compatible sensors. This unit can operate independently without the sensor, making it versatile and compatible with digital sensors, X-ray films, and image plate scanners. The flexible sensor use allows integration with other X-ray machines, ensuring a seamless workflow across different clinical setups.
Its portable, handheld design ensures ease of use and mobility, while the compact body is lightweight and provides minimal radiation leakage (below 20μGy/h). The unit offers high-quality imaging, portable storage, and uses a high-frequency DC international power supply. Additionally, the battery can capture approximately 400 images on a single charge. This device is ideal for improving efficiency in a clinical environment while ensuring safety and comfort for patients.
Key Features:

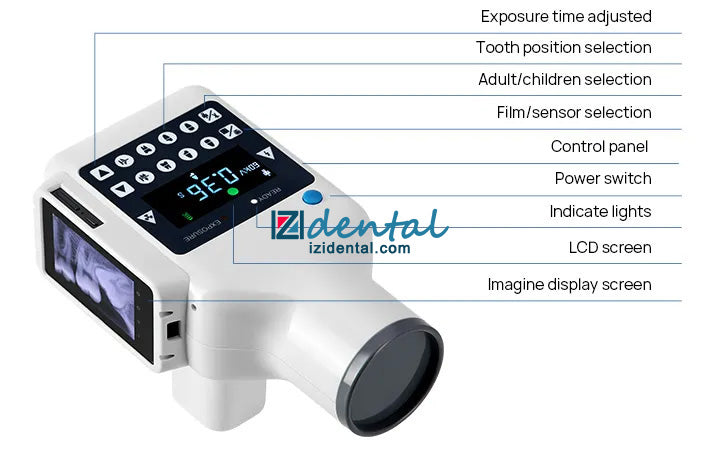

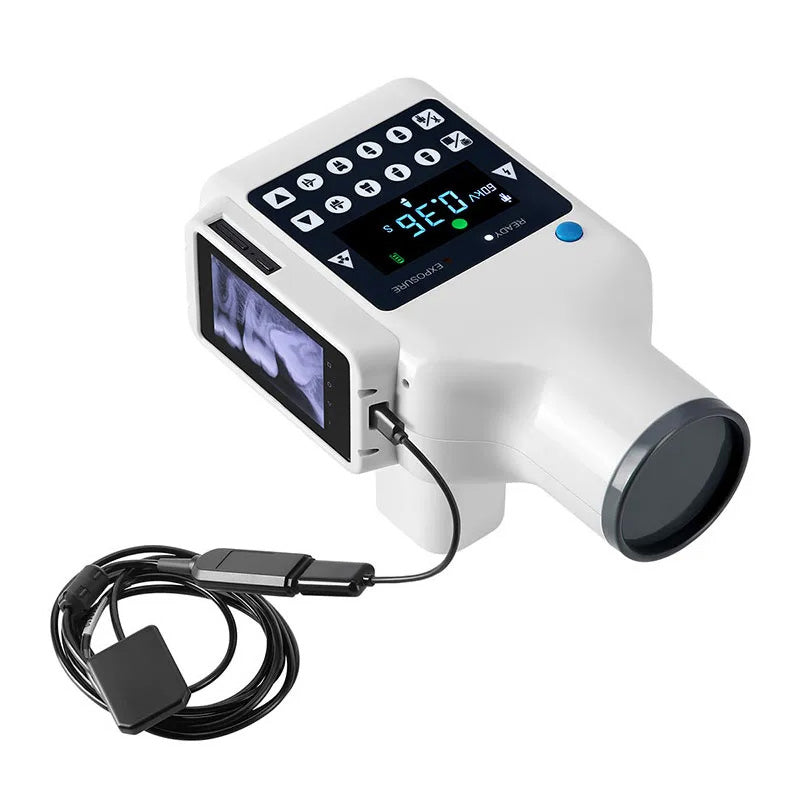

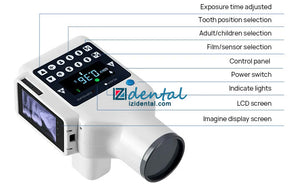

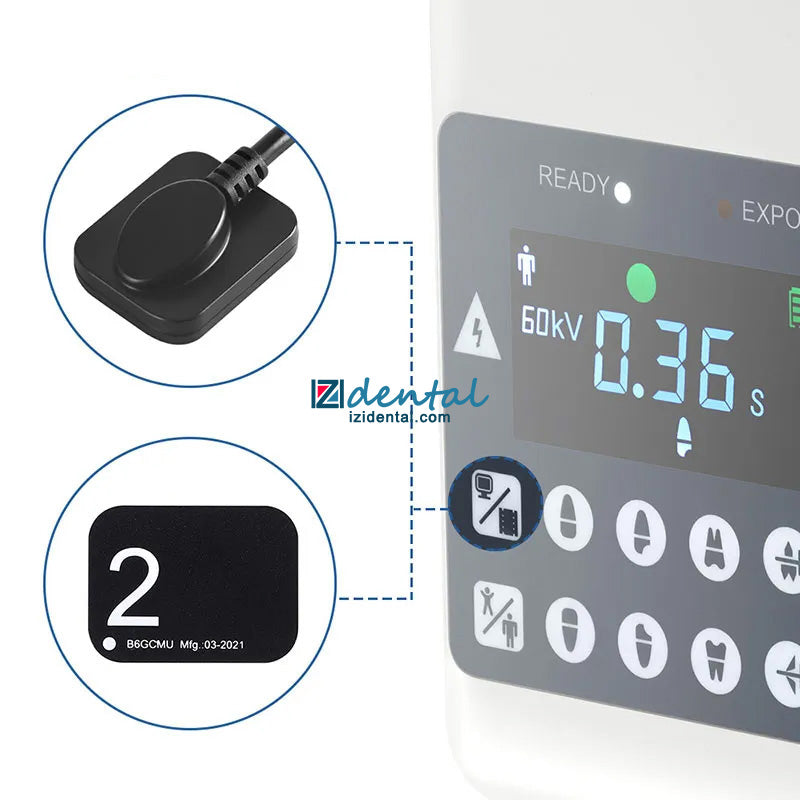

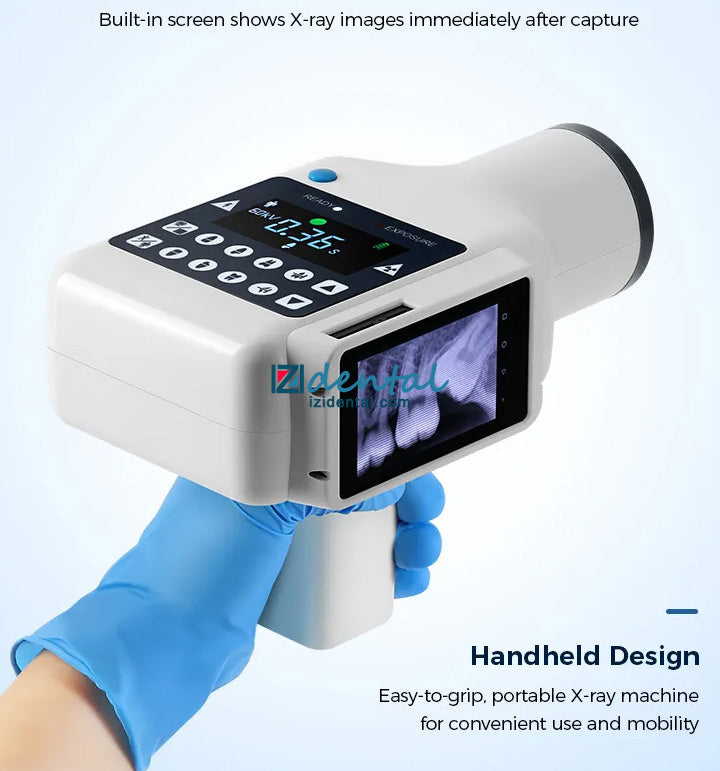

- Instant image display on the built-in screen when connected to sensors.

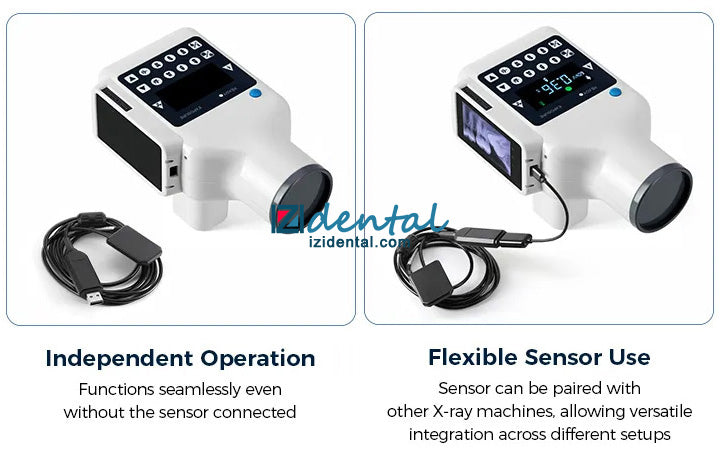

- Operates independently, compatible with digital sensors, X-ray films, and image plate scanners.
- Flexible sensor use for integration with other X-ray machines.
- Streamlined design for enhanced workflow and adaptability to different clinical needs.

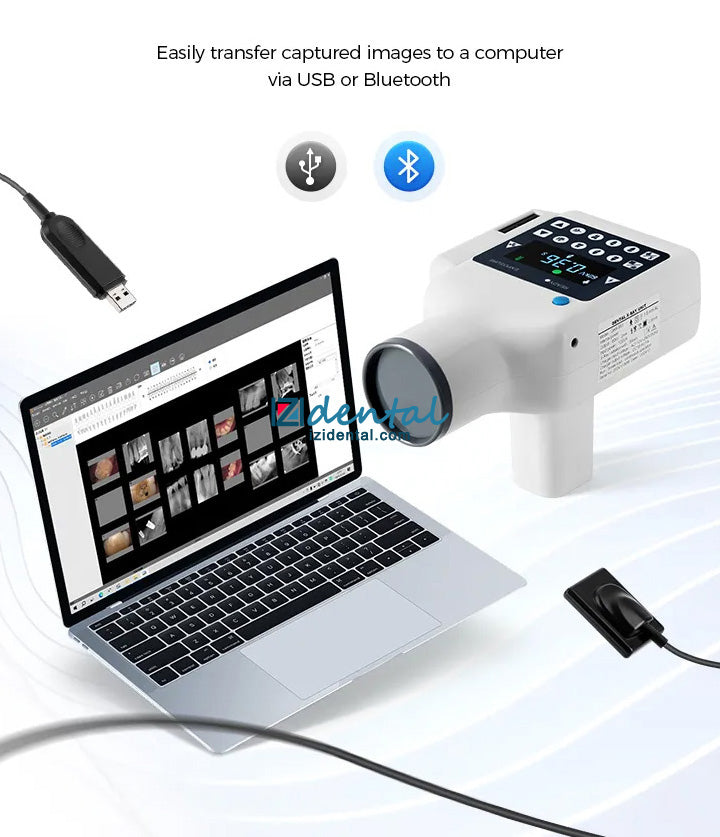

- Effortless image transfer via USB or Bluetooth.

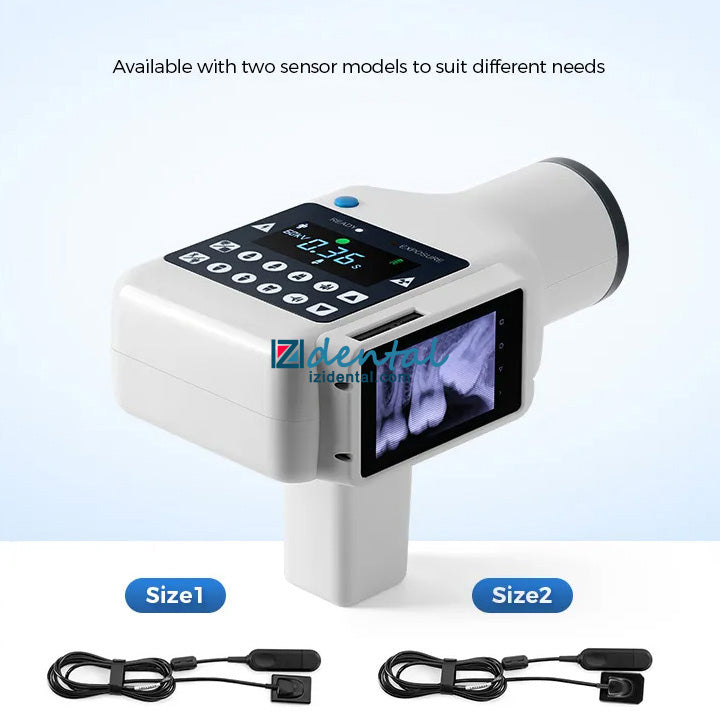

- Two sensor models available to suit different needs.

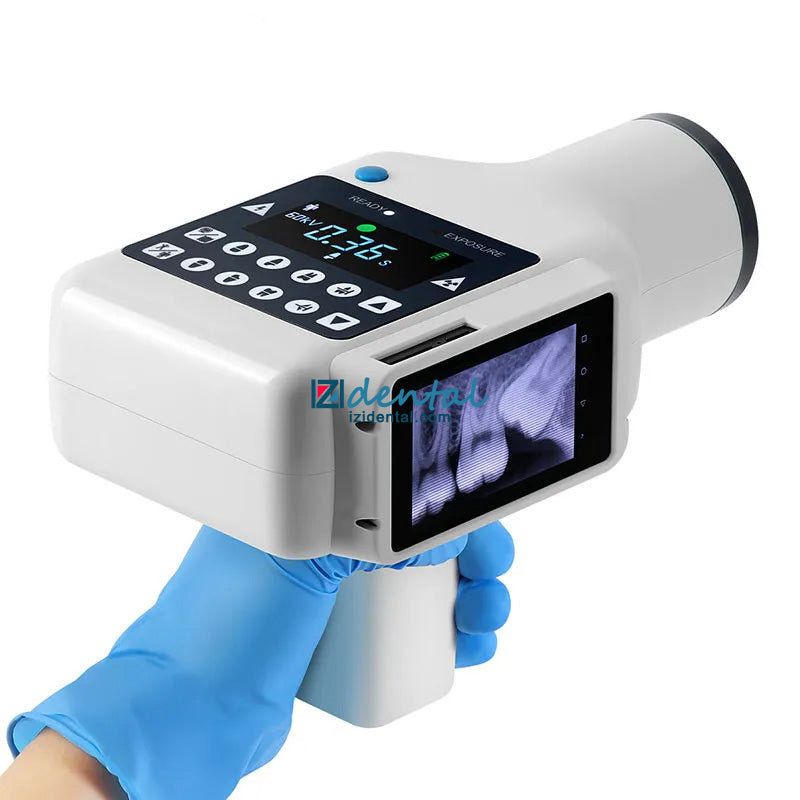

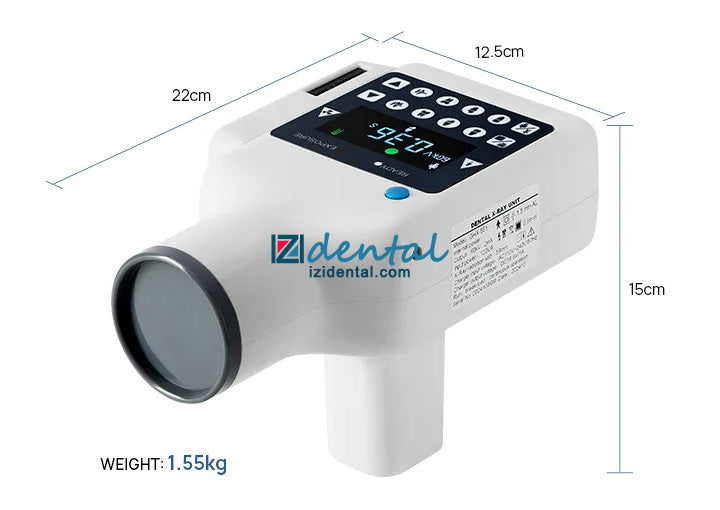

- Lightweight, easy-to-grip handheld design for convenient portability.
- Compact body with minimal radiation leakage (below 20μGy/h).
- Excellent image quality and portable storage, saving space.
- High-frequency DC international power supply.
- All components installed in the central PC board, with shock and setup protection.

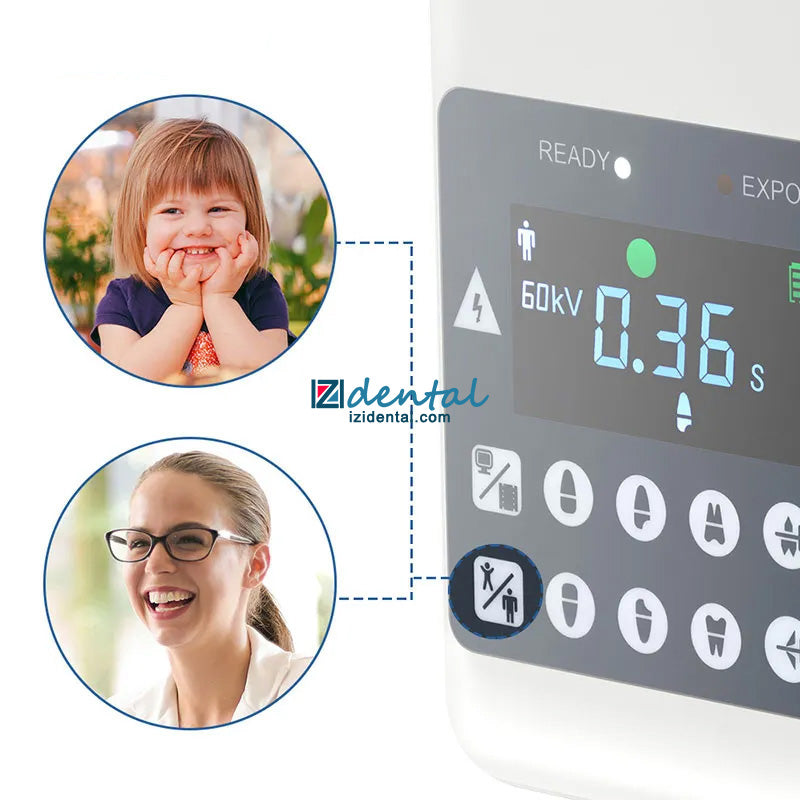

- Preset exposure times for adults and children.
- Durable battery, allowing for about 400 images per full charge.
Sensor Technical Parameter:
| Model | COX2230 | COX2635 |
|---|---|---|
| Detector Technology | APS CMOS | |
| Pixel Size | 18.5µm | |
| Theoretical Resolution | 27 lp/mm | |
| True Resolution | CsI: ≥14 lp/mm | |
| Pixel Matrix | 1200×1600 | 1402×1888 |

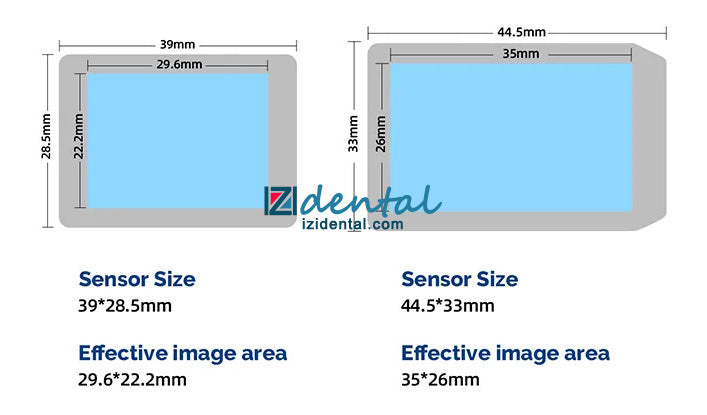

| Active Area (mm) | 29.6 x 22.2 | 35 x 26 |
| Mechanical Size (mm) | 39 x 28.5 x 6 | 44.5 x 33.0 x 6 |
| Data Interface | USB | |
| Digitization | 12/14/16 bit | |
| Imaging Time | 3-4s | |
Specifications:
- Tube Voltage: 60KV
- Tube Current: 2mA
- Exposure Time: 0.1-2.0s
- Frequency: 30kHz
- Rated Power: 120VA
- Distance from Skin to Cone: 105mm
- Tube Focus: 0.8mm x 0.8mm
- Battery: DC 14.8V 1600mAh
- Charger Input Voltage: AC 100V-240V ±10%
- Output Voltage: DC 16.8V
- Ambient Temperature: 5°C to 40°C
- Relative Humidity: <75% RH

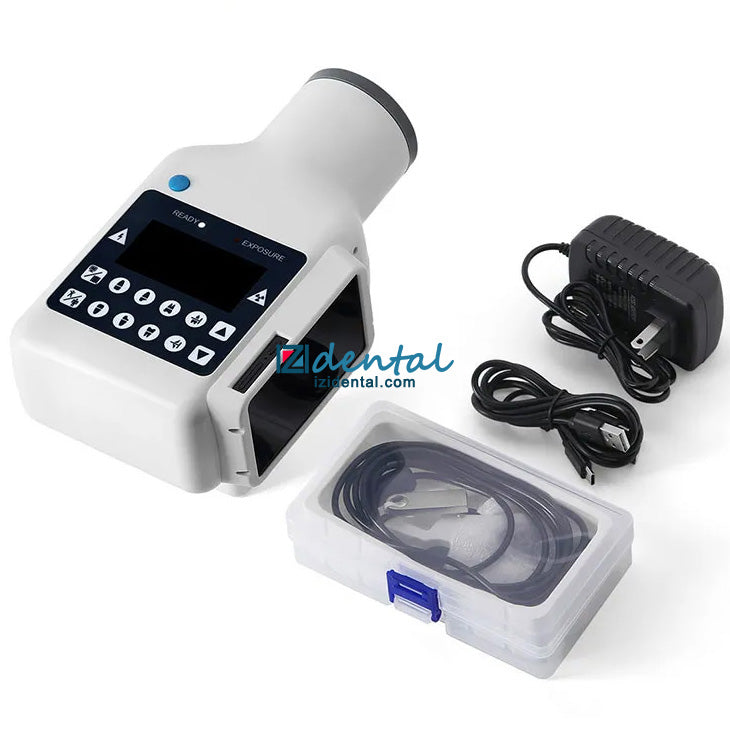

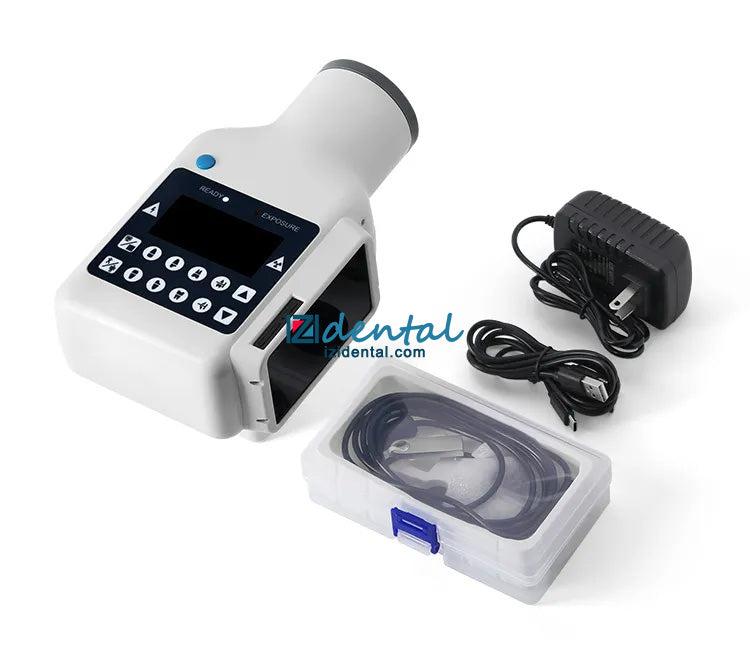

Package Includes:
- 1 x Aluminum Box
- 1 x X-ray Machine
- 1 x Sensor (with USB disk)
- 1 x Charger
- 1 x Manual
- 2 x Data Cables
Note:
Two sensor options available:
- Dental X-Ray Unit with 2230 Sensor
- Dental X-Ray Unit with 2635 Sensor
The Dental Portable X-Ray Machine is designed for easy and efficient use in various dental settings. It features a built-in screen that displays X-ray images immediately after capture when connected to compatible sensors. This unit can operate independently without the sensor, making it versatile and compatible with digital sensors, X-ray films, and image plate scanners. The flexible sensor use allows integration with other X-ray machines, ensuring a seamless workflow across different clinical setups.
Its portable, handheld design ensures ease of use and mobility, while the compact body is lightweight and provides minimal radiation leakage (below 20μGy/h). The unit offers high-quality imaging, portable storage, and uses a high-frequency DC international power supply. Additionally, the battery can capture approximately 400 images on a single charge. This device is ideal for improving efficiency in a clinical environment while ensuring safety and comfort for patients.
Key Features:
- Instant image display on the built-in screen when connected to sensors.
- Operates independently, compatible with digital sensors, X-ray films, and image plate scanners.
- Flexible sensor use for integration with other X-ray machines.
- Streamlined design for enhanced workflow and adaptability to different clinical needs.
- Effortless image transfer via USB or Bluetooth.
- Two sensor models available to suit different needs.
- Lightweight, easy-to-grip handheld design for convenient portability.
- Compact body with minimal radiation leakage (below 20μGy/h).
- Excellent image quality and portable storage, saving space.
- High-frequency DC international power supply.
- All components installed in the central PC board, with shock and setup protection.
- Preset exposure times for adults and children.
- Durable battery, allowing for about 400 images per full charge.
Sensor Technical Parameter:
| Model | COX2230 | COX2635 |
|---|---|---|
| Detector Technology | APS CMOS | |
| Pixel Size | 18.5µm | |
| Theoretical Resolution | 27 lp/mm | |
| True Resolution | CsI: ≥14 lp/mm | |
| Pixel Matrix | 1200×1600 | 1402×1888 |
| Active Area (mm) | 29.6 x 22.2 | 35 x 26 |
| Mechanical Size (mm) | 39 x 28.5 x 6 | 44.5 x 33.0 x 6 |
| Data Interface | USB | |
| Digitization | 12/14/16 bit | |
| Imaging Time | 3-4s | |
Specifications:
- Tube Voltage: 60KV
- Tube Current: 2mA
- Exposure Time: 0.1-2.0s
- Frequency: 30kHz
- Rated Power: 120VA
- Distance from Skin to Cone: 105mm
- Tube Focus: 0.8mm x 0.8mm
- Battery: DC 14.8V 1600mAh
- Charger Input Voltage: AC 100V-240V ±10%
- Output Voltage: DC 16.8V
- Ambient Temperature: 5°C to 40°C
- Relative Humidity: <75% RH
Package Includes:
- 1 x Aluminum Box
- 1 x X-ray Machine
- 1 x Sensor (with USB disk)
- 1 x Charger
- 1 x Manual
- 2 x Data Cables
Note:
Two sensor options available:
- Dental X-Ray Unit with 2230 Sensor
- Dental X-Ray Unit with 2635 Sensor
