About

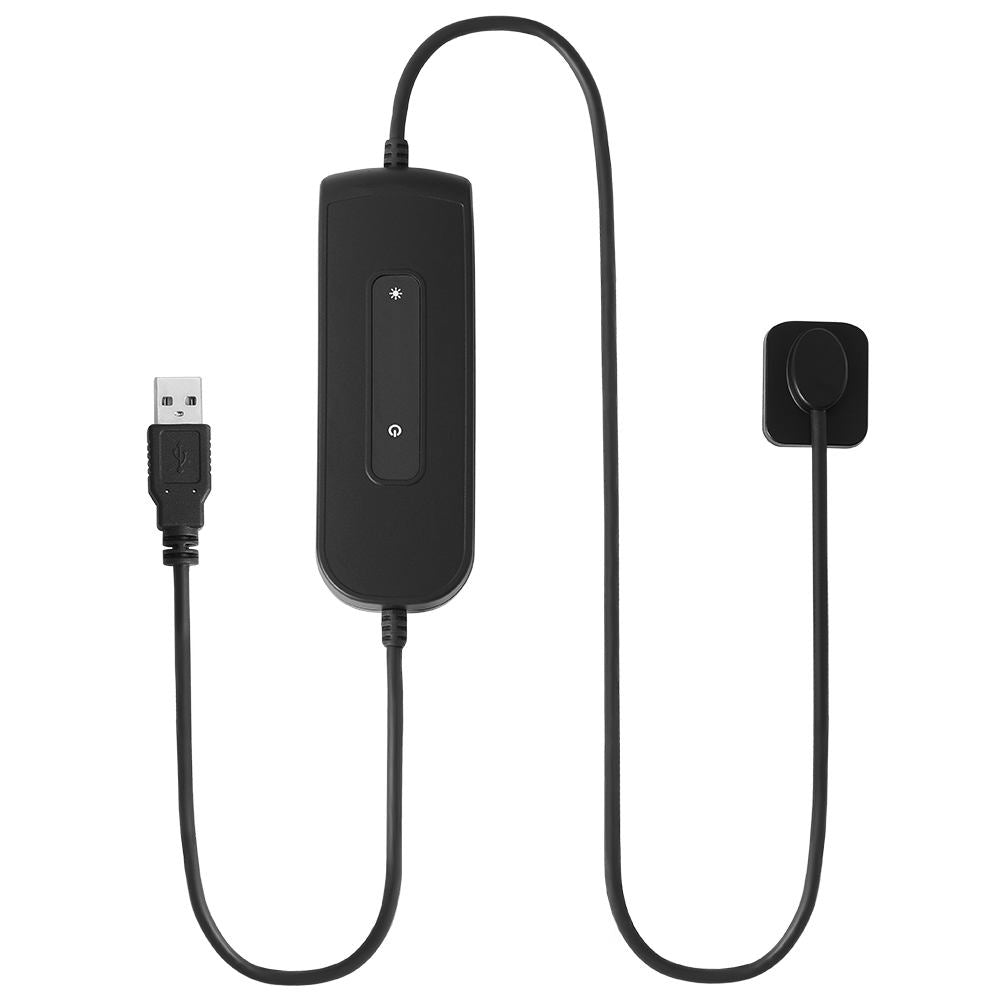

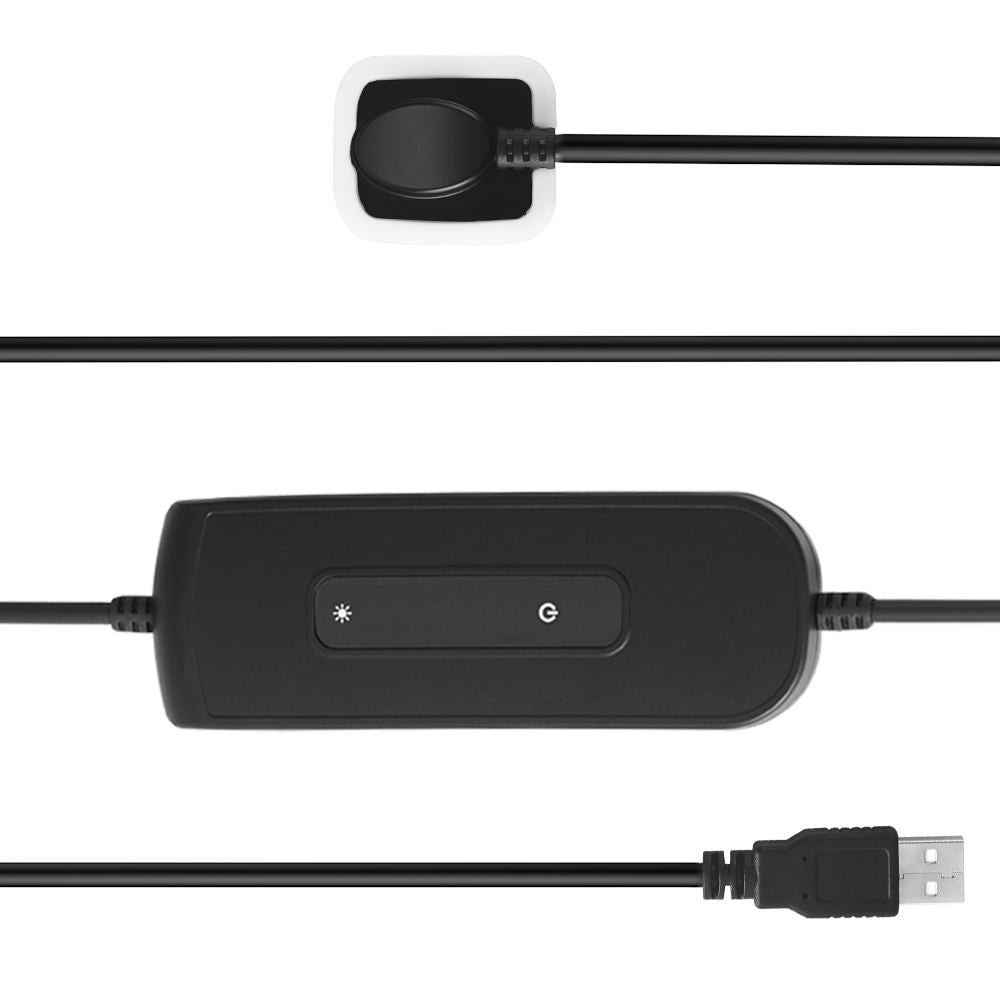

The product is mainly composed of a sensor, an adaptor, a USB connection cable, and workstation software. When used together with X-ray equipment, the product is intended for X-ray radiography in dental clinics or veterinary clinics.
Direct Imaging & High Efficiency
The entire imaging process goes directly from data acquisition to immediate image display and reading. There is NO need for any plate reader.

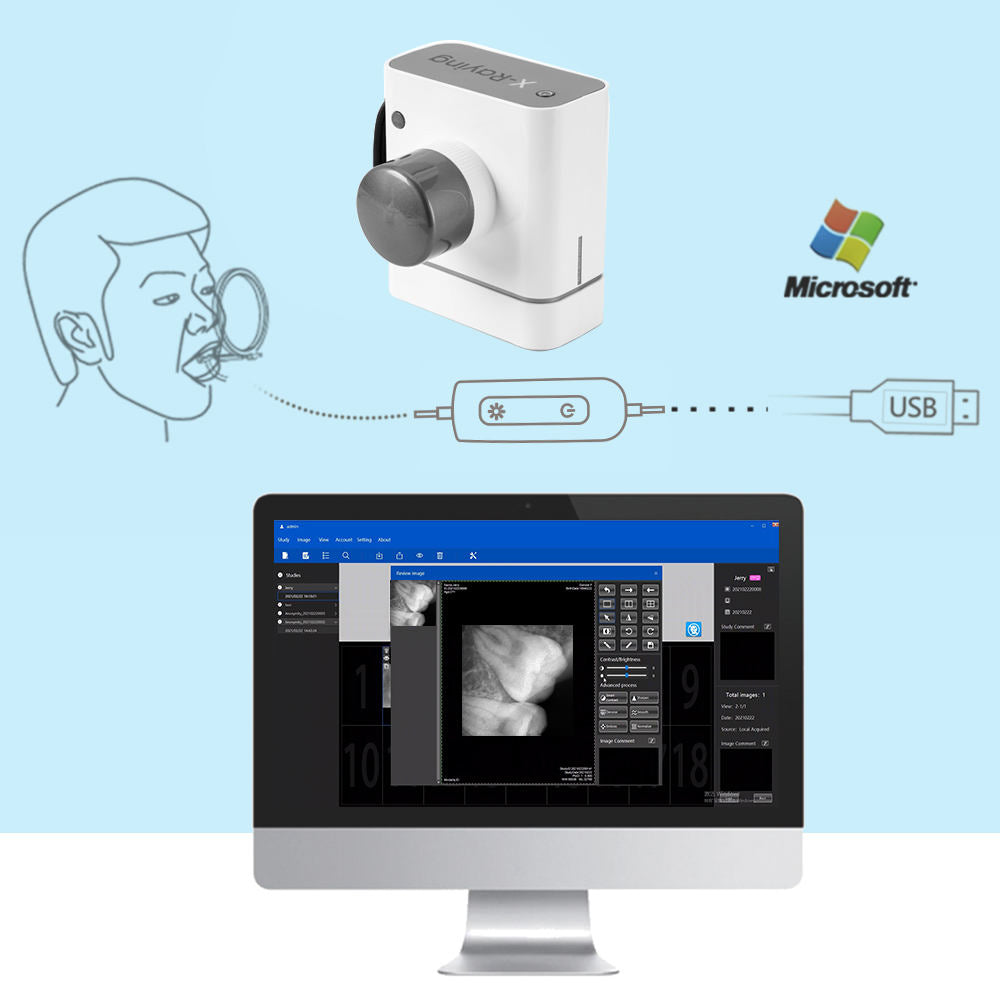

USB Connection & Optimal Workflow
USB connection to the computer supports lightning-fast data transmission and enables real-time imaging. User-friendly design also helps to optimize workflow.
Clear Display
The wide dynamic range and high-contrast resolution work together to produce clear and detailed images of teeth and soft tissue.
Exceptional Durability

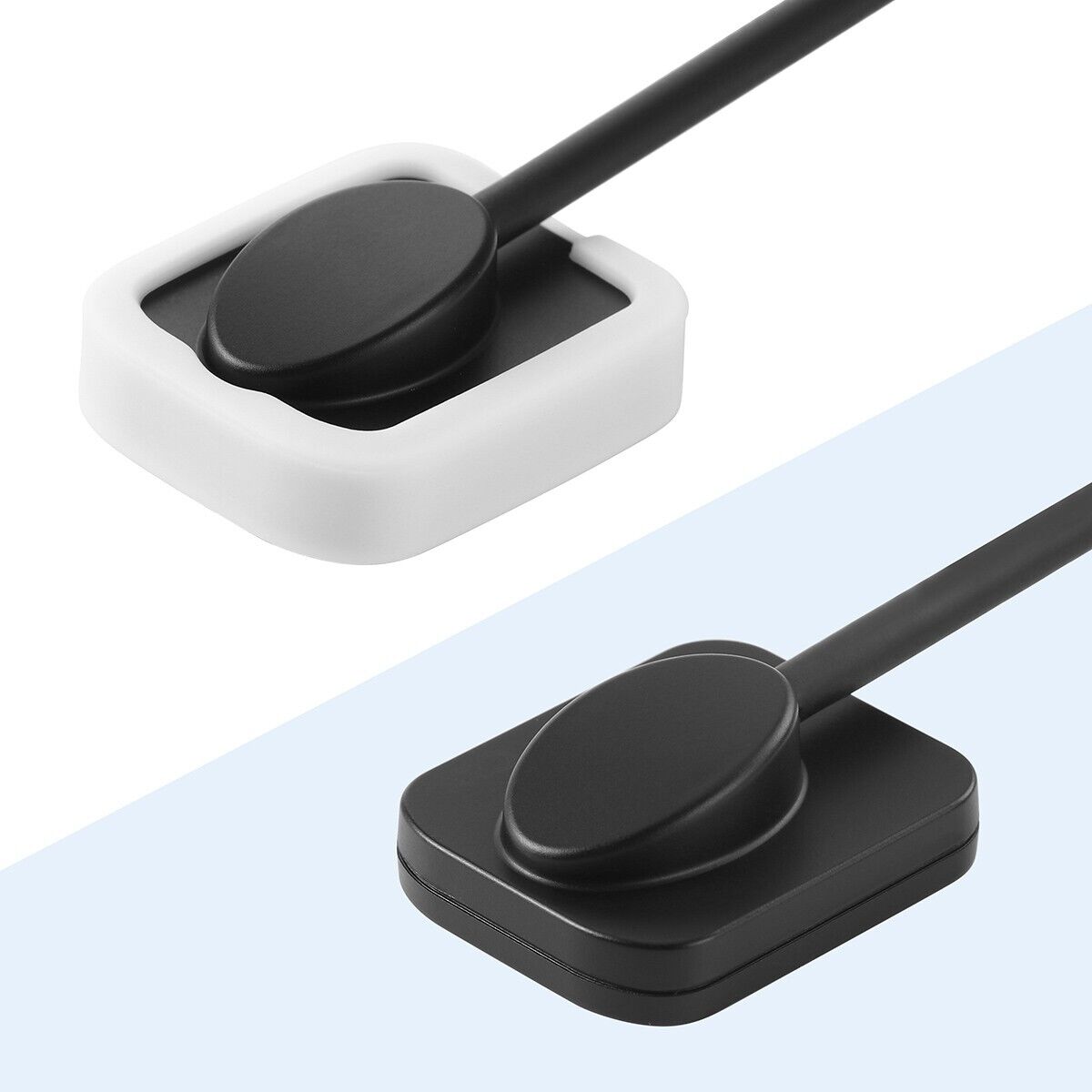

The sensor casing is purposely designed to resist shocks, bites, and drops to ensure product durability. It is absolutely waterproof and can be immersed in disinfecting solution for better hygienic and safety protection. The protective sheaths reduce the risk of cross-contamination and protect plates from scratches and heat.
Extraordinary Usability
Compatible with the currently available imaging technology on the market, the sensor can work with both film and digital radiography systems, fitting well into most practices of radiography imaging applications.
Photon Counting Detector Technology
Photon counting detector technology is applied in intra-oral imaging for the first time, converting X-rays into digital signals directly, and yielding high dynamic range, high contrast-resolution images at comparatively lower dosage.
Powerful Post-Processing Software
Multiple image post-processing algorithms help to improve image contrast and sharpness with more exquisite details.
Hardware Requirements:
Central Processor: Intel Core i3 or higher
Internal Memory: 4GB or higher
Hard Disk: 80GB or higher
Display: 1280X1024
USB interface: two
Keyboard: One
Mouse: One
Software Requirement
Operating Software：Windows 7 SP1,8,10 32/64bit
Runtime: .Net Framework 4.6 or higher, VC++ 2015
Software Requirement:
Operating Software：Windows 7 SP1,8,10 32/64bit Runtime: .Net Framework 4.6 or higher, VC++ 2015
| Product Specifications | ||
|---|---|---|

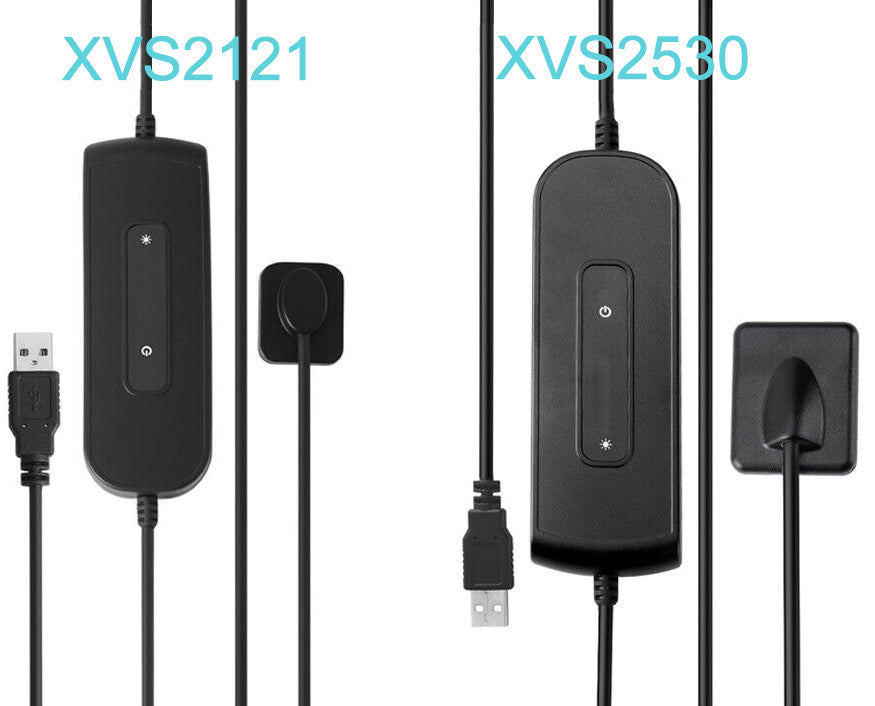

| VXS2121 | VXS2530 | |
| Operating Voltage | 5DVC | 5DVC |
| Input power | 500mW | 500mW |
| Spatial Resolution | ≥7Lp/mm | ≥7Lp/mm |
| Low contrast resolution | Able to display holes with 1mm, 1.5mm, 2mm and 2.5mm diameter on the 0.5mm-thick aluminium foil | Able to display holes with 1mm, 1.5mm, 2mm and 2.5mm diameter on the 0.5mm-thick aluminium foil |
| Image uniformity | ≤2% | ≤2% |

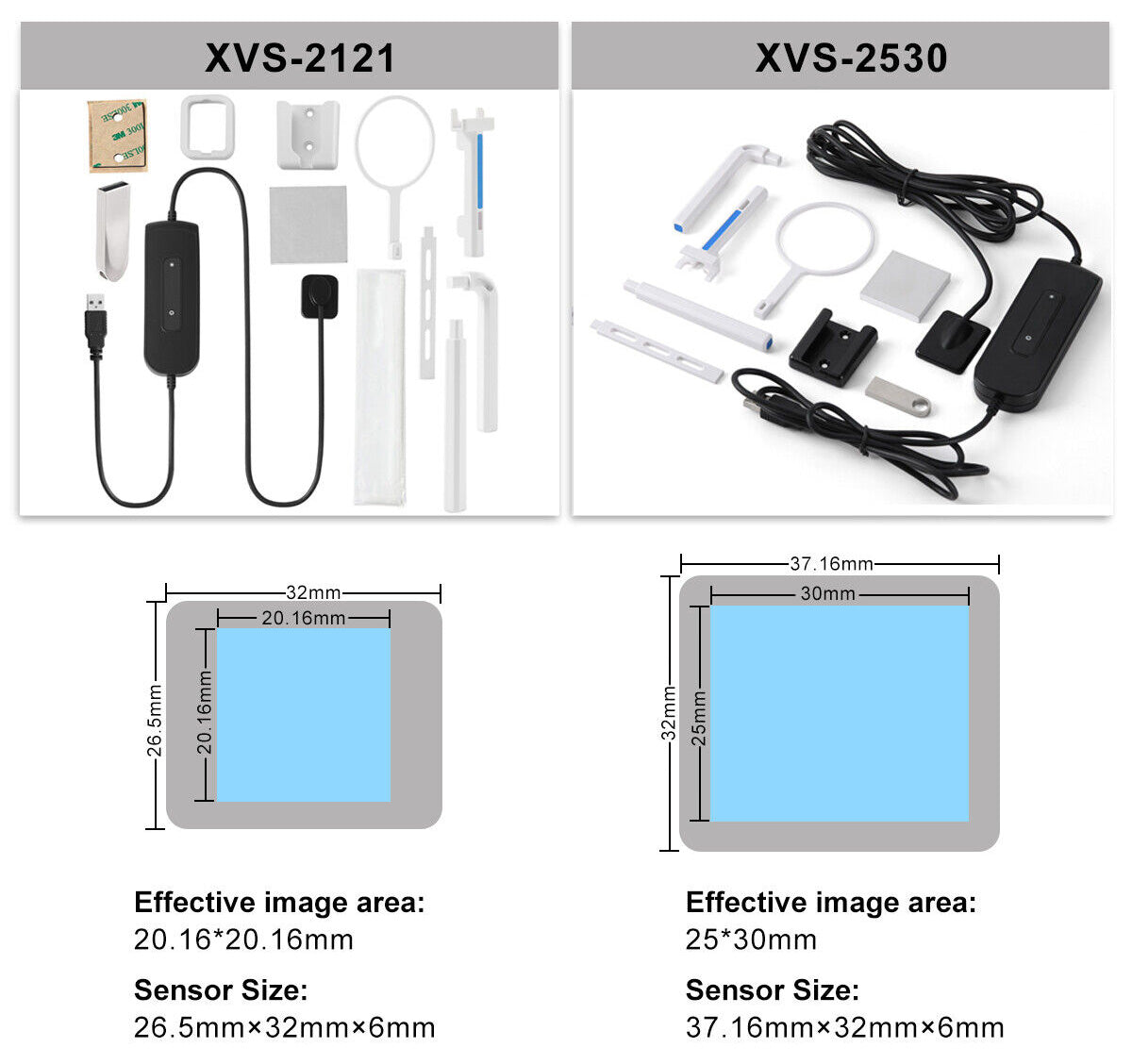

| Effective image area | 20.16*20.16mm | 25*30mm |
| Sensor Size | 26.5mm*32mm*6mm | 37.16mm*32mm*6mm |
| Adaptor Size | 60mm*40mm*29.2mm | 113.6mm*40mm*15.8mm |
| Total Cable Length | 3m | 3m |
| Warranty | 1 Year | 1 Year |

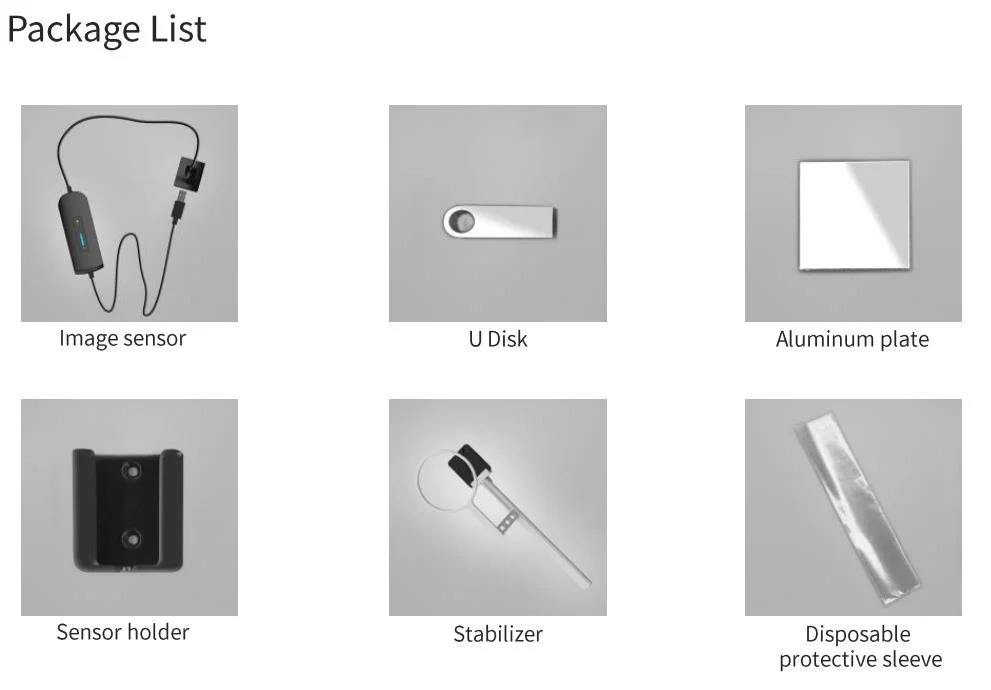

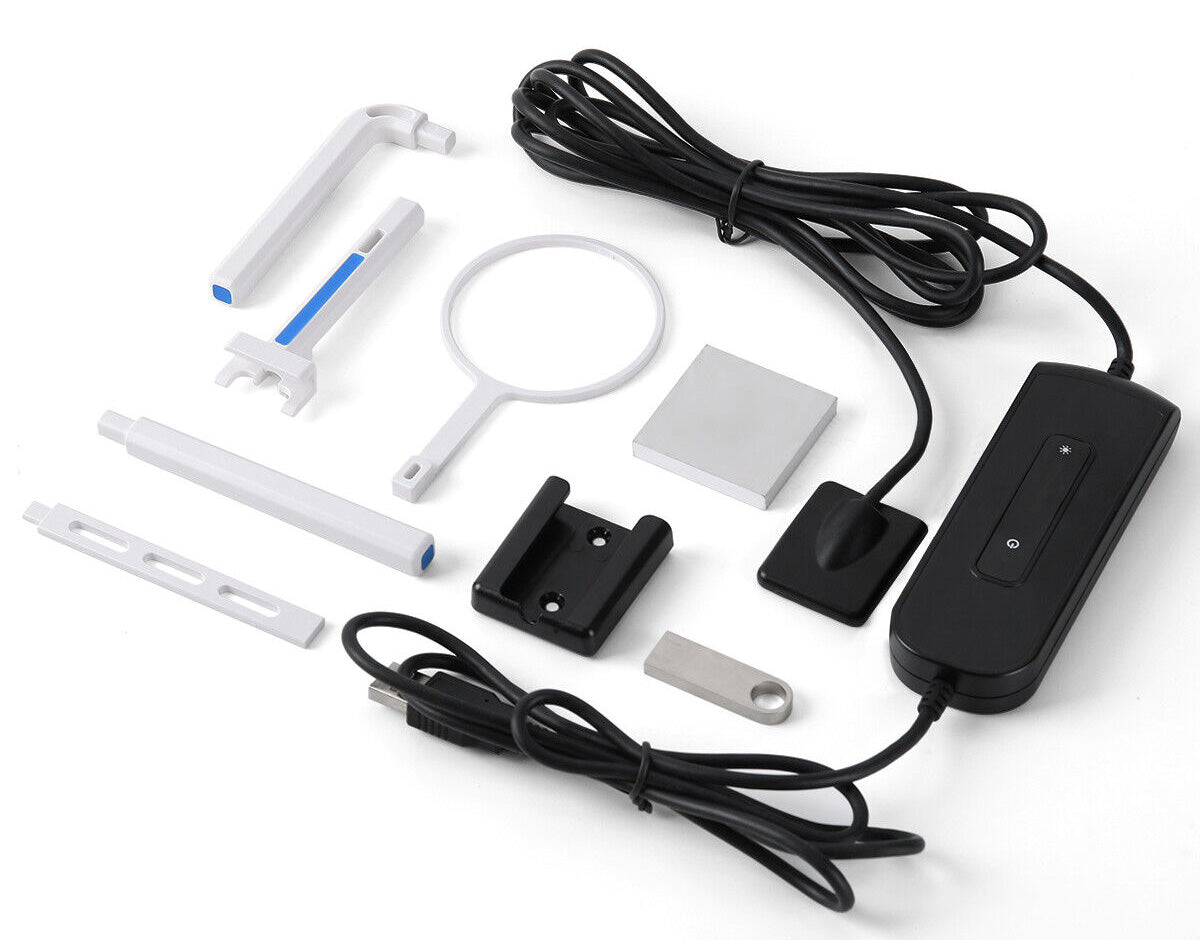

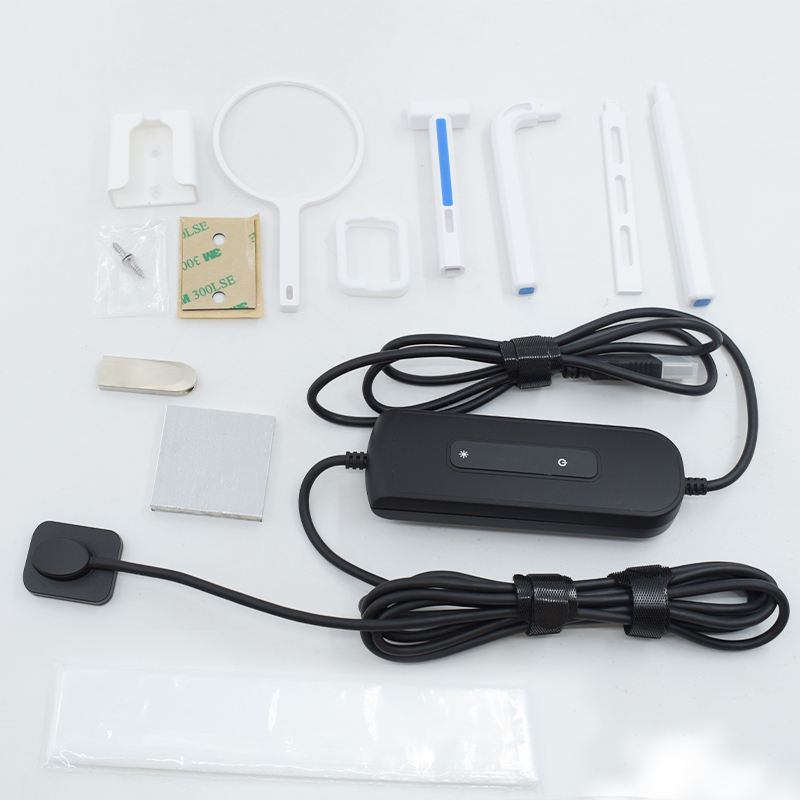

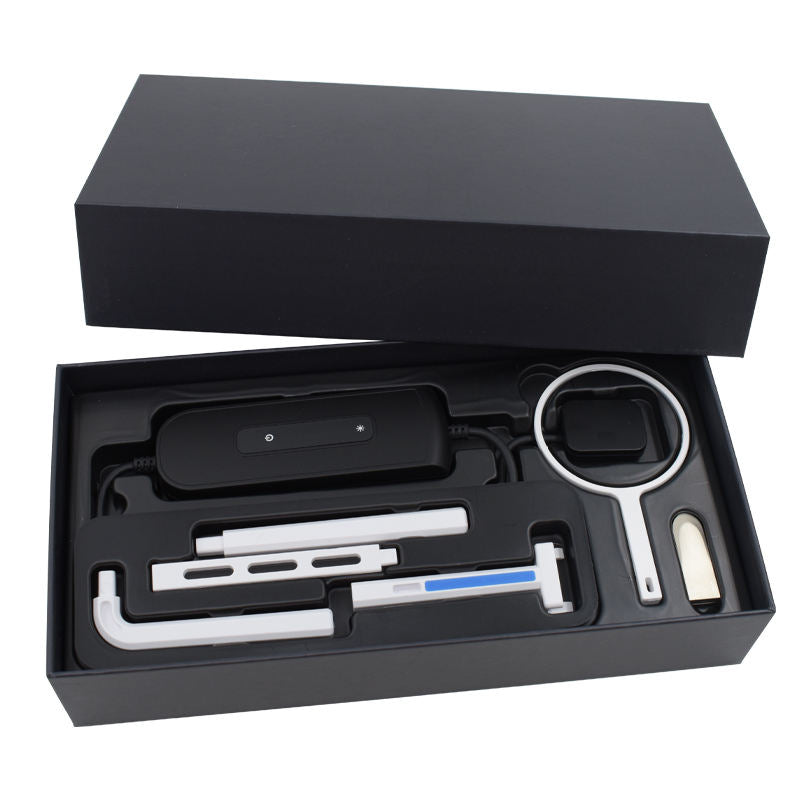

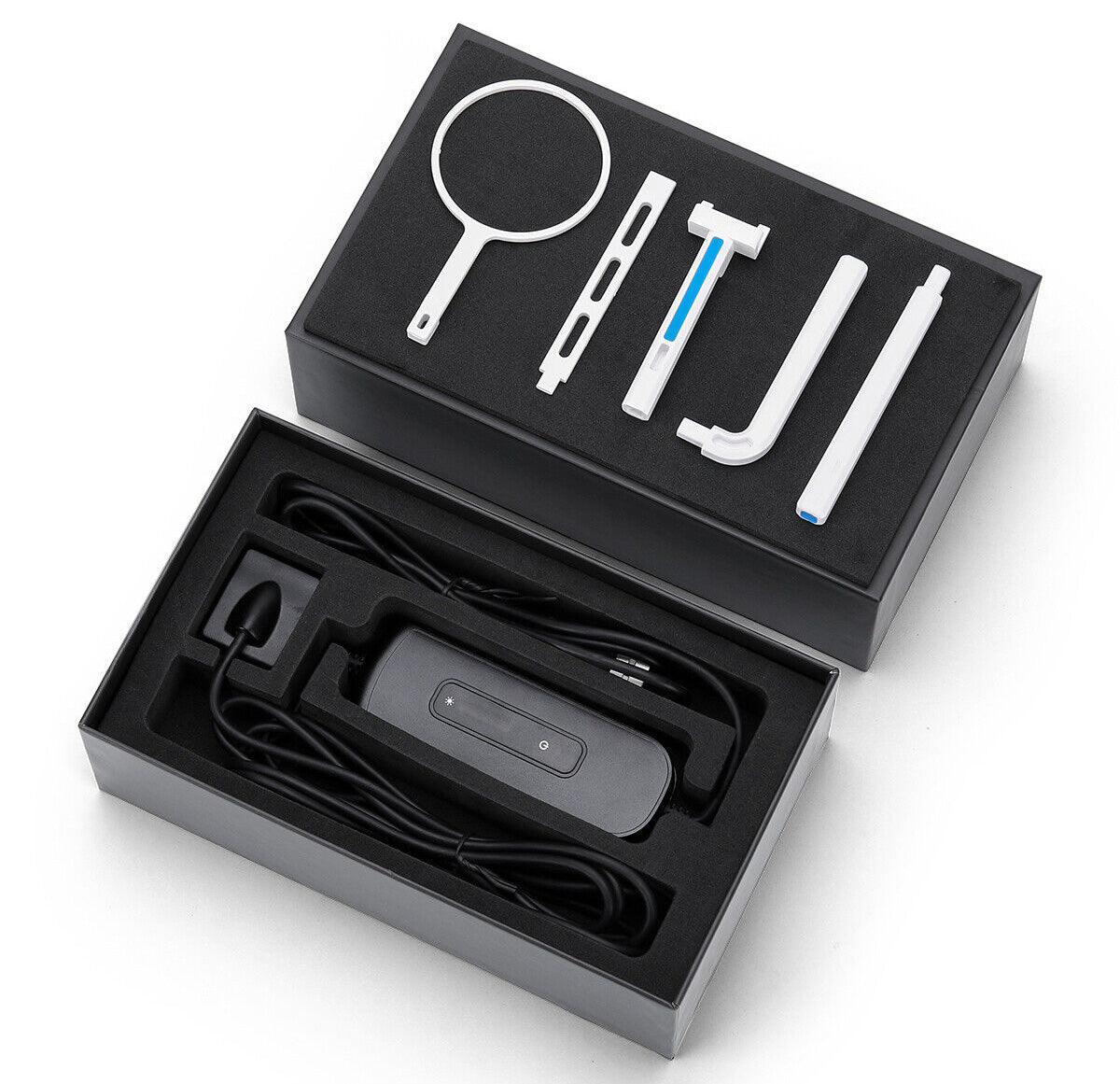

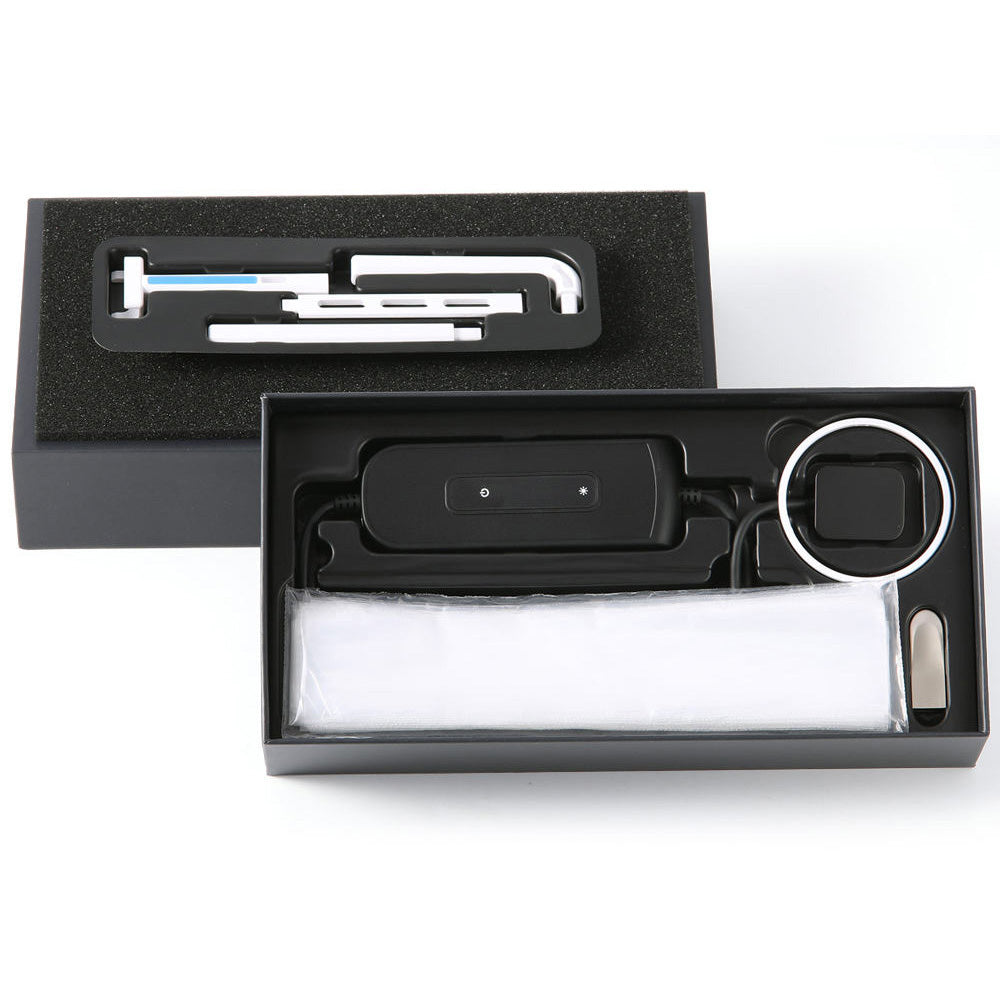

Accessories:
Digital sensor: 1 Set
USB cable :1 PCS
U Disk: 1PCS
Disposable protective sheath: 1 Box（500）
silicon loop: 1 PCS

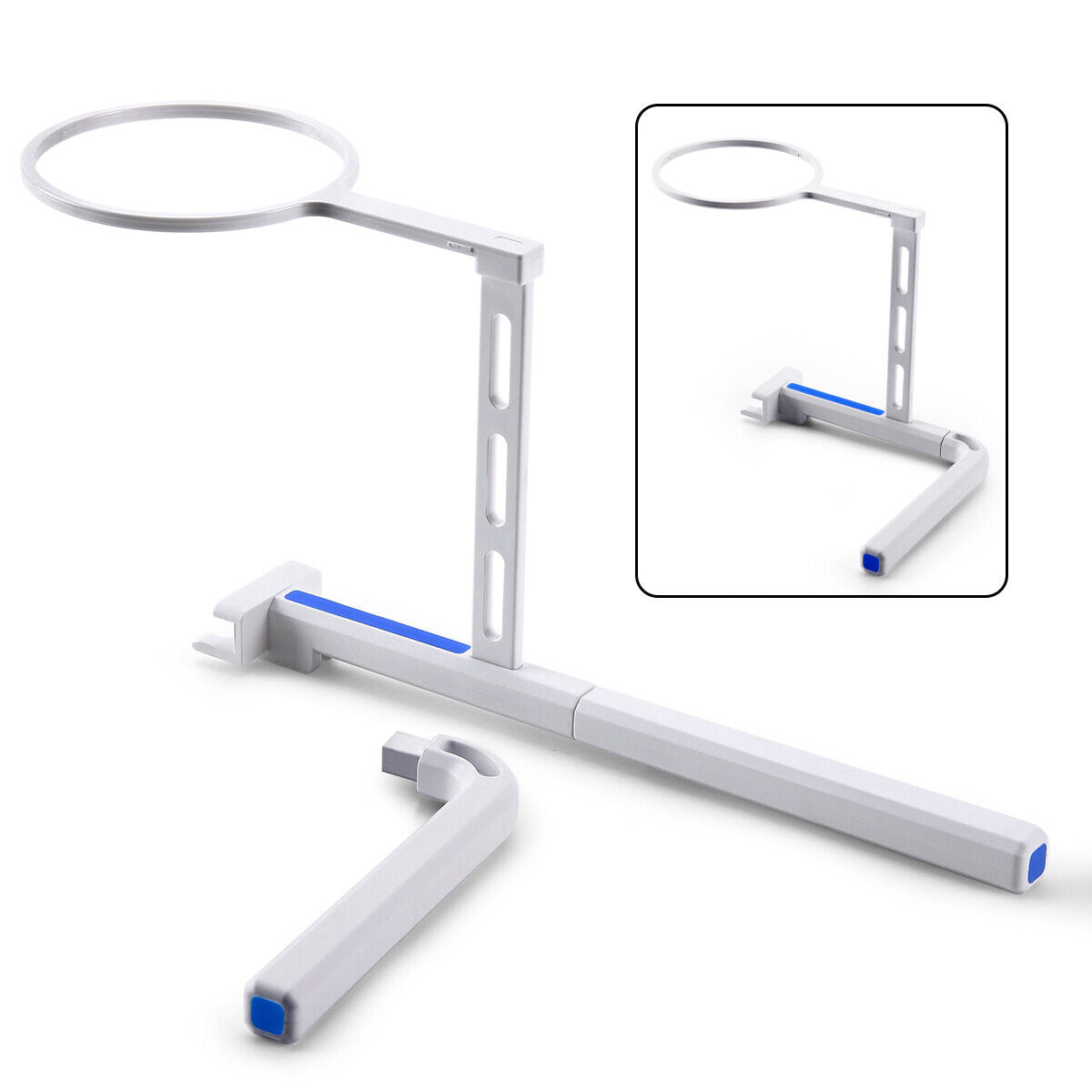

Sensor holder: 1 PCS
Aluminum plate:1 PCS (40*40*6mm)
The product is mainly composed of a sensor, an adaptor, a USB connection cable, and workstation software. When used together with X-ray equipment, the product is intended for X-ray radiography in dental clinics or veterinary clinics.
Direct Imaging & High Efficiency
The entire imaging process goes directly from data acquisition to immediate image display and reading. There is NO need for any plate reader.
USB Connection & Optimal Workflow
USB connection to the computer supports lightning-fast data transmission and enables real-time imaging. User-friendly design also helps to optimize workflow.
Clear Display
The wide dynamic range and high-contrast resolution work together to produce clear and detailed images of teeth and soft tissue.
Exceptional Durability
The sensor casing is purposely designed to resist shocks, bites, and drops to ensure product durability. It is absolutely waterproof and can be immersed in disinfecting solution for better hygienic and safety protection. The protective sheaths reduce the risk of cross-contamination and protect plates from scratches and heat.
Extraordinary Usability
Compatible with the currently available imaging technology on the market, the sensor can work with both film and digital radiography systems, fitting well into most practices of radiography imaging applications.
Photon Counting Detector Technology
Photon counting detector technology is applied in intra-oral imaging for the first time, converting X-rays into digital signals directly, and yielding high dynamic range, high contrast-resolution images at comparatively lower dosage.
Powerful Post-Processing Software
Multiple image post-processing algorithms help to improve image contrast and sharpness with more exquisite details.
Hardware Requirements:
Central Processor: Intel Core i3 or higher
Internal Memory: 4GB or higher
Hard Disk: 80GB or higher
Display: 1280X1024
USB interface: two
Keyboard: One
Mouse: One
Software Requirement
Operating Software：Windows 7 SP1,8,10 32/64bit
Runtime: .Net Framework 4.6 or higher, VC++ 2015
Software Requirement:
Operating Software：Windows 7 SP1,8,10 32/64bit Runtime: .Net Framework 4.6 or higher, VC++ 2015
| Product Specifications | ||
|---|---|---|
| VXS2121 | VXS2530 | |
| Operating Voltage | 5DVC | 5DVC |
| Input power | 500mW | 500mW |
| Spatial Resolution | ≥7Lp/mm | ≥7Lp/mm |
| Low contrast resolution | Able to display holes with 1mm, 1.5mm, 2mm and 2.5mm diameter on the 0.5mm-thick aluminium foil | Able to display holes with 1mm, 1.5mm, 2mm and 2.5mm diameter on the 0.5mm-thick aluminium foil |
| Image uniformity | ≤2% | ≤2% |
| Effective image area | 20.16*20.16mm | 25*30mm |
| Sensor Size | 26.5mm*32mm*6mm | 37.16mm*32mm*6mm |
| Adaptor Size | 60mm*40mm*29.2mm | 113.6mm*40mm*15.8mm |
| Total Cable Length | 3m | 3m |
| Warranty | 1 Year | 1 Year |
Accessories:
Digital sensor: 1 Set
USB cable :1 PCS
U Disk: 1PCS
Disposable protective sheath: 1 Box（500）
silicon loop: 1 PCS
Sensor holder: 1 PCS
Aluminum plate:1 PCS (40*40*6mm)

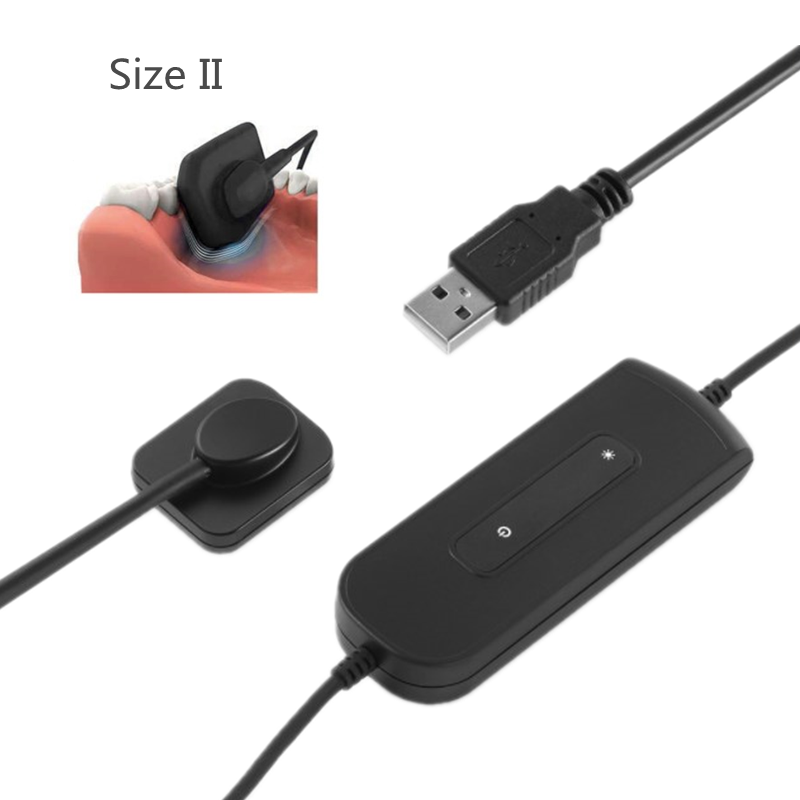

Dental Intraoral Imaging System Dental RVG X-Ray Sensor VXS2121/2530
- Regular price
- £696.98
- Sale price
- £696.98
