About
The Screw Remover Kit is a surgical tool developed to safely and quickly remove screws that have become fractured inside an implanted fixture for various reasons. After removing the screw, a new abutment may be connected to the fixture.
Remove fractured screw with the Screw Remover!
No worries about fractured screws.
Features:
Remove fractured screws without damaging the fixture or pulling out the fixture.
Fractured screws can be removed in 3 minutes.
Various implant systems can be applied to the Neo Screw Remover kit.
Screws with excessive torque can be removed with a ratchet.

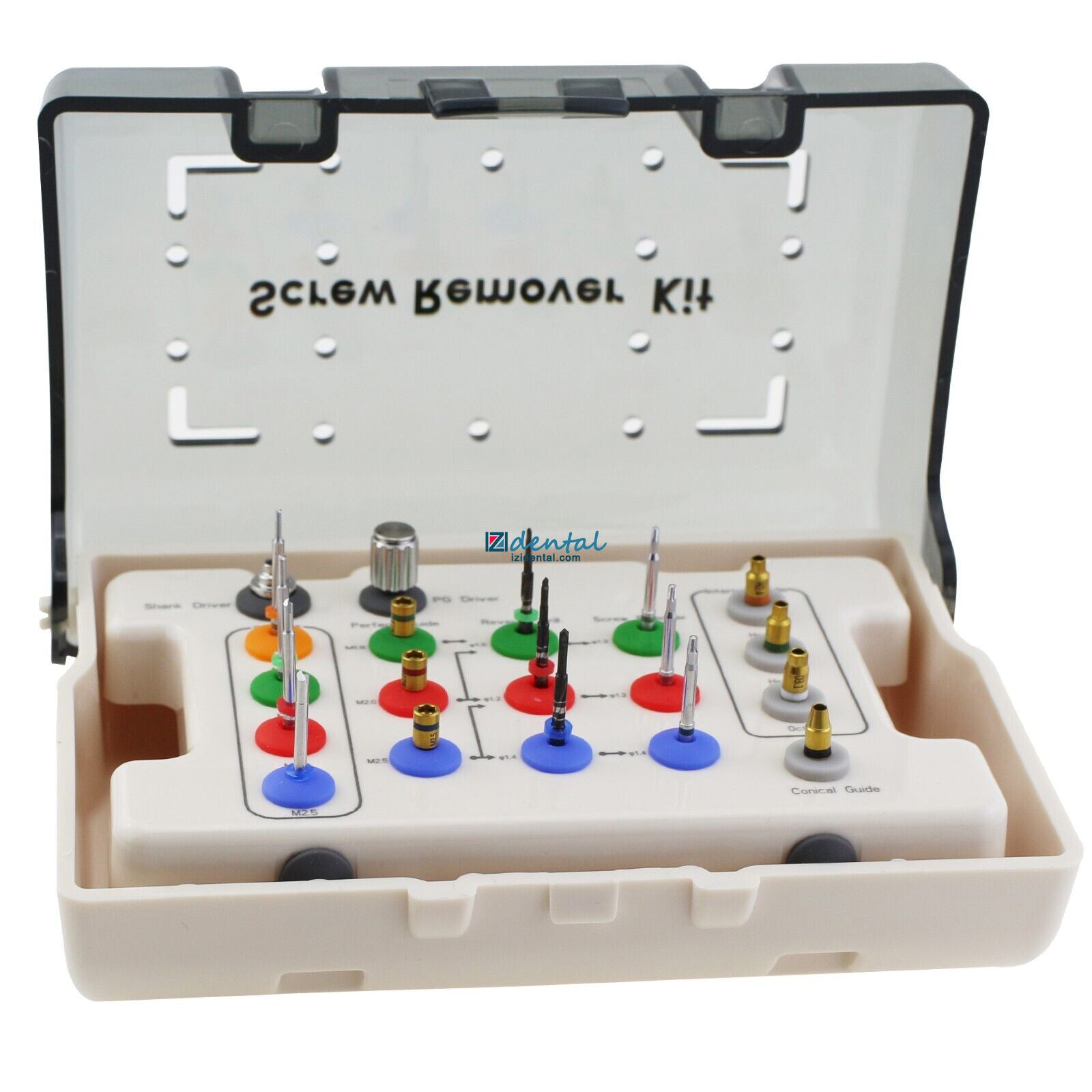

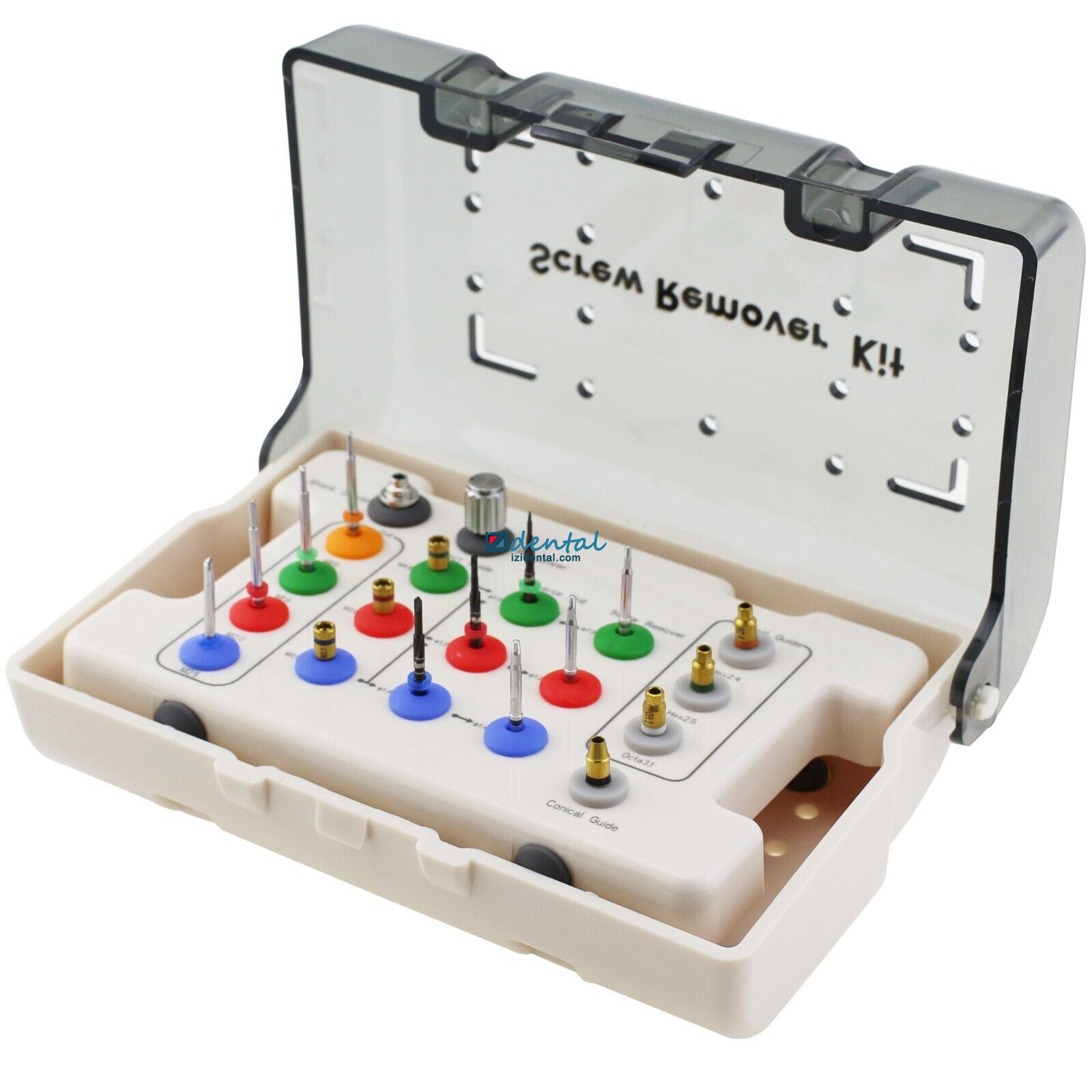

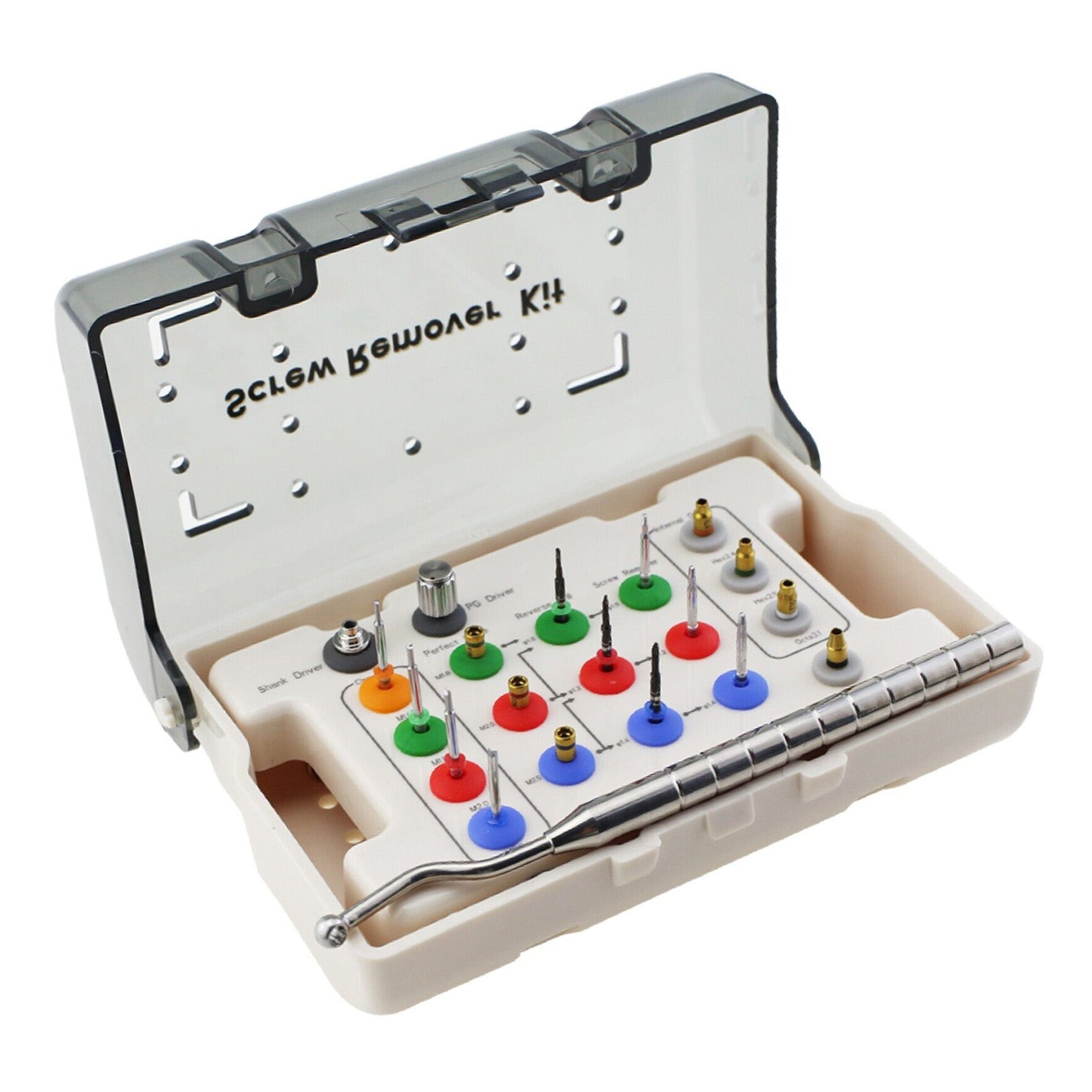

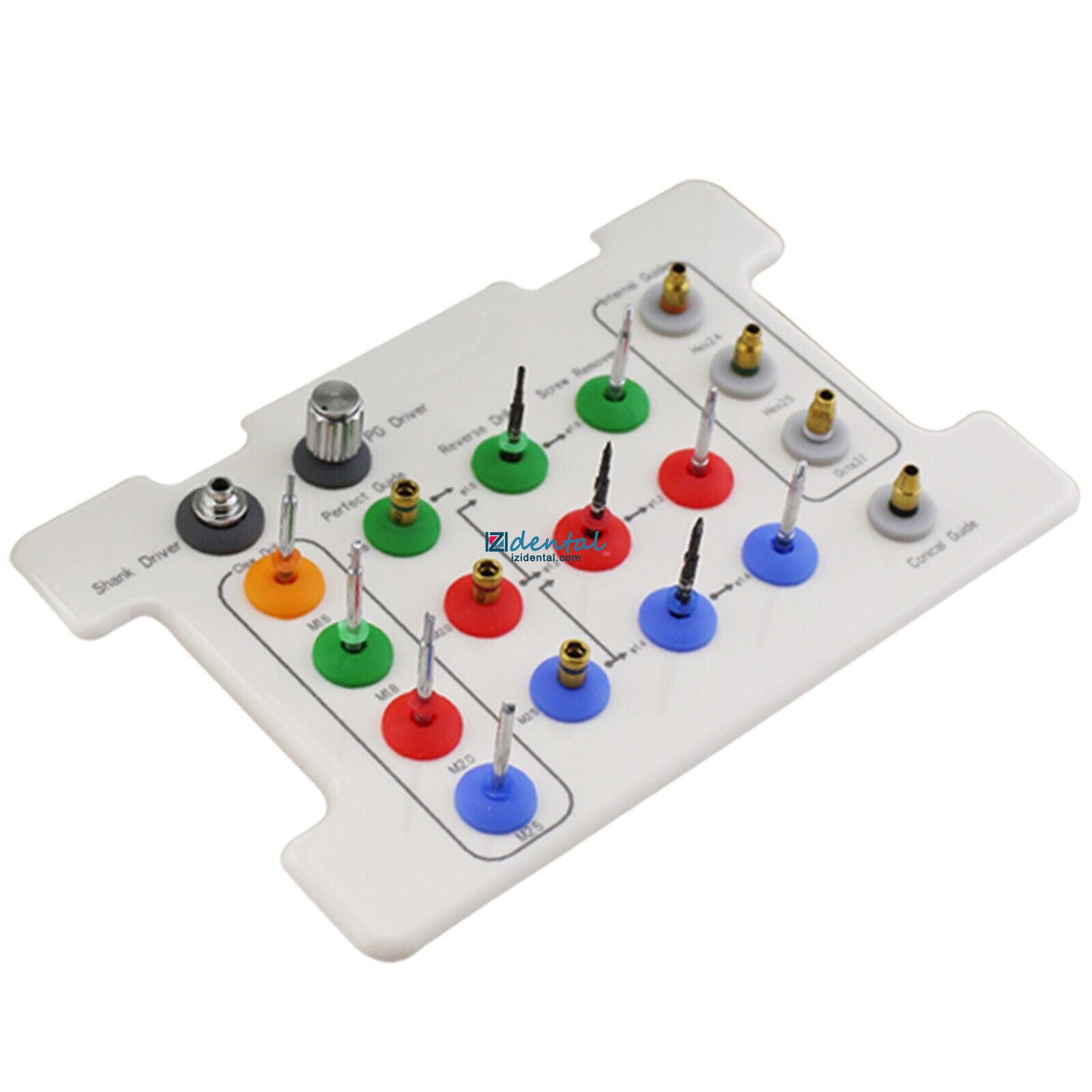

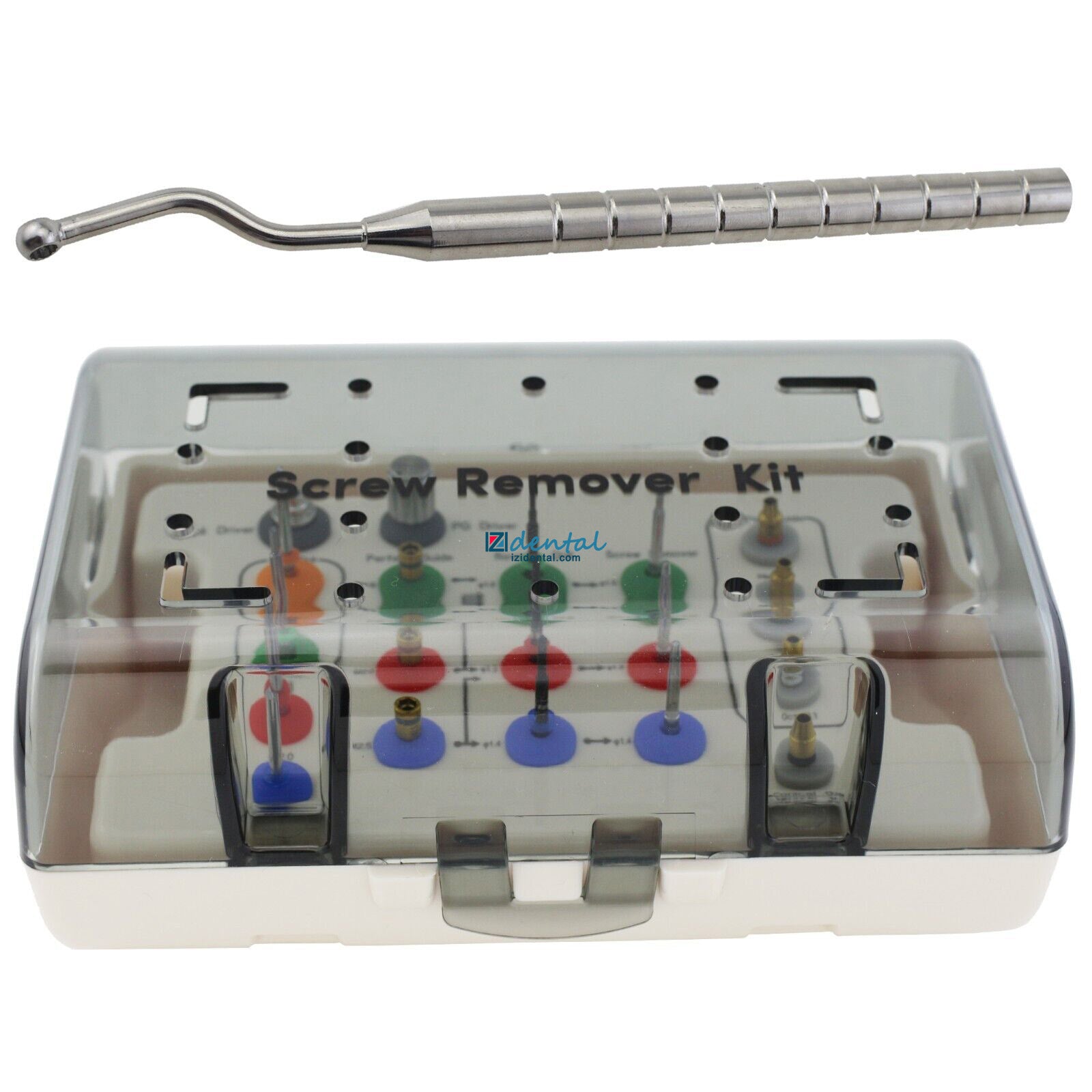

Screw Remover Kit contains:

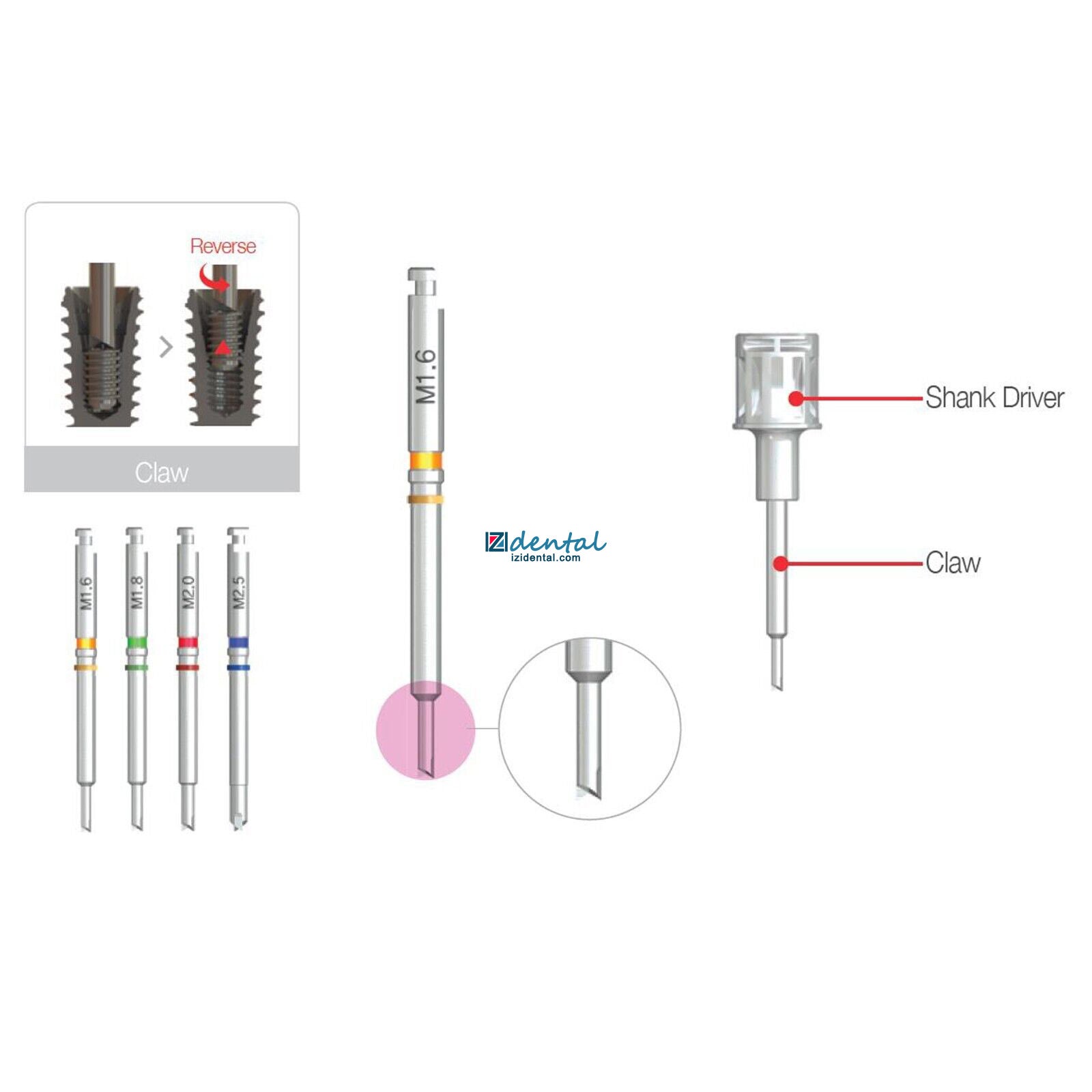

1.Claw
This is a surgical tool designed to remove screws that have become fractured inside a fixture. After selecting the appropriate size for the screw to be removed, the Claw is used by connecting a guide to the fixture (Conical/Internal/External Guide). Then, it is connected to the Shank Driver, and the fractured screw can be removed by manually rotating it in the reverse direction. If the fractured screw cannot be removed using the Claw, it must be removed using the Reverse Drill and Screw Remover.
| Product Name | Fractured Screw Size | Product Name | Fractured Screw Size |
|---|---|---|---|
| CD16 | M1.6 | CD20 | M2.0 |
| CD18 | M1.8 | CD25 | M2.5 |

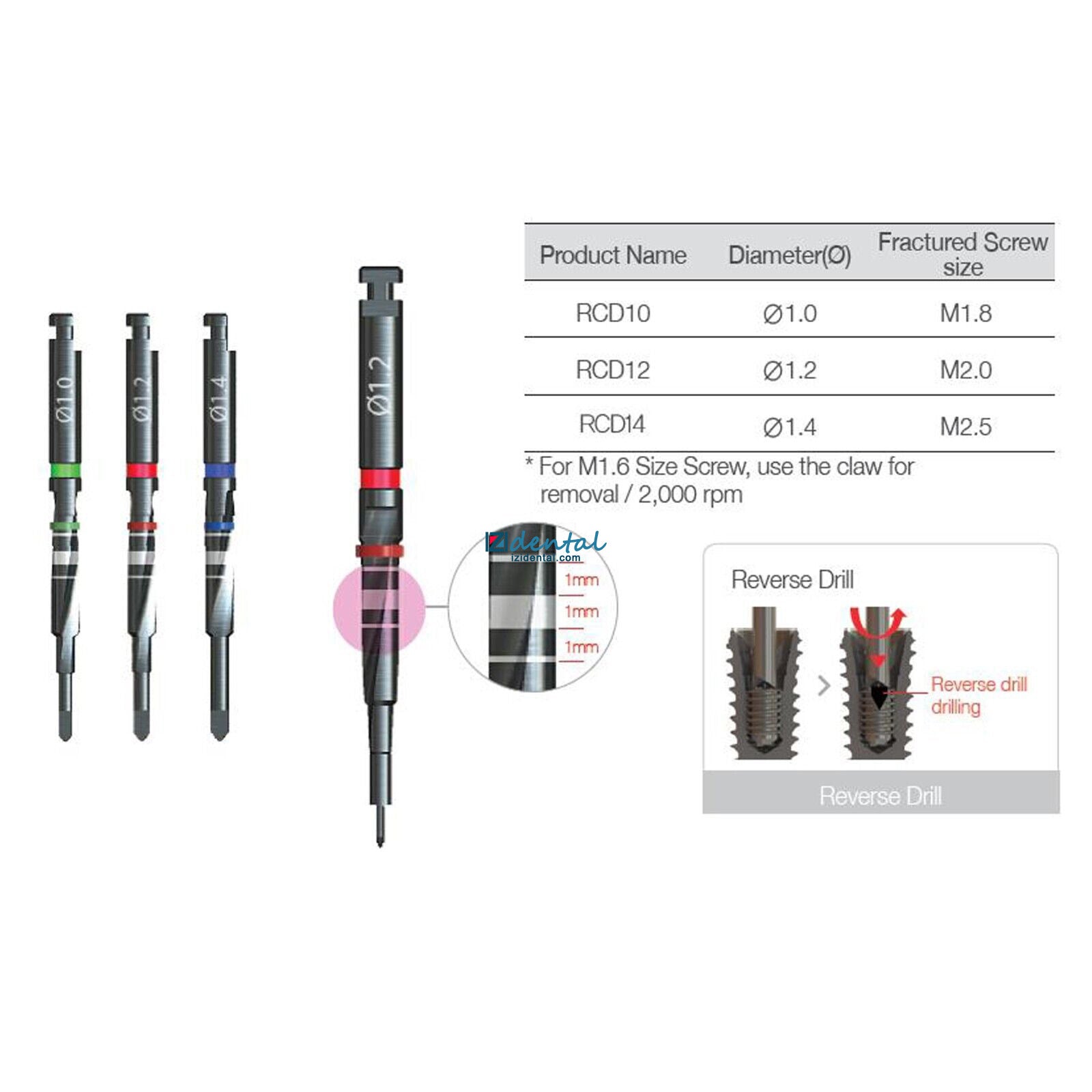

2. Reverse Drill
- This is a tool that creates a hole on the fractured face of the screw to be used by the Screw Remover.
- After selecting the appropriate Reverse Drill for the size of the screw that needs to be removed, it should be used by connecting a guide for the fixture (Perfect/Conical/Internal/External Guide). The depth of the drill can be adjusted from 1 mm to 3 mm because the drill body has markings.
- The removal of an M1.6 size screw should utilize the Claw.
- Although different manufacturers produce different sizes of abutment screws, typically they utilize screws of size M1.6, M1.8, M2.0, or M2.5, except in rare cases. (‘M’ stands for a metric screw. The number indicates the external diameter of the screw. For example, “M1.6 screw” indicates that it is a metric screw with an external diameter of 1.6 mm).
| Product Name | Diameter(Ø) | Fractured Screw Size |
|---|---|---|
| RCD10 | Ø 1.0 | M1.8 |
| RCD12 | Ø 1.2 | M1.8 |
| RCD14 | Ø 1.4 | M1.8 |

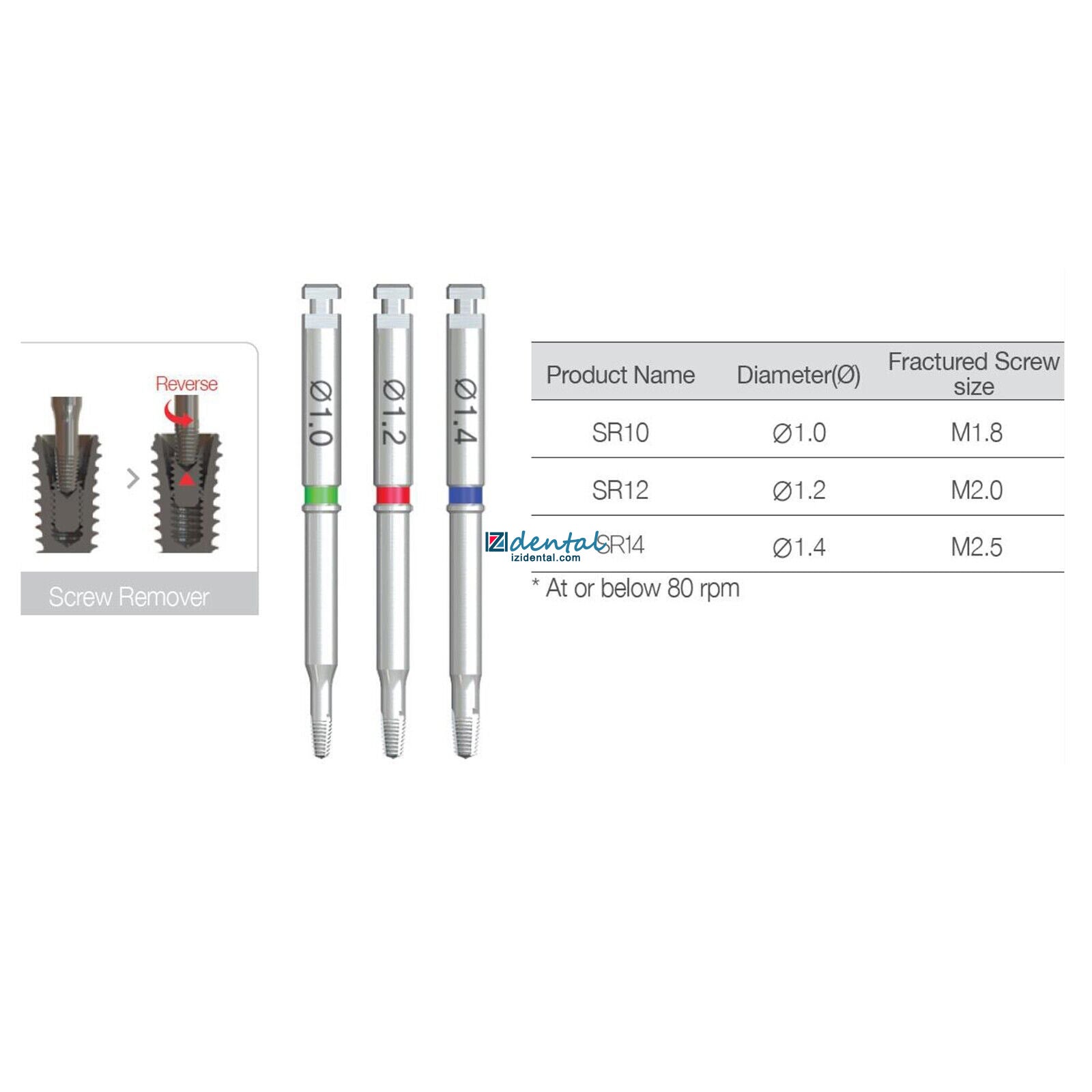

3. Screw Remover
- This device removes a fractured screw. Insert a Screw Remover that is appropriate for the size of the hole formed using the Reverse Drill and rotate it at a low speed (at or below 80 rpm) in the reverse direction.
- The Screw Remover is designed in a tapered shape to increase the amount of friction as it turns, which is necessary to loosen the screw.
| Product Name | Diameter(Ø) | Fractured Screw Size |
|---|---|---|
| SR10 | Ø 1.0 | M1.8 |
| SR12 | Ø 1.2 | M2.0 |
| SR14 | Ø 1.4 | M2.5 |

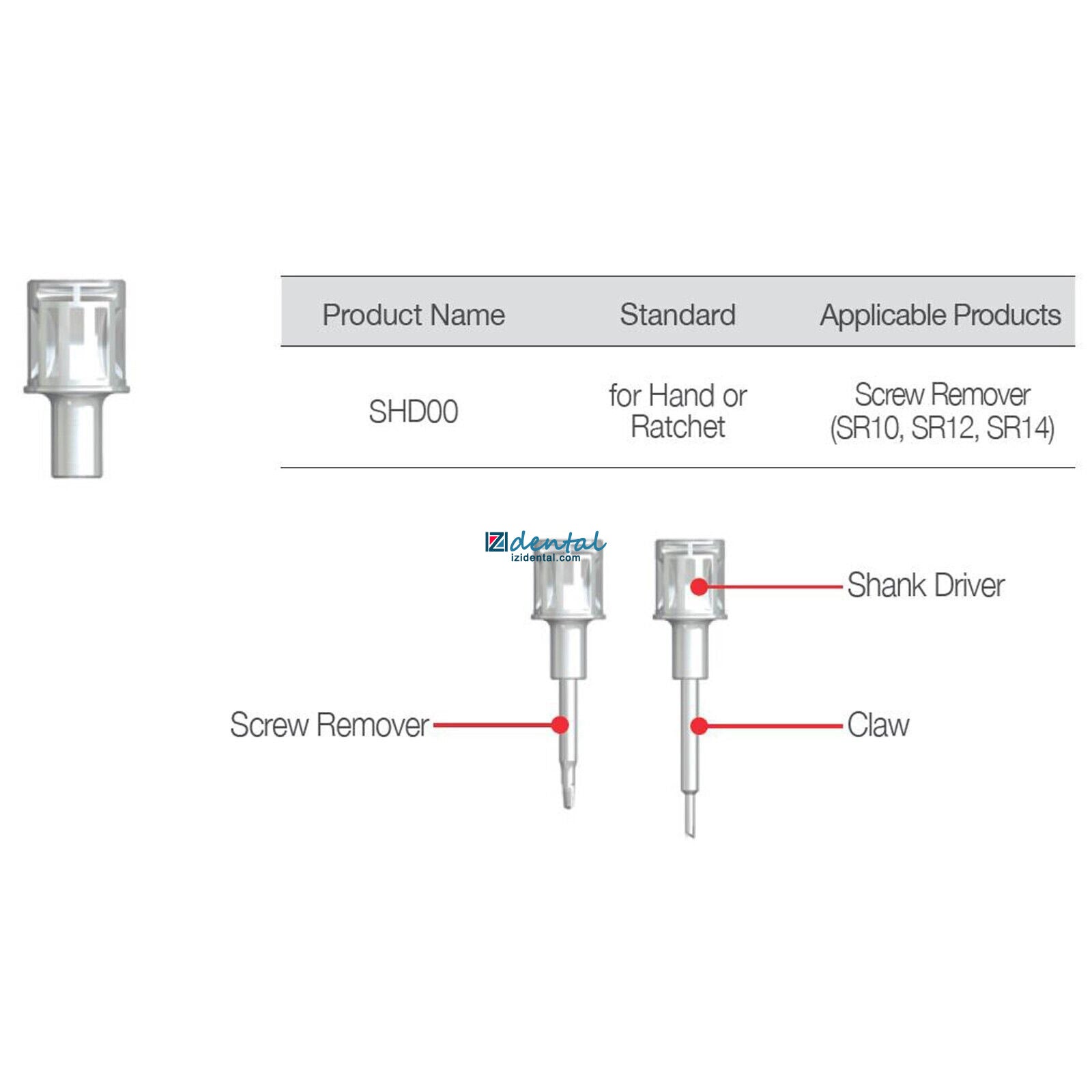

4. Shank Driver
- This is a surgical tool that was designed to be connected to the Screw Remover to allow the use of the hand, Torque Wrench, or Ratchet.
| Product Name | Standard | Applicable Products |
|---|---|---|
| SHD00 | for Hand or Ratchet | Screw Remover (SR10, SR12, SR14) |

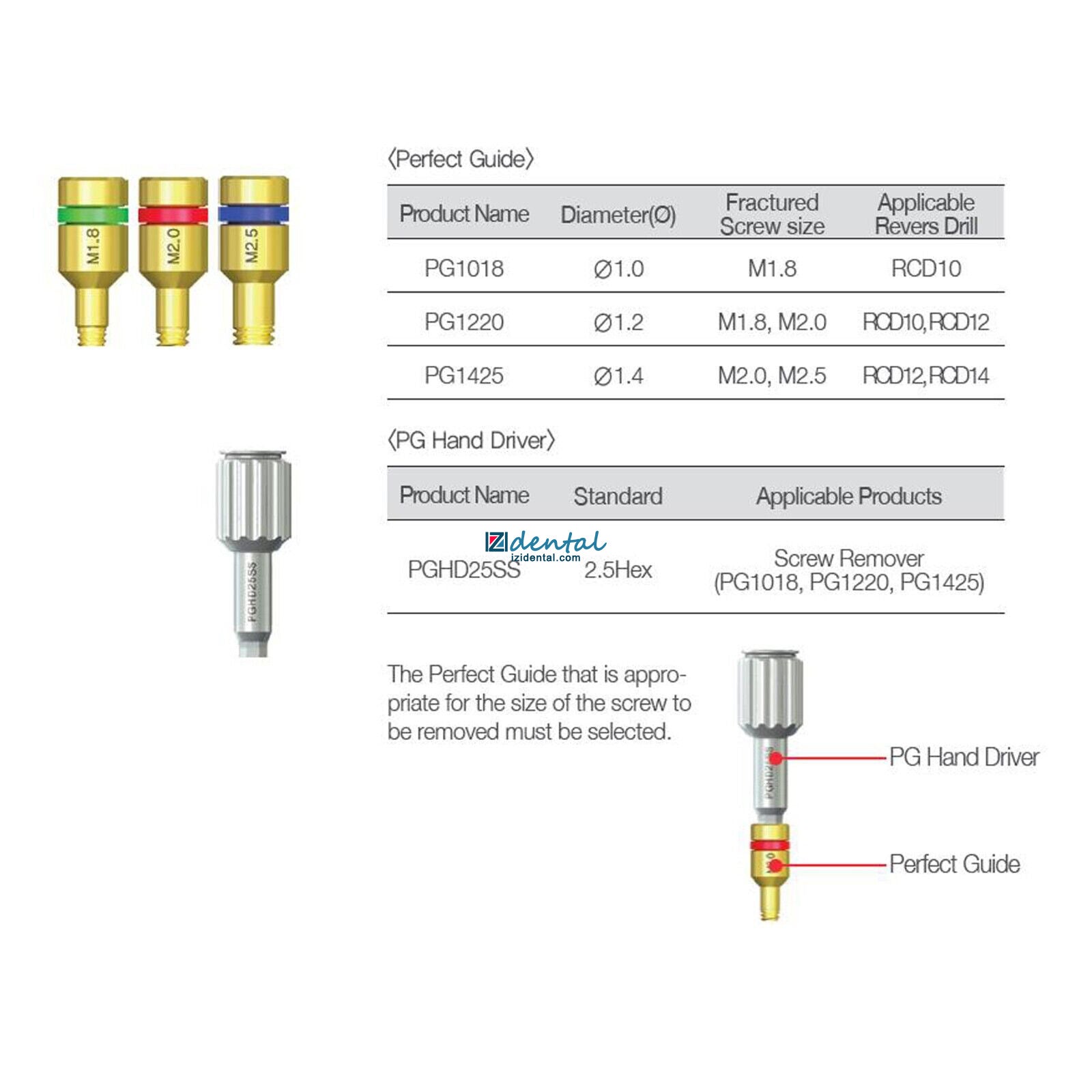

5. Perfect Guide & PG Hand Driver
- The Perfect Guide acts as a Guide for the Reverse Drill. It is used when the screw is fractured at the lower part of the female screw inside the Fixture. It is connected to PG Hand Driver and is directly applied to the Fixture female Screw.
- The Perfect Guide can be safely used because it has a stop structure inside that prevents the Reverse Drill from drilling more than 2 mm.

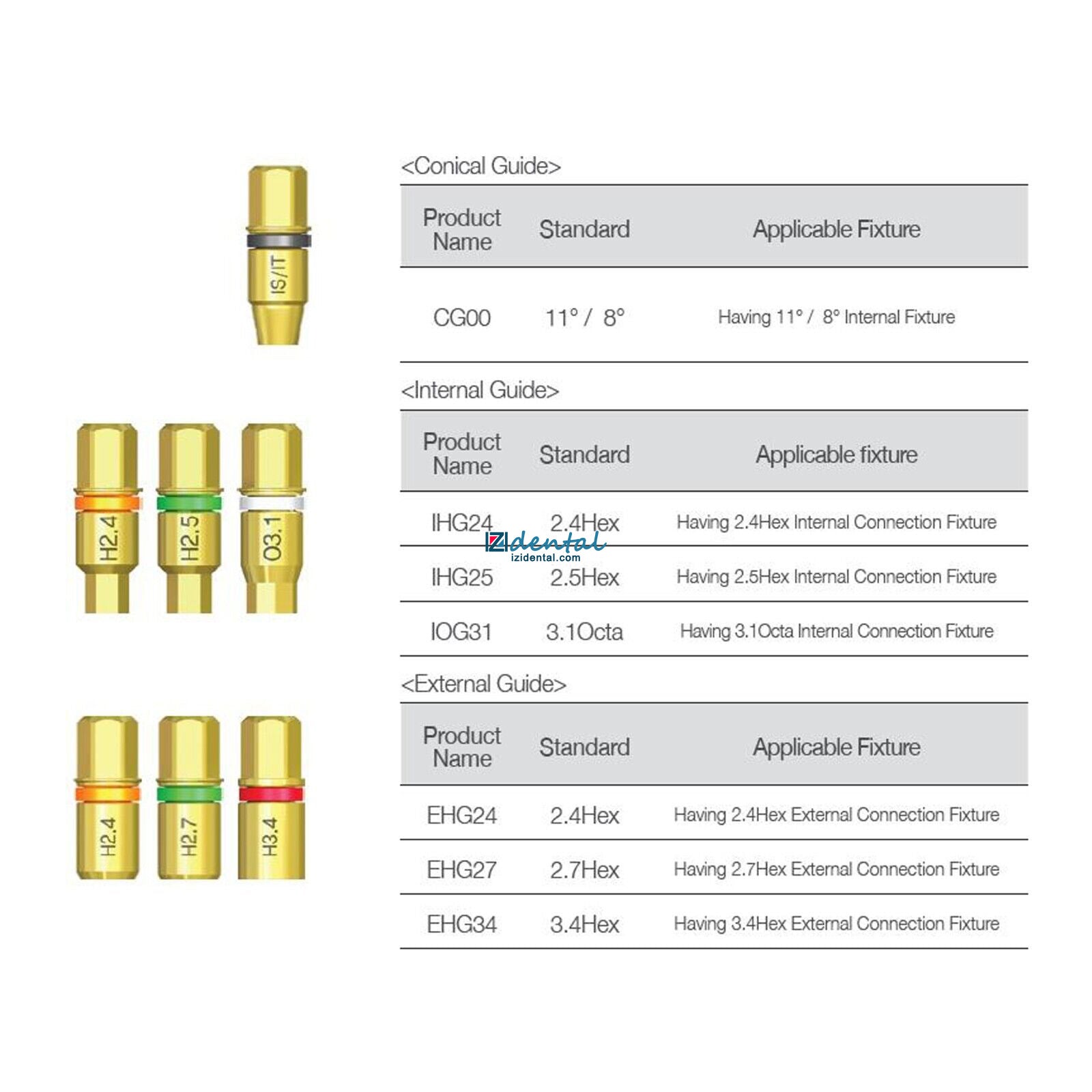

6. Conical, Internal, External Guide
- They act as the Guide when using the Reverse Drill. They are used when the Perfect Guide cannot be used, or if the screw was fractured at a location deeper than 2 mm into the lower part of the female screw inside the Fixture.
- The Guide appropriate for connecting to the Fixture must be selected.
7. SR Driver Holder
This can be easily affixed to the Fixture by connecting it to the 3.5 Double Hex part of the Conical, Internal, or External Guide.
The Screw Remover Kit is a surgical tool developed to safely and quickly remove screws that have become fractured inside an implanted fixture for various reasons. After removing the screw, a new abutment may be connected to the fixture.
Remove fractured screw with the Screw Remover!
No worries about fractured screws.
Features:
Remove fractured screws without damaging the fixture or pulling out the fixture.
Fractured screws can be removed in 3 minutes.
Various implant systems can be applied to the Neo Screw Remover kit.
Screws with excessive torque can be removed with a ratchet.
Screw Remover Kit contains:
1.Claw
This is a surgical tool designed to remove screws that have become fractured inside a fixture. After selecting the appropriate size for the screw to be removed, the Claw is used by connecting a guide to the fixture (Conical/Internal/External Guide). Then, it is connected to the Shank Driver, and the fractured screw can be removed by manually rotating it in the reverse direction. If the fractured screw cannot be removed using the Claw, it must be removed using the Reverse Drill and Screw Remover.
| Product Name | Fractured Screw Size | Product Name | Fractured Screw Size |
|---|---|---|---|
| CD16 | M1.6 | CD20 | M2.0 |
| CD18 | M1.8 | CD25 | M2.5 |
2. Reverse Drill
- This is a tool that creates a hole on the fractured face of the screw to be used by the Screw Remover.
- After selecting the appropriate Reverse Drill for the size of the screw that needs to be removed, it should be used by connecting a guide for the fixture (Perfect/Conical/Internal/External Guide). The depth of the drill can be adjusted from 1 mm to 3 mm because the drill body has markings.
- The removal of an M1.6 size screw should utilize the Claw.
- Although different manufacturers produce different sizes of abutment screws, typically they utilize screws of size M1.6, M1.8, M2.0, or M2.5, except in rare cases. (‘M’ stands for a metric screw. The number indicates the external diameter of the screw. For example, “M1.6 screw” indicates that it is a metric screw with an external diameter of 1.6 mm).
| Product Name | Diameter(Ø) | Fractured Screw Size |
|---|---|---|
| RCD10 | Ø 1.0 | M1.8 |
| RCD12 | Ø 1.2 | M1.8 |
| RCD14 | Ø 1.4 | M1.8 |
3. Screw Remover
- This device removes a fractured screw. Insert a Screw Remover that is appropriate for the size of the hole formed using the Reverse Drill and rotate it at a low speed (at or below 80 rpm) in the reverse direction.
- The Screw Remover is designed in a tapered shape to increase the amount of friction as it turns, which is necessary to loosen the screw.
| Product Name | Diameter(Ø) | Fractured Screw Size |
|---|---|---|
| SR10 | Ø 1.0 | M1.8 |
| SR12 | Ø 1.2 | M2.0 |
| SR14 | Ø 1.4 | M2.5 |
4. Shank Driver
- This is a surgical tool that was designed to be connected to the Screw Remover to allow the use of the hand, Torque Wrench, or Ratchet.
| Product Name | Standard | Applicable Products |
|---|---|---|
| SHD00 | for Hand or Ratchet | Screw Remover (SR10, SR12, SR14) |
5. Perfect Guide & PG Hand Driver
- The Perfect Guide acts as a Guide for the Reverse Drill. It is used when the screw is fractured at the lower part of the female screw inside the Fixture. It is connected to PG Hand Driver and is directly applied to the Fixture female Screw.
- The Perfect Guide can be safely used because it has a stop structure inside that prevents the Reverse Drill from drilling more than 2 mm.
6. Conical, Internal, External Guide
- They act as the Guide when using the Reverse Drill. They are used when the Perfect Guide cannot be used, or if the screw was fractured at a location deeper than 2 mm into the lower part of the female screw inside the Fixture.
- The Guide appropriate for connecting to the Fixture must be selected.
7. SR Driver Holder
This can be easily affixed to the Fixture by connecting it to the 3.5 Double Hex part of the Conical, Internal, or External Guide.

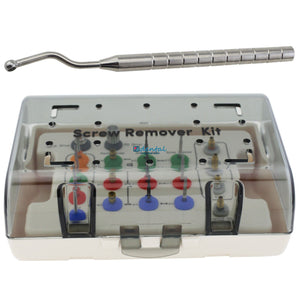

Dental Implant Broken Screw Remover Kit NeoBiotech SR Implant Surgical Instrument
