Description
Features:
- For single-device use, select "Single-User" installation. For multiple devices, select "Host" for the device connected to the sensor and "Extension" for other devices to enable multi-machine sharing.

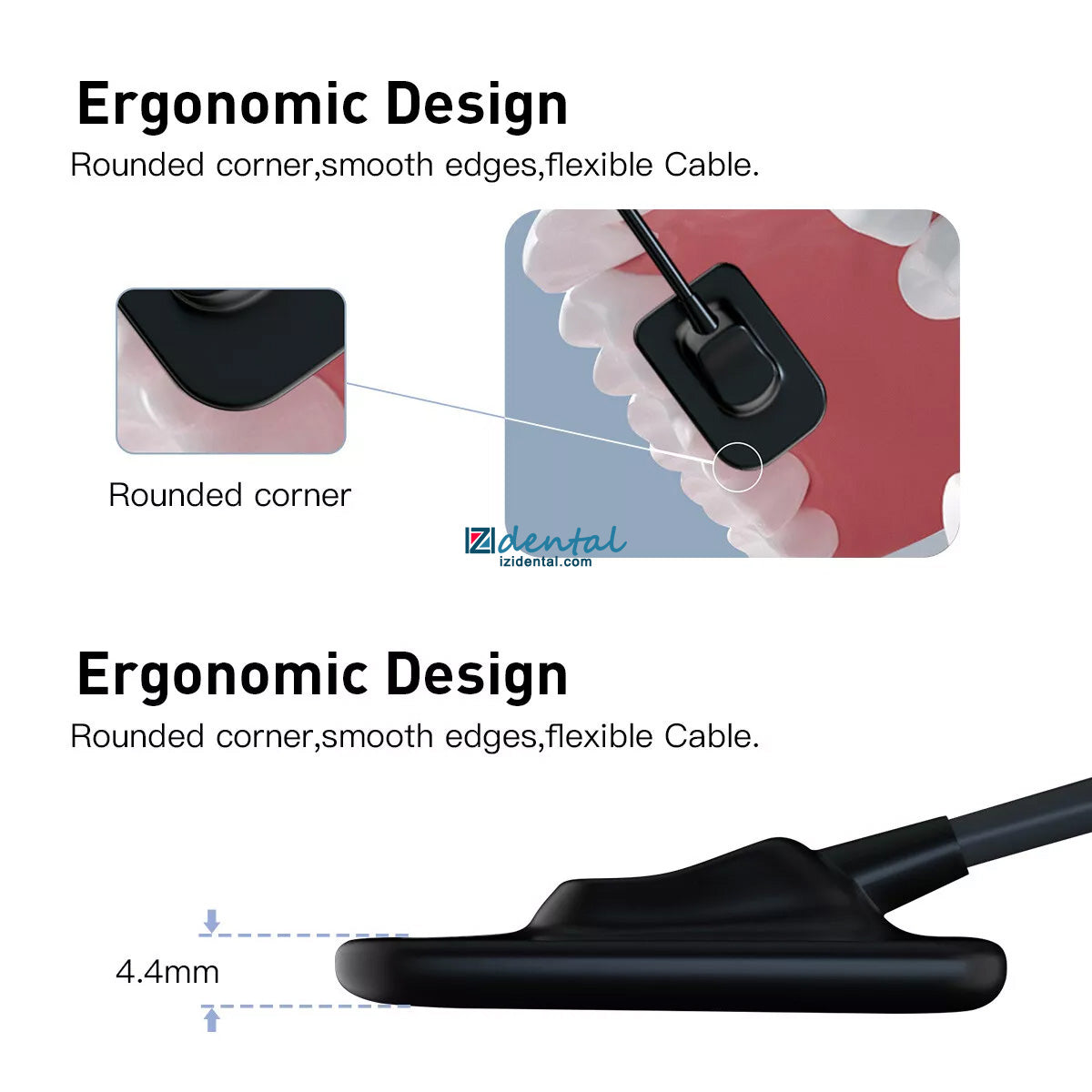

- Available in two sizes, with rounded corners and a thickness of just 4.4mm, providing enhanced comfort during use.

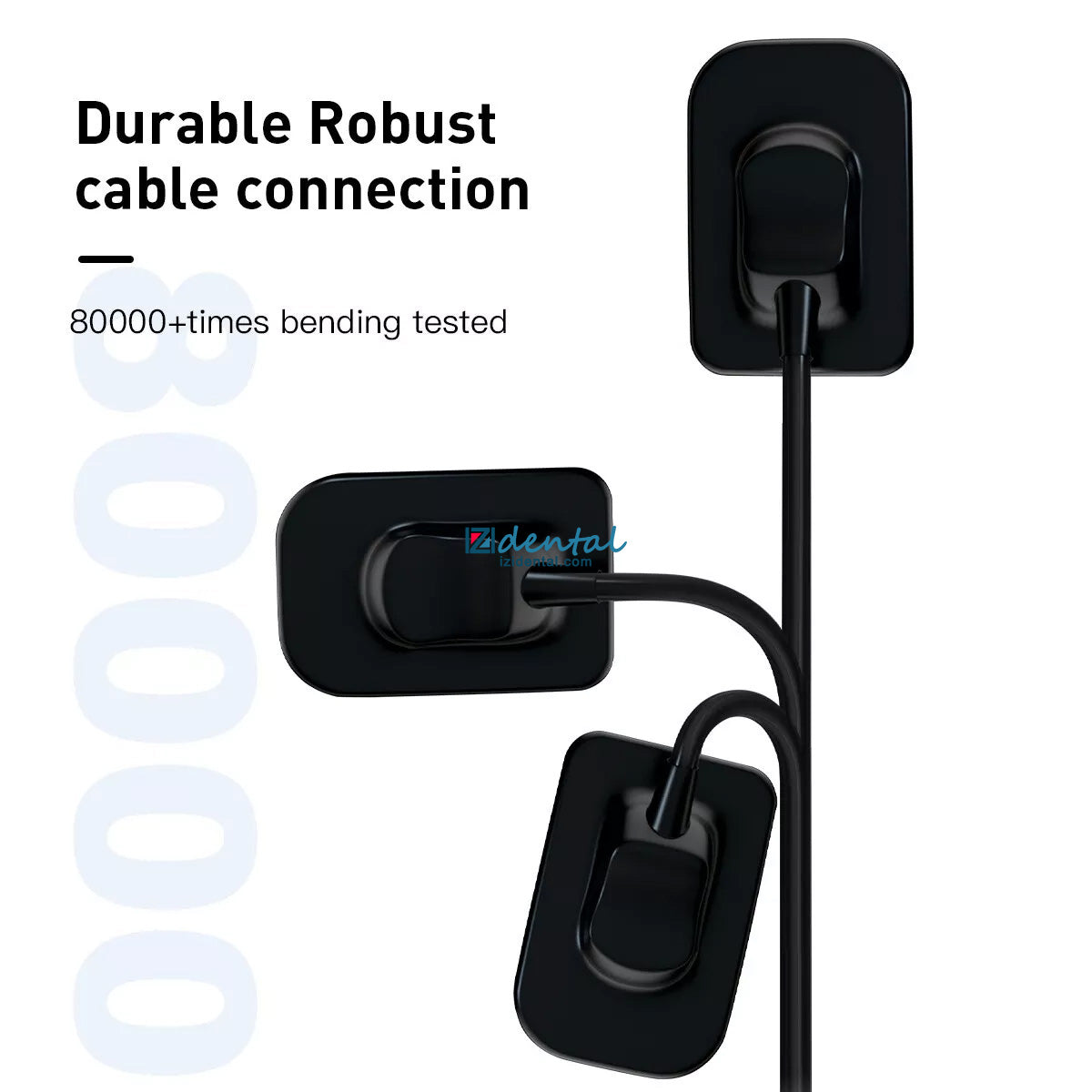

- Durable cables, tested for over 80,000 bends.

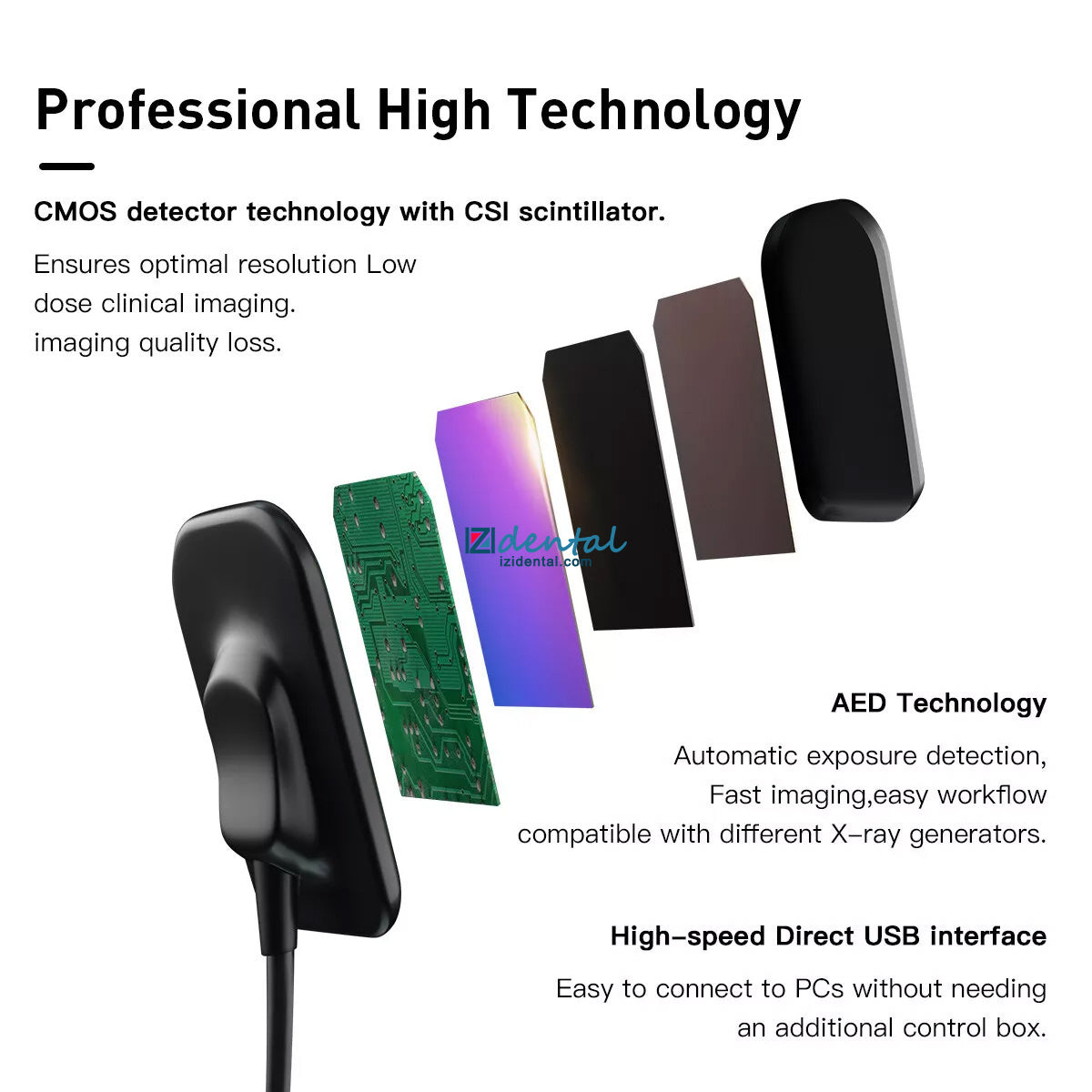

- CMOS detector technology with CSI scintillator, ensuring optimal resolution and low-dose clinical imaging.
- Compatible with various X-ray generators, easy to operate.
- No consumables required, offering a more cost-effective solution compared to traditional film.
Technical parameter:
| Model | DS530 | DS550 |
|---|---|---|
| Detector Technology | APS CMOS | |
| Scintillator type | DIRECT-GROWTH CESIUM IODIDE | |
| Theoretical Resolution | 25 lp/mm | |
| True Resolution | Actual: 14-16 lp/mm (High sensitivity), 18-20 lp/mm (High resolution) | |
| Pixel size (µm) | 20 | |
| Cord length (m) | Standard 3m, Optional 5m (If you need a 5m cable, please contact customer service in advance) | |
| Exposure mode | SMART AED mode | |

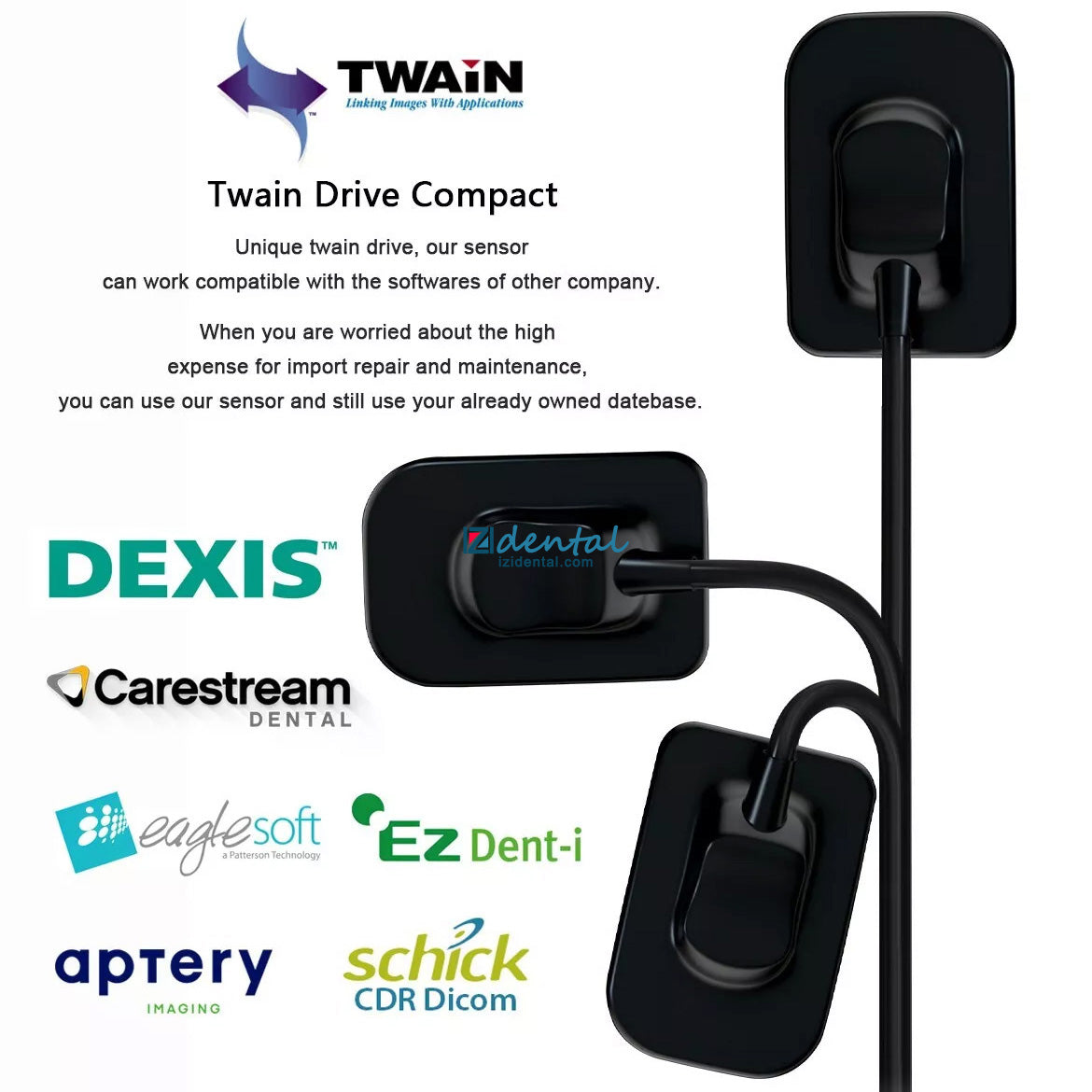

| Accessory function | Support the Twain Protocol | |
| Operating System | Windows 7 and above, 32/64bit | |
| Pixel Matrix | (1.5M) 1000×1500 | (2.34M) 1300×1800 |

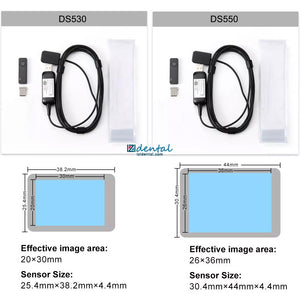

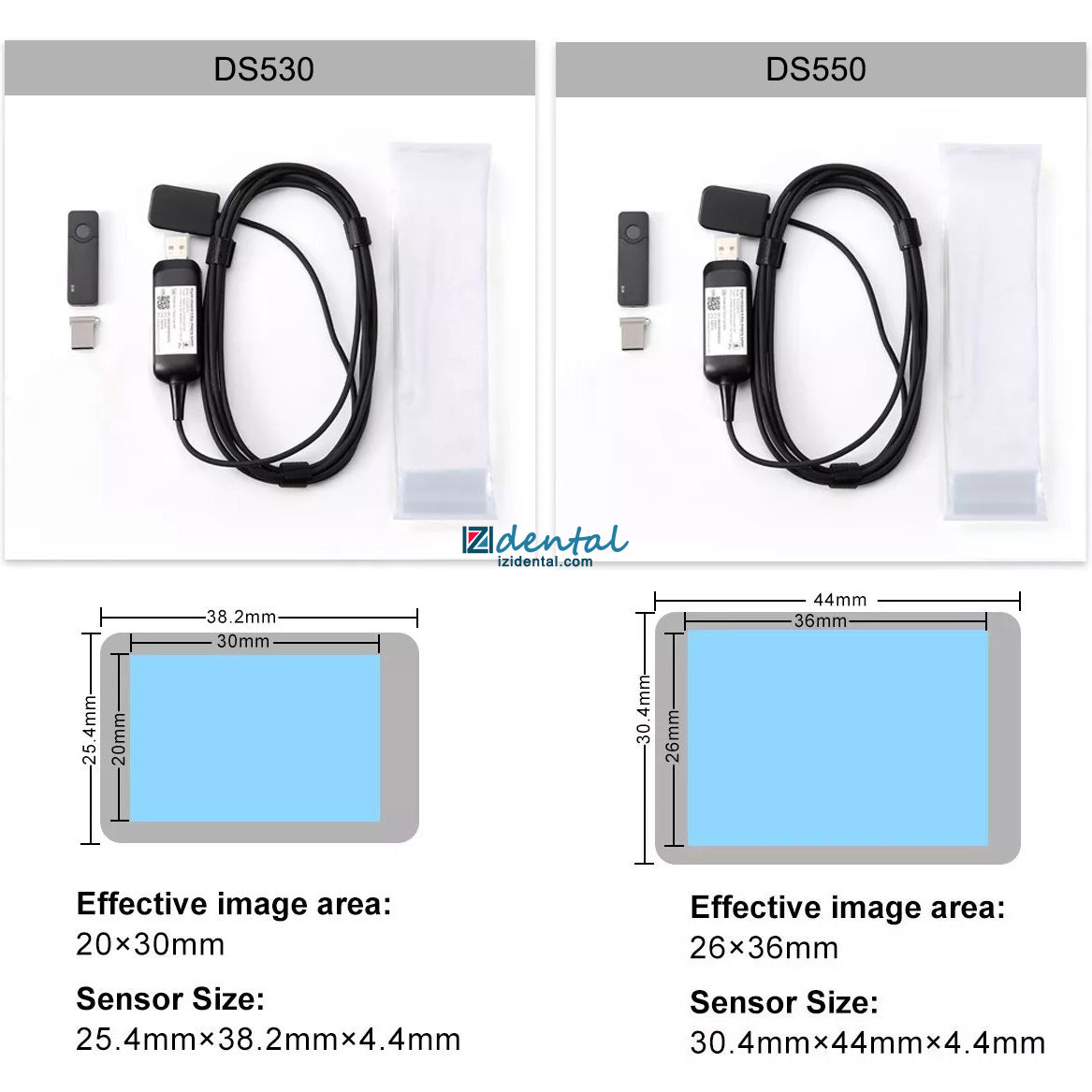

| Active Area (mm) | 20×30 | 26×36 |
| Mechanical Size (mm) | 25.4×38.2×4.4 | 30.4×44×4.4 |
| Data interface | USB 2.0 | |
| AD Conversion (bit) | 16 bits, 65535 | |

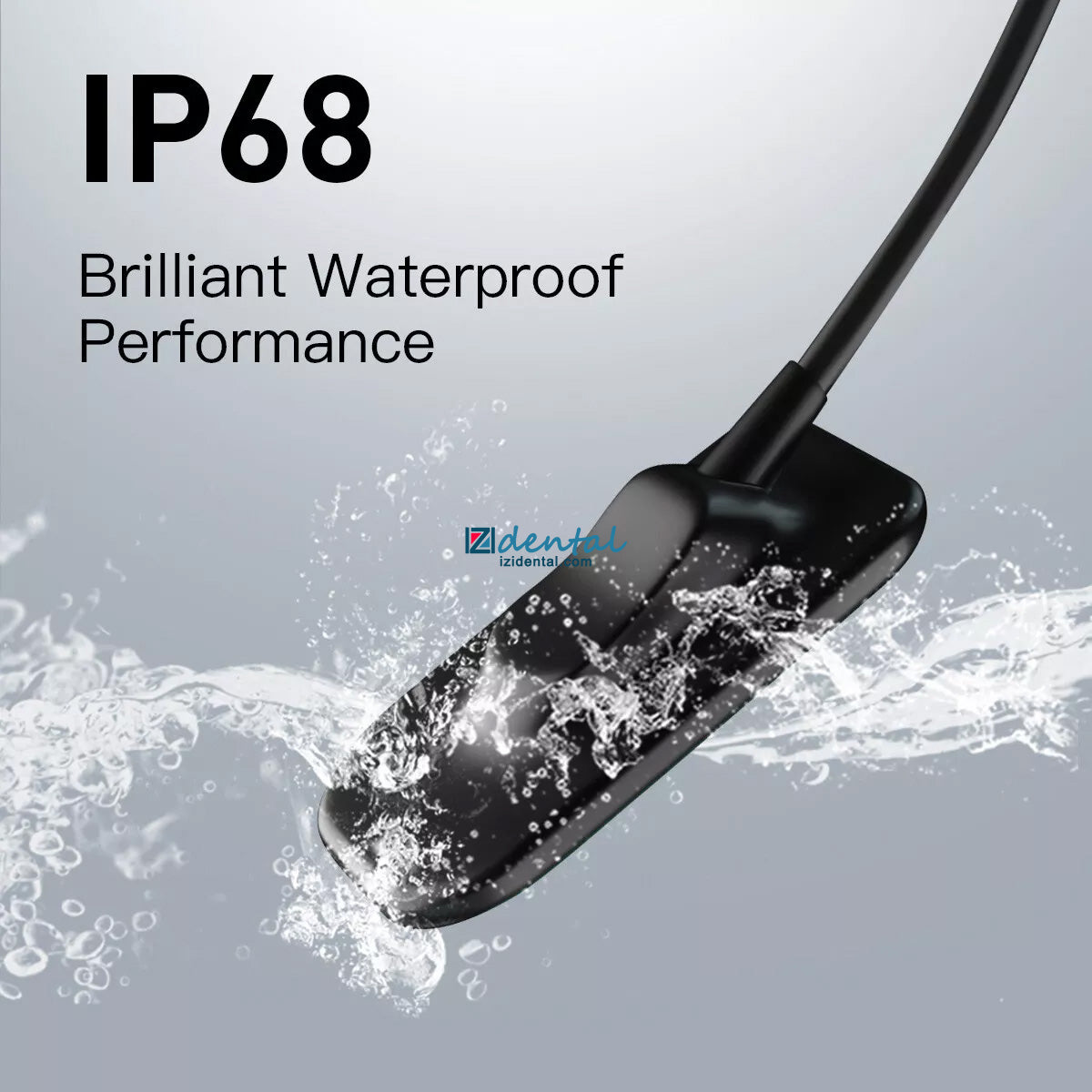

| Protection | IP68 for Soak disinfection | |
Hardware and Software Requirements:
- Processor: 1.0GHz or above
- Memory: 2GB or above
- Hard Disk: 64GB or above
- Display Resolution: 1440x900 or above
- USB Port: USB 2.0
- Operating System: Windows 7, Windows 10, Windows 11

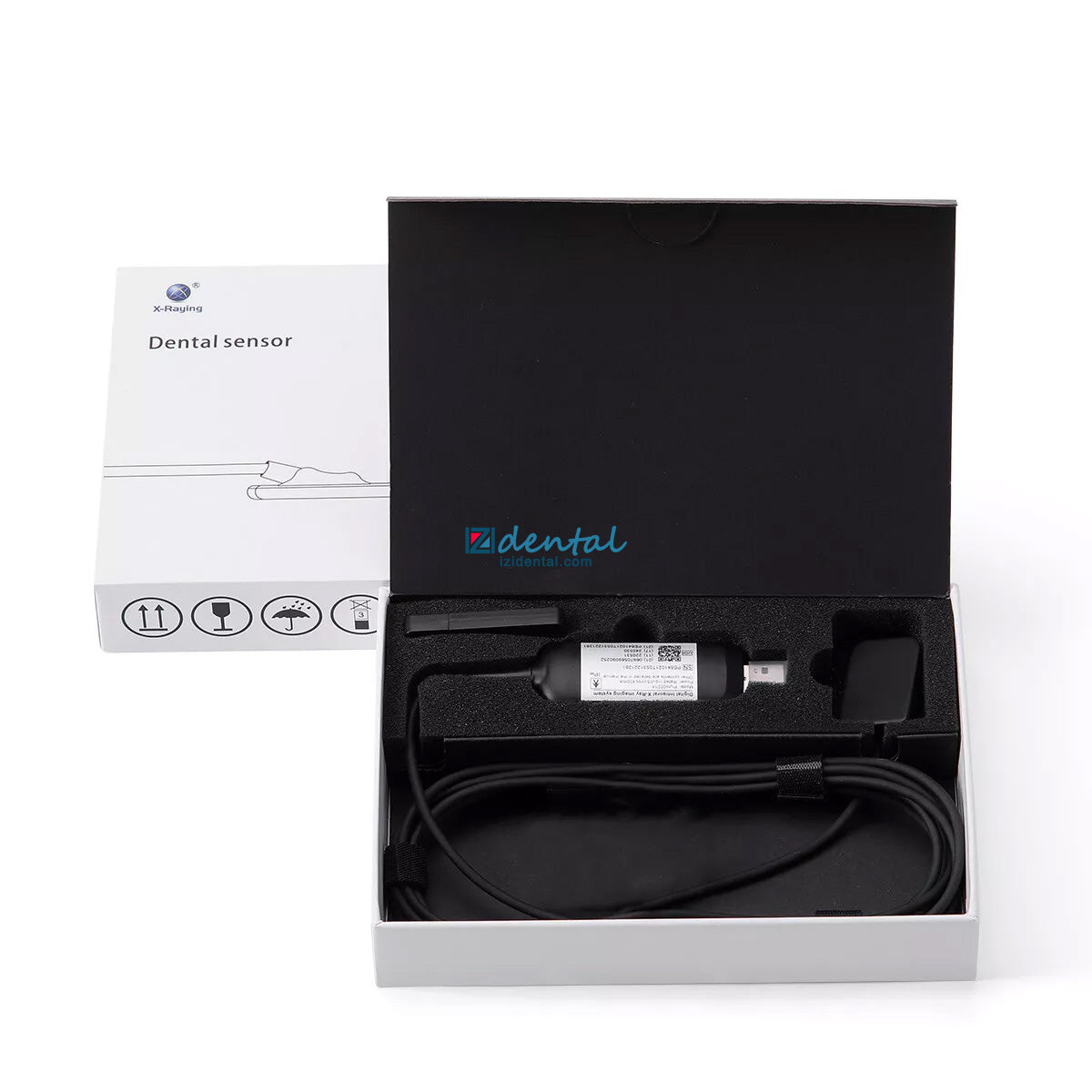

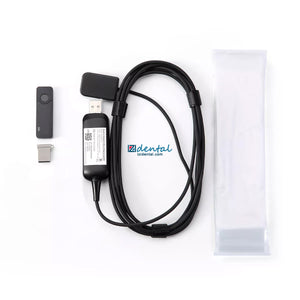

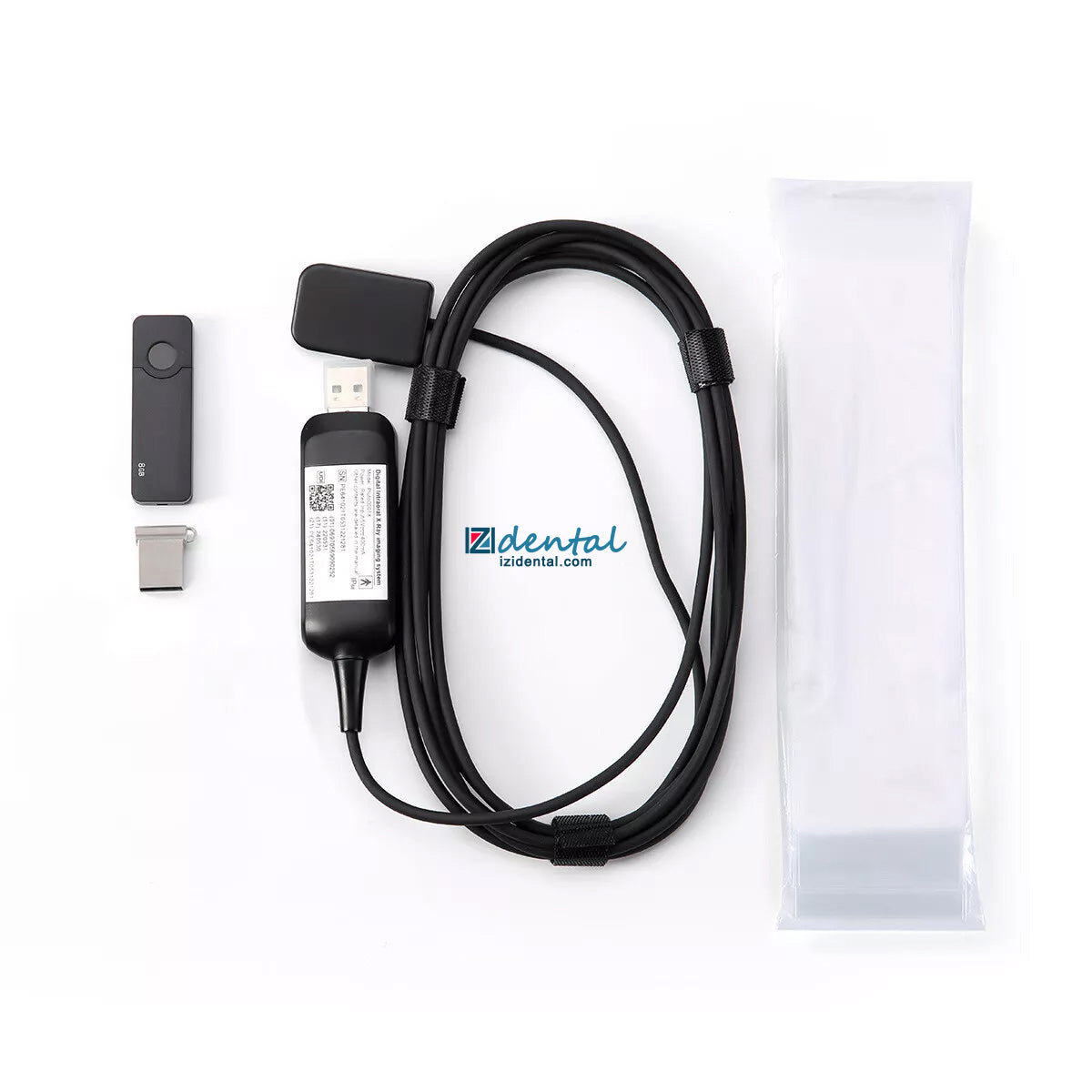

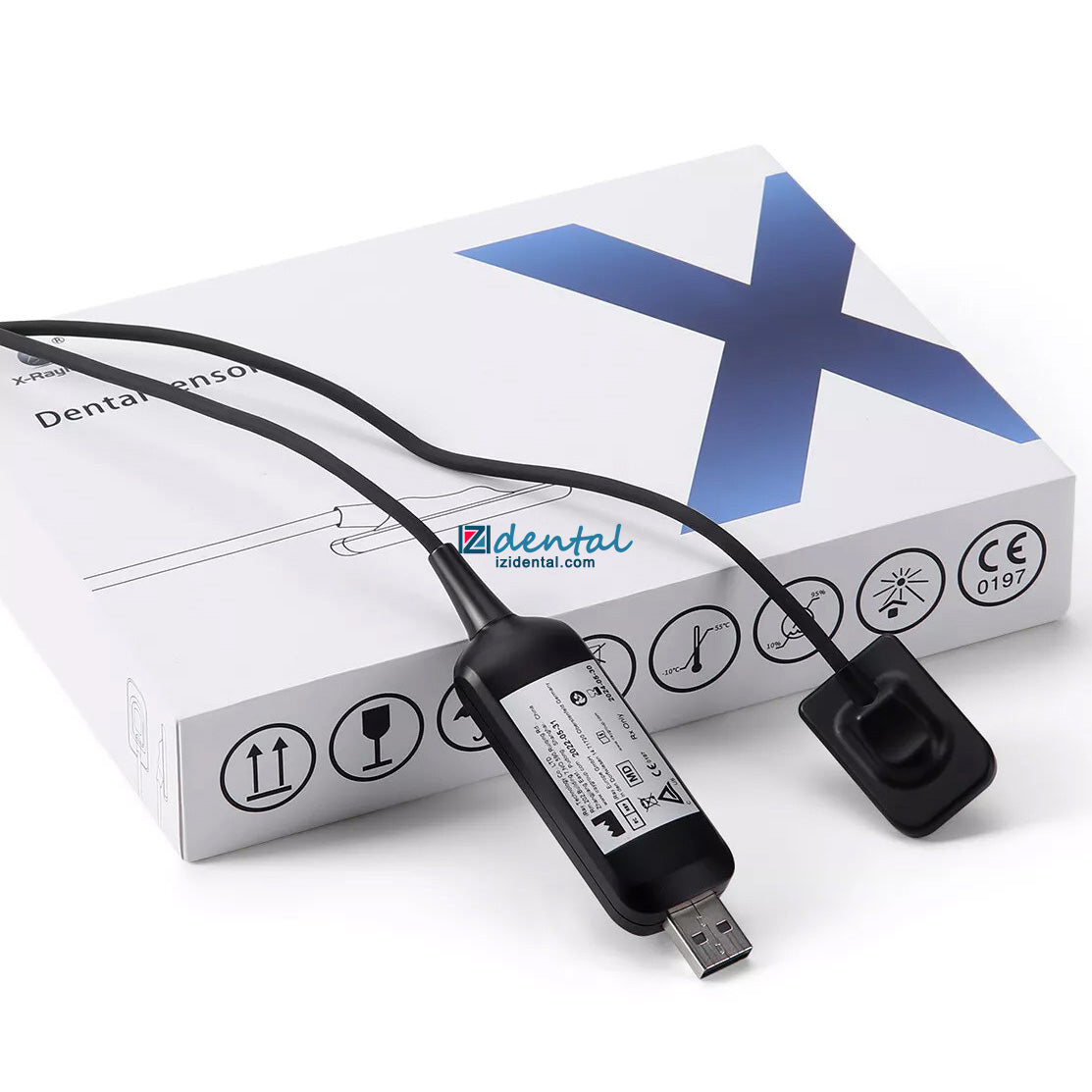

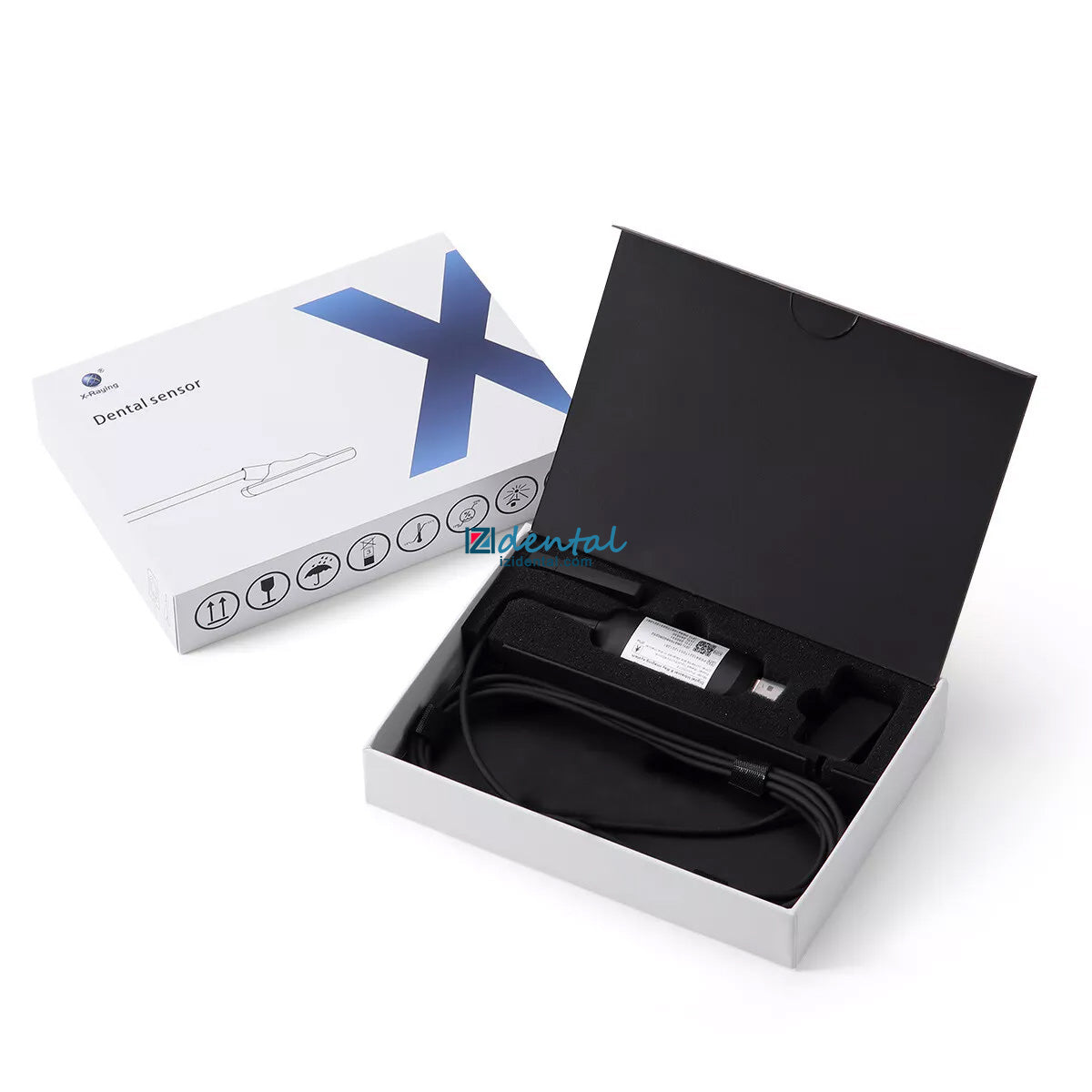

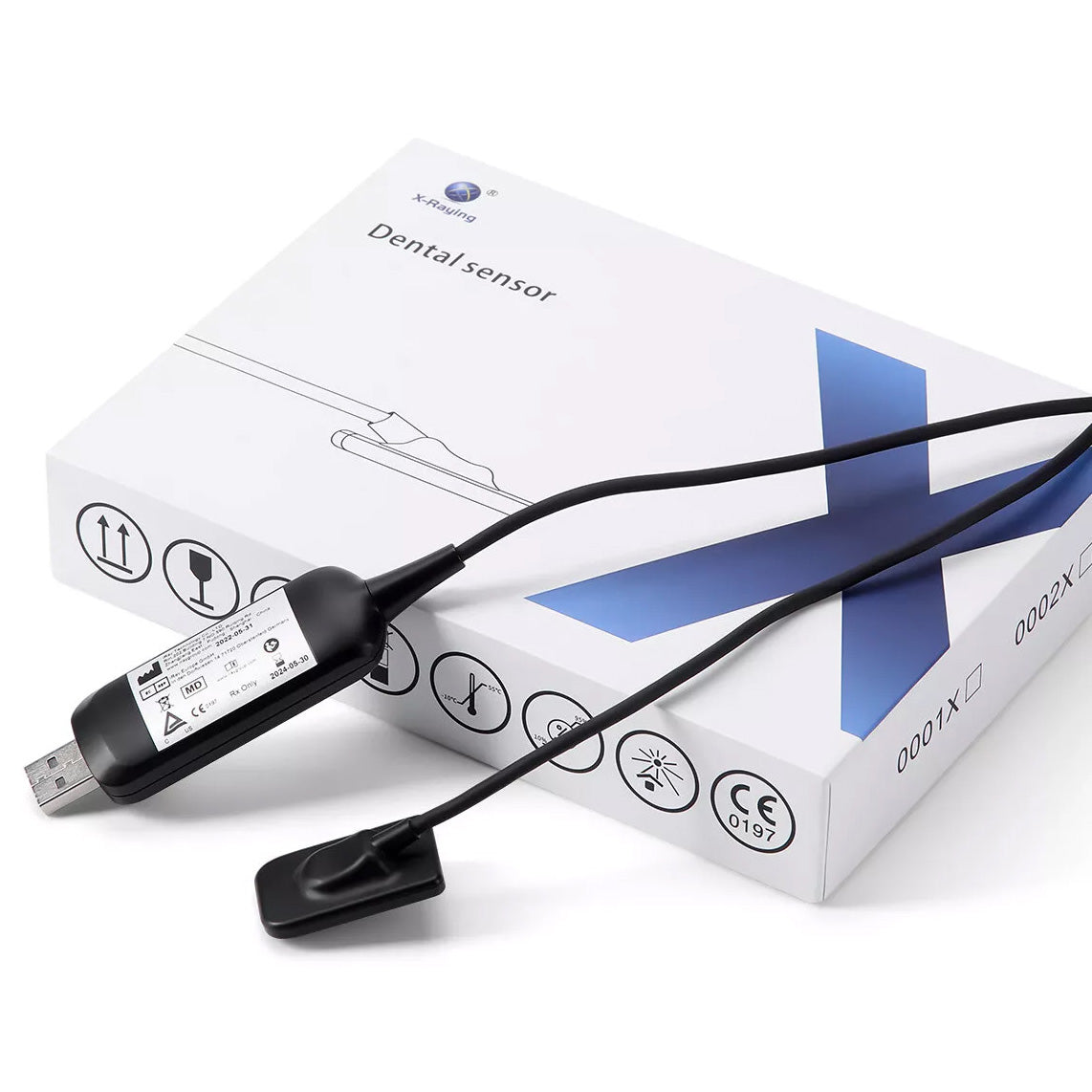

Packing List:
- 1 x Sensor
- 1 x USB Flash Drive (Software)
- 1 x Protective Sleeve
Description
Features:
- For single-device use, select "Single-User" installation. For multiple devices, select "Host" for the device connected to the sensor and "Extension" for other devices to enable multi-machine sharing.
- Available in two sizes, with rounded corners and a thickness of just 4.4mm, providing enhanced comfort during use.
- Durable cables, tested for over 80,000 bends.
- CMOS detector technology with CSI scintillator, ensuring optimal resolution and low-dose clinical imaging.
- Compatible with various X-ray generators, easy to operate.
- No consumables required, offering a more cost-effective solution compared to traditional film.
Technical parameter:
| Model | DS530 | DS550 |
|---|---|---|
| Detector Technology | APS CMOS | |
| Scintillator type | DIRECT-GROWTH CESIUM IODIDE | |
| Theoretical Resolution | 25 lp/mm | |
| True Resolution | Actual: 14-16 lp/mm (High sensitivity), 18-20 lp/mm (High resolution) | |
| Pixel size (µm) | 20 | |
| Cord length (m) | Standard 3m, Optional 5m (If you need a 5m cable, please contact customer service in advance) | |
| Exposure mode | SMART AED mode | |
| Accessory function | Support the Twain Protocol | |
| Operating System | Windows 7 and above, 32/64bit | |
| Pixel Matrix | (1.5M) 1000×1500 | (2.34M) 1300×1800 |
| Active Area (mm) | 20×30 | 26×36 |
| Mechanical Size (mm) | 25.4×38.2×4.4 | 30.4×44×4.4 |
| Data interface | USB 2.0 | |
| AD Conversion (bit) | 16 bits, 65535 | |
| Protection | IP68 for Soak disinfection | |
Hardware and Software Requirements:
- Processor: 1.0GHz or above
- Memory: 2GB or above
- Hard Disk: 64GB or above
- Display Resolution: 1440x900 or above
- USB Port: USB 2.0
- Operating System: Windows 7, Windows 10, Windows 11
Packing List:
- 1 x Sensor
- 1 x USB Flash Drive (Software)
- 1 x Protective Sleeve
izidental
by
izidental

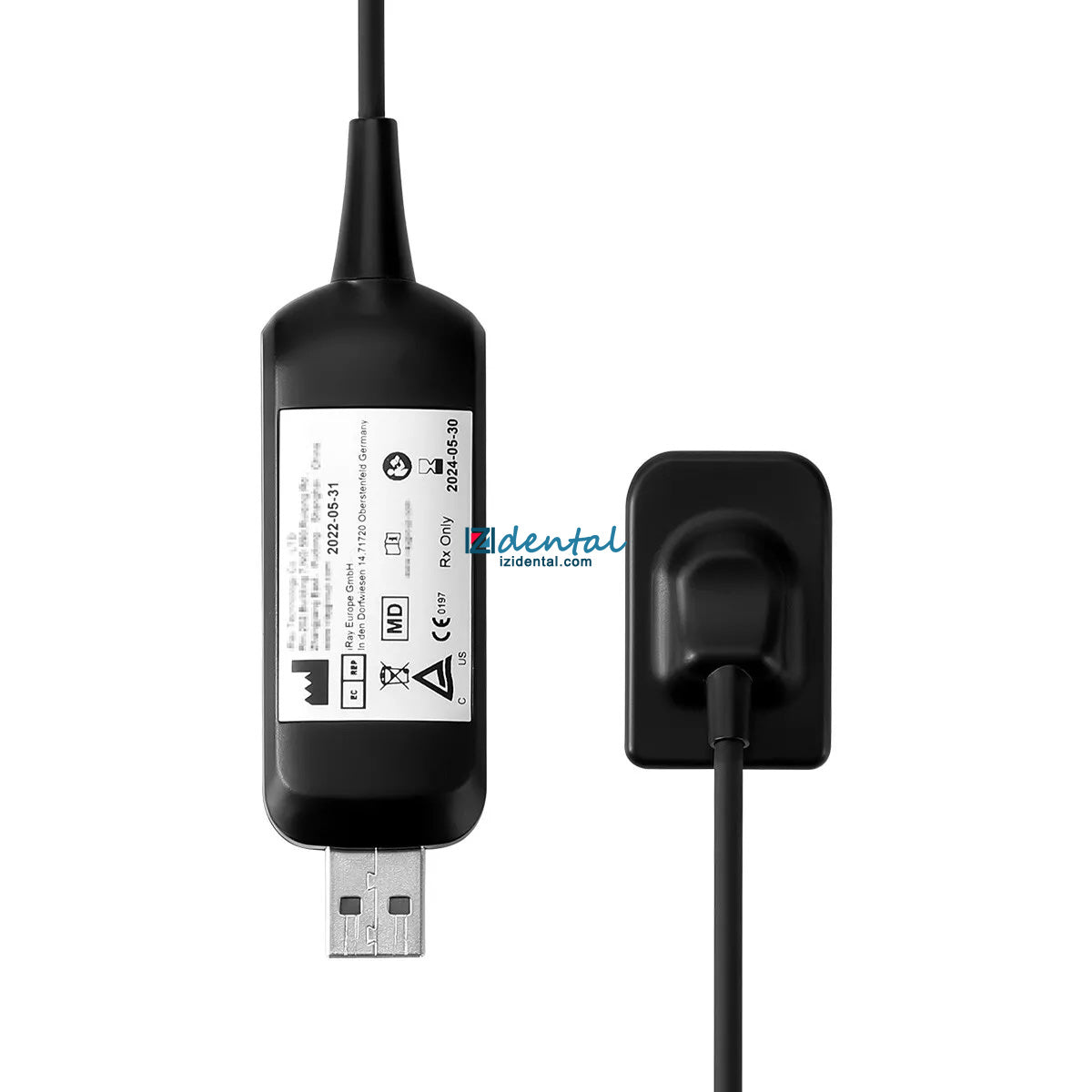

Dental Digital Sensor DS530/DS550 Dental RVG Imaging System, IP68 Waterproof
- Regular price
- £546.98
- Sale price
- £546.98
- Regular price
-
Shipping calculated at checkout.
Couldn't load pickup availability
More than £49 free shipping
We provide the free shipping over £49. If your order amount is less than £49, we will charge £9.0 as shipping cost.
Popup description
We provide the free shipping over £49. If your order amount is less than £49, we will charge £9.0 as shipping cost.
We provide the free shipping over £49. If your order amount is less than £49, we will charge £9.0 as shipping cost.
Popup description
Return or Refund
We allow customers to apply for return or refund, exchange within 30 days after the receipt of the goods. If 30 days have gone by since your receipt of the goods, unfortunately we can’t offer you a refund or exchange.
Popup description
14-day return or refund
We allow customers to apply for return or refund, exchange within 30 days after the receipt of the goods. If 30 days have gone by since your receipt of the goods, unfortunately we can’t offer you a refund or exchange.
Popup description
Guarantee of Quality
One year quality guarantee
