About

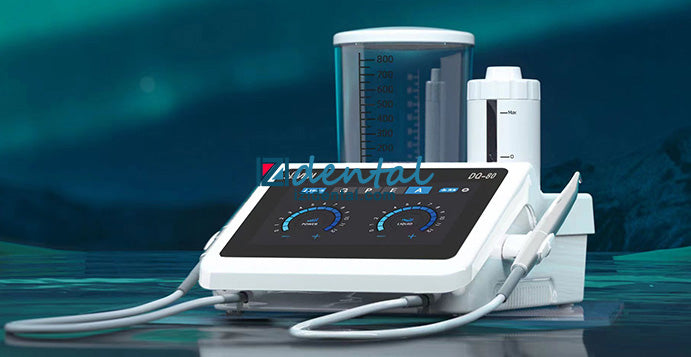

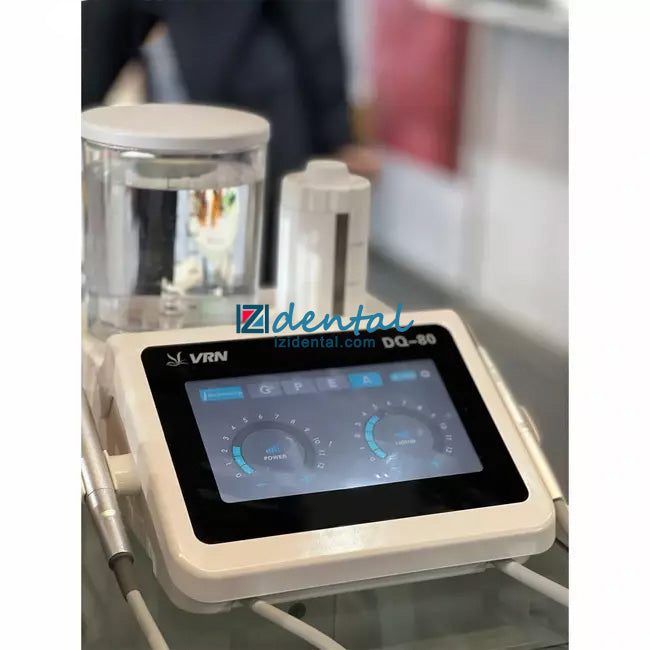

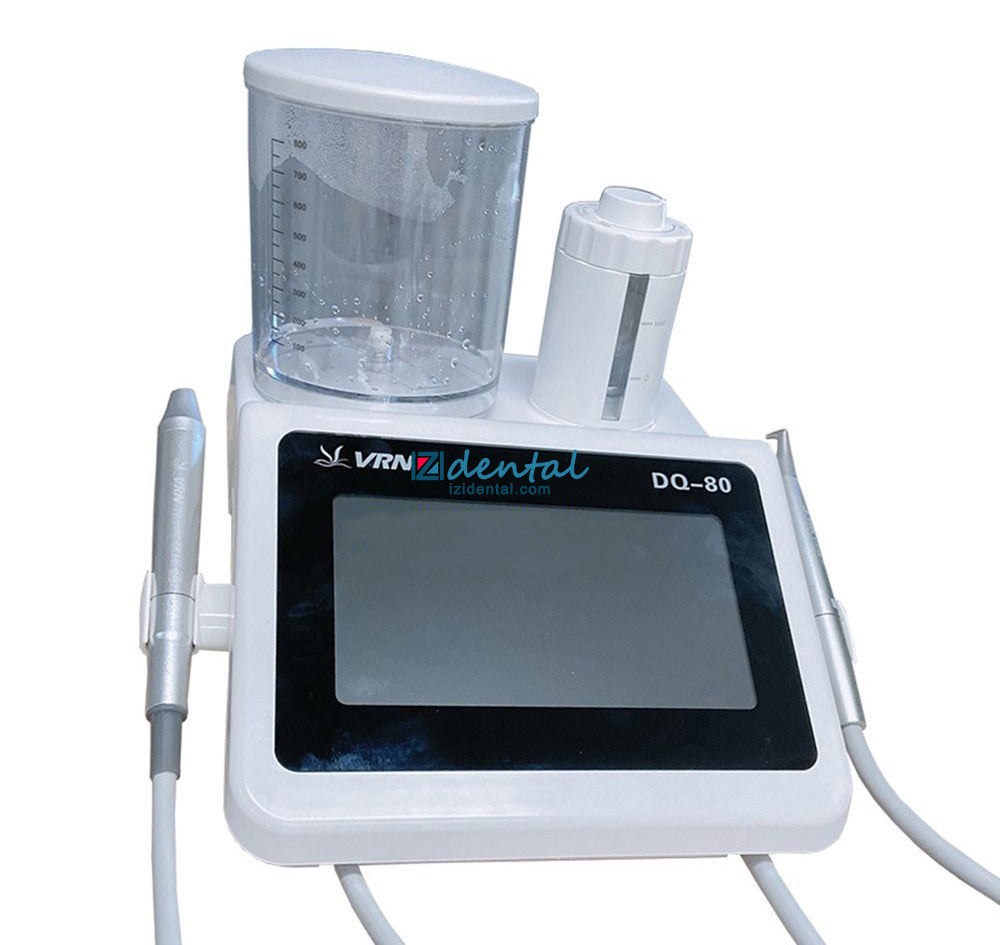

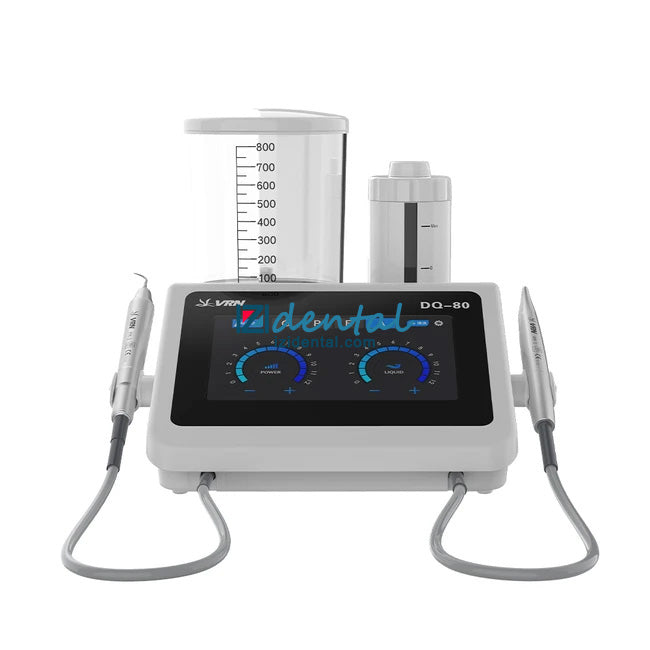

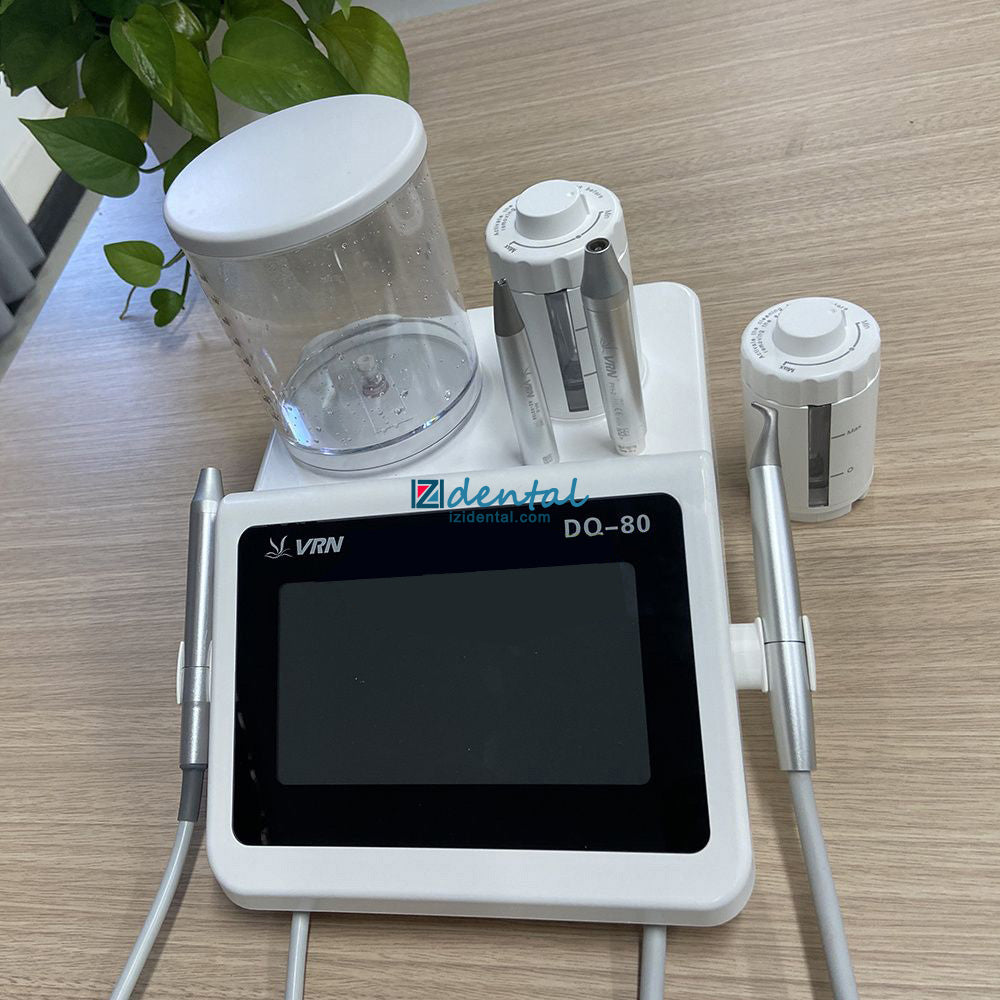

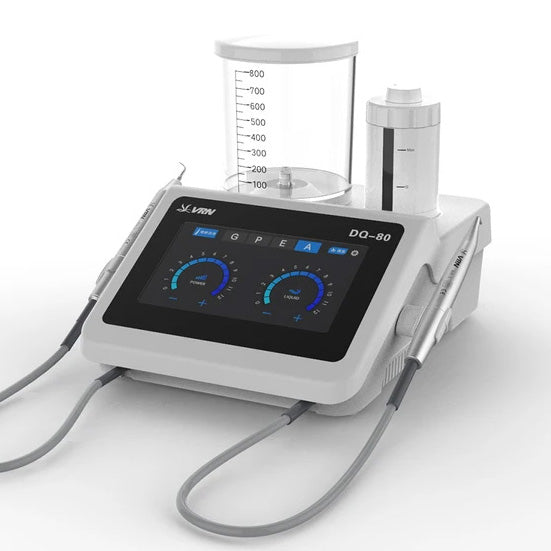

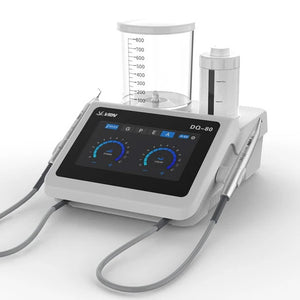

DQ-80 Ultrasonic Scaler has both ultrasound system and air polishing system. It is suitable for scaling,periodontal treatment,air polishing and root canal irrigation.
Features:
● Seven-inch capacitive touch screen, with full touch screen adjustment.

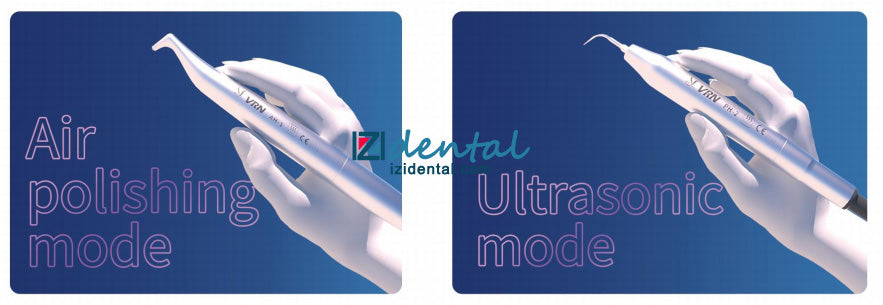

● Intelligent switching between ultrasonic mode (G/P/E) and sandblasting mode (A).
● Intelligent negative feedback power control (power follow), using DA20 circuit
● Ultrasound function: supragingival scaling, subgingival periodontal treatment, root canal washing. (with 2 ultrasonic handpiece)
● Sandblasting function: supragingival, subgingival (with 1pc supragingival sandblasting and 1pc subgingival sandblasting )
● Single water bottle 800ml
● The electric pressure regulating mechanism is used to adjust the sandblasting air pressure.
● Built-in water heater, with constant water temperature output of 37°C, to heat the sandblasting waterway.
● Wireless foot control, exclusive patent technology, easier and safer operating. 4 control modes(start, power enhancement, vibration without water, water without vibration)
● The one-key cleaning function can clean the sandblasting pipeline.
● Use a linear power supply.
● Autoclavable LED detachable handpiece, fitting with EMS & Woodpecker
● Imported liquid pump inside, lower noise, longer life, anti-corrosion design.
Intended Use
This device is intended use for periodontal treatment in oral clinical treatment, air polishing and remove dental calculus, dental plaque and stains, etc. on the surface of tooth. Remove the dental calculus and plaque in the periodontal pockets. Clean and wash the root canal.

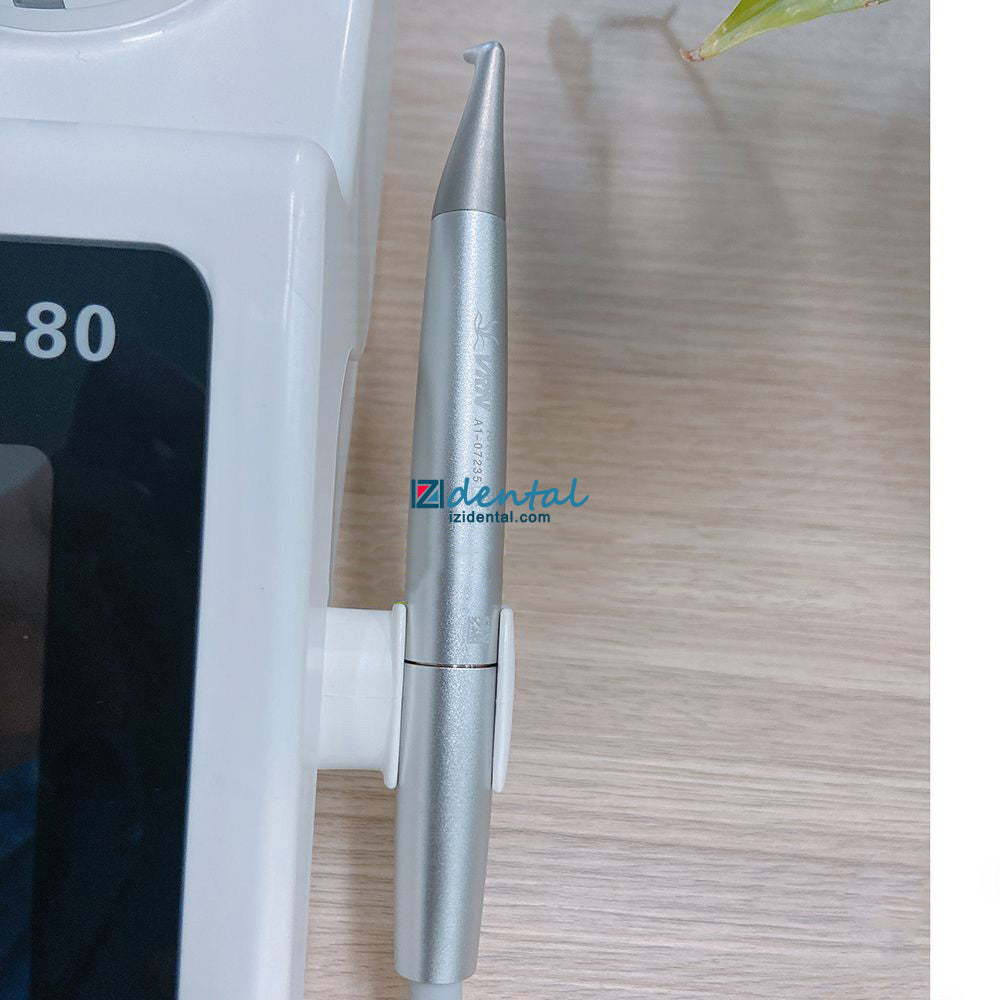

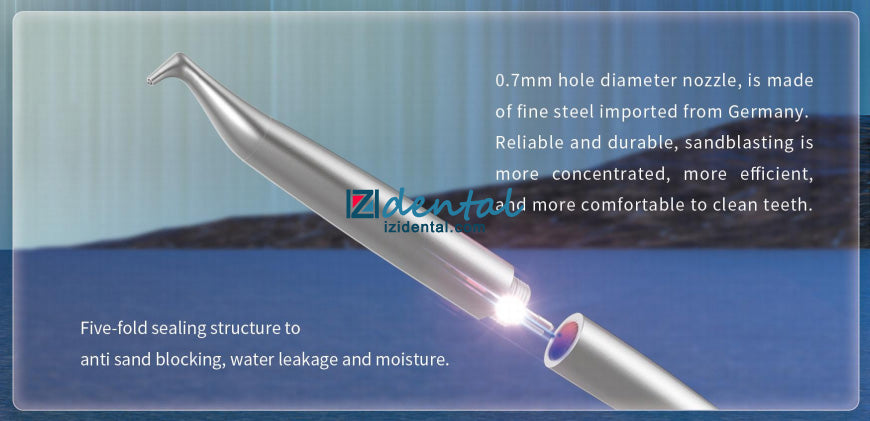

Anti sand blocking handpiece:
2 segment structure, five-fold sealing structure to ensure water and powder are separated. No complex 3 segment detachable structure, easy to maintain, longer service life.
Scaling:
Function switch,automatic recognition.Handpieces pick recognition function.
High speed,High efficiency:
New optimized pipeline structure can reduce fluid loss due to pressure, make the device efficiently remove dental plaque, pigment, dental stones and so on.

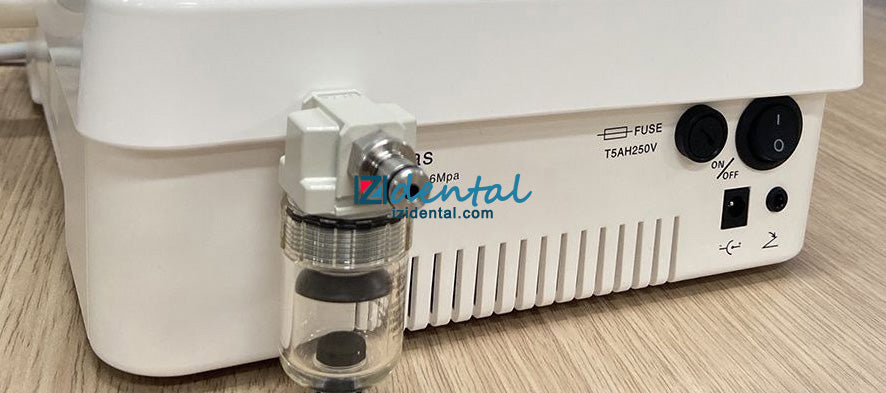

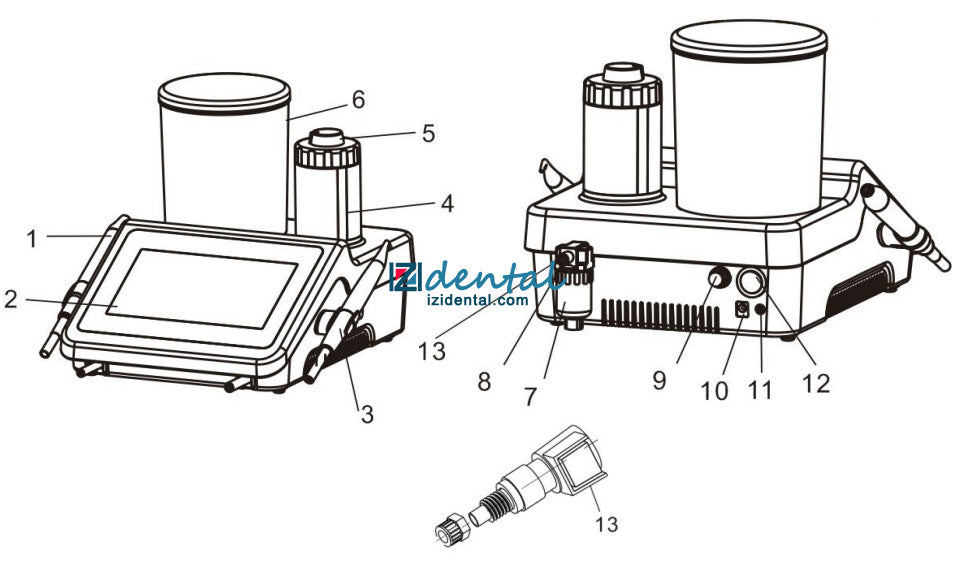

| 1. Ultrasonic handpiece | 5. Powder flow control knob | 9. Fuse |
| 2. Display panel | 6. Water bottle | 10. DC power supply socket |
| 3. Air polishing handpiece | 7. Air/Water separator | 11. Wired foot switch socket |
| 4. Powder tank | 8. Air intake | 12. Power switch |
| 13. Check valve quick coupling |

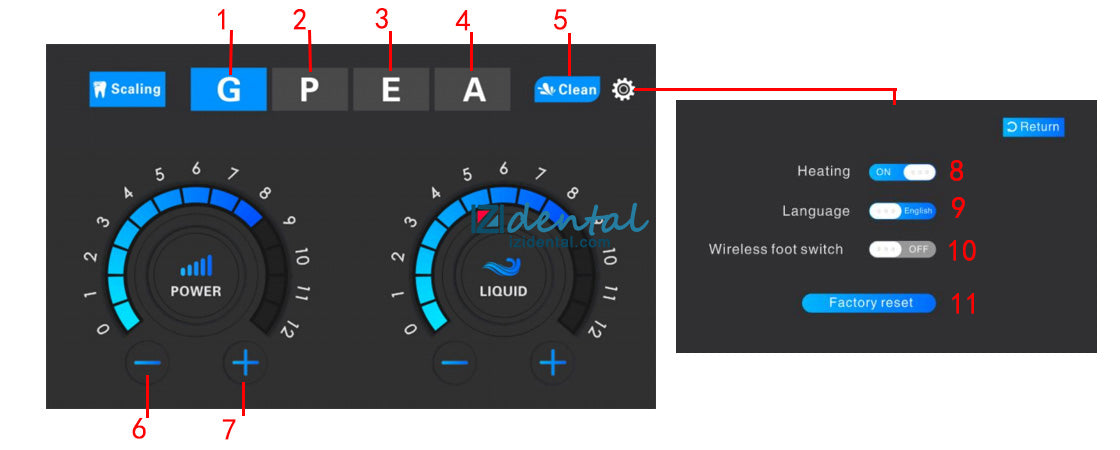

Operation Panel
| 1. G: Scaling | 5. Clean: Air polishing pipe cleaning | 9. Language: Chinese or English |
| 2. P: Periodontal treatment | 6. Turn down water volume/power/air pressure | 10. Wireless Foot Switch: Wireless foot switch matching |
| 3. E: Root canal irrigation | 7. Turn up water volume/power/air pressure | 11. Factory reset: Factory reset |
| 4. A: Air polishing (Intelligent recognition after taking the air polishing handpiece, no need for manual selection) | 8. Heating: Turn on/off the heating function of air polishing system |
Specification
1.Input:AC100~240V, 50/60Hz
2.Main Unit Input:25V 50Hz 2.8A
3.Water Input pressure:0.01MPa~0.05MP
4.Vibration frequency of the tip:30 kHz±5 KHz
5.Ultrasonic output power:3W~20W
6.Output Half-excursion:≤2N
7.Foot Switch Batteries:1.5V×2
8.Receiving Sensitivity:-114Db
9.Main Unit Dimensions:310mmX370mmX200mm
10.Packing Size:530×230×510mm
11.Weight of main unit:2.43 kg
12.Gross Weight:6.50 kg
Packing List
| 1. Main Unit(DQ-80)×1 | 11. Waterproof Sticker×1 | 21. Fuse×1 |
| 2. Water Bottle×1 | 12. Tip X10 (P11, P12, P12L, P12R, P16, G1, G5, P1, I, M1, E1) | 22. Powder Tank Components ×1 |
| 3. Wireless Foot Switch×1 | 13. T type Quick Connector(PEG8-6)×2 | 23. Scaler Tips abrasion Contrast Card×1 |
| 4. Wired Foot Switch×1 | 14. Self-locking Quick Connector×1 | 24. Self-locking Quick Female Joint×2 |
| 5. AH-1 Supragingival Sandblasting Handpiece×2 | 15. Torque Wrench×1 | 25. Self-locking Quick Male Joint×1 |
| 6. AH-2 Subgingival Sandblasting Handpiece×1 | 16. Endo File Wrench×1 | 26. Needle(0.5)×1 |
| 7. Subgingival Sandblasting Nozzle×4 | 17. PU Pipe 4*6mm(0.5m)×2 | 27. Needle(1%)×1 |
| 8. PH-2 LED Scaling Handpiece×2 | 18. Braided Hose 4*6mm(2.5m)×1 | 28. Endo File(25#)×6 |
| 9. Disinfection Box×2 | 19. O Ring ×41 | 29. Tips Instruction Manual×1 |
| 10. Power Adaptor×1 | 20. Silicone Tube 4×1.5(11mm)×2 | 30. The Specification of O Ring×1 |
